Special Tools Required - Zip HydroTap G4 Celsius Installation Instructions Manual

1.1 Tools, hole positioning and hole size

Special tools required

In addition to normal tools, the following will be required.
For the HydroTap G4 and mixer taps.
®
• 35mm diameter sheet metal hole punch for sinks (not supplied).
• 35mm diameter hole saw for worktops (not supplied).
• 42mm AF nut runner (not supplied) for fixing the tap assembly.
Hole size and positioning
Position the tap such that it dispenses into the sink bowl with ample clearance for a jug, cup or tea pot.
Ø35mm hole required in mounting surface.

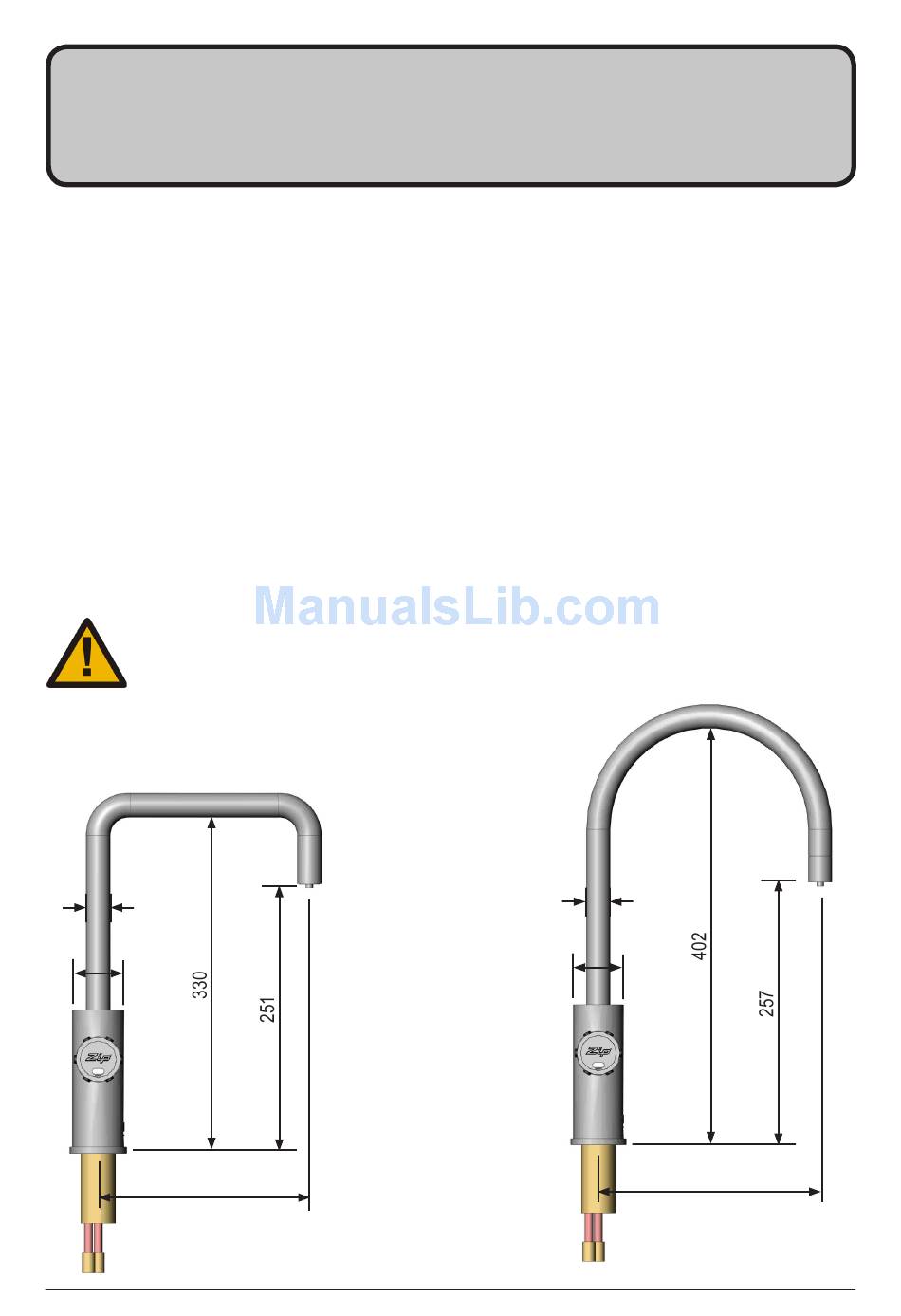

Tap positioning
Note
Celsius taps have spouts that swivel. All images are for illustrative purposes, to aid
understanding of the system configuration, and are not prescriptive of tap positioning. Ensure that
the taps are mounted in a position that allows the water to safely drain to waste throughout the
complete positional range.
Ø23
Ø49
220
Cube
802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Section 1
Celsius tap installation
Ø23
Ø49
220
Arc
Page 11 of 28
