Zip HydroTap Classic Installation Instructions

6

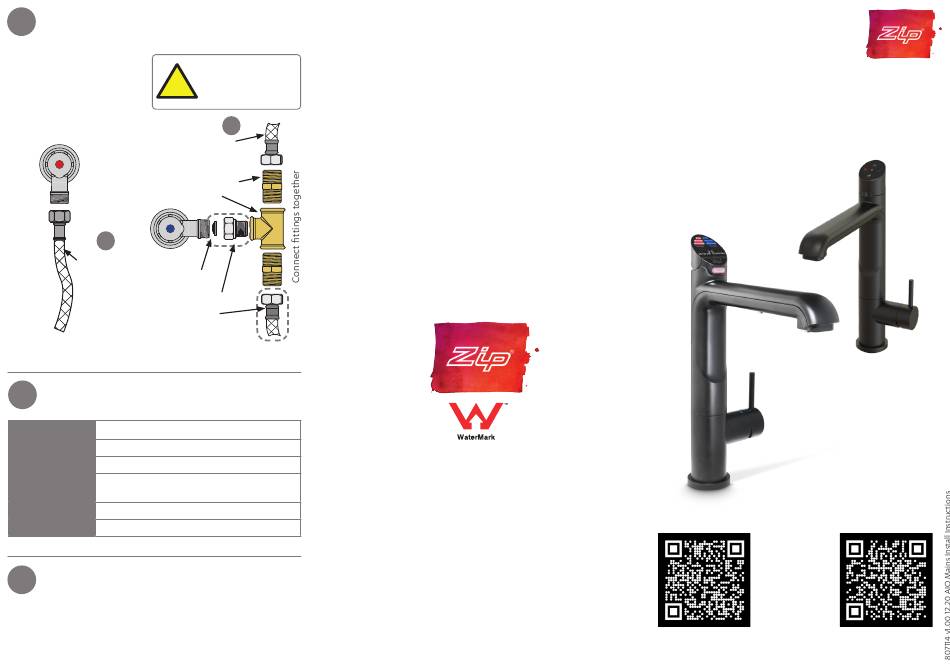

Connect the water supply
All fittings are supplied apart from the isolation
valve.
!
Hot water isolation valve
(not supplied)
Blue marked braided
hose to mixer tap
2x male adaptor
Mains water
isolation valve
T-piece
(not supplied)
4
See
Red marked
Strainer
braided hose to
mixer tap
1/2" BSP adaptor
Braided hose to
Command Centre
MAINS inlet (supplied
with Command Centre)
7
Command Centre connections
Mains In Mains potable water supply.
USB
Connected to the Tap.
Boiling out
Red silicone tube from tap. Cut to length.
(BC) Blue silicone tube from tap,
Chilled out
(BCS ) Blue JG pipe from tap. Cut to length.
Vent Clear silicone tube from tap. Cut to length.
Sparkling out White JG pipe from tap. Cut to length.
8
Cleaning and general maintenance
Wipe surfaces with a damp cloth and then wipe dry
with a clean, dry cloth. Do not use strong, corrosive or
abrasive cleaning materials.
Valves and fittings
must be sealed
with PTFE tape.
4
See
67 - 77 Allingham Street, Condell Park, NSW 2200
Postal: Locked Bag 80, Bankstown 1885, Australia
(+612) 9796 3100 | Free Call (Aust): 1800 947 827
WMK25927
AS/NZS 3718
Zip Water (Aust) Pty Ltd
ABN 46 000 578 727
www.zipwater.com
Zip Water UK
Trafalgar House
Rash's Green, Dereham,
Norfolk NR19 1JG
0345 6 005 005 | sales@zipindustries.co.uk
specify.zipwater.co.uk
Installation instructions
Zip
HydroTap

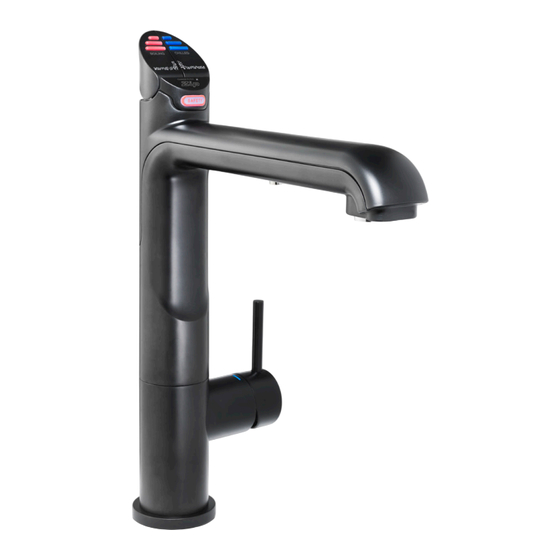

Classic / Classic Plus All-in-One Mains Mixer
BC, BCS
Australia
Visit our website to download the manuals
UK
