Zip HydroTap G4 Celsius Installation Instructions Manual

Filtered boiling, chilled and chilled sparkling drinking water with unfiltered mixed hot and cold water for residential kitchens celsius residential series
Hide thumbs Also See for HydroTap G4 Celsius:

Advertisement

Quick Links

Installation instructions

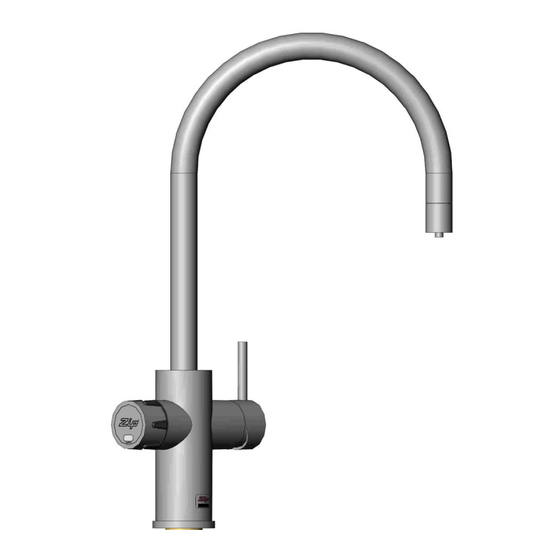

Zip HydroTap G4
®
Celsius
Filtered boiling, chilled and chilled sparkling drinking water with unfiltered mixed hot and cold
water for residential kitchens.
VENTILATION IS
ESSENTIAL
Affix model number label
!
here
802149UK
READ
SECTION 2 'VENTILATION'
READ BEFORE YOU START
802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
Page 1 of 28

Advertisement

Table of Contents
loading

Summary of Contents for Zip HydroTap G4 Celsius

  • Page 1 Installation instructions Zip HydroTap G4 ® Celsius Filtered boiling, chilled and chilled sparkling drinking water with unfiltered mixed hot and cold water for residential kitchens. VENTILATION IS ESSENTIAL Affix model number label here 802149UK READ SECTION 2 'VENTILATION' READ BEFORE YOU START 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03...
  • Page 2 The Celsius residential series offers a complete range of features and functionality to suit the customer's needs These taps are directly compatible with the G4 Celsius Arc range residential Command-Centre Celsius Cube range Boiling + mixed hot & cold Residential G4 Command-Centre Celsius options Chilled + mixed hot &...
  • Page 3 Index HydroTap G4 specifications ® Installation check list ........................4 General product features ......................5 Important safety instructions ......................6 Warnings and regulatory information ................... 7 Major components and accessories ..................... 8 Technical specification ......................... 9 Before installation and site requirements ..................10 Installation instructions Step 1 - Measure and cut all the tap holes before fitting the taps.
  • Page 4: Installation Check List

    Installation checklist Before installation • Read the instructions and check if there is adequate space to mount all of the components. • Note Not all fittings are supplied with the appliance kit. Isolation valves are not supplied. • Check the mains water pressure is within min / max requirements (see page 9). • Check the water quality to determine if extra filtration will be required.
  • Page 5: General Product Features

    General product features Thank you for purchasing a Zip HydroTap G4 Celsius. Please read and follow these instructions carefully to ® ensure safe and trouble free service. If service is required, please call 0845 6 005 005 or 0345 6 005 005...
  • Page 6: Important Safety Instructions

    Important safety instructions This manual contains important safety and installation instructions for the Zip HydroTap ® Please read all warnings, installation requirements and installation instructions before installing any Zip HydroTap G4. This model must be installed in accordance with water supply ®...
  • Page 7: Warnings And Regulatory Information

    • All installation and service work must be completed by trained and suitably qualified trades-people. Faulty operation due to unqualified persons working on this product, or any other Zip product may void warranty coverage. • As the installer, it is your responsibility to supply (if necessary) and install all valves as required by local regulations and relevant standards.
  • Page 8: Major Components And Accessories

    For Zip HydroTap 160/125 &160/175 models, a 220-240Vac, 10A GPO will be BCH240/175G4 required. For Zip HydroTap 240/175 models, two 220-240Vac, 10A GPOs will be SPIDER required. (One GPO is for the Zip HydroTap and the other for the Booster heater). CLAMP NOTE: feed each of the three tubes and AV160/125G4 NOTE: Check the cable lengths and outlet positions before proceeding.
  • Page 9: Technical Specification

    Technical specifications Residential HydroTap G4 Celsius range ® Boiling and filtered together with mixed hot & cold. Chilled and filtered together with mixed hot & cold. Chilled, sparkling and filtered together with mixed hot & cold. Cube Power Unit Dimensions 13A sockets *Dry weight Model...
  • Page 10: Before Installation And Site Requirements

    Before installation and site requirements Before installing ensure that the following have been provided at the installation site • Review all the technical specifications. • Ensure the under counter can support the product weight when full of water (allow an extra 2.5- 3.0 kg when full). • Sufficient space in the cupboard to install all of the Command-Centre plus related hardware in accordance with these installation instructions.
  • Page 11: Special Tools Required

    Section 1 Celsius tap installation 1.1 Tools, hole positioning and hole size Special tools required In addition to normal tools, the following will be required. For the HydroTap G4 and mixer taps. ® • 35mm diameter sheet metal hole punch for sinks (not supplied). • 35mm diameter hole saw for worktops (not supplied).
  • Page 12 Installation instructions 1.2 Chilled and sparkling + mixed hot & cold tap installation Celsius taps require a 35mm hole. Ø Ø35mm Note Make sure the tap location will allow the tap spout to drain into the sink. Vent Upper rubber 35mm hole Ø...
  • Page 13 Installation instructions 1.3 Boiling + mixed hot & cold tap installation Chilled + mixed hot & cold tap installation Celsius taps require a 35mm hole. Ø Ø35mm Note Make sure the tap location will allow the tap spout to drain into the sink. Vent Upper rubber...
  • Page 14 Section 2 Ventilation 2.1 Ventilation for all models • The clearance envelope dimensions stated in the specification sheets and installation instructions must be observed. • Adequate ventilation must be provided to ensure that the cupboard space temperature does not exceed Preferred arrangement • 4mm door buffers (at the four corners of each door) supplied with the Command-Centre should be used...
  • Page 15: Cartridge Installation And Flush

    Filter / softener installation An external filter / softener may be fitted to reduce the incidence of scale build up in the hot tank or may be supplied at the customer’s request. (Scale filter head fitting kit order code ZT200G4). 3.1 Mounting the filter head • Choose a suitable location, (cupboard back or side wall) within the reach of the braided hoses.
  • Page 16 Section 4 cylinder WARNING! The cylinder ( containing 1kg of CO ) should be installed in a well ventilated area of area no less than 38m If more than 1 gas cylinder containing 1kg of CO is present within the same location, the recommended ventilation area should be in proportion to the number of gas cylinders stored in that location.
  • Page 17 regulator ON - OFF knob Green indicator Note When removing hose, take care not to lose plastic olive from the nut. Leak test After replacing a cylinder or after making a gas connection, perform a leak test Stage1 1. Turn the gas OFF 2.
  • Page 18 Section 5 Command-Centre installation 5.1 External bypass valve The diverter bypass valve allows the user to choose to have the boiling feed water bypass the internal filter and only be filtered by the external filtration. This diverter valve is located at the rear panel of the Command-Centre , see the diagram below.
  • Page 19 Installation instructions 5.3 Boiling and mixed hot & cold Cube MAINS MIXER MIXER BOILING BYPASS VENT BYPASS POWER CABLE Note All plastic pipes / silicon tubes must be trimmed to size. They must have a constant fall to the Command-Centre Clearance Note Mains hose length is 750mm.
  • Page 20 Installation instructions 5.3 Chilled and mixed hot & cold Cube CHILLED MAINS POWER OUTLET CABLE Note Mains hose length is 750mm. Electrical power cable length is 3.0m nom. Position the Command-Centre according to the hose and cable lengths supplied. Note All plastic pipes / silicon tubes must be Clearance trimmed to size.
  • Page 21 Installation instructions 5.3 Chilled, sparkling and mixed hot & cold Cube SPARKLING CHILLED MAINS POWER OUTLET OUTLET CABLE Note Mains hose length is 750mm. Electrical power cable length is 3.0m nom. Position the Command-Centre according to the hose and cable lengths supplied. Note All plastic pipes Clearance / silicon tubes must be...
  • Page 22: Filter Flush

    At first commissioning, the system will select the CO purge automatically, in this instance press the [START] button to commence the purging process then follow the steps after [START] below. Zip Chilled Sparkling 10.30 Wed 14, Nov 2013 • Press the [MENU] button for main menu.
  • Page 23: Boiling Calibration

    Commissioning • Press [START] / [STOP] button to start and stop the filter Boiling 03:01 PM, TUE 12, Feb 2013 flush. Prepare filter flush as per instructions and press START • Open the flush stop cock. • Allow at least 10 litres of water to flush through the filter. STOP START • Once the filter flush is finished, close the stop cock then...
  • Page 24 Flow Sensor Fault Internal fault Call Zip Service Call an electrician, a plumber, or Zip on 0845 6 005 005 or 0345 6 005 005 for assistance, service, spare parts or enquiries. Page 24 of 28 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03...
  • Page 25: End Of Life Disposal

    In order to help preserve our environment we ask that you dispose of this product correctly. Please contact Zip Customer Service on 0845 6 005 005 or 0345 6 005 005 for advice.
  • Page 26: Warranty

    Furthermore, this warranty does not displace any statutory warranty, but, to the extent to which Zip is entitled to do so, the liability of Zip under any statutory warranty will be limited at Zip’s option to the replacement of the...
  • Page 27 Notes 802149UK Celsius residential - Installation instructions -Jan 2016 v2.03 Page 27 of 28...
  • Page 28: Contact Details

    The standard cup referred to in this publication is 167 ml (6 fl oz). The standard glass is 200 ml (7 fl oz). The terms “Zip” and “HydroTap” are registered trade marks of Zip Heaters (Aust) Pty Ltd. Zip products described in this publication are manufactured under one or more of the following patents: AU675601, AU637412, AU635979, GB0422305, GB2065848, US4354049, US5103859, US5099825 and SA2006/08043.
