2.1 Ventilation for all models
• The clearance envelope dimensions stated in the specification sheets and installation instructions must
be observed.
• Adequate ventilation must be provided to ensure that the cupboard space temperature does not exceed
35
C.
0
Preferred arrangement
• 4mm door buffers (at the four corners of each door) supplied with the Command-Centre
to provide adequate ventilation in normal usage, see diagram below left.
Alternative arrangement
Door buffers

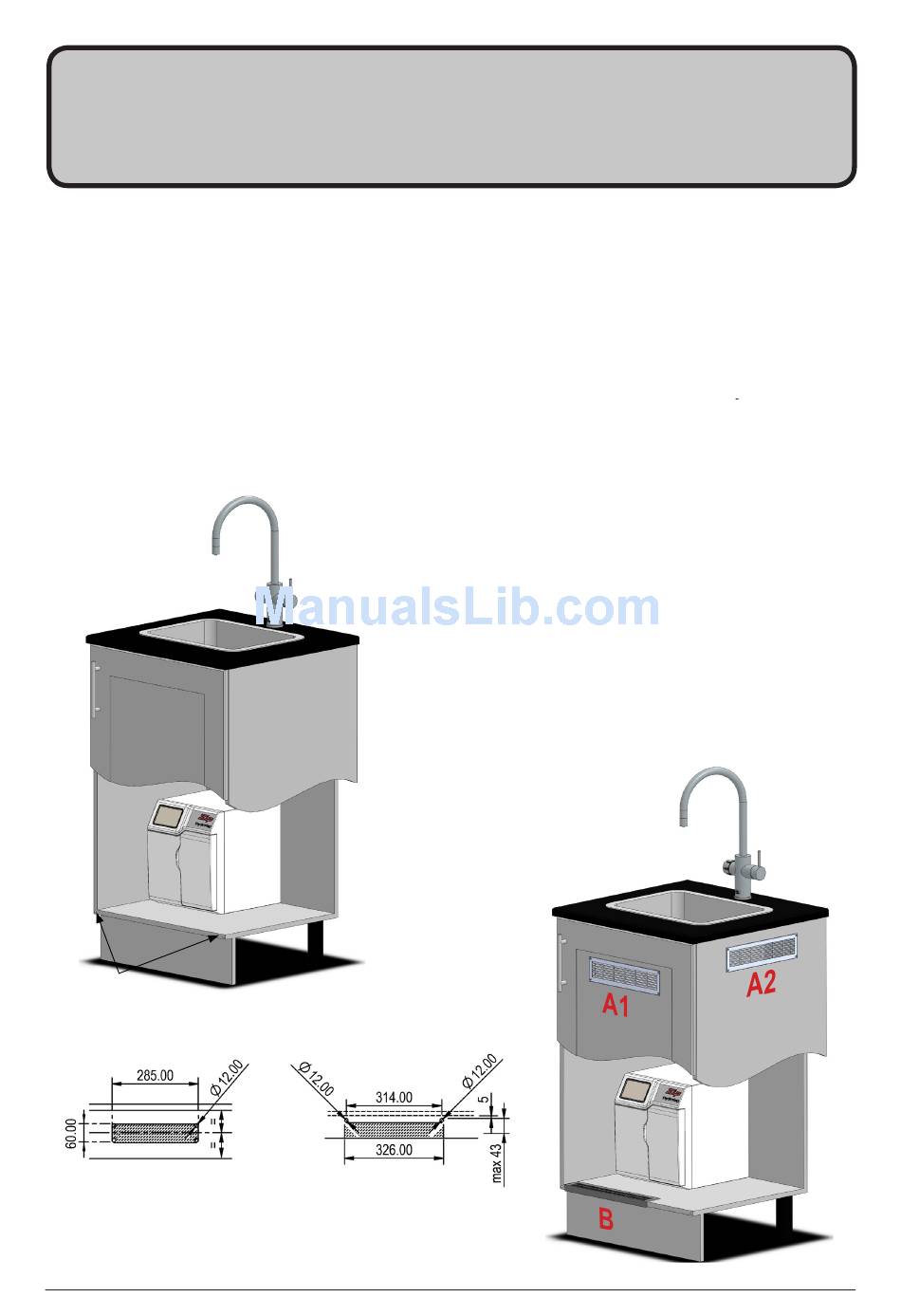

Vent cut-out details
A Air outlet vent
*
Note
Flat outlet vent shown in adjacent diagram, louvred
vent also supplied with CS models.
Page 14 of 28
Section 2
Ventilation
For chilled sparkling models in high use applications where
the cupboard space temperature is near 35
vent kit (supplied with chilled and chilled sparkling models)
can be used to provide further ventilation by convection.
Note
The vent kit has to be installed in a way that allows
air to be drawn in from the bottom of the cupboard and
expelled through the top of the cupboard. The outlet vent
should be towards the top of the door (position A1) or side
of the cupboard (position A2). (Where possible air inlet vent
and the air outlet vent should be positioned at opposite ends
of the same
cupboard
space).
* For dual
exhaust
fan cut-out
dimensions
see the
instructions
provided with
the kit.
B Air inlet vent
802149UK Celsius residential - Installation instructions -Jan 2016 v2.03
should be used
TM
C or higher, the
0
A
