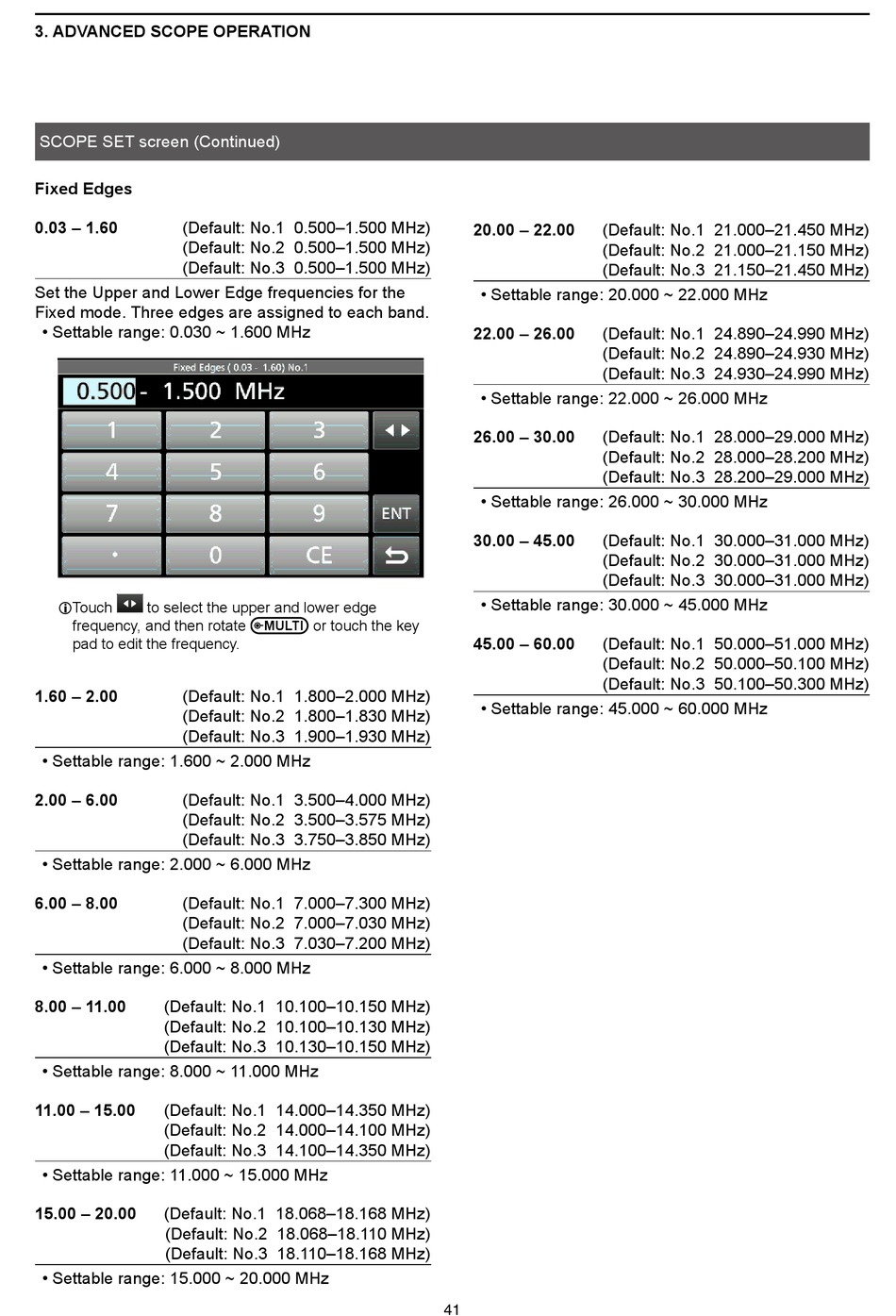

Icom IC-7610 Advanced Manual page 47

3. ADVANCED SCOPE OPERATION
SCOPE SET screen (Continued)
Fixed Edges
(Default: No.1 0.500–1.500 MHz)
0.03 – 1.60
(Default: No.2 0.500–1.500 MHz)
(Default: No.3 0.500–1.500 MHz)
Set the Upper and Lower Edge frequencies for the
Fixed mode. Three edges are assigned to each band.
• Settable range: 0.030 ~ 1.600 MHz
L Touch
to select the upper and lower edge
frequency, and then rotate
pad to edit the frequency.
(Default: No.1 1.800–2.000 MHz)
1.60 – 2.00
(Default: No.2 1.800–1.830 MHz)
(Default: No.3 1.900–1.930 MHz)
• Settable range: 1.600 ~ 2.000 MHz
(Default: No.1 3.500–4.000 MHz)
2.00 – 6.00
(Default: No.2 3.500–3.575 MHz)
(Default: No.3 3.750–3.850 MHz)
• Settable range: 2.000 ~ 6.000 MHz
(Default: No.1 7.000–7.300 MHz)
6.00 – 8.00
(Default: No.2 7.000–7.030 MHz)
(Default: No.3 7.030–7.200 MHz)
• Settable range: 6.000 ~ 8.000 MHz
(Default: No.1 10.100–10.150 MHz)
8.00 – 11.00
(Default: No.2 10.100–10.130 MHz)
(Default: No.3 10.130–10.150 MHz)
• Settable range: 8.000 ~ 11.000 MHz
(Default: No.1 14.000–14.350 MHz)
11.00 – 15.00
(Default: No.2 14.000–14.100 MHz)
(Default: No.3 14.100–14.350 MHz)
• Settable range: 11.000 ~ 15.000 MHz
(Default: No.1 18.068–18.168 MHz)
15.00 – 20.00
(Default: No.2 18.068–18.110 MHz)
(Default: No.3 18.110–18.168 MHz)
• Settable range: 15.000 ~ 20.000 MHz
or touch the key
MULTI
(Default: No.1 21.000–21.450 MHz)
20.00 – 22.00
(Default: No.2 21.000–21.150 MHz)
(Default: No.3 21.150–21.450 MHz)
• Settable range: 20.000 ~ 22.000 MHz
(Default: No.1 24.890–24.990 MHz)
22.00 – 26.00
(Default: No.2 24.890–24.930 MHz)
(Default: No.3 24.930–24.990 MHz)
• Settable range: 22.000 ~ 26.000 MHz
(Default: No.1 28.000–29.000 MHz)
26.00 – 30.00
(Default: No.2 28.000–28.200 MHz)
(Default: No.3 28.200–29.000 MHz)
• Settable range: 26.000 ~ 30.000 MHz
(Default: No.1 30.000–31.000 MHz)
30.00 – 45.00
(Default: No.2 30.000–31.000 MHz)
(Default: No.3 30.000–31.000 MHz)
• Settable range: 30.000 ~ 45.000 MHz
(Default: No.1 50.000–51.000 MHz)
45.00 – 60.00
(Default: No.2 50.000–50.100 MHz)
(Default: No.3 50.100–50.300 MHz)
• Settable range: 45.000 ~ 60.000 MHz
