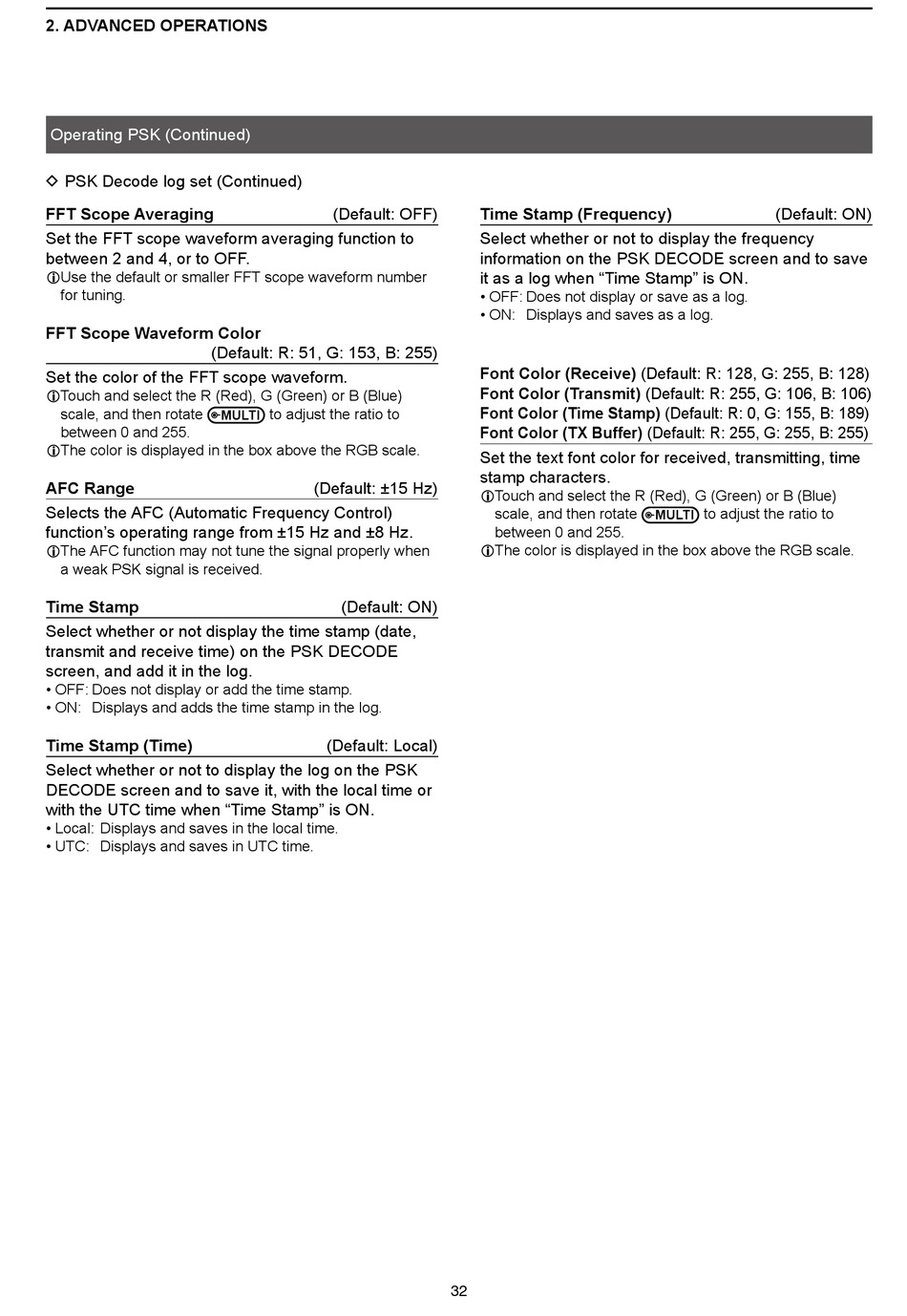

Icom IC-7610 Advanced Manual page 36

2. ADVANCED OPERATIONS
Operating PSK (Continued)
D PSK Decode log set (Continued)
FFT Scope Averaging
Set the FFT scope waveform averaging function to
between 2 and 4, or to OFF.
L Use the default or smaller FFT scope waveform number
for tuning.
FFT Scope Waveform Color
(Default: R: 51, G: 153, B: 255)
Set the color of the FFT scope waveform.
L Touch and select the R (Red), G (Green) or B (Blue)
scale, and then rotate
between 0 and 255.
LThe color is displayed in the box above the RGB scale.
AFC Range
Selects the AFC (Automatic Frequency Control)
function's operating range from ±15 Hz and ±8 Hz.
L The AFC function may not tune the signal properly when
a weak PSK signal is received.
Time Stamp
Select whether or not display the time stamp (date,
transmit and receive time) on the PSK DECODE
screen, and add it in the log.
• OFF: Does not display or add the time stamp.
• ON: Displays and adds the time stamp in the log.
Time Stamp (Time)
Select whether or not to display the log on the PSK
DECODE screen and to save it, with the local time or
with the UTC time when "Time Stamp" is ON.
• Local: Displays and saves in the local time.
• UTC: Displays and saves in UTC time.
(Default: OFF)
to adjust the ratio to
MULTI
(Default: ±15 Hz)
(Default: ON)
(Default: Local)
Time Stamp (Frequency)
Select whether or not to display the frequency
information on the PSK DECODE screen and to save
it as a log when "Time Stamp" is ON.
• OFF: Does not display or save as a log.
• ON: Displays and saves as a log.
Font Color (Receive) (Default: R: 128, G: 255, B: 128)
Font Color (Transmit) (Default: R: 255, G: 106, B: 106)
Font Color (Time Stamp) (Default: R: 0, G: 155, B: 189)
Font Color (TX Buffer) (Default: R: 255, G: 255, B: 255)
Set the text font color for received, transmitting, time
stamp characters.
L Touch and select the R (Red), G (Green) or B (Blue)
scale, and then rotate
between 0 and 255.
LThe color is displayed in the box above the RGB scale.
32
(Default: ON)
to adjust the ratio to
MULTI
