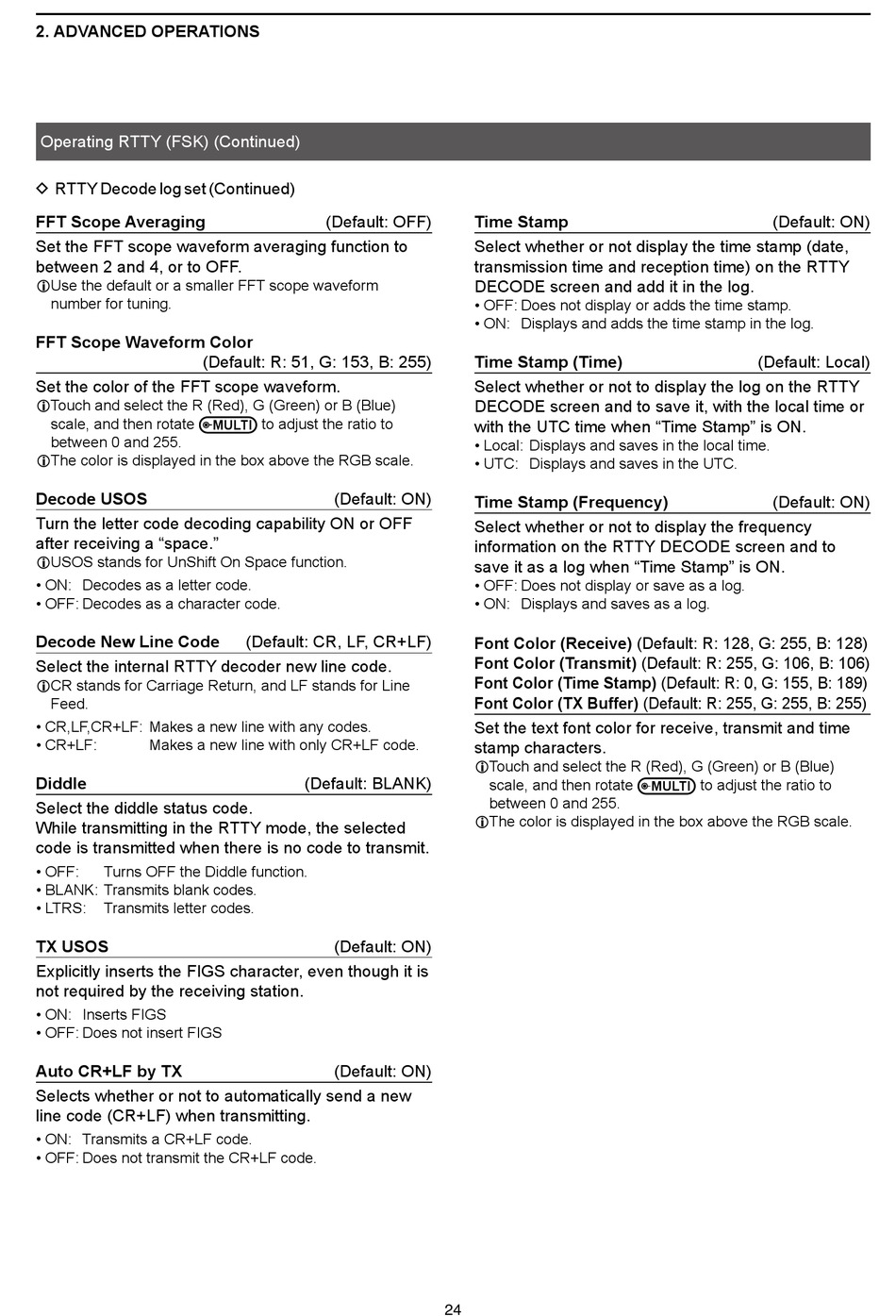

Icom IC-7610 Advanced Manual page 28

2. ADVANCED OPERATIONS
Operating RTTY (FSK) (Continued)
D RTTY Decode log set (Continued)
FFT Scope Averaging
Set the FFT scope waveform averaging function to
between 2 and 4, or to OFF.
L Use the default or a smaller FFT scope waveform
number for tuning.
FFT Scope Waveform Color
(Default: R: 51, G: 153, B: 255)
Set the color of the FFT scope waveform.
L Touch and select the R (Red), G (Green) or B (Blue)
scale, and then rotate
between 0 and 255.
LThe color is displayed in the box above the RGB scale.
Decode USOS
Turn the letter code decoding capability ON or OFF
after receiving a "space."
LUSOS stands for UnShift On Space function.
• ON: Decodes as a letter code.
• OFF: Decodes as a character code.
Decode New Line Code
Select the internal RTTY decoder new line code.
L CR stands for Carriage Return, and LF stands for Line
Feed.
• CR,LF,CR+LF: Makes a new line with any codes.
• CR+LF: Makes a new line with only CR+LF code.
Diddle
Select the diddle status code.
While transmitting in the RTTY mode, the selected
code is transmitted when there is no code to transmit.
• OFF: Turns OFF the Diddle function.
• BLANK: Transmits blank codes.
• LTRS: Transmits letter codes.
TX USOS
Explicitly inserts the FIGS character, even though it is
not required by the receiving station.
• ON: Inserts FIGS
• OFF: Does not insert FIGS
Auto CR+LF by TX
Selects whether or not to automatically send a new
line code (CR+LF) when transmitting.
• ON: Transmits a CR+LF code.
• OFF: Does not transmit the CR+LF code.
(Default: OFF)
to adjust the ratio to
MULTI
(Default: ON)
(Default: CR, LF, CR+LF)
(Default: BLANK)
(Default: ON)
(Default: ON)
Time Stamp
Select whether or not display the time stamp (date,
transmission time and reception time) on the RTTY
DECODE screen and add it in the log.
• OFF: Does not display or adds the time stamp.
• ON: Displays and adds the time stamp in the log.
Time Stamp (Time)
Select whether or not to display the log on the RTTY
DECODE screen and to save it, with the local time or
with the UTC time when "Time Stamp" is ON.
• Local: Displays and saves in the local time.
• UTC: Displays and saves in the UTC.
Time Stamp (Frequency)
Select whether or not to display the frequency
information on the RTTY DECODE screen and to
save it as a log when "Time Stamp" is ON.
• OFF: Does not display or save as a log.
• ON: Displays and saves as a log.
Font Color (Receive) (Default: R: 128, G: 255, B: 128)
Font Color (Transmit) (Default: R: 255, G: 106, B: 106)
Font Color (Time Stamp) (Default: R: 0, G: 155, B: 189)
Font Color (TX Buffer) (Default: R: 255, G: 255, B: 255)
Set the text font color for receive, transmit and time
stamp characters.
L Touch and select the R (Red), G (Green) or B (Blue)
scale, and then rotate
between 0 and 255.
LThe color is displayed in the box above the RGB scale.
24
(Default: ON)
(Default: Local)
(Default: ON)
to adjust the ratio to
MULTI
