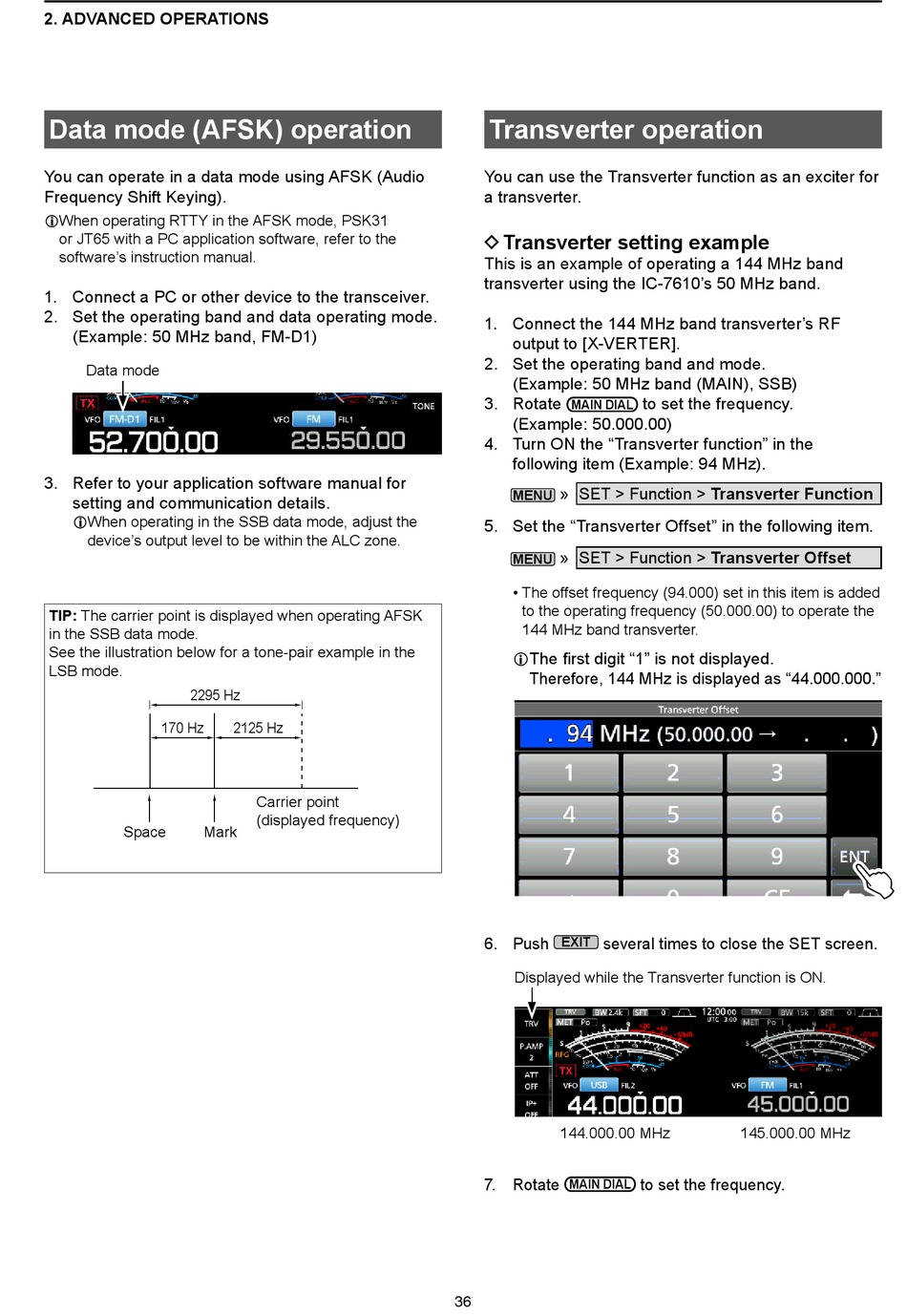

2. ADVANCED OPERATIONS

Data mode (AFSK) operation

You can operate in a data mode using AFSK (Audio
Frequency Shift Keying).
L When operating RTTY in the AFSK mode, PSK31
or JT65 with a PC application software, refer to the
software's instruction manual.
1. Connect a PC or other device to the transceiver.
2. Set the operating band and data operating mode.
(Example: 50 MHz band, FM-D1)
Data mode
3. Refer to your application software manual for
setting and communication details.
L When operating in the SSB data mode, adjust the
device's output level to be within the ALC zone.
TIP: The carrier point is displayed when operating AFSK
in the SSB data mode.
See the illustration below for a tone-pair example in the
LSB mode.
2295 Hz
170 Hz
Space Mark
2125 Hz
Carrier point
(displayed frequency)
Transverter operation
You can use the Transverter function as an exciter for
a transverter.
D Transverter setting example
This is an example of operating a 144 MHz band
transverter using the IC-7610's 50 MHz band.
1. Connect the 144 MHz band transverter's RF
output to [X-VERTER].
2. Set the operating band and mode.
(Example: 50 MHz band (MAIN), SSB)
3. Rotate
MAIN DIAL
(Example: 50.000.00)
4. Turn ON the "Transverter function" in the
following item (Example: 94 MHz).
» SET > Function > Transverter Function
MENU
5. Set the "Transverter Offset" in the following item.
» SET > Function > Transverter Offset
MENU
• The offset frequency (94.000) set in this item is added
to the operating frequency (50.000.00) to operate the
144 MHz band transverter.
L The irst digit "1" is not displayed.
Therefore, 144 MHz is displayed as "44.000.000."
6. Push EXIT several times to close the SET screen.
Displayed while the Transverter function is ON.
144.000.00 MHz
7. Rotate
MAIN DIAL
36
to set the frequency.
145.000.00 MHz
to set the frequency.
