2. ADVANCED OPERATIONS

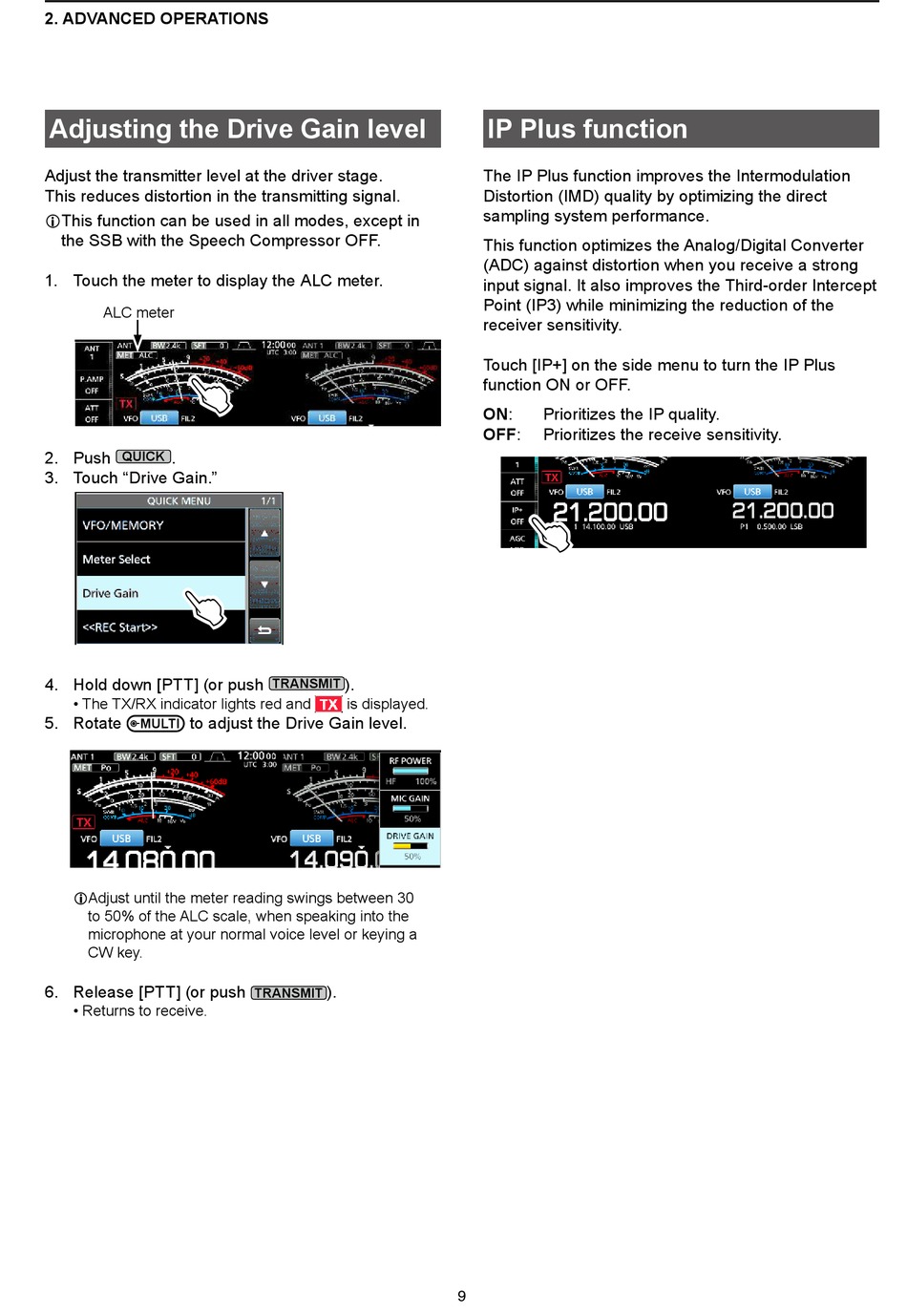

Adjusting the Drive Gain level

Adjust the transmitter level at the driver stage.
This reduces distortion in the transmitting signal.
L This function can be used in all modes, except in
the SSB with the Speech Compressor OFF.
1. Touch the meter to display the ALC meter.
ALC meter
QUICK
2. Push .
3. Touch "Drive Gain."
4. Hold down [PTT] (or push
• The TX/RX indicator lights red and
5. Rotate to adjust the Drive Gain level.
MULTI
L Adjust until the meter reading swings between 30
to 50% of the ALC scale, when speaking into the
microphone at your normal voice level or keying a
CW key.
6. Release [PTT] (or push
• Returns to receive.
TRANSMIT ).
is displayed.
).
TRANSMIT
IP Plus function
The IP Plus function improves the Intermodulation
Distortion (IMD) quality by optimizing the direct
sampling system performance.
This function optimizes the Analog/Digital Converter
(ADC) against distortion when you receive a strong
input signal. It also improves the Third-order Intercept
Point (IP3) while minimizing the reduction of the
receiver sensitivity.
Touch [IP+] on the side menu to turn the IP Plus
function ON or OFF.
ON: Prioritizes the IP quality.
OFF: Prioritizes the receive sensitivity.
