CVM k 2
3. OPERATION

3.1 DESCRIPTION OF DEVICE

The external dimensions of the CVMk2 network analyzer are 144 x 144 x 116 mm. It is
comprised of a display screen and a measuring module. The display screen communicates
with the measuring module via an RJ-45 line, which is "transparent" or direct. The wire layout
is provided in the figure below:

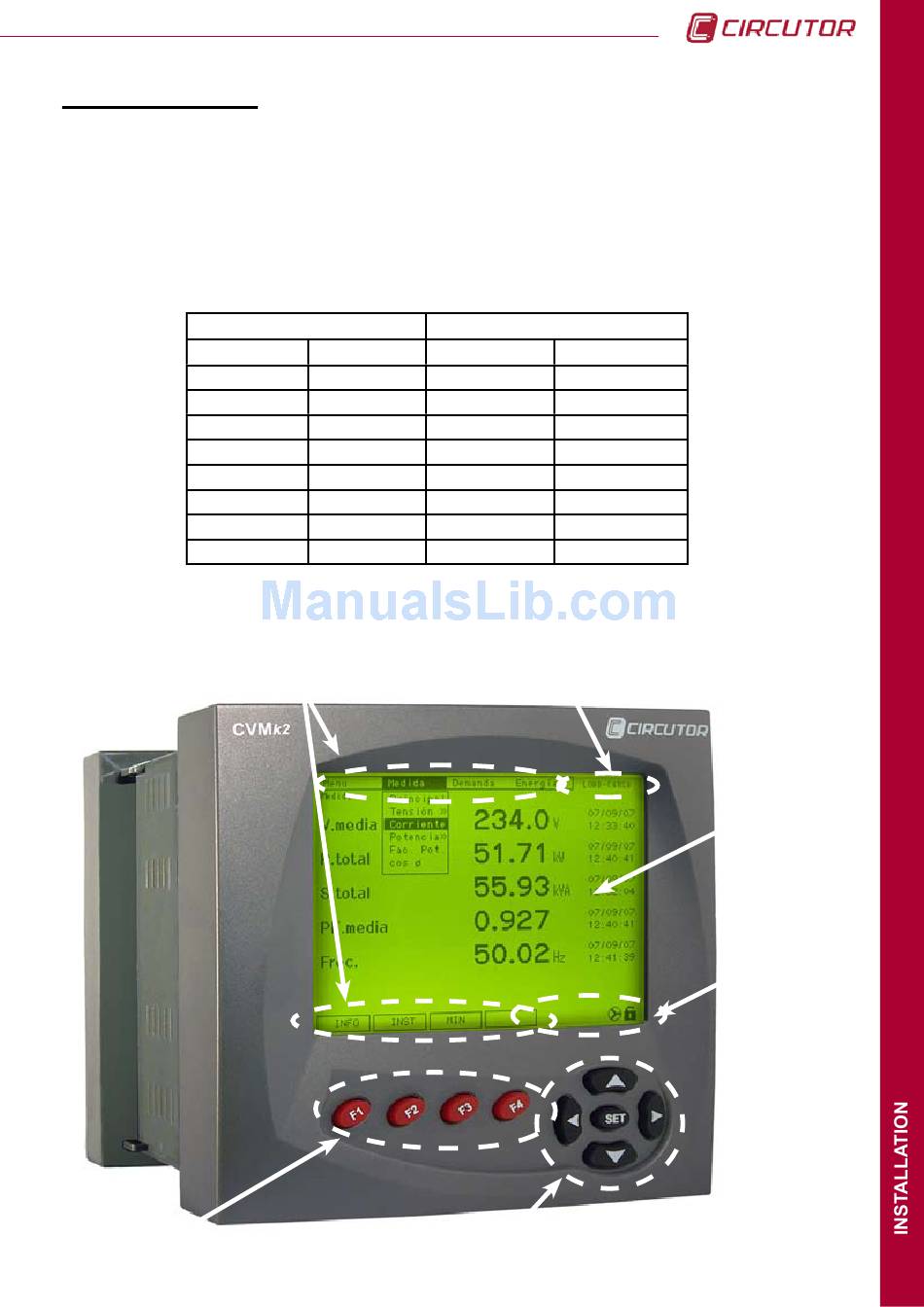

3.1.1 FRONTAL VIEW
fUNCTION BUTTONS
DISPLAY SCREEN
PIN
SIGNAL
1
V+
2
gND
3
B (-)
4
Shield
5
Shield
6
A (+)
7
gND
8
V -
mENUS
MEASURING EQUIPMENT
SIGNAL
PIN
V+
gND
B (-)
Shield
Shield
A (+)
gND
V -
mODULE NAmE
NAVIgATION BUTTONS
1
2
3
4
5
6
7
8
D I S P L A y
SCREEN
ICONS
25
