CVM k 2

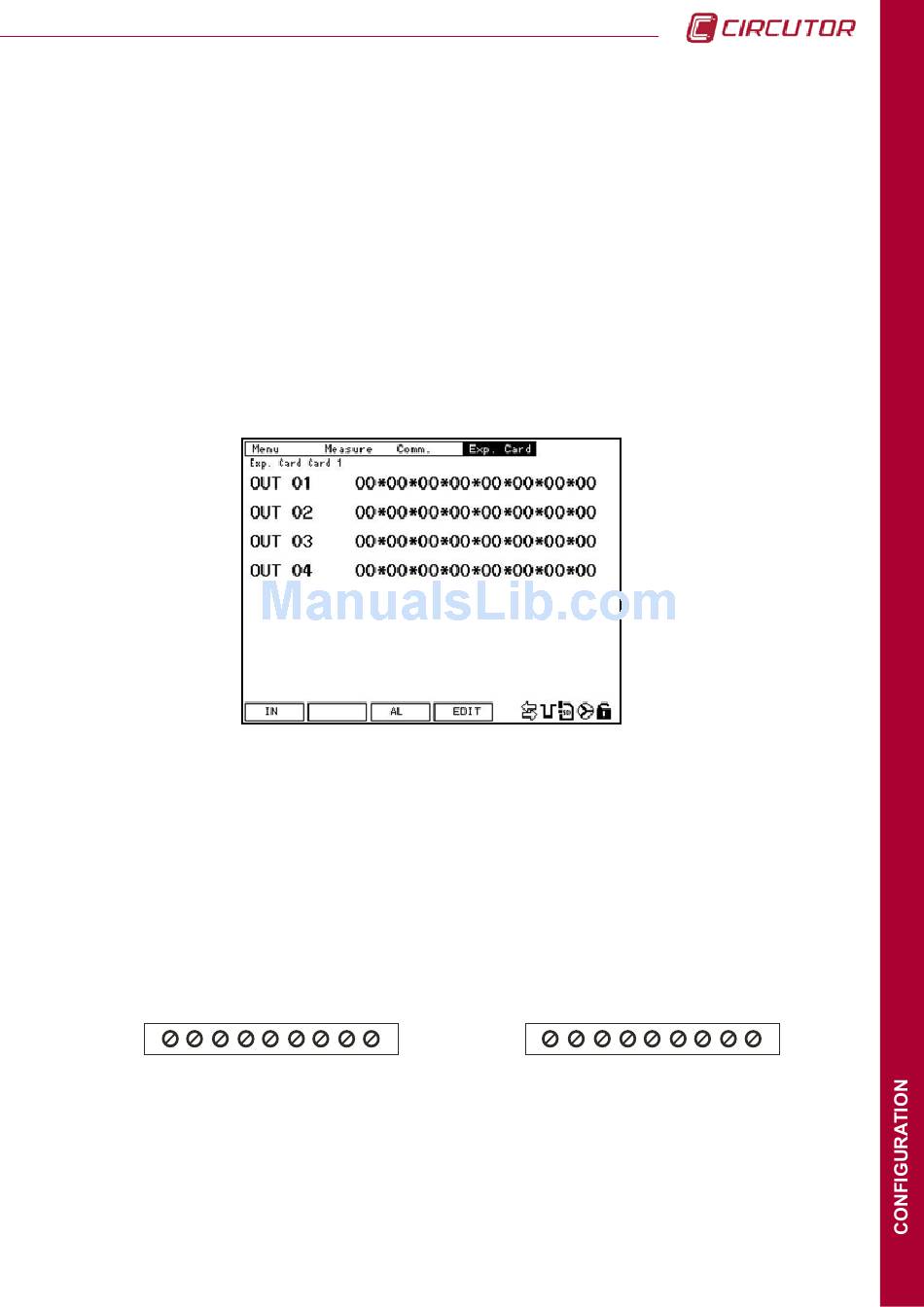

4.7.6.4. Static outputs configuration

The outputs of the expansion card are configurating in that screen. The transistor are called
, ,
OUT 01 OUT 02 OUT 03
On this screen you configure alarms equations that are applied to select the outputs of the
device. you can set up equations with functions AND (*) and / or OR (+) in one or more of the
16 pre-configured alarms (see section 4.7.6.3 Alarm configuration), to activate each of the 4
output transistor of the team.
To modify the configuration parameters of the card, you must press the
output you want to configure and press
4.7.6.5. Outputs wiring
The layout of the outputs of the expansion card is as follows
A. OUTPUTS
1 2 3 4 5 6 7 8 9
1- COMMON
2- Analogic output 1
3- COMMON
4- Analogic output 2
5- COMMON
6- Analogic output 3
7- COMMON
8- Analogic output 4
9- No used
and .
OUT 04
to enter editing.
SET
(f4). Select the
EDIT
T. OUTPUTS
1 2 3 4 5 6 7 8 9
1- COMMON
2- COMMON
3-
COMMON
4- COMMON
5- COMMON
6- Transistor ouput 1
7- Transistor ouput 2
8- Transistor ouput 3
9- Transistor ouput 4
71
