4.- OPERATION
4�1�- DESCRIPTION OF THE DEVICE
LED Power
Voltage
terminals
Current injection
terminals
LED Link
12

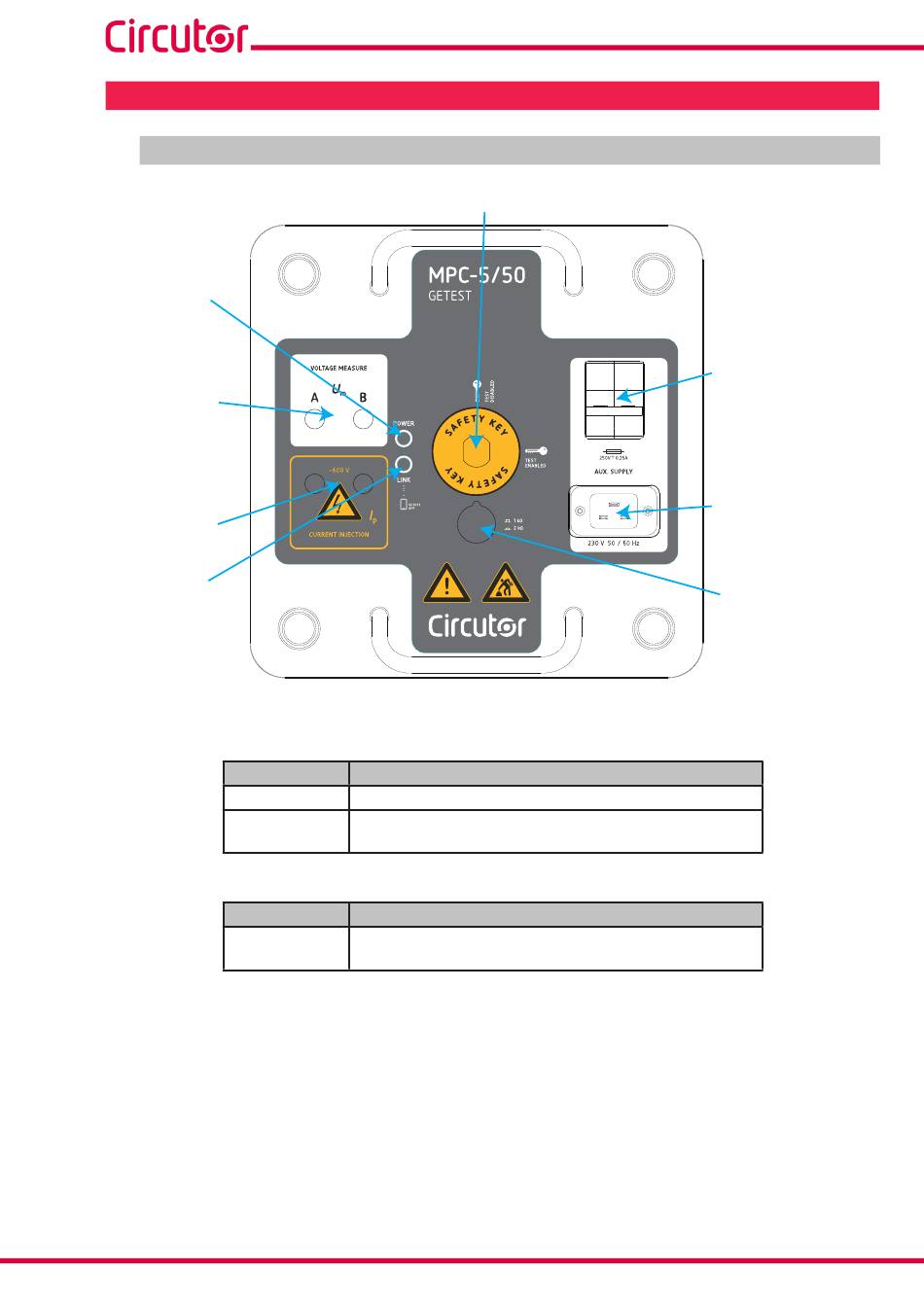

Figure 3: Device description�
LED
POWER
Indicates that the device is powered.
Indicates that the device has been wirelessly connected to the
LINK
Getest application on the Smartphone.
Table 5: GETEST switch�
Switch
Resistance
Button to change the resistance from 1KΩ to 2kΩ.
switch
The switch will turn on when the 2 kΩ resistor is selected.
Safety key
Table 4: GETEST LEDs�
Description
Description
GETEST
Main switch
Power supply
connector
Resistance switch
