CVM k 2
The menus that appear above the function buttons on this screen are the following:
: (f1) Press this button to return to the system information screen (Section 6.1.1.1.
Info
System Information).
: (f2) Press this button to access the screen that displays the maximum values stored
Max
(See section 6.1.1.2.).
: (f3) Press this button to return to the previous screen from which the current screen
INST.
was accessed. The previous screen that displays real time values for the variables.
(See Section 6.1.1. main)

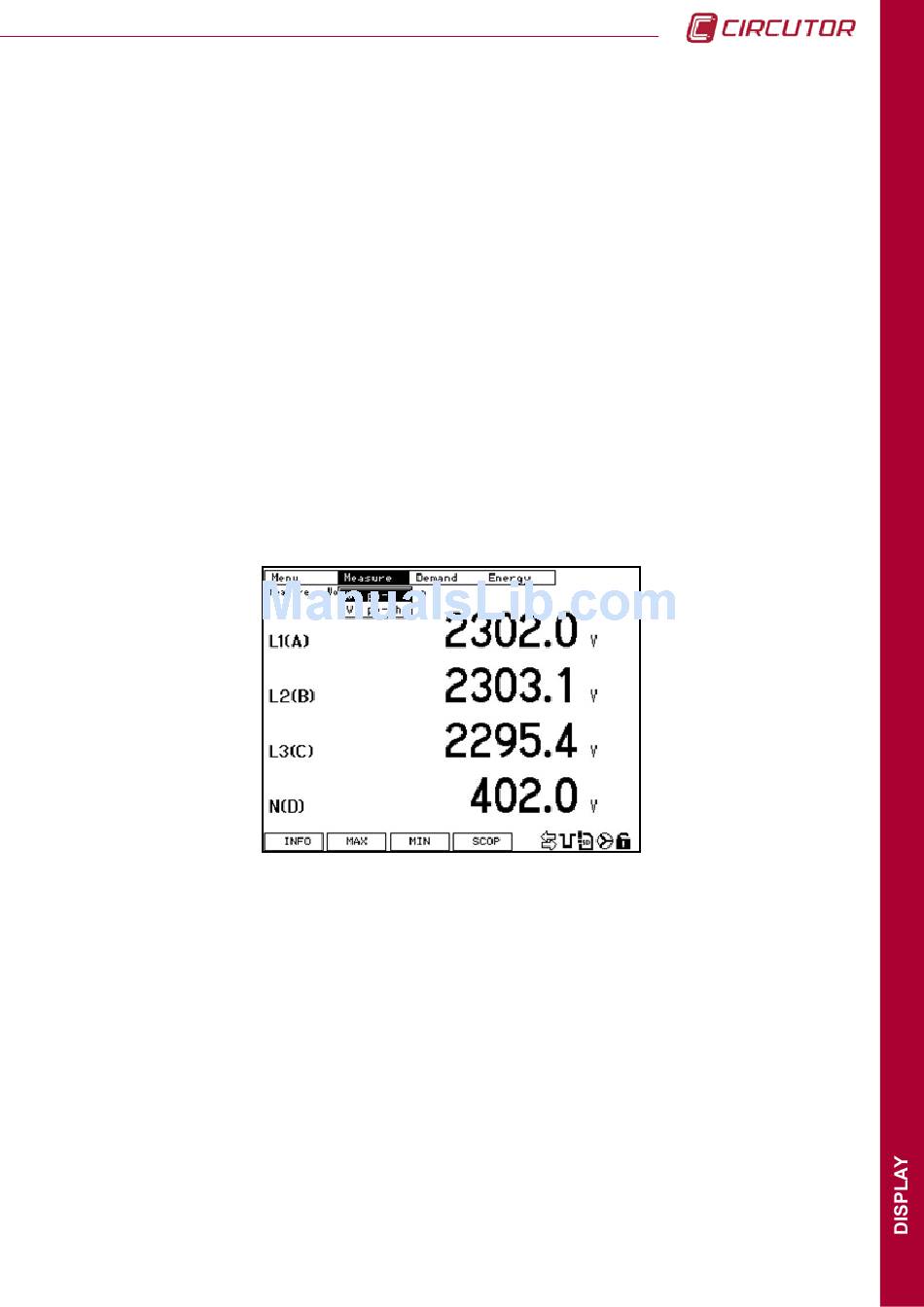

6.1.2 PHASE-NEUTRAL VOLTAGE

Simple voltages referenced to the neutral of each one of the phases are listed on this screen.
The bottom menu offers the following options:
: Press this button to access the system information screen (Section 6.1.1.1., System
Info
Information).
: Press this button to access the screen that displays the maximum values stored.
Max
maximum values for each variable recorded since the last reset, along with the date and
time of the registry, are displayed on this screen.
On the screen, the
Max
that displays the instantaneous variables.
Min : Press this button to access the screen that displays the minimum values stored. minimum
values for each variable recorded since the last reset, along with the date and time of
the registry, are displayed on this screen.
option appears, which can be used to return to the screen
INST.
89
