CVM k 2

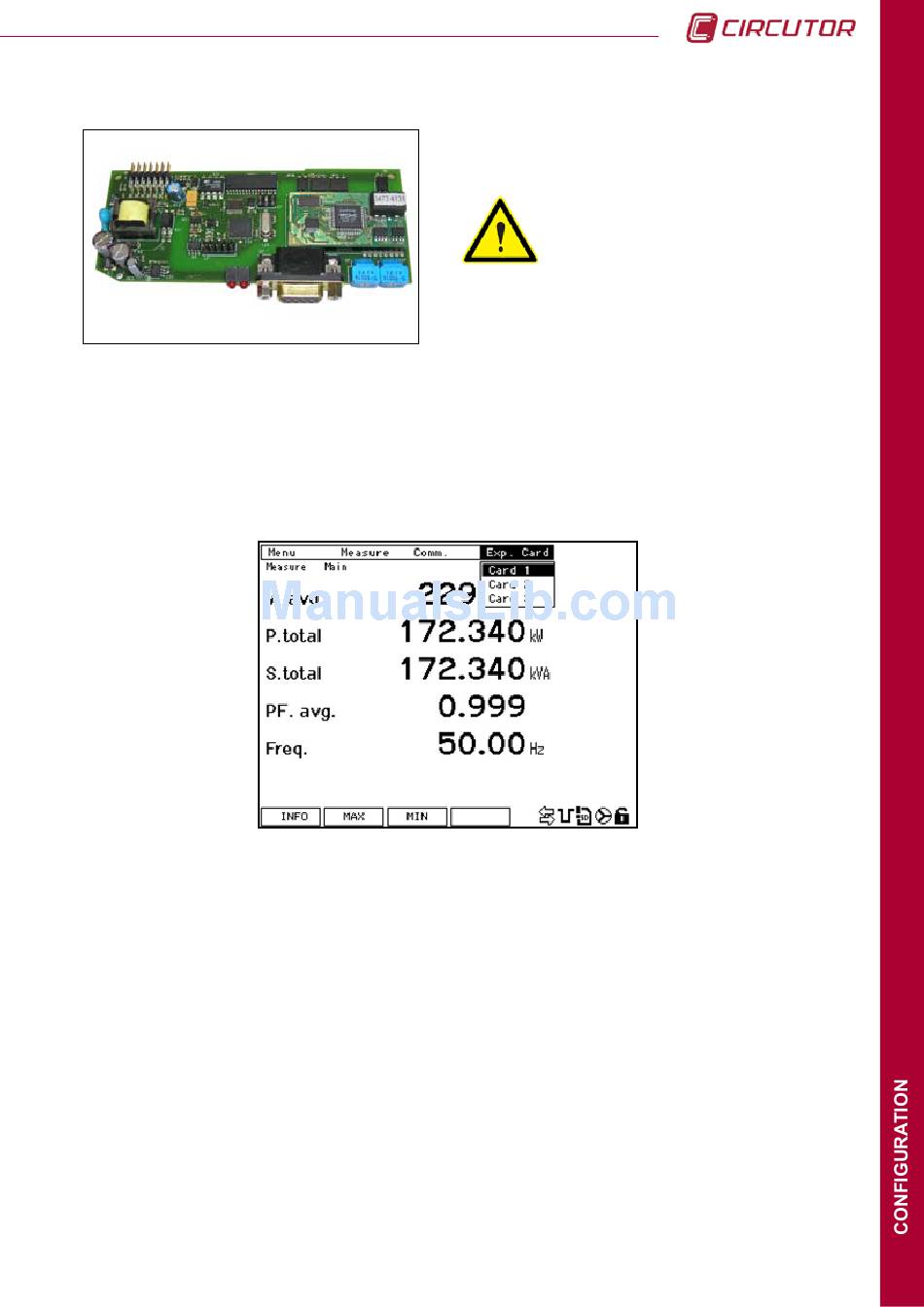

4.7.7 - PROFIBUS COMMUNICATIONS CARD

4.7.7.1. Profibus card configuration
To access the configuration of the card of profibus protocol, enter the configuration menu (
). in the
---> setup. EXP. CARD
enter in the card menu.
This card has no paramenters to configure. Only the peripheral number (Slave ID) explained
in chapter 4.7.7.3
going into configuration menu only will appear:
4.7.7.2. Card parameters
To visualize the parameters that CVmk2 shows refering to the profibus communications card,
you have to go to the cards menu:
-->
MENU EXP. CARD
(*) Value 1, 2 or 3, depending on the card position.
menu, select the position where the card is inserted. Press
-->
CARD X*.
Read Section 4.7.0., Inserting
Expansion Cards.
or
CARD. OK CARD NOK
menu
SET
.
to
73
