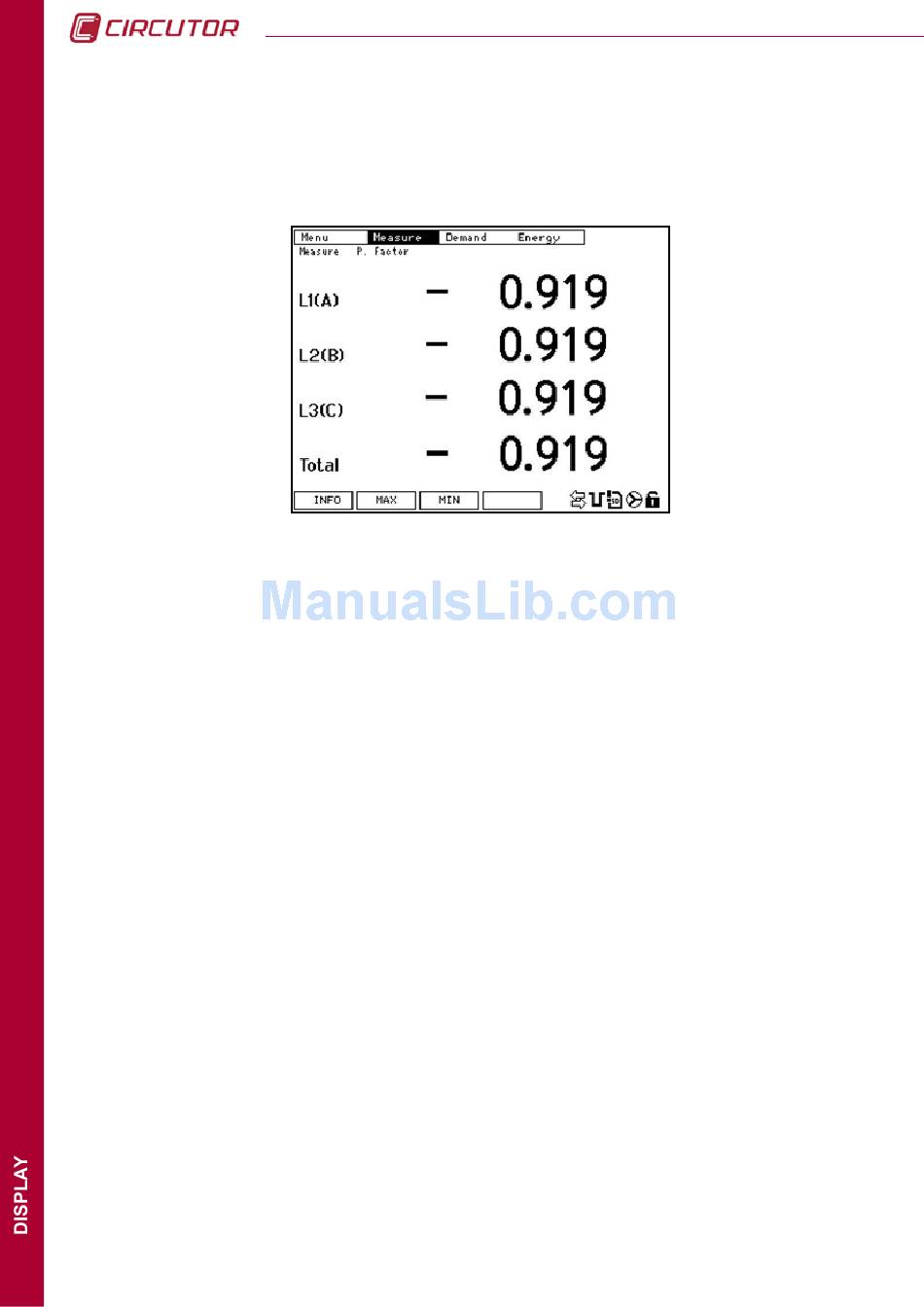

6.1.6, POWER FACTOR
Real time values for the power factor corresponding to each phase and the total power factor
are displayed on this screen.
On this screen, the following options are shown above the function buttons:
: This displays the system information screen (Section 6.1.1.1., System Information).
Info
Max : This displays the screen with the maximum values stored. The maximum values for each
variable recorded since the last reset are displayed on the screen, along with the date
and time of registry.
On the
that displays the instantaneous variables.
: This displays the screen with the minimum values stored. The minimum values for each
Min
variable recorded since the last reset are displayed on the screen, along with the date
and time of registry.
On the
that displays the instantaneous variables.
6.1.7 COS
Instantaneous values for the cos
this screen.
100
screen, the
Max INST.
screen, the
Min INST.
j
j
option appears, which can be used to return to the screen
option appears, which can be used to return to the screen
value for each phase and the total cos
CVM k 2
j
are displayed on
