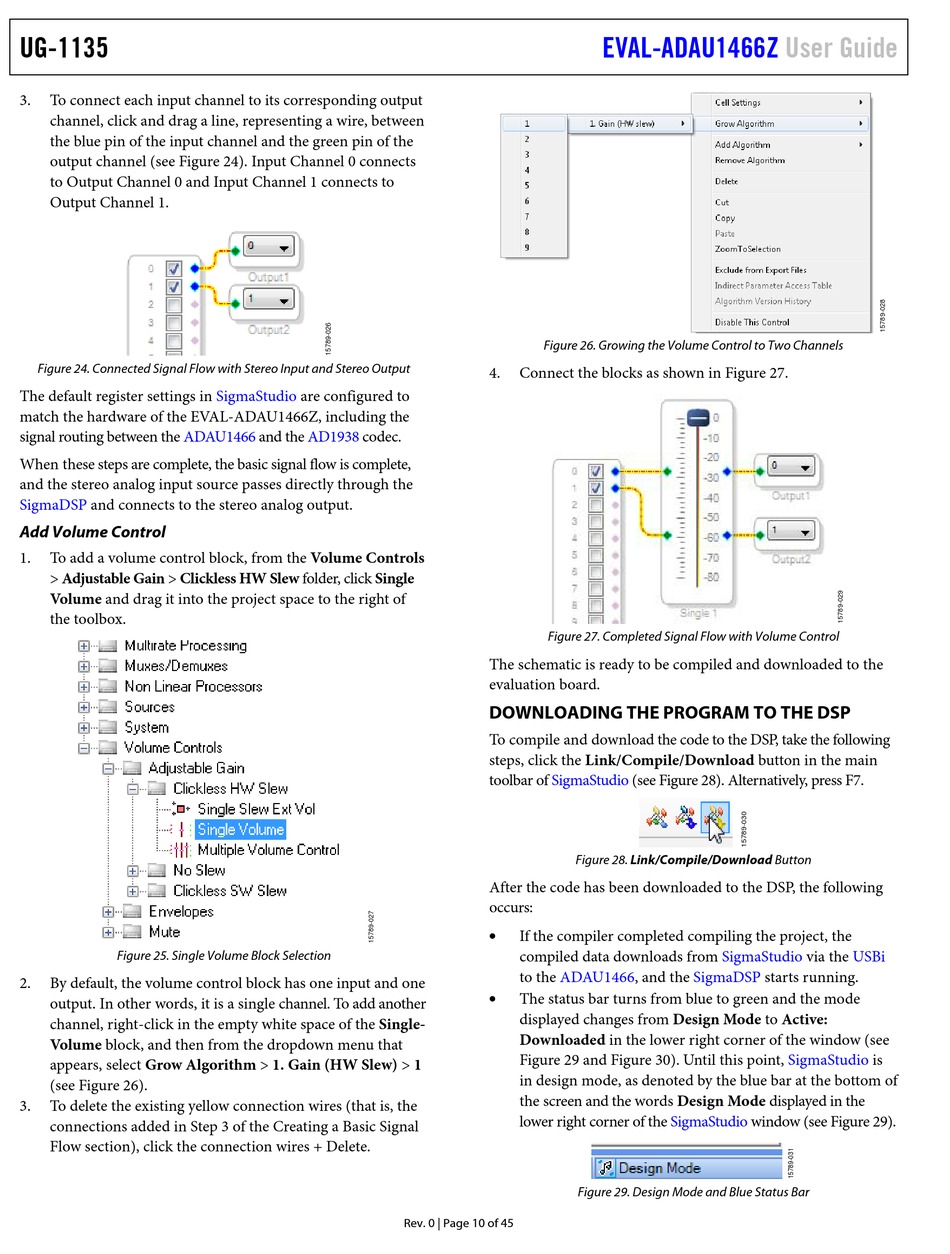

To connect each input channel to its corresponding output
channel, click and drag a line, representing a wire, between
the blue pin of the input channel and the green pin of the
output channel (see Figure 24). Input Channel 0 connects
to Output Channel 0 and Input Channel 1 connects to
Output Channel 1.
Figure 24. Connected Signal Flow with Stereo Input and Stereo Output
The default register settings in
match the hardware of the EVAL-ADAU1466Z, including the
signal routing between the
ADAU1466
When these steps are complete, the basic signal flow is complete,
and the stereo analog input source passes directly through the
SigmaDSP
and connects to the stereo analog output.
Add Volume Control
1.
To add a volume control block, from the Volume Controls
> Adjustable Gain > Clickless HW Slew folder, click Single
Volume and drag it into the project space to the right of
the toolbox.
Figure 25. Single Volume Block Selection
2.
By default, the volume control block has one input and one
output. In other words, it is a single channel. To add another
channel, right-click in the empty white space of the Single-
Volume block, and then from the dropdown menu that
appears, select Grow Algorithm > 1. Gain (HW Slew) > 1
(see Figure 26).
3.
To delete the existing yellow connection wires (that is, the
connections added in Step 3 of the Creating a Basic Signal
Flow section), click the connection wires + Delete.
SigmaStudio
are configured to
and the
AD1938
codec.
Figure 26. Growing the Volume Control to Two Channels
4.
Connect the blocks as shown in Figure 27.
Figure 27. Completed Signal Flow with Volume Control
The schematic is ready to be compiled and downloaded to the
evaluation board.
DOWNLOADING THE PROGRAM TO THE DSP
To compile and download the code to the DSP, take the following
steps, click the Link/Compile/Download button in the main
toolbar of
SigmaStudio
Figure 28. Link/Compile/Download Button
After the code has been downloaded to the DSP, the following
occurs:
If the compiler completed compiling the project, the
compiled data downloads from
to the ADAU1466, and the
The status bar turns from blue to green and the mode
displayed changes from Design Mode to Active:
Downloaded in the lower right corner of the window (see
Figure 29 and Figure 30). Until this point,
in design mode, as denoted by the blue bar at the bottom of
the screen and the words Design Mode displayed in the
lower right corner of the
Figure 29. Design Mode and Blue Status Bar
Rev. 0 | Page 10 of 45
EVAL-ADAU1466Z
(see Figure 28). Alternatively, press F7.
SigmaStudio
SigmaDSP
starts running.
SigmaStudio
window (see Figure 29).
