EVAL-ADAU1466Z
7. An EEPROM Properties dialog box appears. Enter the
appropriate values into the text fields as shown in Figure 71,
then click OK.

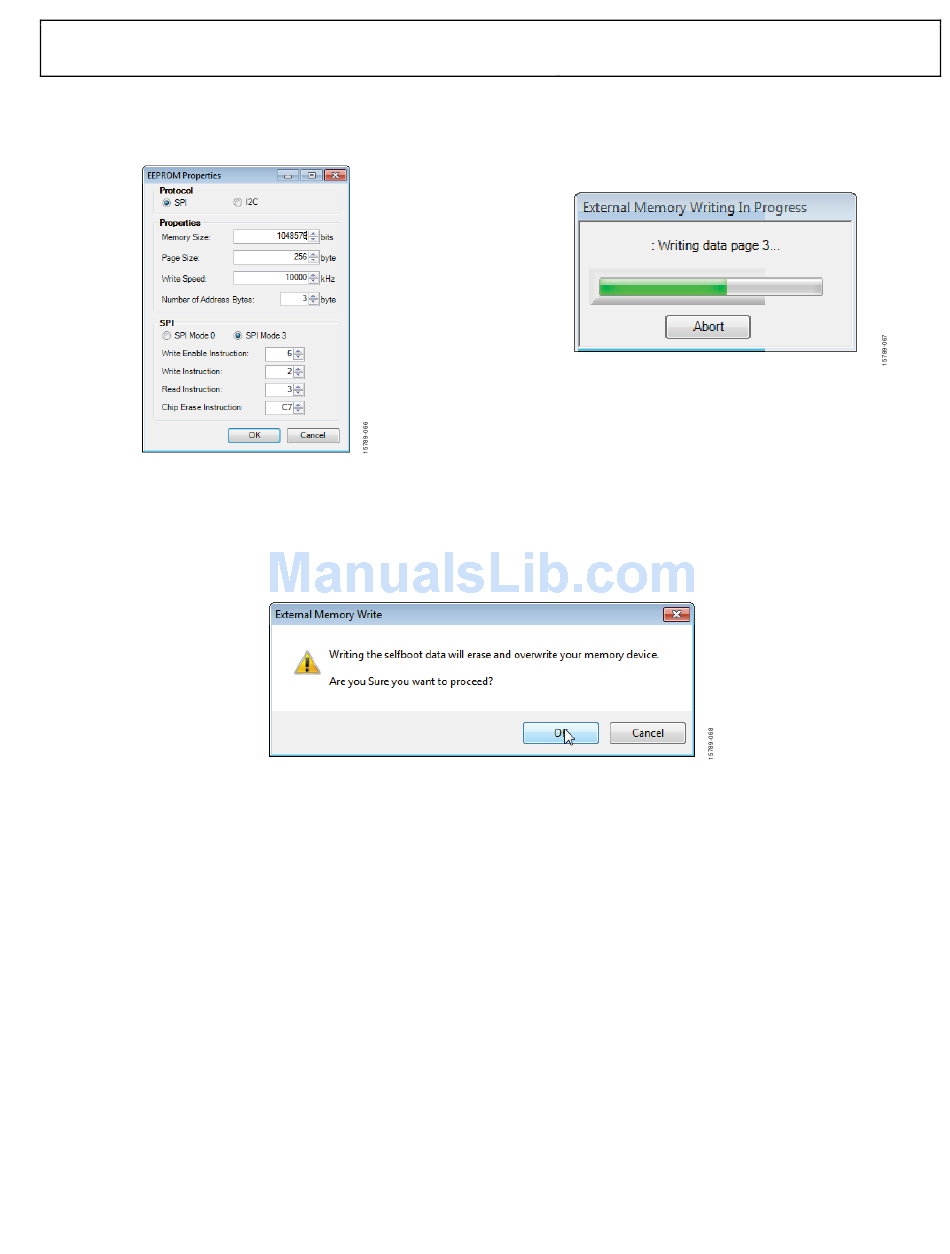

Figure 71. EEPROM Properties Window and Required Settings
8. A warning dialog box appears to remind the user that
executing an external memory write erases and overwrites
any data currently stored on the EEPROM (see Figure 73).
Click OK to proceed.
User Guide
Figure 73. External Memory Erase and Overwrite Warning Window
9. SigmaStudio
This operation can take several minutes to complete
(see Figure 72). When the status window disappears,
the operation is complete.
Figure 72. External Memory Write Operation Status Window
To execute a self boot operation, take the following steps:
1. Set the self boot switch (S2) to enabled.
2. Press and release the RESET push-button (S1).
A self boot operation is then performed, and the
runs a program.
Rev. 0 | Page 23 of 45
begins the EEPROM write operation.
UG-1135
ADAU1466
