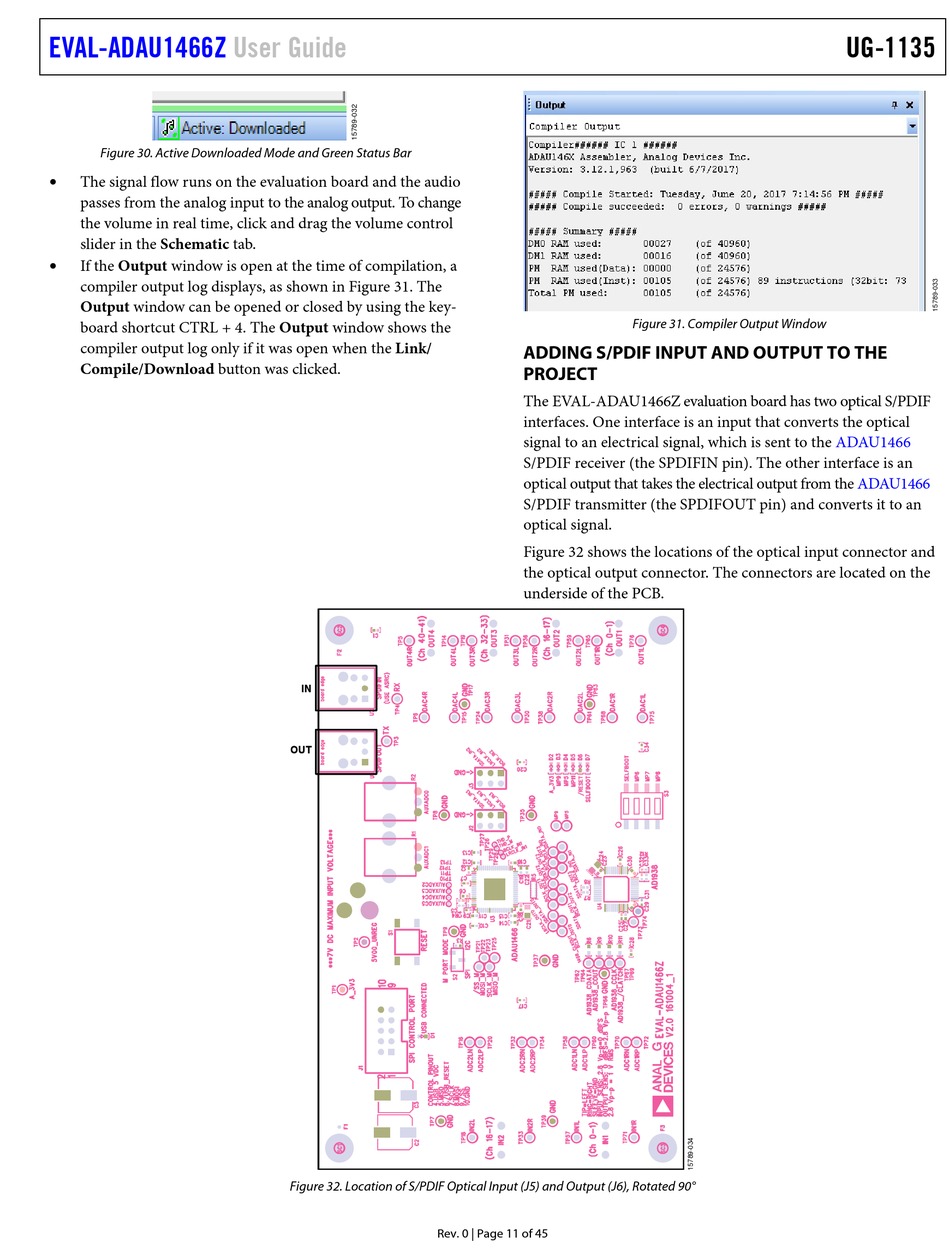

Figure 30. Active Downloaded Mode and Green Status Bar

The signal flow runs on the evaluation board and the audio
passes from the analog input to the analog output. To change
the volume in real time, click and drag the volume control
slider in the Schematic tab.

If the Output window is open at the time of compilation, a
compiler output log displays, as shown in Figure 31. The
Output window can be opened or closed by using the key-
board shortcut CTRL + 4. The Output window shows the
compiler output log only if it was open when the Link/
Compile/Download button was clicked.
User Guide
IN
OUT
Figure 32. Location of S/PDIF Optical Input (J5) and Output (J6), Rotated 90°
ADDING S/PDIF INPUT AND OUTPUT TO THE
PROJECT
The EVAL-ADAU1466Z evaluation board has two optical S/PDIF
interfaces. One interface is an input that converts the optical
signal to an electrical signal, which is sent to the
S/PDIF receiver (the SPDIFIN pin). The other interface is an
optical output that takes the electrical output from the
S/PDIF transmitter (the SPDIFOUT pin) and converts it to an
optical signal.
Figure 32 shows the locations of the optical input connector and
the optical output connector. The connectors are located on the
underside of the PCB.
Rev. 0 | Page 11 of 45
Figure 31. Compiler Output Window
UG-1135
ADAU1466
ADAU1466
