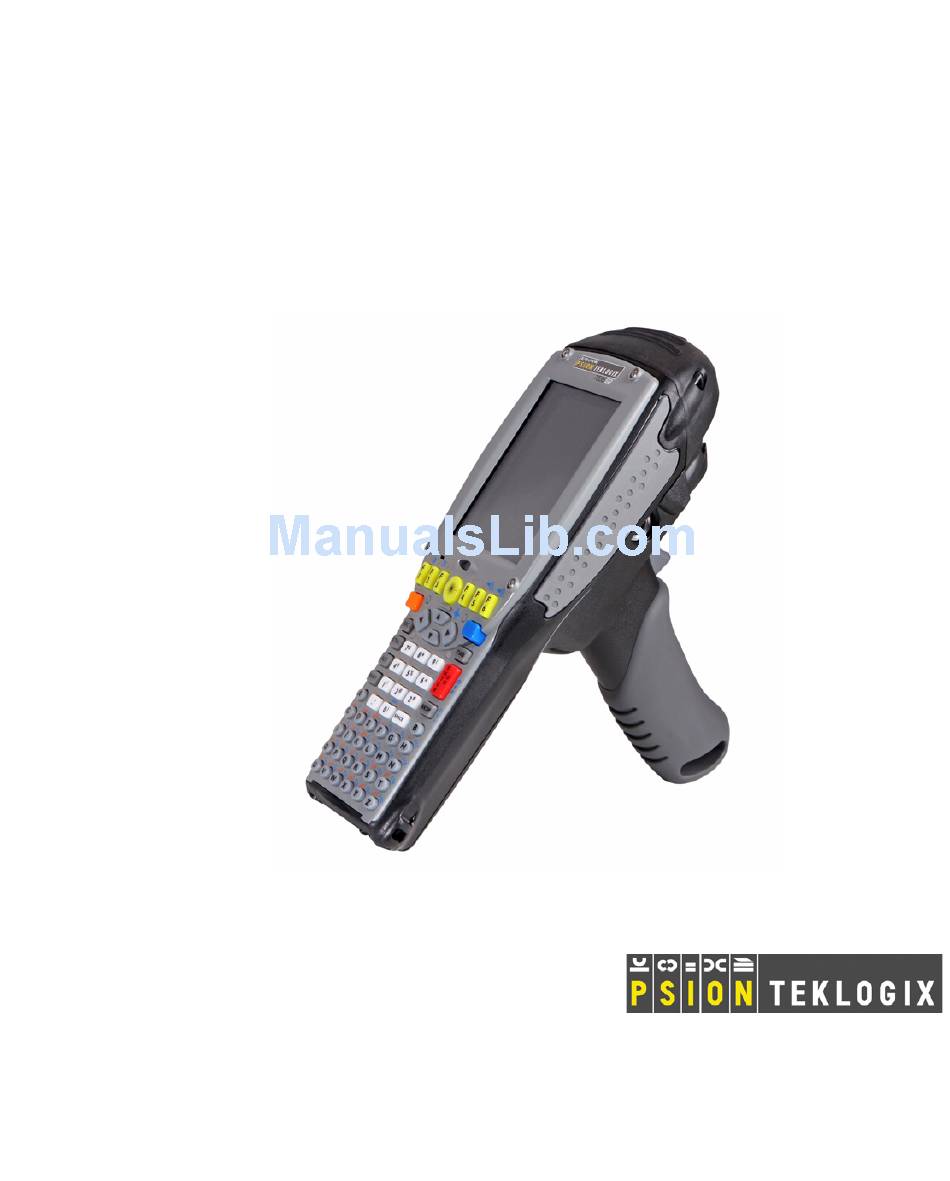

Page 1 7535 G2 Hand-Held Computer User Manual August 11, 2009 P/N 8000075.E ISO 9001 Certified Quality Management System...
Page 2 2100 Meadowvale Boulevard, Mississauga, Ontario, Canada L5N 7J9 http://www.psionteklogix.com This document and the information it contains is the property of Psion Teklogix Inc., is issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except for the sole purpose of promoting the sale of Psion Teklogix manufactured goods and ser- vices.
Page 3 Return-To-Factory Warranty Psion Teklogix Inc. provides a return to factory warranty on this product for a period of twelve (12) months in accordance with the Statement of Limited Warranty and Limitation of Liability provided at: www.psionteklogix.com/warranty The warranty on Psion Teklogix manufactured equipment does not extend to any product that has been tampered with, altered, or repaired by any person other than an employee of an authorized Psion Teklogix service organization.
Page 4 RoHS-compliant as per the EU directive. Other than as noted below, a Psion Teklogix product that does not have an accompanying RoHS logo signifies that it was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.
Page 5: Table Of Contents
The 7535 G2 Hand-Held Computer........
Page 6 Data Transfer Between The 7535 G2 And A PC ....... .
Page 7 Cleaning The 7535 G2 ........
Page 8 Volume Adjustments ..........126 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 9 5.12 The Storage Manager ..............158 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 10 Indicator Flashing Red ..........184 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 11 Using the Combo Charger With The 7535 G2 ....... . .185...
Page 12 7535 G2 Hand-Held Computer Specifications........
Page 13 C.3.11 Codabar ..............C-34 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 14 C.4.26 Postal: Kix ..............C-54 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 15 Removing A Custom Preset ..........D-13 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 16 ................I Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 17: Program License Agreements
MENT OF THE SOFTWARE OR AGAINST INFRINGEMENT. IF YOU HAVE RECEIVED ANY WARRANTIES REGARDING THE DEVICE OR THE SOFTWARE, THOSE WARRANTIES DO NOT ORIGINATE FROM, AND ARE NOT BINDING ON, MS. Psion Teklogix 7535 G2 Hand-Held Computer User Manual xiii...
Page 18 Agreement. If you do not agree with this Agreement, we do not grant you a license to the Software, and you may not install or use the Software or any accompanying documentation. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 19 Chapter : Program License Agreements The Software is the property of Psion Teklogix Inc. or its licensors and is protected by copy- right laws and international copyright treaties, as well as other intellectual property laws and treaties. The Software is licensed, not sold. Psion Teklogix Inc. provides the Software and li- censes its use worldwide.
Page 20: Limitation Of Liability
We are liable for no more than the value of the license fee that you paid for the Software. This limitation is cumulative and our responsibility for multiple claims will not exceed in aggregate this limit. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 21 In such event, you must return or destroy all copies and com- ponent parts of the Software and documentation, as well as any other Psion Teklogix proprietary information in your possession, within fourteen (14) days of the date of termina- tion.
Page 22 No modifications of this Agreement shall be effective unless in writing and approved by us. You acknowledge that you have read this Agreement, understand it, and that it is the com- plete agreement between you and Psion Teklogix with respect to the subject matter hereof and supersedes all prior agreements, oral or written.
Page 23 Year of Manufacture: 2006 Standard(s) to which Conformity is Declared: The 7535 G2 Hand-Held Computer with Portable Docking Module, supplied by Psion Teklogix, has been FCC PART 15, SUBPART B - UNINTENTIONAL RADIATORS, tested and found to comply with CLASS B COMPUTING DEVICES FOR HOME & OFFICE USE I, the undersigned, hereby declare that the equipment as tested is representative within manufacturing toler- ance to units.
Page 24 Utrustningen uppfyller kraven för EU-direktivet 1999/5/EC om ansluten teleutrustning och ömsesidigt erkännande av utrustningens överensstämmelse (R&TTE). (Förklaringen finns att läsa på: www.psionteklogix.com). Tämä laite vastaa EU:n radio- ja telepäätelaitedirektiivin (EU R&TTE Directive 1999/5/EC) vaatimuksia. (Julkilausuma nähtävillä osoitteessa: www.psionteklogix.com). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 25 Chapter : Approvals And Safety Summary Psion Teklogix tímto prohlašuje, že 7535 G2 je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1995/5/ES (NV č. 426/2000 Sb.) a Prohlášení o shodě je k dispozici na www.psionteklogix.com. Toto zarízení lze provozovat v České republice na základě...
Page 26 Some equipment in hospitals and aircraft are not shielded from radio fre- quency energy. Do not use the 7535 G2 hand-held onboard aircraft, or in hospitals, without first obtaining permission. Do not use near pacemakers. The product may affect the operation of some medically implanted devices such as pacemakers, causing them to malfunc- tion.
Page 27 The use of optical instruments (magnification devices) with this product will increase eye hazard. • DO NOT OPERATE IN AN EXPLOSIVE ATMOSPHERE. Operating Psion Teklogix equipment where explosive gas is present may result in an explosion. • DO NOT REMOVE COVERS OR OPEN ENCLOSURES. To avoid injury, the equip- ment covers and enclosures should only be removed by qualified service personnel.
Page 28 Chapter : Approvals And Safety Summary • Danger of explosion if a 7535 G2 battery is incorrectly handled, charged, disposed of or replaced. Replace only with the same or equivalent type recommended by the manufac- turer. Dispose of used batteries according to the instructions described in “Lithium-ion Battery Safety Precautions”, below.
Page 29 Keep batteries out of reach of children. Always switch the unit off before changing the battery. While the battery is being replaced, the 7535 G2 will save its current data for at least 10 minutes. Important: Charger And AC/DC Adaptor Safety Instructions •...
Page 30 Do not use the charger if any of the batteries or the charger get more than lukewarm. Do not use the AC/DC adaptor if it gets more than lukewarm. The equipment should be inspected by qualified personnel. xxvi Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 31 1.3 7535 G2 Features ........
Page 32 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 33: Chapter 1: Introduction
Chapter 1: Introduction About This Manual About This Manual This manual describes how to configure, operate, and maintain the Psion Teklogix 7535 G2 Hand-held Computer. Chapter 1: Introduction provides a basic overview of the 7535 G2 computer. Chapter 2: Basic Checkout describes preparing the 7535 G2 ready for operation, including setting up your radio.
Page 34: Text Conventions
Java™, Embedded Visual C++, Microsoft Visual Studio® 2005 • Standard CE APIs - MFC, ATL Wireless communications: • IEEE 802.11 b/g Compact Flash Radio, operating in 2.4 GHz band (CCX Certified v.4) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 35 Dedicated function keys Two formats available: • 36-key large button numeric with a total of 20 function keys (10 direct-access) • 58-key alpha with a total of 30 function keys (6 direct-access) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 36 Typical 8-hour usage lithium-ion standard battery • Quick swap packs • Advanced smart battery with gas gauge • Runs with battery, wall adaptor or cigarette lighter • Built-in fast charger (2 hours) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 37: About The 7535 G2 Hand-Held Computer
Enhanced security for 802.11 About The 7535 G2 Hand-Held Computer The 7535 G2 is a ruggedized hand-held personal computer, running the Microsoft Windows CE 5.0 operating system. It is intended for use in commercial and light industrial applica- tions with a focus on real time wireless data transactions. All possible bar code input methodologies are supported by one of a variety of scanners available.
Page 38: The 7535 G2 Hand-Held Computer
Chapter 1: Introduction The 7535 G2 Hand-Held Computer 1.4.1 The 7535 G2 Hand-Held Computer Figure 1.1 7535 G2 With 58-Key Keyboard Figure 1.2 7535 G2 Docking Port Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 39 Chapter 1: Introduction The 7535 G2 Hand-Held Computer Figure 1.3 Tether Port Figure 1.4 Scanner Window Laser Aperture Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 40: Regulatory Labels
Warning: Using controls or adjustments or performing procedures other than those specified herein may result in hazardous radiation exposure. Figure 1.6 LED Radiation Notice Label This label is affixed below the scanner window. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 41 HECKOUT 2.1 Features Of The 7535 G2....... . 13 2.2 Preparing The 7535 G2 For Operation ......14 2.2.1 Equipment You Need To Get Started.
Page 42 2.11 Resetting The 7535 G2....... . . 35 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 43: Chapter 2: Basic Checkout
Figure 2.1 Front Of 7535 G2 7535 G2 Screen Sound Port Ambient Light Sensor Tether Port Docking Port Figure 2.2 Back Of 7535 G2 Scanner Window Warning Label Stylus Battery Pack Tether Port Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 44: Preparing The 7535 G2 For Operation
2.3.1 Charging The Battery Important: The 7535 G2 uses a high capacity lithium-ion battery. It is critical that you review the battery safety guidelines in “Lithium-ion Battery Safety Precau- tions” on page xxiv before charging the battery. Batteries shipped from the factory are not charged. They must be fully charged prior to use.
Page 45: Installing The Battery And Switching The Computer On
Installing The Battery And Switching The Computer On Important: Always switch the unit off before changing the battery. While the battery is being replaced, the 7535 G2 will save its current data for up to 20 minutes. If you are not using a docking station or PDM: •...
Page 46: Attaching Carrying Accessories
Attaching The Hand Strap Two Phillips head screws are provided with the hand strap. • Attach the strap to the two threaded inserts located at the back of the 7535 G2 near the top of the unit (see Figure 2.4 on page 17).
Page 47 Attaching The Hand Strap Figure 2.4 Attaching The Hand Strap • Stretch the handstrap toward the base of the 7535 G2, and hook the bottom of the handstrap into the slot near the base of the battery pack. Figure 2.5 Hooking The Hand Strap In Place...
Page 48: Attaching The Pistol Grip
Note: A Phillips head screwdriver is required. The pistol grip is attached to the back of the 7535 G2 using the four threaded inserts in the upper part of the 7535 G2 casing. Four black #4-40 Phillips head screws are provided with this accessory.
Page 49: Calibrating The Touchscreen
Direct Sequence Spread Spectrum radios. If your 7535 G2 is equipped with an RA2041 CF radio, follow the steps under “Summit Client Utility (SCU) For RA2041 802.11b/g Radio” on page 28 to set up this type of radio for communication with a wireless LAN.
Page 50 Figure 2.7 Network And Dial-Up Connections 2. Choose the radio icon to open the 802.11 Wireless LAN Settings window. In the sample screen, this icon is labelled PTXCF8385P N1. Figure 2.8 802.11 Wireless LAN Icon Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 51 Configure button to display the Wireless Properties dialog box. Connect button • To force connection to a specific, existing network, highlight the network to which you want your 7535 G2 to connect, and choose the Connect button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 52 This tab lists available networks—any access points that are broadcasting an SSID, and it lists preferred networks—networks that you have configured. Since access points are generally secure, they will most likely not be listed here. By default, 7535 G2 attempts to connect to preferred networks. This behaviour can be changed by enabling Automatically connect to non-preferred networks in the Advanced Wireless Settings dialog box (page 27).
Page 53 Chapter 2: Basic Checkout Configuring An IEEE 802.11 Radio In The Unit Important: Keep in mind that the 7535 G2 will only communicate with access points that are configured with the same SSID. Ad Hoc And Infrastructure If you are using an Infrastructure network—one in which 7535 G2s must pass data through an access point—leave the checkbox next to This is an ad hoc network blank.
Page 54 Certificate. By selecting the Properties button, you will be able to select a Certificate. “Certificates” on page 97 outlines how to create certificates for your network. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 55: Assigning An Ip Address
• In the PTXCF8385P N1 Settings window, tap on the IP Information tab. Note: Choosing the Renew button forces the 7535 G2 to renew or find a new IP address. This is useful if, for example, you are out of communication range for a longer period of time and your 7535 G2 is dropped from the network.
Page 56: Name Servers Tab
Note: If DHCP is enabled, name server addresses are assigned automatically. • In the PTXCF8385P N1 Settings window, display the IP Information tab. • In the IP Information tab, tap on the Configure button. • Display the Name Servers tab. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 57: Advanced Features
2.7.3.1 Rearranging Preferred Networks The 7535 G2 attempts to connect with the networks listed in this dialog box in sequence, be- ginning at the top of the list. If you need to rearrange this list of networks, move networks up and down in the list: •...
Page 58: Changing Network Properties
Highlight Network, and press [ENTER]. 2. Choose the Summit WLAN Adapter icon to open the 802.11 Wireless LAN Set- tings window. In Figure 2.11, this icon is labelled SDCCF10G1. Figure 2.11 Summit WLAN Adapter Icon Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 59 SDCCF10G1 menu). 3. Tap on the IP Information tab. Note: Choosing the Renew button forces the 7535 G2 to renew or find a new IP address. This is useful if, for example, you are out of communication range for a longer period of time and your 7535 G2 is dropped from the network.
Page 60: Name Servers Tab
Note: If DHCP is enabled, name server addresses are assigned automatically. • In the SDCCF10G1 window, display the IP Information tab. • In the Summit WLAN Adapter Settings>IP Information tab, tap on the Configure button. • Display the Name Servers tab. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 61: Using The Scu To Connect To The Wlan
This section provides a quick set of steps to create a profile. Detailed information about each of the SCU tabs—Main, Profile, Status, Diags and Global—is provided in Appendix B: “SCU For RA2041 802.11b/g Radio”. To launch the SCU so that your 7535 G2 can connect to a wireless LAN: To launch the SCU so that your 7535 G2 can connect to a wireless LAN: 1.
Page 62: Ssid
For PSK, type an ASCII passphrase or hex PSK. • Configure any other settings that are supplied by the network administrator for the SSID to which you will associate. • Make certain that you tap on Commit following each change. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 63: Checking The Scanner
“Internal Scanners” on page 58. If your 7535 G2 is equipped with an internal scanner, you can test it to ensure that it is oper- ating properly. Point the scanner window at a bar code that your scanner was designed to decode—for example, a 1D UPC bar code or 2D bar code.
Page 64: Data Transfer Between The 7535 G2 And A Pc
• View 7535 G2 files from Windows Explorer. • Drag and drop files between the 7535 G2 and the PC in the same way that you would between PC drives. • Back up 7535 G2 files to the PC, then restore them from the PC to the hand-held again, if needed, and so on.
Page 65: Resetting The 7535 G2
A warm reset closes open applications; any unsaved data are lost. Installed programs and saved data are preserved. Note: You do not need to reset your 7535 G2 after configuring the radio. Cold Reset Important: A cold reset returns the 7535 G2 to factory settings.
Page 67 3.5 7535 G2 Indicators ........52...
Page 68 3.10.1 Caring For The Touchscreen......64 3.10.2 Cleaning The 7535 G2 ......64...
Page 69: Chapter 3: Getting To Know Your 7535 G2
Note: If your hand-held is equipped with a battery contact protective gasket (P/N 1020250), to remove the battery, you will need to hold the 7535 G2 face down with both hands, making certain that your fingers are not touching the keypad.
Page 70: Battery Chargers
• Portable Docking Module (Model #HU4001 or HU1005 and HU3220): charges the 7535 G2 battery (with the battery installed in the unit). • Combo Charger (Model #HU3002): a desktop charger that charges the internal battery along with a spare battery pack.
Page 71: Monitoring The Battery And Maximizing Run Time
2 years of use (less than 60% of original capacity remaining). Keep in mind however that heavy usage or operating the 7535 G2 at temperature extremes will shorten the battery life.
Page 72: Storing Batteries
Chapter 3: Getting To Know Your 7535 G2 Monitoring The Battery And Maximizing Run Time • The hand-held battery is a ‘smart battery’ with built-in intelligence. The taskbar battery icon is a linear gauge used to estimate the remaining run time of the battery. It is impor- tant to note that the battery capacity icon displays quarter percentages of nominal capacity (the capacity of a new battery).
Page 73: Switching The Hand-Held On And Off
When all four LEDs flash yellow, release the [ENTER/ON] button. Note: If the 7535 G2 is in suspend state, pressing [ENTER/ON] key ‘wakes’ the unit from this state. The screen in which you were working before the computer entered sus- pend state is displayed.
Page 74: Modifier Keys
The [SHIFT], [CTRL], [ALT], [BLUE] and [ORANGE] keys are modifier keys. Pressing a modifier key changes the function of the next key pressed. For example, on a 7535 G2 58- key keyboard, a square bracket is printed in orange print above the [4] key. Pressing the [ORANGE] key followed by the [4] key displays a square bracket rather than the number 4.
Page 75: Locking Modifier Keys
Chapter 3: Getting To Know Your 7535 G2 The Keys 3.3.1.2 Locking Modifier Keys When a modifier key is pressed twice, it is ‘locked’ on. A ‘locked’ modifier key is displayed in uppercase letters in the taskbar. For example, pressing the [BLUE] key twice locks it on—it is displayed as BLUE KEY in the taskbar at the bottom of the computer screen.
Page 76: Function Keys, Softkeys And Macro Keys
3.3.3.1 Function Keys 58-Key Keyboard Function Keys The 7535 G2 58-key keyboard is equipped with thirty function keys. Function keys [F1] to [F6] are located across the top of the keyboard and are directly accessible, a key combina- tion is not required. Function keys [F7] to [F30] are colour coded in blue print above the alpha keys and are accessed using a key combination, [BLUE] followed by the appropriate alpha key.
Page 77: Macro Keys
Important: Refer to “Keyboard Macro Keys” on page 107 for details about creating macros. 7535 G2 hand-helds are equipped with a series of macro keys that can be programmed to replace frequently used keystrokes, along with the function of executable keys like the [ENTER] key, the [BKSP] key, any function key and arrow key, and so on.
Page 78: Alphanumeric Keyboard: 58-Key
Chapter 3: Getting To Know Your 7535 G2 Alphanumeric Keyboard: 58-Key • To access [M4], press [ORANGE] [M2]. Macro keys [M5] to [M6] are colour coded in blue print above macro keys [M1] and [M2]. • To access [M5], press the [BLUE] key followed by [M1].
Page 79: Creating Uppercase Letters
Chapter 3: Getting To Know Your 7535 G2 Numeric Keyboard: 36-Key To choose the letter ‘b’: • Press the [ORANGE] key, and press [2] twice. • Press the [ORANGE] key again to unlock or turn it off. To choose the letter ‘c’: •...
Page 80: The Keypad Backlight
Chapter 3: Getting To Know Your 7535 G2 The Keypad Backlight Choosing Multiple Characters From A Range Of Keys If you plan on choosing alpha characters from a number of different keys, you are not re- quired to press the Accept [Þ] key after each alpha selection. The [Þ] key is only required when you are choosing more than one alpha character from the same key, e.g.
Page 81: Adjusting The Contrast
3.4.3 Calibrating The Touchscreen If your 7535 G2 touchscreen has never been calibrated, or if you find that the stylus pointer is not accurate when you tap on an item, use the Stylus Properties dialog box in the Control Panel to recalibrate the screen.
Page 82: 7535 G2 Indicators
Chapter 3: Getting To Know Your 7535 G2 7535 G2 Indicators • Select the Calibration tab, and then choose the Recalibrate button. • Follow the directions on the calibration screen to calibrate the screen. 7535 G2 Indicators 7535 G2s use LEDs (Light Emitting Diodes), onscreen messages and audio tones as indicators.
Page 83: Charge Led
Chapter 3: Getting To Know Your 7535 G2 LEDs Figure 3.2 Keyboard LEDs User Application LED Radio Traffic LED Scanner LED Charge LED 3.5.1.1 Charge LED The lower-right LED is reserved for internal charger/power status. This indicator is active even when the hand-held is inserted in a docking station (and in suspend mode) so that the charge status of the battery can be detected easily.
Page 84: Scan Led
LED flashes red. 3.5.1.4 User Application LED This indicator is available for user-loaded custom Windows CE applications. Refer to the 7535 G2 SDK Manual for details about this LED. Neither Windows CE nor TekTerm use this LED. 3.5.2 Onscreen Indicators The taskbar at the bottom of the screen displays a variety of system status indicators.
Page 85 Onscreen Indicators Figure 3.3 Taskbar The taskbar changes dynamically, and only those icons that are applicable are displayed. For example, if a radio is not installed in your 7535 G2, the radio signal icon is not displayed in the taskbar. ®...
Page 86 When the battery power is completely depleted, a final warning window indicates that the 7535 G2 will be powered down. If the 7535 G2 is using external AC power, an AC icon is displayed in the taskbar. Full...
Page 87: Audio Indicators
Chapter 3: Getting To Know Your 7535 G2 Audio Indicators Docking Device When a hand-held is inserted in a docking station, charger or cradle, an associated icon appears in the taskbar. Gang Charger, Combo Charger & Quad Docking Station Power Cradle...
Page 88: Internal Scanners
Important: For detailed scanner specifications and decode zone tables, refer to “Inter- nal Scanner Specifications” on page 206. The 7535 G2 supports a wide range of scanner options to address a variety of user applica- tion requirements. The scanner installed in your unit can be configured using the Scanner Settings dialog box in the Control Panel (see page 138) and the Manage Triggers application (see page 114).
Page 89: Scanning Techniques
Chapter 3: Getting To Know Your 7535 G2 Scanning Techniques in this chapter. “Scanning Techniques” on page 59 outlines the mechanics of a successful scan. In addition, review “Scan LED Indicators” on page 59 to better understand how to in- terpret whether or not a bar code has been successfully scanned.
Page 90: Troubleshooting
Chapter 3: Getting To Know Your 7535 G2 Troubleshooting 3.6.3 Troubleshooting If the scanner is not working, investigate the following: • Is the unit on? • Check that the bar code symbology being scanned is enabled for the hand-held you are using.
Page 91: Operating Internal Two Dimensional (2D) Imager Scanners
Chapter 3: Getting To Know Your 7535 G2 Operating Internal Two Dimensional (2D) Imager Scanners 3.6.6 Operating Internal Two Dimensional (2D) Imager Scanners An imager scanner takes a snap shot of a single bar code or multiple bar codes (at one time).
Page 92: Operating Rfid/Scanner Modules
Chapter 3: Getting To Know Your 7535 G2 Operating RFID/Scanner Modules 3.6.7 Operating RFID/Scanner Modules For detailed information on the RD7950 UHF RFID Reader please refer to the RD7950 UHF RFID Reader Quick Reference Guide (P/N 8000056). Important: For successful reads, the distance from the hand-held to the RFID tag varies depending on the type of tag.
Page 93: Monitoring The Network Connection
Chapter 3: Getting To Know Your 7535 G2 Monitoring The Network Connection Figure 3.5 Disconnecting The Tether Cable Important: Never attempt to disconnect a peripheral by pulling the connector by the wire. The connector is locked into place and can only be unlocked and removed by pulling back the plug shell.
Page 94: Uploading Data In A Docking Station
Ethernet network. They are typically used to upload transaction data to a server computer when a radio link is not available. When a 7535 G2 is properly inserted in a docking station, a dock icon is displayed in the taskbar at the bottom of the unit screen. The hand-held also detects the presence of the Ethernet network.
Page 95 Cleaning The 7535 G2 • Avoid abrasive cleaners, solvents or strong chemicals for cleaning. The 7535 G2 has a plastic case that is susceptible to harsh chemicals. The plastic is partially soluble in oils, mineral spirits and gasoline. The plastic slowly decomposes in strong alkaline solutions.
Page 97: Chapter 4: Windows Embedded Ce
4.5 Using A Dialog Box ........83 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 98 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 99: Navigating In Windows Ce And Applications
4.1.2 Navigating Using The Keyboard If your 7535 G2 has a standard screen (rather than a touchscreen), choosing icons and navi- gating dialog boxes, displaying the desktop, and so on requires keyed input. If your unit has already been fully configured and your application is launched at startup, you’ll have little need for keyboard navigation, but you can refer to Table 4.1: “Keyboard Navigation”...
Page 100 Go to Start Menu [BLUE][0] Keep in mind that unlike a desktop computer, the 7535 G2 does not support key chording (pressing two keys at the same time). You must press one key followed by the next in se- quence. Refer to “Working With Files, Folders And Programs” on page 71 for additional details about keyboard navigation.
Page 101: Working With Files, Folders And Programs
• Press [ENTER]. The Startup Desktop When the 7535 G2 boots up, the startup desktop (shell) is displayed. Any applications stored in the Startup folder start up immediately. Note: The startup folder is located in \Windows\StartUp and \Flash Disk\StartUp. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 102: The Desktop Icons
PC desktop that is running Windows. My Device Choosing this icon displays the contents of your 7535 G2 computer. If you’re not sure how to work with the files, folders and programs displayed, refer to “Working With Files, Folders And Programs”...
Page 103: The Taskbar
4.3.2 The Taskbar The 7535 G2 is equipped with a taskbar at the bottom of the screen. It displays icons through which you can view the battery capacity and radio signal quality of your unit. If the hand- held is attached to a charger, cradle, docking station or PDM, an associated icon is dis- played.
Page 104: Using The Taskbar
• Press [BLUE] [0] (zero) to display the Start Menu. • Highlight the Settings option, highlight Taskbar in the sub-menu, and press [ENTER]. The Taskbar and Start Menu dialog box is displayed. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 105: The Start Menu
The Start Menu Note: Some of the Start Menu items may be disabled based on the current 7535 G2 security settings. The Start Menu lists the operations you can access and work with. It is available from the startup desktop or from within any application.
Page 106: The Desktop
Type the underlined alpha character. For example, to display the Security dialog box, type the letter ‘s’. 4.4.1 The Desktop Choosing the Desktop option from the Start Menu displays the 7535 G2 desktop. 4.4.2 Security Settings Choosing the Security option from the Start Menu displays a dialog box in which you can define the access level for the 7535 G2: Supervisor or User.
Page 107: Configuring Security
Choosing the Configure button displays the Configure Security dialog box. This dialog box allows you to determine which security levels will have an associated icon displayed in the taskbar. By default, a security icon is not displayed for user-level security. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 108: Programs
DOS commands such as dir to display all the directories in the drive. Internet Explorer The 7535 G2 is equipped with Microsoft Internet Explorer for Windows CE. You can access the Internet Options icon through the Start Menu under Settings, Control Panel or by...
Page 109: Shortcuts
Remote Connect is a 7535 G2 application used to connect to a Windows Terminal Server so that you can run a “session” on the Server machine using the 7535 G2 (Windows CE de- vice). “Remote Connect” on page 89 provides a website with details about this option.
Page 110 The Task Manager allows you to switch to another task or to end an active task. To display the task manager window: • Tap on Shortcuts, Task Manager, or • Press [ALT] [ESC]. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 111: Settings
Control Panel The Control Panel contains applets used to configure hardware, the operating system and the shell. If your 7535 G2 is running with the Psion Teklogix TekTerm application or another application, additional configuration applets may appear in the Control Panel.
Page 112: Run
The Shutdown menu includes these options: Suspend, Warm Reset and Cold Reset. Note: This menu varies slightly depending on the security level chosen. When the 7535 G2 is set to User level, the Shutdown option is replaced by Suspend. A sub-menu is not available.
Page 113: Using A Dialog Box
The Warm Reset option resets the 7535 G2, leaving all saved files and (registry) settings intact. Any unsaved data is lost. Cold Reset The Cold Reset option resets the 7535 G2 (see page 35). Any files not stored in permanent memory are lost; however, the registry settings are saved. Using A Dialog Box A dialog box (like the samples in Figure 4.6) appears when you need to make selections and...
Page 114 Saving Your Choices: Once you’ve made all your changes, press the [ENTER] key to save your changes and exit the window. Note: A dialog box item that is displayed in grey text indicates that it is not currently available. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 115 5.6.7.6 Devices .......123 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 116 5.11.2.1 Adding A Community ..... . 153 5.11.2.2 Modifying A Community Setting....154 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 117 5.16.3 Registry Editor .......176 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 119: Chapter 5: Configuration
Chapter 5: Configuration Remote Connect Remote Connect Remote Connect is a 7535 G2 application used to connect to a Windows Terminal Server so that you can run a “session” on the Server machine, using the 7535 G2 (Windows CE device).
Page 120: Control Panel Icons
Control Panel Icons The Control Panel provides a group of applications that allow you to customize and adjust settings on your 7535 G2. This section shows the related icons in the Control Panel and Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 121: Bluetooth Devices
Allows you to enable or disable Microsoft error reporting prompts. Input Panel Provides the framework for a Soft Input Panel (SIP) should you need to design your own SIP, or change some soft keyboard options. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 122: Internet Options
Network And Dial-up Connections Displays a network window from which the 7535 G2 802.11g radio can be configured and an existing configuration can be executed. Refer to “Configuring Your Radio” on page 19 for details.
Page 123 Calibration tab, you can recalibrate your touchscreen by tapping on the Recalibrate button and following the directions on the screen. System Displays system and memory properties. In the Memory tab, you can allocate memory between storage memory and program memory. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 124: Control Panel Applications: Basic Setup
Control Panel Applications: Basic Setup Teklogix Error Handling Service Is an error diagnostic tool that enables you to log error messages to report to Psion Teklogix. Teklogix Scanners Provides scanner parameters and the bar code symbologies that the 7535 G2 scanner will successfully read.
Page 125 If you need to, you can Browse through the information in your 7535 G2 until you locate the application you want to launch. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 126 If you need to Edit, Remove or Add another App Launch Key, you can do it from this final screen. Otherwise, tap on OK to save your Application Launch Key. • To launch the application you chose, press the application key you assigned. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 127: Certificates
The 7535 G2 checks that the certificate has been digitally signed by a certification authority that the 7535 G2 explicitly trusts. This option is used in conjunction with 802.1x authentication to enhance 7535 G2 security.
Page 128: Display Properties
• In the Control Panel, choose the Display icon. 5.6.3.1 Background • In the Display Properties dialog box, open the Background tab. This dialog box allows you to customize your background image. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 129: Appearance
The backlight is activated for a configurable amount of time if the ambient light is below a specified threshold and if the 7535 G2 is in use (key press, scanner trigger). The Display Properties dialog box in the Control Panel allows you to specify the intensity of the back- light along with how the backlight behaves in low-light conditions and when the unit is not in use.
Page 130 To maximize battery run time, keep the display backlight brightness and active durations as low as possible. ON Threshold The 7535 G2 is equipped with an ambient light sensor. This sliding bar allows you to deter- mine how dark the ambient light needs to be before the backlight turns on. Intensity This parameter is used to adjust the light intensity of the 7535 G2 backlight.
Page 131: Contrast
The Contrast tab allows you to adjust the display contrast to suit the environment in which you are using the 7535 G2. The contrast control can also be used to reduce display flickering that can occur with colour displays in certain lighting conditions.
Page 132: Input Panel
The soft keyboard operates just like a standard keyboard except that rather than pressing a key, you tap on letters, numbers, modifier keys, etc. on the 7535 G2 screen. To customize the appearance and behaviour of the soft keyboard: •...
Page 133: Keyboard Properties
[BLUE] and [ORANGE] modifier keys. This dialog box also allows you to define macro keys and Unicode characters. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 134: Key Repeat
The value assigned for this parameter determines the delay in milliseconds between repeat characters. Sliding the Repeat Delay bar to the left increases the delay between key repeats, and sliding the bar to the right shortens the repeat delay time. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 135: Keyboard Backlight
Intensity This parameter is used to adjust the light intensity of the 7535 G2 keyboard backlight. Sliding the bar to the left darkens the keyboard backlight intensity, and sliding it to the right lightens the intensity.
Page 136: Keyboard One Shot Modes
• In the Keyboard Properties dialog box, open the One Shots tab. The options in this tab allow you to determine how modifier keys on your 7535 G2 behave. For each modifier key—[ALT], [SHIFT], [CTRL], [ORANGE] and [BLUE]—you have the following options in the drop-down menu: Lock, OneShot, and OneShot/Lock.
Page 137: Keyboard Macro Keys
[ENTER], [BKSP] and [DEL] ([BLUE]-[BKSP]), function keys and arrow keys. Recording And Saving A Macro You can program up to 12 macro keys on a 58-key 7535 G2. On a 36-key 7535 G2, you can program a maximum of 6 macro keys.
Page 138 1, press [M1] to execute the macro. Deleting A Macro To delete a macro: • In the Macros tab, highlight the macro number you want to delete. • Choose the Delete button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 139: Unicode Mapping
If a Unicode mapping is not listed, the Unicode mapping is mapped to the default Unicode value. Adding And Changing Unicode Values Important: Changes to Unicode mappings are not saved until you exit the Keyboard Properties dialog box. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 140: Scancode Remapping
There are three different tables of scancode mappings: the Normal table, the Blue table and the Orange table. The Normal table defines unmodified key presses; the Blue table defines Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 141 (e.g., Macro 2). Adding A Remap To add a new remapping: • Choose the Add button at the bottom of the dialog box. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 142 In the Scancode Remapping tab, tap the stylus on the remap you want to edit. • Tap on the Edit button, and make the appropriate changes. • Tap on OK to save your changes. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 143: Lock Sequence
• Tap on OK. 5.6.5.7 Lock Sequence The Lock Sequence menu allows you to lock the 7535 G2 keyboard to prevent keys from being pressed accidentally when, for example, the unit is inserted in a holster. • To lock the keyboard, tap in the checkbox next to Enable key lock sequence.
Page 144: Manage Triggers
Allows users to configure how bar code scanners and other devices such as RFID readers are triggered. You can configure the trigger ID for each trigger button for both single- and double-click, and the double-click time. • In the Control Panel, choose the Manage Triggers icon. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 145: Trigger Mappings
Double-Click When a key is pressed and released, then pressed again within the configured time (between 0 to 1000 milliseconds), a double-click occurs. See also “Trigger-Press Type” on page 117. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 146: Add And Edit Trigger Mapping
X is tapped instead, or the [ESC] key is pressed, all changes made will be discarded. 5.6.6.2 Add And Edit Trigger Mapping These dialogs allow you to add and edit trigger mappings. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 147 “double-click” event will have occurred. If a mapping with the type Up/Down has also been configured for the same source, it will only receive the first set of trigger events. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 148: Power Management Properties
Power Management Properties This icon displays a Power Properties dialog box that indicates the unit’s battery capacity and allows you to manage battery use. • In the Control Panel, choose the Power icon. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 149: Battery Capacity
5.6.7.2 Power Saving Suspend • In the Power Properties dialog box, open the Suspend tab. Power Source This drop-down menu allows you to specify whether the unit is using AC Power or Battery Power. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 150: Suspend Threshold And Estimated Battery Backup
‘on’ (see “Backlight” on page 99). When the 7535 G2 is idle—not receiving any user input (a key touch, a scan, and so on) or system activity (serial data, an activity initiated by an application, and so on)—the hand- held uses the value assigned in the Suspend Timeout field to determine when the unit will go to sleep (appear to be off).
Page 151 The Estimated Battery Backup is the amount of battery power that has been reserved or set aside to protect data until a charged battery can be installed in the 7535 G2. When the battery capacity is depleted up to the Estimated Battery Backup reserve specified in the Suspend Threshold menu, the 7535 G2 shuts off automatically and uses the reserve power to preserve the data stored on the computer.
Page 152: Calibrate
Allow Suspend With: This tab allows you to specify whether or not your unit will enter Suspend state while it is operating with an active PPP connection, network interface, or active TCP/IP connection. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 153: Devices
Low Power Warnings The sliding scale at the bottom of this tab allows you to specify the remaining battery capac- ity at which a warning message is displayed on the 7535 G2 screen, from 0% to 20%. 5.6.7.6 Devices This tab controls power to individual CF and SDIO slots. Enable or disable the checkboxes as needed, then tap on OK to save your changes.
Page 154: Stylus Properties
Touchscreens rarely require recalibration. However, if your touchscreen has never been cal- ibrated or if you find that the stylus pointer is not accurate when you tap on an item, follow the directions below. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 155: Touch
This tab allows you to disable the touchscreen. • Choose the Touch tab. Select the checkbox next to Disable the touch panel. 5.6.9 Volume And Sounds Properties • In the Control Panel, choose the Volume & Sounds icon. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 156: Volume Adjustments
Under the heading Enable sounds for, enable the conditions under which you want the 7535 G2 to emit a beep. 5.6.9.2 Sound Adjustments The 7535 G2 computer is equipped with a beeper rather than a sound port. The options under this tab are not available for this hand-held. Bluetooth Setup Bluetooth is a global standard for wireless connectivity for digital devices and is intended for Personal Area Networks (PAN).
Page 157: Devices
Devices If you intend to pair devices (a scanner or printer for example), power on and bring the devices within 5 m (16.4 ft.) of the 7535 G2 before proceeding with the discovery process described below. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 158 Click on the Scan button to list available devices. Wait for the 7535 G2 to complete its scan (approximately 20 seconds). When scanning starts, the Scan button will change to Stop—if necessary, you can tap on this button to stop the process.
Page 159 BSP9 are available for use. The port is available as soon as it is activated. Note: The CH column shows the RFCOMM channel of the service if the service is RFCOMM-based. This information is not generally needed except for debugging purposes. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 160 To remove the PIN: • Choose Set PIN, and press [ENTER]. If the 7535 G2 attempts to connect to a remote device that has Authentication enabled and does not have a required PIN set, an Authentication Request dialog box appears. •...
Page 161: Headset
Your headset is now paired. A COM/BSP port name will now appear beside the service for this device. An asterisk will appear under the Active list in the Services screen. Connect Tap on Connect to establish a data connection between the 7535 G2 and the Bluetooth headset. Open Audio Tap on Open Audio to establish the audio connection between the 7535 G2 and the Bluetooth headset.
Page 162: Servers
When the Bluetooth connection is initiated from your 7535 G2 to the remote device, the 7535 G2 is called the ‘client’ and the remote is called the ‘server’. The Servers menu dis- plays the server profiles that can be activated in your 7535 G2. There are currently two server profiles available: Serial and Scanner.
Page 163: Outgoing
Note: To add a service to the Outgoing port, an active service must first be deactivated. Then you can choose the ‘Outgoing’ option from the Activation menu (highlight a service, right-click or press the [SPACE] bar to display the Activation menu). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 164: Active Conn
Although the name will have changed in the Properties menu in Bluetooth Controls, the radio only reads it on boot-up. For the changes to take effect, you must cold reset the 7535 G2 (for cold reset instructions, see “Cold Reset” on page 35). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 165: Properties
The Properties menu displays information about your 7535 G2, and provides some port options. The Device Name field shows the device name of your 7535 G2. This name can be changed (see the Note on the previous page for details).
Page 166: Search For
The Search For menu allows you to specify the services for which the Bluetooth radio will scan. Error Reporting Error Reporting allows you to enable or disable Microsoft error reporting prompts. • Tap on Start>Settings>Control Panel>Error Reporting icon to access your options. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 167: Ipv6 Support
128-bit IP addresses, replacing version 4. • Choose the IPv6 Support icon to display the associated dialog box. • Choose the checkbox next to Enable IPv6 Network Support to enable this internet protocol. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 168: Scanner Settings
The parame- ters are preset with the default settings of the decoded scanner installed in the unit. For a listing of available scanners and their specifications, please refer to Chapter 7: “Specifications”. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 169: Bar Codes
Always defer to your bar code scanner’s programming manual when in doubt about the availability or settings for any parameter. Note: Your 7535 G2 comes preconfigured from the factory for internal scanner types. The type of scanner installed can be determined from the System icon in the Control Panel, under the System Properties tab.
Page 170: Restoring Default Settings
Choose Default subtree to reset only the parameters in the symbology you selected, or choose Default all settings to reset all scanner parameters to default settings. To reset a single parameter to its default setting: Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 171: Options
This parameter controls the maximum gap time (in milliseconds) for a double-click. If the time between the first and second clicks of the scanner trigger is within this time, it is con- Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 172: Display Parameters
For both integrated and external scanners, this parameter determines which character is sent to the application installed in your 7535 G2 following a double-click. A dialog box appears, asking that you press the key you want to insert. The ASCII/Unicode key value of the key- press is displayed.
Page 173: Translations
Translations Good Scan Beep And Bad Scan Beep These parameters determine whether or not the 7535 G2 emits an audible scanner ‘beep’ when a good (successful) scan or a bad (unsuccessful) scan is performed. Set these parame- ters to either on to enable the beeper or off to disable it.
Page 174 Chapter 5: Configuration Translations • In the Translation menu, tap on the Case # to create rules. • Tap on the No rule drop-down menu to display the rules. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 175: Case Rules
Translation information about the status of each case/rule is displayed in the scan log file (see “Scan Log File” on page 143) when enabled. This is useful if a case fails, and you are trying to determine why a rule is failing. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 176: Ports
Note that some devices can auto-detect serial port settings (such as baud rate), and in this case the 7535 G2 will dictate the settings. Baud rates often have a direct impact on performance—they should be set as high as possible while still ensuring re- liable communication.
Page 177: Tether Port (Com1)
5.10.4.1 Tether Port (COM1) Note: RS-232 serial communication is one of the modes available on the tether port, located on the side of the 7535 G2. These parameters refer only to external decoded scanner communications. They have no effect if the generic serial device tether cable is plugged in.
Page 178: Console Port (Com3)
Portable Docking Module (PDM) provides access to the console port through a DE-9 interface. Figure 5.6 Console Port Settings Enabled This parameter must be set to on in order for the 7535 G2 to recognize the attached device as a decoded bar code scanner. Baud Refer to page 147 for details.
Page 179: Port Replicator Tether (Com6)
Refer to page 147 for details. Data Bits Refer to page 147 for details about this parameter. Parity For details, refer to page 148. Stop Bits Refer to page 148 for details about Stop Bits. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 180: Port Replicator Port A (Com5)
Port Replicator Port A(COM5) is the standard RS-232 DE-9 DTE port on the 7535 G2 port replicator module, available on certain cradle types. Enabled This parameter must be set to ON in order for the 7535 G2 to recognize the device con- nected to the Port Replicator 9-pin (COM5). Baud Refer to page 147 for details.
Page 181: Snmp (Simple Network Management Protocol) Setup
All Psion Teklogix products support the TEKLOGIX-GENERIC-MIB—a MIB that defines some common features across Psion Teklogix products. All devices also support MIB-II, a management information base that defines the common features of TCP/IP networks. The SNMP Agent software embedded in the 7535 G2 product supports SNMPv1 (RFC 1157). •...
Page 182: Contact
MIB-II’s sysContact object. Location This parameter is used to identify the physical location of this node (e.g., Warehouse A: Pillar 32B). The content of this parameter is accessible through MIB-II’s sysLocation object. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 183: Communities
Choose the Add button to add a new ‘community’. Name The value assigned here is the name assigned by the network administrator to the set of devices to which this managed node belongs. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 184: Modifying A Community Setting
Highlight the community you want to remove in the Communities tab and then choose the Remove button. A Delete Confirmation screen is displayed. • To remove a community, choose the Yes button, or If you decide not to remove the community, choose the No button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 185: Trap Destination
Type a destination in the text box provided, and press [ENTER]. 5.11.3.3 Changing A Destination To change an existing trap destination: • Highlight the destination you want to alter in the Trap Destination tab, and then choose the Change button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 186: Removing A Trap Destination
SNMP Managers. This tab lists the IP addresses of all the SNMP Man- agers which are allowed to monitor and manage this device. If no entries are listed, the device will accept SNMP queries from any host. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 187: Adding A Host
Highlight the IP address you want to alter in the Permitted Hosts tab, and then choose the Change button. A dialog box like the one displayed when you add a host is displayed. • Make the necessary changes, and press [ENTER]. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 188: The Storage Manager
The Storage Manager The Storage Manager allows you to view information about the storage devices that are present in the 7535 G2, such as SD-MMC flash cards and Compact Flash cards. 5.12.1 Formatting A Memory Card Formatting a memory card bulk-erases it. Once a card is erased, partitions may be created in it, similarly to those on a hard drive.
Page 189: Creating Partitions
Each partition appears as a separate folder in Windows Explorer. To create new partitions: 1. Press the New button next to the Partitions list box. The Create New Partition dialog box appears: 2. Type a name for the partition. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 190: Partition Management
5.12.3 Partition Management Partitions can be individually dismounted, mounted, deleted, or formatted as well. These and additional tasks are available from the Partition Properties dialog: Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 191 • Version of file system (FAT-16, for devices holding up to 4 GB; or FAT-32, for devices containing up to 32 GB). • Number of FATs (File-Allocation Tables). • Number of entries allowed in the root directory. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 192: Teklogix Error Handling Service
Teklogix Error Handling Service is an error diagnostic tool that allows Psion Teklogix to deliver more reliable software. When an error occurs, information about that error is saved in a file which can be sent to Psion Teklogix support personnel to help diagnose the problem.
Page 193: Errorloginfo
Enable NetLog Debug Capturing, debug data is collected so that, if necessary, it can be forwarded to a Psion Teklogix technician for evaluation. You can also define where you want the data stored and the maximum size of the file.
Page 194: Teklogix Imagers
Refer to Appendix D: “Teklogix Imagers Applet” for configuration details. To launch this applet: • In the Control Panel, choose the Teklogix Imagers icon. Note: This icon is only displayed when the appropriate imager is installed in your 7535 G2. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 195: Total Recall
5.15 Total Recall Total Recall is a Psion Teklogix utility developed to maintain applications and settings during a cold boot. This utility is based on a backup and restore concept. This utility is based on a backup and restore concept •...
Page 196 Wireless radio settings. 3. Finally, choose the Profile Location: \Flash Disk. 4. Tap on the Next button to display the next dialog box Add Files. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 197 Choose this icon next to Select Files to view your options. Choosing By Individual File displays a pop-up menu where you can tailor the list of files you want to back up. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 198 Highlight the item you want to remove from the list, and tap on the Remove button. Choosing By File Type allows you to select the file types that you want backed up. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 199: Restoring A Profile
Choose Restore Selected Profile from the drop-down menu, and choose the Profile Name displayed in the drop down box. Note: You can also manually restore an auto restore profile located in flash or a storage device. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 200: Tweakit Settings
5.16.1 Advanced 5.16.1.1 Advanced Interface And Network Enable IPv6 This option allows you to enabled Internet Protocol specification, version 6, that has been published to use 128-bit IP address (replacing version 4). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 201: Advanced Services Settings
SNTP (Simple Network Time Protocol) Server The SNTP Server Name typed in this dialog box is used to synchronize 7535 G2 time with the time server time. A warm reset must be performed once the server name as been entered.
Page 202: Advanced Intermediate Driver
5.16.1.3 Advanced Intermediate Driver Intermediate Driver Support The 7535 G2 employs a custom intermediate driver that is used to indicate radio transmis- sion and reception on its LEDs. As well, the intermediate driver is employed to support the Psion Teklogix 802.IQ v1 protocol. This TweakIt option is included to allow the driver to be disabled in cases where it interferes with third party drivers or security supplicants.
Page 203: Radio Features
5.16.1.4 Radio Features AP Density This option allows you to determine the signal strength at which the 7535 G2 radio will begin searching for a new Access Point (AP): High, Medium or Low. If, for example, this option is set to High, the radio will begin searching for a new Access Point while still at a fairly strong signal strength.
Page 204: User
Chapter 5: Configuration User 5.16.2 User 5.16.2.1 Internet Explorer Settings This option allows you to customize how your Internet Explorer is displayed and how the tabbing functions. 5.16.2.2 User Display Settings Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 205: User System Settings
Chapter 5: Configuration User User Font Size This option allows you to adjust the size of the font used the 7535 G2 display: Large, Normal or Small. 5.16.2.3 User System Settings Docking Port Message Checking this box blocks the message that normally pops up on the display when the 7535 G2 is docked.
Page 206: Registry Editor
Registry Editor 5.16.3 Registry Editor This option is reserved for senior administrators who have a strong understanding of registry keys and values. Careless registry editing can cause irreversible damage to the 7535 G2. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 207 6.6.2 Operator Controls ......185 6.6.3 Using the Combo Charger With The 7535 G2 ....185 6.6.4 Charging The Spare Battery .
Page 208 6.10 Bluetooth Peripherals ....... . 192 6.11 The 7535 G2 Picker Cradle ......193 6.11.1 Picker Cradle Mounting Recommendations .
Page 209: Chapter 6: Peripheral Devices & Accessories
To connect this scanner to the 7535 G2, attach the device to the tether port at the upper-right side of the 7535 G2. Before using the bar code reader, you may need to change some param- eters (see “Non-Decoded Scanners”...
Page 210: Batteries
100% after 5 charge cycles through the charger. It can take from 1.5 to 4 hours to charge a battery. The 7535 G2’s intelligent charging system protects the battery from over-charging by terminating the charge process when the battery is at maximum capacity.
Page 211: Gang Charger
70% of its nominal capacity is considered to be at its end of life. Gang Charger The HU3006 is designed to charge up to six 7535 G2 lithium-ion batteries at one time. Your charger is shipped with the appropriate IEC mains power cord. If the supplied power cord is incorrect for your country, contact Psion Teklogix for assistance.
Page 212: Operator Controls
Each battery charge slot is equipped with a tri-coloured LED to indicate the charge status of the battery. When 7535 G2 batteries are inserted in the charger, the colour and behaviour of the LEDs associated with the charge wells in use indicate the status of the charge.
Page 213: Charging Batteries
Storing batteries in the gang charger for extended periods (more than a week or two) is not recommended. Lithium-ion batteries lose capacity if they are maintained at full charge for long periods of time. See the battery storage recommendations in “Storing Batteries” on page 42. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 214: Indicator Flashing Red
Reconnect the mains power cable, and check that the slot indicator flashes at powerup. Combo Charger The 7535 G2 combo charger is a desktop charger designed to charge the 7535 G2 internal battery along with a spare battery pack. The combo charger provides sufficient power to operate and fast charge the 7535 G2 internal battery, while recharging the spare battery pack.
Page 215: Operator Controls
The battery charge LED on the 7535 G2 lights up indicating that the unit has external power and battery charging may begin. It is safe to leave the 7535 G2 in the combo charger cradle while it is not in use—the battery will not be overcharged.
Page 216: Charge Indicators
A green LED is illuminated next to the RJ45 connector when a valid network link is established. A user application needs to be loaded onto each 7535 G2 that utilizes the combo dock for communication. With the network connected and this application loaded, the combo dock is ready for use.
Page 217: Network Access
The quad dock should be located away from excessive dirt, dust and contaminants. The ambient temperature must fall between 5° C to 39 °C (41° F to 102° F). The 7535 G2 inter- nal charger will not charge batteries outside of this temperature range. For maximum performance, it is recommended that the quad dock be operated at room temperature from 18°...
Page 218: Indicators And Controls
Gently slide the 7535 G2 into the cradle portion of the quad dock until lightly latched. The 7535 G2 detects that it is in a quad dock and displays the appropriate icon in the taskbar The battery charge LED on the 7535 G2 lights up to show it has external power and may start charging the battery.
Page 219: Network Addressing
If a link is established between a hand-held and a host, the application on the host and on the 7535 G2 must have a recovery mechanism in the event that the hand-held is removed from the dock and the link is interrupted.
Page 220: Portable Docking Module (Pdm)
The Portable Docking Module (PDM) clips onto the base of the 7535 G2 and is most often used to charge the 7535 G2 battery when a desktop charger is not convenient. The PDM also offers additional communication ports, making it useful for upgrading software in the 7535 G2 from a USB-equipped laptop computer.
Page 221 Chapter 6: Peripheral Devices & Accessories Portable Docking Module (PDM) Figure 6.1 Attaching The PDM To The Base Of The 7535 G2 Align the guide pins on the PDM with the slots on the base of the 7535 G2, and gently snap the PDM onto the hand-held.
Page 222: Bluetooth Peripherals
AC/DC adaptor provided with your PDM. The power supplied by the PDM is sufficient to operate the 7535 G2 and fast charge its in- ternal battery at the same time. The 7535 G2 can run from a PDM without a battery installed.
Page 223: The 7535 G2 Picker Cradle
Typically, when both radios operate in the 7535 G2 at the same time, they cannot transmit simultaneously—this has a negative impact on overall system throughput. To minimize the impact on the backbone 802.11 network, Psion Teklogix recommends using Bluetooth peripherals that have low...
Page 224: Mounting Template
• Slide the 7535 G2 into the cradle, and press firmly downward until it locks into place. On a vehicle, it’s a good idea to pull up on the 7535 G2 to be certain that it is secure. • To remove the 7535 G2, press firmly on one of the knobs on either side of the cradle until it releases.
Page 225: Powered Cradle Installation In High Voltage Vehicles
Chapter 6: Peripheral Devices & Accessories Powered Cradle Installation In High Voltage Vehicles longer lock the 7535 G2 securely in the cradle. For replacement parts and instructions contact Psion Teklogix. Partial disassembly is required. 6.11.5 Powered Cradle Installation In High Voltage Vehicles Warning: Voltages exceeding 60VDC are considered hazardous.
Page 226: Powered Cradle Installation
Powered Cradle Installation 6.11.6 Powered Cradle Installation The powered cradle option is designed to allow the 7535 G2 to be powered by a vehicle bat- tery. The battery installed in the 7535 G2 is also recharged by the vehicle battery. This option accepts DC power sources over the range 12V to 80V.
Page 227: Wiring Vehicle Power To The Cradle
Keep in mind that the 7535 G2 will continue to operate with or without vehicle power as long as its battery has sufficient charge. If an unfused power source must be used, a fuse as- sembly (P/N 19440-300) must be added to the extension power cable (the fuse and instructions are supplied with the cable).
Page 228: Tether Adaptor Cables
• CA1020 JB5 to Type B USB: Connects to USB devices with Type B receptacles. For the pinout diagrams for 7535 G2 cables P/N CA1020 and P/N CA1010, please see Ap- pendix A: “Port Pinouts”. Special intermediate cabling assemblies are available to allow older devices or unique pe- ripherals to be connected to the JB5 tether port.
Page 229 PECIFICATIONS 7.1 7535 G2 Hand-Held Computer Specifications .....201 7.1.1 Hardware ........201 7.1.2 Software .
Page 230 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 231: Chapter 7: Specifications
Passive stylus or finger operation. Integral stylus holder. Keyboards: Numeric. Alphanumeric. Numeric with Phone (option only in countries with GPRS availability). Ergonomically enhanced for ambidextrous, one-hand operation. Backlit, high durability hard-capped keys. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 232 - one USB host port - Power in, 15 VDC nominal, 10 VDC to 19 VDC, 3.5 A maximum - Power out, 5 VDC +/- 5% @ 1.0 A nominal, 1.5 A peak Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 233: Software
10 - 200 Hz; 1.0 m2/s3 ASD, 200 - 500 Hz. 7.1.2 Software Processor And Memory • XScale PXA270 @ 520 MHz Processor. • RAM: 128MB SDRAM standard. • Flash ROM: 64MB FLASH standard. Operating System Microsoft Windows Embedded CE 5.0 • Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 234: Approvals
Compact Flash Type I extended Antenna port Two Hirose U.FL connectors for antenna diversity Transmit Power 802.11g: 32mW maximum (+15 dBm) 802.11b: 80mW maximum (+19 dBm) Frequency Range 2.400 - 2.4897 GHz Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 235: Internal Scanner Port
Internal Scanner Port Compatibility 1D Laser Scanners: SE1200HP non-decoded, standard range SE1200LR non-decoded, long range SE1200ALR non-decoded, advanced long range SE1224HP decoded, fuzzy logic, enhanced standard range SE1524ER decoded, fuzzy logic, auto-ranging bar Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 236: Rfid Applications
7.6.1 EV15 Imager Specifications Light Source 617nm Highly Visible LED Scan Angle 40º Minimum Print Minimum 25% Contrast Min x. Dimension 0.1 mm (4 mils) Reading Distance Up to 90cm (35 in) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 237: Ev15 Imager Decode Zone
Scan Angle/Field of 42º± 2º 23º± 2º View Scan Patterns Linear Linear Minimum Print Minimum 20% absolute Minimum 40% absolute dark/light Contrast dark/light reflectance measured reflectance measured at 650 nm at 650 nm Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 238 Ambient Light: Artificial: 450 ft. candles Artificial: 450 ft. candles (4844 Lux). (4844 Lux). Sunlight: 10000 ft. candles Sunlight: 8000 ft. candles (107,640 Lux). (86,112 Lux). Laser Output Power 0.83mW 1.33mW (peak) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 239: Se1200 Advanced Long Range And Se2223Pdf Specifications
Ambient Light: Artificial: 450 ft. candles (4844 Artificial: 450 ft. candles Lux). (4844 Lux). Sunlight: 4000 ft. candles Sunlight: 8000 ft. candles (43,056 Lux). (86112 Lux). Laser Output Power (peak) 1.35mW 0.86mW Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 240: Se1200 And Se2223 Decode Zones
98.0 55.0 35.5 89.5 27.0 115.0 Table 7.2 Decode Zones – PDF Scanner Bar Code (mil) Raster Laser Scanner Read Distance PDF Bar Codes SE2223 Min (inches) Max (inches) 10.0 15.0 15.5 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 241: Se1224Hp Specifications
Laser On Time, Aim Duration, Power Mode, Trigger Mode, Bi-directional Redundancy, Symbology types/lengths, Data formatting. Ambient Light: Artificial: 450 ft. candles (4844 Lux). Sunlight: 8000 ft. candles (86112 Lux). Laser Output Power (peak) 1.35mW Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 242: Se1224Hp Decode Zones
Minimum Print Contrast Minimum 25% absolute dark/light reflectance measured at 650 nm. Symbologies Supported UPC/EAN, Code 128, UCC.EAN128, RSS, Code 39, Code 93, I 2 of 5, Discrete 2 of 5, Codabar, MSI. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 243: Se1524Er Decode Zones
Ambient Light: Artificial: 450 ft. candles (4,844 Lux) Sunlight: 4,000 ft. candles (86,112 Lux). Laser Output Power (peak) 1.26mW 7.6.5.1 SE1524ER Decode Zones Figure 7.1 SE1524ER Decode Zone A (Short Range, Small Codes) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 244 Chapter 7: Specifications SE1524ER – Extended Range Scanner Figure 7.2 SE1524ER Decode Zone B (Long Range, Large Codes) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 245: Sx5400* Imager Specifications
Composite, CC-A, CC-B, CC-C; image capture, Data Matrix; QR Code; Maxicode; Aztec Code; Planet; Postnet; Royal Mail 4SCC; 4 State postal codes from Australia, Canada, Japan; Korean Post 3 of 5. *Formerly known as Symagery SX5400. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 246: Sx5400 Imager Performance
6.9 x 11.2 x 18.3 cm (2.7 x 4.4 x 7.2 in) Weight Scanner - 280 g (9.9 ozs) Cable (82.3 cm 32 in) - 176 g (6.2 ozs) Cable lengths Collapsed: 81 cm (32 in) Max working: 183 cm (72 in) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 247: Powerscan® Lr And Xlr Industrial Scanner Specifications
28 to 60 in (71 to 152 cm) 20 mil 28 to 72 in (71 to 182 cm) 40 mil 28 to 144 in (71 to 144 cm) 55 mil 40 to 180 in (102 to 457) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 248 Code 128, MSI/Plessey, Code 39, Interleaved 2 of 5, Code 39 Full Ascii, Standard 2 of 5, Code 93, Codabar, Safety/Regulatory Electrical Complies to: Gost R; TUV; UL; cUL Emissions Complies to: FCC-A;EN55022-B BCIQCNS13438; AS/NZS3548; VCCI-B Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 249: Powerscan Standard Range Scanner Specifications
(2.5 to 5.1 cm) 4 mil 1.0 to 3 in (2.5 to 8 cm) 5 mil 0.8 to 3.8 in (2 to 10 cm) 7.5 mil 0.6 to 4.5 in (1.5 to 11 cm) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 250 Auto-discriminates between: UPC A, E/EAN8, 13/JAN8, 13 (P2/P5, Code 128 EAN add-ons) Code 128, MSI/Plessey, Code 39, Interleaved 2 of 5, Code 39 Full Ascii, Standard 2 of 5, Code 93, Codabar, Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 251: Rd7950 Integrated Uhf Rfid Reader
7.4 V nominal (6V min. to 8.4V max.) Cell Configuration 2 series connected cells Capacity 1.9 Ah nominal at 300mA discharge 20°C to 6.0V (minimum) Supported Chargers 6-Gang Charger Combo Charger Combo Docking Station Quad Docking Station Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 253: Appendix A: Port Pinouts
A.3 Battery Contacts ........4 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 255: Tether Port Pinout
RS-232 serial, and USB interfaces. In order for it to operate, a special wiring scheme is needed. If you have a need to create cables for the tether port, contact a Psion Teklogix rep- resentative and request document #1010032 “Instruction Tether Port Termination”.
Page 256: Battery Contacts
These contacts represent right to left numbering with the docking port pointing toward you, and the battery contacts facing upward. Pin 1 Indicator Battery Contacts Pin # Signal Description Positive Battery SMBUS Clock BAT_D Presence/Cell Count DATA SMBUS Data Negative Battery Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 257 Battery Contacts Figure A.1 JB5 To USB Type B Cable - P/N CA1020 (Mates with USB devices that incorporate Type B receptacles) Figure A.2 JB5 To RS-232 Serial Cable - P/N CA1010 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 259: B.1.5 Global
B.1.5 Global........10 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 261: Appendix B: Scu For Ra2041 802.11B/G Radio
Active Profile drop-down menu, the settings for that profile become active. If ThirdPartyConfig is selected, after the 7535 G2 goes through a power cycle, WZC is used for configuration of the radio. See “ThirdPartyConfig” on page B-8 for details.
Page 262: Profile
Attributes • Edit Profile: Used to choose the profile to be viewed or edited. If ThirdPartyConfig is chosen, after the 7535 G2 goes through a power cycle, WZC is used for configuration of the radio. • New: Allows you to create a new profile with default settings and assign it a name.
Page 263 EAP Type Extensible Authentication Protocol None, LEAP, EAP-FAST, PEAP- None type used for 802.1X authentica- MSCHAP tion to access point. – To use EAP-TLS, you must use WZC. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 264: Scu Security Capabilities
‘SCU Security Capabilities’ below, for details about these settings. B.1.2.1 SCU Security Capabilities The SCU provides integrated security to protect transmitted data as well as the 7535 G2 and wireless WAN infrastructure that transmit and receive data. A foundational element of the IEEE 802.11i WLAN security standard is IEEE 802.1X and a critical application on a mobile device is an 802.1X supplicant.
Page 265: Scu Eap Types
Keep the following in mind when defining security settings: • If the credentials specified in the profile are incorrect and that profile is used, the authentication fails without an error message; you will not be prompted to enter correct credentials. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 266: Thirdpartyconfig
(while the profile is the active profile): - Cause the 7535 G2 to go through a power cycle or suspend/resume. - Disable and enable the radio, or tap the Reconnect button on the Diags windows.
Page 267: Status
Use the Diags tab as a troubleshooting tool. The functions are as follows: • (Re)Connect: Enables/Disables the radio, applies/reapplies current profile and tries to associate and authenticate to the wireless LAN, logging all activity in the output area at bottom of the dialog box. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 268: Global
The Global settings tab allows you to define radio and security settings that apply to all pro- files, along with settings that apply specifically to the SCU. The Global settings in Table B.2 can be edited in SCU. B-10 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 269 APs on the same channel. CCX features Activates three CCX features: AP- Optimized, Full, Off Optimized assisted roaming, AP-specified maximum transmit power and radio management. Psion Teklogix 7535 G2 Hand-Held Computer User Manual B-11...
Page 270 WEP keys and other sensitive information. Admin Password Password that must be specified when A string of up to 64 SUMMIT Admin Login button is pressed. characters. B-12 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 271 5000 passes without a response before ping 30000. request is considered a failure. Ping Delay ms Amount of time in milliseconds Integer from 0 to 1000 between successive ping requests. 7200000. Psion Teklogix 7535 G2 Hand-Held Computer User Manual B-13...
Page 273 C.3.4 Code 128 ........29 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 274: Appendix C: Bar Code Settings
C.4.16 2D Data Matrix....... . 51 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 275 C.5.14 IATA 2 of 5 ....... . . 66 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 277: Scanner Options
The drop-down menu to the right of the Scanner option allows you to choose configurations for one of the following scanner types, depending on what is installed in/on your hand-held: Decoded (internal), Decoded (Intermec ISCP), Imager, and Non-decoded. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 278: Restoring Default Settings
Always defer to your bar code scanner’s programming manual when in doubt about the availability or settings for any parameter. Note: Your 7535 G2 comes preconfigured from the factory for internal scanner types. The type of scanner installed can be determined from the System icon in the Control Panel, under the System Properties tab.
Page 279 To reset a single parameter to its default setting: • Press and hold the stylus on the parameter you want to reset. • Choose Default parameter to reset the parameter to the default setting. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 280: Decoded (Internal) Scanners
The value assigned to this parameter determines how long the laser will remain on when the scan button or trigger is pressed. Double-tapping on this parameter displays a dialog box in which you can enter a value between 5 and 99, each number representing 0.1 seconds. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 281: Decoded (Internal) Advanced Options
30 sec., 1 min., 2 min. or 3 min. Note: This parameter is only used if the Trigger Mode has been set to Continuous On and the 7535 G2 is mounted in a fixed position; otherwise, ‘Low Power Timeout’ is not used.
Page 282 Note: This parameter is only valid if a” Linear Security Level” is enabled. When this parameter is enabled, a bar code must be successfully scanned in both directions (forward and reverse) before being decoded. C-10 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 283: Decoded (Internal) 2D Scanning Options
Double-tapping on Scan Data Format displays the following options from which you can choose a data format: data (as-is), data [S1], data [S2], data [S1][S2], [P] data, [P] data [S1], [P] data [S2] and [P] data [S1][S2]. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-11...
Page 284: Code 39
Note: “Code 39” must be enabled in order for this parameter to function. Setting this parameter to on allows the scanner to convert the bar code from “Code 39” to “Code 32”. C-12 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 285 When this parameter is enabled, the integrity of a “Code 39” symbol is checked to ensure that it complies with specified algorithms. Note: Only those “Code 39” symbols that include a MOD 43 check digit are decoded when this parameter is enabled. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-13...
Page 286 When a value is assigned for this parameter, only bar codes that match the field size exactly can be transmitted. If a value is assigned to this parameter, a Minimum Size and Maximum Size value is not required. C-14 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 287: Code 128
Previously UPC/EAN and UCC, the GS1-128/GS1 US types of bar code include group sep- arators and start codes. Enable ISBT 128 To successfully scan this type of bar code, this option must be set to on. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-15...
Page 288: C.2.7 Ean 13
When this parameter is enabled, five leading zeros are added to decoded EAN-8 symbols, making them compatible in format to EAN-13 symbols. Disabling this parameter returns EAN-8 symbols to their normal format. C-16 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 289: Upc E
Set this parameter to on to allow “UPC-E1” (zero suppressed) bar code scans. UPC-E And UPC-E1 Check Digit If you enable one or both of these parameters, a check digit is included with the decoded bar code data. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-17...
Page 290: Upc/Ean Shared Settings
Double-tapping this parameter displays a list of options. If Ignore is chosen, UPC/EAN is decoded and the supplemental characters are ignored. If Decode is chosen, UPC/EAN symbols are decoded with supplementals. Autodiscriminate works in conjunction with the Supp. Redundancy parameter. C-18 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 291: C.2.12 Code 93
Choosing One discrete length allows you to decode only those codes containing a selected length. Choosing Two discrete lengths allows you to decode only those codes containing two Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-19...
Page 292: Codabar
Note: Symbol length does not include start and stop characters. NOTIS Editing When enabled, this parameter strips the start and stop characters from decoded Codabar symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. C-20 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 293: Msi Plessey
Double-tapping on this parameter displays a dialog box in which you can choose the algorithm to be used: MOD 10/MOD 11 or MOD 10/MOD 10. Length Restriction Refer to “Length Restriction” on page C-14 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-21...
Page 294: Interleaved 2
If this parameter is enabled, an I 2 of 5 bar code is converted to EAN 13. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C-22 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 295: Discrete 2 Of 5
“RSS-Limited” is restricted, in that it can only encode 14 digit GTINs (global trade item number) that begin with either a 0 or a 1. It is not stackable and is not designed to be read omni-directionally. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-23...
Page 296: Composite
C.2.19 PDF-417 Enabled Setting this parameter to on enables PDF-417 two dimensional (2D) coding. Length Restriction Refer to “Length Restriction” on page C-14 for details. C-24 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 297: Micro Pdf-417
]L5 if the first codeword is 910 or 911 Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-25...
Page 298: Decoded (Intermec Iscp
This gives the scanner a minimum amount of time to complete its current decode before the scan is cancelled when you quickly trigger on/off. C-26 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 299: C.3.3 Code 39
When this parameter is enabled, the AIM ID is inserted at the beginning of the decoded bar code. C.3.3 Code 39 Enable Setting this parameter to on enables “Code 39”. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-27...
Page 300 Minimum lengths for the bar code can be set from 0 to 255. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s). Length Restriction Refer to “Length Restriction” on page C-14 for details. C-28 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 301: C.3.4 Code 128
Choosing Only Concatenated Codes transmits only concatenated codes—single codes will not be transmitted. Choosing Concatenated or Single transmits single codes or concatenated codes. If only one code of a pair is read, that Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-29...
Page 302: C.3.5 Ean 13
Set this parameter to on to enable “EAN 13”. ISBN Conversion When this parameter (International Standard Book Number) is enabled, the first 3 characters (‘978’) are ignored and the checksum (0.9, ‘X’) is calculated on the remaining characters. C-30 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 303: Upc A
Convert To EAN 13 If this parameter is enabled, a UPC A bar code is converted to EAN 13. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-31...
Page 304: Upc E Settings
When the parameter is set to Required and Transmitted, the scanner does not accept the main bar code without an addendum. C-32 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 305: Code 93
(i.e., human readable characters), including check digit(s). Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-33...
Page 306: Codabar
Double-tapping on these parameters displays dialog boxes where you can define the code length that will be recognized by your scanner. Length Mode You can choose to set L1 as Minimum Length or L1,L2,L3 as Fixed Length. C-34 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 307: Msi Plessey
(i.e., human readable characters), including check digit(s). Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-35...
Page 308: Code 11
“Check Digit Verification” uses the specified algorithm of the option you've chosen to ensure the integrity of the symbol data before transmitting. If the data does not contain that algorithm, the data is not transmitted. C-36 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 309: Matrix 2 Of 5
(i.e., human readable characters), including check digit(s). Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-37...
Page 310: Telepen
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C.3.17 Telepen Enabled Set this parameter to on to enable “Telepen”. C-38 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 311: Rss Code (Reduced Space Symbology
“RSS Expanded” code can be omni-direc- tionally scanned. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-39...
Page 312: Composite
Security Level displays a dialog box in which you can assign a value from 0 to 100. The higher the value assigned, the lower the decode rate. Length Restriction Refer to “Length Restriction” on page C-14 for details. C-40 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 313: Micro Pdf-417
]L3 if the first codeword is 903-907, 912, 914, 915 ]L4 if the first codeword is 908 or 909 ]L5 if the first codeword is 910 or 911 Length Restriction Refer to “Length Restriction” on page C-14 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-41...
Page 314: Codablock
Refer to “Add/Remove Data” on page C-15 for details. Imager • Tap on the Scanner drop-down menu, and choose Imager. C.4.1 Imager Options TekImager Enabled Setting this option to on enables the imager installed in your hand-held. C-42 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 315 Note: The driver will validate and reassign the value assigned to this parameter, if neces- sary; the driver will also use Window Height value to vertically center the image in the field of view. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-43...
Page 316: Imager Advanced Options
A value of 0 disables the target dot. C.4.2 Imager Advanced Options Important: Do not adjust the advanced options without first consulting Psion Teklogix technical support. Factory Defaults On Reboot The value assigned to this parameter determines whether or not the driver will restore the factory defaults to the imager device on the next reboot.
Page 317 Imager Advanced Options Auto Exposure Important: This parameter value should only be changed by qualified Psion Teklogix personnel. It should be left at the default value: on. Setting this parameter to on allows the imager to make automatic gain, integration and illu- mination adjustments based on ambient light before capturing the bar code.
Page 318: Code 128
When this parameter is enabled, the integrity of a “Code 39” symbol is checked to ensure that it complies with specified algorithms. Note: Only those “Code 39” symbols that include a MOD 43 check digit are decoded when this parameter is enabled. C-46 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 319: Ean 8
Note: Setting “Addendum” to ‘Optional’ reduces performance. It should only be chosen if at least some of the bar codes being read have addendums. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-47...
Page 320: Upc A
C.4.8 UPC E Enabled Set this parameter to on to enable “UPC E”. Addendum Refer to “Addendum” on page 47. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C-48 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 321: Codabar
Include Check If this parameter is enabled, the check digit is transmitted along with the I 2 of 5 symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-49...
Page 322: Rss Code (Reduced Space Symbology
Setting this parameter to on enables PDF-417 two dimensional (2D) coding. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C-50 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 323: Pdf-417
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C.4.17 2D QR Code Enabled Set this parameter to on to enable “2D QR Code”. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-51...
Page 324: Maxicode
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C.4.20 Postal: PlaNET Enabled Set this parameter to on to enable “Postal: PlaNET”. C-52 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 325: Postal: Postnet
Set this parameter to on to enable “Postal: Japanese”. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-53...
Page 326: Postal: Korean
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C.4.27 Postal: Canadian Enabled Set this parameter to on to enable “Postal: Canadian”. C-54 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 327: Non-Decoded Scanners
To change a parameter value, press [SPACE] or the [RIGHT] arrow key. If a field requires text entry, a text box is displayed in which you can enter the appropriate value. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-55...
Page 328: Options
If this parameter is enabled, the characters +, %, and / are used as escape characters. The combination of an escape character and the next character is converted to an equivalent ASCII character. C-56 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 329: Code 128
This identifier defines the general category or specific use of the data contained in the rest of the bar code. Note: If your unit is operating with the Psion Teklogix TESS application, this parameter should not be used in conjunction with the TESS AIAG feature. This is because the hand-held performs the strip function before it processes the data through the AIAG feature;...
Page 330: Code 128
A code ID character identifies the scanned bar code type. In addition to any single character prefix already selected, the code ID character is inserted between the prefix and the decoded symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. C-58 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 331: Ean 8
When the parameter is set to Required the scanner does not accept the main bar code without an addendum. Note: Setting Addendum to Optional will reduce performance. This value should only be used if some bar codes actually have addendums. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-59...
Page 332: Upc A
UPC A Enabled Set this parameter to on to enable “UPC A”. Include Number Sys If this parameter is enabled, the number system digit is included with the decoded bar code data. C-60 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 333: Upc E
Include Check When enabled, the check digit is included with the decoded bar code data. Addendum Important: Before “Addendum” can take effect, the “Short Code” parameter (see page C-56) must be enabled. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-61...
Page 334: Codabar
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C.5.9 Code 93 Enabled Set this parameter to on to enable “Code 93”. C-62 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 335: Code 11
ID character is inserted between the prefix and the decoded symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-63...
Page 336: Msi Plessey
If this parameter is enabled, it is assumed that the last digit is a check digit. Include Check If this parameter is enabled, the check digit is included with the decoded bar code data. C-64 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 337: Discrete 2 Of 5
ID character is inserted between the prefix and the decoded symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual C-65...
Page 338: Iata 2 Of 5
ID character is inserted between the prefix and the decoded symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-15 for details. C-66 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 339 D.4.12 Removing A Custom Preset......17 D.4.13 Configuring Symbologies in the Teklogix Imagers Applet..17 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 340 D.5 Teklogix Scanners Applet ....... . 21 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 341: Required Applets
Every preset belongs to a preset type. The following preset types are available: • Imaging for photo capture. • Imaging for bar code decoding. • Symbology selection. At any time, only one preset of each type can be designated as the user-selected active preset. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 342: Predefined Presets
This preset enables the decoding of all the 1D and PDF symbologies that the imager can decode. Matrix This preset enables the decoding of all 2 D symbologies that the imager can decode. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 343: Bar Code Decoding Camera Predefined Presets
This preset works in a wide range of conditions. It is optimized for a normal office lighting (about 300 Lux). Motion This preset uses a shorter exposure time so as to freeze motion. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 344: Using The Teklogix Imagers Applet
Tap on the Teklogix Imagers icon, and if it’s not already selected, tap on the Imaging tab. The following screen is displayed: This window lists all the presets, both predefined and custom. Presets are identified as follows: • Predefined presets are marked as ‘R’ read-only. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 345: Selecting A Camera
One preset – either predefined or custom – is marked as ‘A’ active. D.3.2 Selecting A Camera If your 7535 G2 has more than one built-in camera, one camera must be selected for config- uration. To select a camera: •...
Page 346: Modifying A Custom Preset
To change a parameter value: • Highlight the custom preset, and tap on the Edit button. • Tap on the + symbols to expand the lists so that you can view the parameter settings. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 347: Removing A Custom Preset
Tap on Yes to remove the preset or No to cancel the operation. Configuring The Bar Code Decoding Camera Presets To configure the bar code decoding camera presets: • Tap on Start>Settings>Control Panel>Teklogix Imagers. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 348: Selecting A Camera
The top port of the window displays the bar code decoding camera presets. D.4.1 Selecting A Camera If your 7535 G2 has more than one built-in camera, one camera must be selected for config- uration. To select a camera: •...
Page 349: Setting The Active Preset
A new custom preset is created by modifying a preset – either a predefined preset or an ex- isting custom preset. To create a custom preset: • Highlight a preset, and tap on the Add button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual D-11...
Page 350: Modifying A Custom Preset
• Tap on the + symbols to expand the lists and view the parameter settings. • Scroll through the parameter list until you reach the parameter that you want to change. D-12 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 351: Removing A Custom Preset
Tap on Yes to remove the preset or No to cancel the operation. D.4.7 Configuring The Bar Code Decoding Symbologies To configure the bar code decoding camera presets: • Tap on Start>Settings>Control Panel>Teklogix Imagers. • Tap on the Barcoding tab. Psion Teklogix 7535 G2 Hand-Held Computer User Manual D-13...
Page 352: Setting The Active Preset
Highlight the preset, and tap on the Activate button. D.4.9 Viewing A Preset To view the parameter settings in a preset: • Highlight a preset, and tap on the View button. D-14 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 353: Creating A Custom Preset
• Tap on OK to save your changes. The preset list is displayed; the new custom preset appears at the end of the list. It is marked as read and write. Psion Teklogix 7535 G2 Hand-Held Computer User Manual D-15...
Page 354: Modifying A Custom Preset
- Type a value in the field provided. • For a parameter that toggles between two values such as on or off and enabled or disabled: D-16 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 355: Removing A Custom Preset
In this case, the changes to the symbology configuration are not made in the Teklogix Scan- ners applet. D.4.14 Filter Tab – Manipulating Bar Code Data To configure rules for manipulating bar code data: • Tap on Start>Settings>Control Panel. Psion Teklogix 7535 G2 Hand-Held Computer User Manual D-17...
Page 356: Modifying A Bar Code Setting
- An associated dialog box containing the valid range of values for the parameter and the current setting like the sample screen following is displayed. - Type a value in the field provided. D-18 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 357: Translation Tab - Configuring Rules
Tap on Start>Settings>Control Panel. • Tap on the Teklogix Imagers icon, and then tap on the Translations tab. For instructions on adding, editing, and removing translation rules, refer to “Translations” on page 143. Psion Teklogix 7535 G2 Hand-Held Computer User Manual D-19...
Page 358: Advanced Tab
Tap on the File Location button. • Select the folder name and file Type. Then enter the file Name. • When you have completed all the changes, tap on the OK button. D-20 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 359: Teklogix Scanners Applet
Teklogix Scanners Applet D.4.16.2 Configuring Triggers Viewing The Trigger Configuration The trigger on the 7535 G2 is configured using the Manage Triggers applet. The Teklogix Imagers applet provides a shortcut to the Manage Triggers applet. • In the Advanced tab, tap on the Trigger Control button.
Page 361: Index
Code 93 C-19, C-33, C-49, C-62 Discrete 2 of 5 C-23, C-38, C-65 arrow keys EAN 13 C-16, C-30, C-47, C-59 moving the cursor 45 EAN 8 C-16, C-31, C-48, C-60 ASCII Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 362 BLUE Codabar C-20, C-34, C-49, C-62 key 57 Codabar C-20 Bi-Direction Redundancy C-10 Codablock C-42 BKSP (DEL Key) 45 Code 11 C-36, C-63 Bluetooth devices, pairing 128 Code 128 C-47, C-58 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 363 Convert To UPC -A C-32 background (image) 98 Convert to UPC-A C-61 backlight 99 country code C-59 See also backlight, adjusting 50 cradle Picker cradle 193 contrast, adjusting 51 CTRL Key 45 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 364 EV15 1D imager scanner specifications Include Check (Interleaved 2 of 5 symbology) C-64 Extensible Authentication Protocol (EAP) Include Check (I 2 of 5) C-49 Include Chk C-47, C-57, C-61, C-63 Include Country C-59 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 365 103, 105 Linear Security Level C-10 one shot mode 106 Linear Transmission only (Decoded 36-key keyboard 48 Composite) C-40 58-key 48 Linear Transmission only (TLC-39) keyboard backlight 50 C-40 keyboard keys 43 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 366 Minimum Cancel Time C-9, C-26 C-39 Minimum Length C-28, C-30, C-33, Parity 148, 149, 150 C-35, C-36, C-37, C-39 partitions Minimum Size C-15 creating 159 Min Scan Duration C-44 deleting 161 modifier keys 44 dismounting 161 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 367 Configure button 21 Built In Devices 123 configuring 19 Devices 123 adding a new network connection suspend, power saving 119 Suspend Threshold 120 Decoded (Internal) Ad Hoc 23 Power Mode Scanner authentication, network 23 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 368 Convert To Code 32 C-12 applications 206 Convert To EAN 13 C-22 Rights 154 country code C-59 RSS Code C-23, C-39, C-50 decoded C-55 Run (Start Menu) 82 decoded (internal) C-8 decoded Intermec (ISCP) C-26 VIII Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 369 (2D) imager scanner Port Replicator Tether (COM6) 149 UPC-A Check Digit C-17 Tether Port (COM1) 147 UPC-EANI C-18 Postal UPC-E Check Digit C-17 PlaNET C-52 UPC-E Preamble C-18 PostNET C-53 UPC-E1 Check Digit C-17 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 370 Diags (Diagnostics) Tab B-9 Sled picker cradle. 193 EAP Credentials B-7 SNMP (Simple Network Management EAP Types B-6, B-7 Protocol) 151 Global Tab B-10 Communities 153 IP, assigning 28 Contact 152 Main Tab 31, B-3 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 371 IATA 2 of 5 C-66 Transmit Check Digit (I 2 of 5) C-22 symbologies, bar code 139, C-5 Transmit Check Digit (MSI Plessey) displaying type of bar code 142 C-21 system tray 79 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 372 Variations (Code 128) C-58 Verify C-56 warm reset 35 Warm Reset (Shutdown menu) 83 warnings 142 WEP (Wired-Equivalent Privacy) 23 Window Height C-43 Windows® Start Menu Start Menu 75 Windows CE dialog box 83 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
