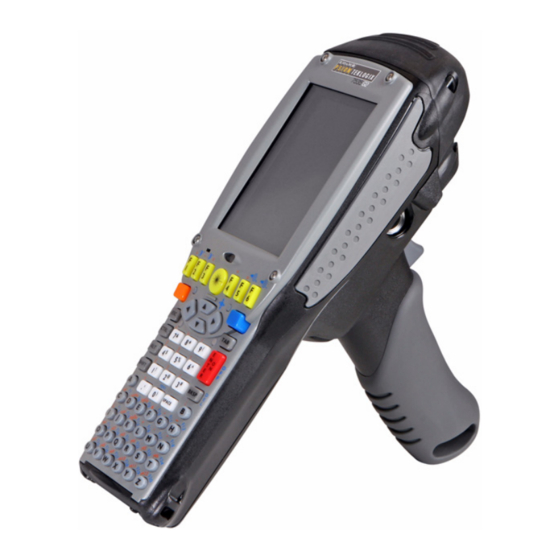

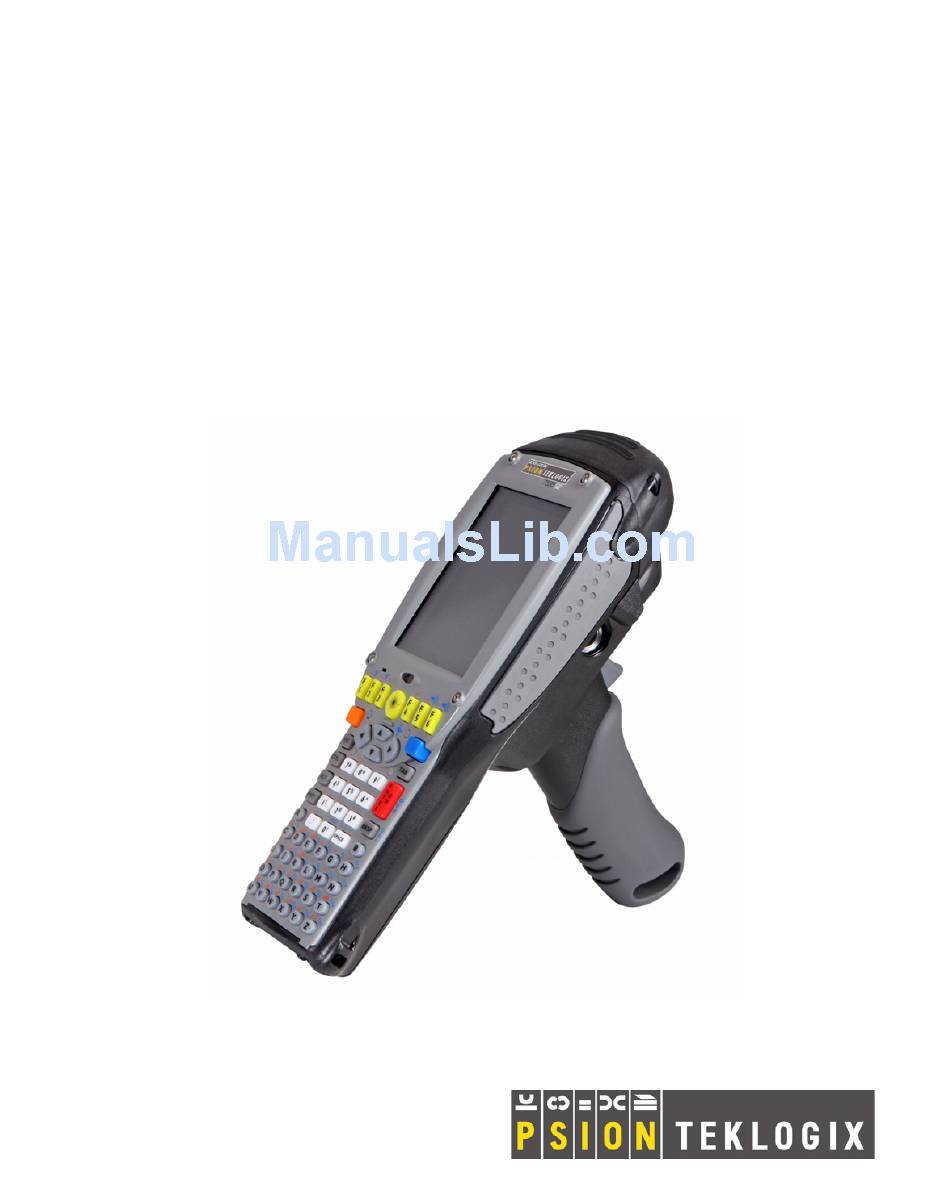

Page 1 7535 G2 Hand-Held Computer User Manual June 19, 2006 Part No. 8000075.A ISO 9001 Certified Quality Management System...
Page 2 © Copyright 2006 by Psion Teklogix Inc., Mississauga, Ontario This document and the information it contains is the property of Psion Teklogix Inc., is issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except for the sole purpose of promoting the sale of Teklogix manufactured goods and services.
Page 3 Return-To-Factory Warranty Psion Teklogix Inc. provides a return to factory warranty on this product for a period of twelve (12) months in accordance with the Statement of Limited Warranty and Limitation of Liability provided at www.psionteklogix.com/warranty. (If you are not already a member of Teknet and you attempt to view this warranty, you will be asked to register.
Page 4 RoHS-compliant as per the EU directive. Other than as noted below, a Psion Teklogix product that does not have an accompanying RoHS logo signifies that it was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.
Page 5: Table Of Contents
Text Conventions ......4 7535 G2 Features ......4 About The 7535 G2 Hand-Held Computer .
Page 6 3.5.3 Calibrating The Touchscreen....42 7535 G2 Indicators......44 3.6.1 LEDs .
Page 7 3.12.1 Caring For The Touchscreen ....58 3.12.2 Cleaning The 7535 G2..... . . 58 Chapter 4: Working With Windows CE Navigating In Windows CE And Applications .
Page 8 5.7.3 Outgoing Tab ......121 5.7.4 Active Conn. Tab......122 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 9 5.11.3.9 UPC A ......163 5.11.3.10 UPC E ......163 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 10 5.11.5.7 Code 93......191 5.11.5.8 Interleaved 2 of 5 ....191 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 11 Chapter 6: Peripheral Devices & Accessories External Bar Code Readers ..... . . 213 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 12 6.6.2 Operator Controls ......219 6.6.3 Using the Combo Charger With The 7535 G2..219 6.6.4 Charging The Spare Battery .
Page 13 6.10 Bluetooth Peripherals ......227 6.11 The 7535 G2 Picker Cradle ..... . . 227 6.11.1 Picker Cradle Mounting Recommendations.
Page 14 C.3 Battery Contacts ......C-4 C.4 JB5 To USB Type B Cable - P/N CA1020 ....C-5 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 15 ........I Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 17: Program License Agreements
“AS IS” and with all faults. THE ENTIRE RISK AS TO SATIS- FACTORY QUALITY, PERFORMANCE, ACCURACY, AND EFFORT (INCLUDING LACK OF NEGLIGENCE) IS WITH YOU. ALSO, THERE IS NO WARRANTY AGAINST INTERFERENCE WITH YOUR ENJOYMENT OF THE SOFTWARE OR AGAINST Psion Teklogix 7535 G2 Hand-Held Computer User Manual xiii...
Page 18 SOFTWARE, including the U.S. Export Administration Regulations, as well as end-user, end-use and destina- tion restrictions issued by U.S. and other governments. For additional informa- tion see http://www.microsoft.com/exporting/. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 19 Software, and you may not install or use the Software or any accompanying documentation. The Software is the property of Psion Teklogix Inc. or its licensors and is protected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties.
Page 20 Software could lead to death, personal injury, or severe physical or environmental damage (“High Risk Activities”). We specifically disclaim any express or implied warranty of fitness for High Risk Activities. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 21 All title and copyrights in and to the Software, and any copies thereof, are owned by Psion Teklogix Inc. or its suppliers. The Software also contains copyrighted material licensed from our suppliers or obtained from open source and all rights to such copy-...
Page 22 In such event, you must return or destroy all copies and component parts of the Software and documentation, as well as any other Psion Teklogix proprietary information in your possession, within four- teen (14) days of the date of termination. Any rights and obligations under this Agreement that by their nature continue after it ends will remain in effect until they are completed.
Page 23 2006 Year of Manufacture: Standard(s) to which Conformity is Declared: The 7535 G2 Hand Held Micro-computer with Portable Docking Module, supplied by Psion Teklogix, has been tested and found to comply with FCC PART 15, SUBPART B - UNINTENTIONAL RADIATORS, CLASS B COMPUTING DEVICES FOR HOME &...
Page 24: Approvals And Safety Summary
Dette utstyret er i overensstemmelse med hovedkravene i R&TTE-direktivet (1999/5/EC) fra EU. (Erklæring finnes på: www.psionteklogix.com). Utrustningen uppfyller kraven för EU-direktivet 1999/5/EC om ansluten teleutrustning och ömsesidigt erkännande av utrustningens överensstämmelse (R&TTE). (Förklaringen finns att läsa på: www.psionteklogix.com). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 25 Tämä laite vastaa EU:n radio- ja telepäätelaitedirektiivin (EU R&TTE Directive 1999/5/EC) vaatimuksia. (Julkilausuma nähtävillä osoitteessa: www.psionteklogix.com). Psion Teklogix tímto prohlašuje, že 7535 G2 je ve shodě se základními požadavky a dalšími příslušnými ustanoveními směrnice 1995/5/ES (NV č. 426/2000 Sb.) a Prohlášení...
Page 26 Avoid placing your product next to such devices. Keep a minimum distance of 20 cm between the device and the product to reduce the risk of interference. If you have any reason to suspect that interference is taking place, turn off the 7535 G2 hand- held and contact your cardiologist for assistance.
Page 27 For your own safety, it is critical that you comply with the following warnings: AUTION Do not look into the laser beam or point the beam at people or animals. Aperture A label is affixed below the aperture. Psion Teklogix 7535 G2 Hand-Held Computer User Manual xxiii...
Page 28 AUTION Danger of explosion if a 7535 G2 battery is incorrectly handled, charged, disposed of or replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the instructions described in “Lithium-Ion Battery Safety Precautions”...
Page 29 • Do not continue charging the battery if it does not recharge within the specified charge time. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 30 • Keep batteries out of reach of children. Always switch the unit off before changing the battery. While the battery is being replaced, the 7535 G2 will save its current data for at least 10 minutes. AC/DC A MPORTANT...
Page 31 Do not use the charger if any of the batteries or the charger get more than lukewarm. Do not use the AC/DC adaptor if it gets more than lukewarm. The equipment should be inspected by qualified personnel. Psion Teklogix 7535 G2 Hand-Held Computer User Manual xxvii...
Page 33 1.2 Text Conventions ....... 4 1.3 7535 G2 Features ....... 4 1.4 About The 7535 G2 Hand-Held Computer .
Page 34 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 35: Chapter 1: Introduction
7535 G2 ready for operation. Chapter 3: Getting To Know Your 7535 G2 describes the 7535 G2 features and outlines how to charge and maintain the bat- tery. This chapter also provides a description of the keyboard, how to navigate ®...
Page 36: Text Conventions
Standard CE APIs - MFC, ATL • Wireless communications: IEEE 802.11g 54 Mbps 2.4 GHz Compact Flash radio Bluetooth SDIO radio 2.4 GHz (10 m range) • Application software: Internet Explorer for Windows CE Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 37 Internal 1D & 2D scan engines: standard, long range, advanced long range Fuzzy logic internal scan engine Internal 1.3 megapixel CMOS image capture scan engine Supports decoded and undecoded tethered scanners • RFID applications: Tethered 900 MHz RD7950 Integrated UHF RFID Reader Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 38: About The 7535 G2 Hand-Held Computer
Remote WLAN management 1.4 About The 7535 G2 Hand-Held Computer The 7535 G2 is a ruggedized hand-held personal computer, running the Microsoft Windows CE 5.0 operating system. It is intended for use in commercial and light industrial applications with a focus on real time wireless data transactions. All possible bar code input methodologies are supported by one of a variety of scanners available.
Page 39: The 7535 G2 Hand-Held Computer
Chapter 1: Introduction The 7535 G2 Hand-Held Computer 1.4.1 The 7535 G2 Hand-Held Computer Figure 1.1 7535 G2 With 58-Key Keyboard Figure 1.2 7535 G2 Docking Port Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 40 Chapter 1: Introduction The 7535 G2 Hand-Held Computer Figure 1.3 Tether Port Laser Aperture Figure 1.4 Scanner Window Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 41: Regulatory Labels
Using controls or adjustments or performing procedures other than those specified herein may result in hazardous radiation exposure. This label is affixed below the scanner window. Figure 1.6 LED Radiation Notice Label Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 43 2.1.1 Equipment You Need To Get Started ....13 2.2 Powering Up The 7535 G2 ......13 2.2.1 Charging The Battery .
Page 44 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 45: Chapter 2: Basic Checkout
Preparing The 7535 G2 For Operation 2.1 Preparing The 7535 G2 For Operation Typically, 7535 G2 hand-helds are configured at the factory and arrive ready for use. Although these hand-helds are equipped with an internal Compact Flash and SD I/O slot, these slots are not intended for user modification.
Page 46: Installing The Battery And Switching The Hand-Held On
2.2.2 Installing The Battery And Switching The Hand-Held On Important: Always switch the unit off before changing the battery. While the battery is being replaced, the 7535 G2 will save its current data for up to 20 minutes. If you are not using a docking station or PDM: •...
Page 47: Attaching Carrying Accessories
Psion Teklogix recommends that a carrying accessory—a hand strap, pistol grip or shoulder strap—be installed on the 7535 G2 before use. If your hand-held is not fitted with a hand strap or pistol grip, you can install either using the carrying accessory kit supplied.
Page 48 Figure 2.2 Attaching The Hand Strap • Stretch the handstrap toward the base of the 7535 G2, and hook the bottom of the handstrap into the slot near the base of the battery pack. Figure 2.3 Hooking The Hand Strap In Place...
Page 49: Attaching The Pistol Grip
Note: A Phillips head screwdriver is required. The pistol grip is attached to the back of the 7535 G2 using the four threaded inserts in the upper part of the 7535 G2 casing. Four black #4-40 Phillips head screws are provided with this accessory.
Page 50: Configuring An Ieee 802.11 Radio In The Unit
802.11 wireless network. Important: If the 7535 G2 is equipped with a radio that has never been con- figured, the radio settings dialog box opens automatically when the unit is powered on. In this case, skip to Step 4 on page 20.
Page 51 Settings window (PTXCF8385P N1 in the sample below) is displayed. Figure 2.7 Wireless Statistics This tab lists your radio statistics. Choosing the Zero button resets the statistics of the last four items: Packets IN, Packets OUT, IN errors and OUT errors. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 52 Wireless Properties dialog box. • Connect button – To force connection to a specific, existing network, highlight the network to which you want your 7535 G2 to connect, and choose the Connect button. Figure 2.8 Wireless Information Tab This tab lists available networks—any access points that are broadcasting...
Page 53 The Network name field can contain a maximum of 32 characters. The name assigned here is listed as a preferred network. Important: Keep in mind that the 7535 G2 will only communicate with access points that are configured with the same SSID. Ad Hoc And Infrastructure If you are using an Infrastructure network—one in which 7535 G2s must...
Page 54 10 or 26 Hexadecimal digit sequence that matches the active WEP key on the access point. • To assign a Network key, highlight The key is provided automatically, and uncheck the checkbox to disable this option. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 55 Certificate. “Certificate Assignment” on page 115 provides a website that outlines how to create certificates for your network. • Saving and exiting the radio setup. Once you have completed the configuration, press [ENTER] or tap on OK. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 56: Assigning An Ip Address
In the PTXCF8385P N1 Settings window, display the IP Information tab. Figure 2.11 IP Information Note: Choosing the Renew button forces the 7535 G2 to renew or find a new IP address. This is useful if, for example, you are out of communication range for a longer period of time and your 7535 G2 is dropped from the network.
Page 57: Name Servers Tab
Display the Name Servers tab. Figure 2.13 Name Servers Tab The DNS and WINS fields in the Name Servers tab allow you to specify additional WINS and DNS resolvers. The format for these fields is ###.###.###.###. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 58: Advanced Features
2.4.3.1 Rearranging Preferred Networks The 7535 G2 attempts to connect with the networks listed in this dialog box in sequence, beginning at the top of the list. If you need to rearrange this list of networks, move networks up and down in the list: •...
Page 59: Changing Network Properties
“Internal Scanners” on page 50. If your 7535 G2 is equipped with an internal scanner, you can test it to ensure that it is operating properly. Point the scanner window at a bar code that your scanner was designed to decode—for example, a 1D UPC bar code or 2D bar code.
Page 60: Calibrating The Touchscreen
Chapter 2: Basic Checkout Calibrating The Touchscreen 2.7 Calibrating The Touchscreen Note: Keep in mind that 7535 G2 hand-helds can be ordered with or without touchscreens, and that the touchscreen function can be turned off (see “Touch” on page 110).
Page 61 3.5.3 Calibrating The Touchscreen ..... 42 3.6 7535 G2 Indicators ......44 3.6.1 LEDs .
Page 62 3.12.1 Caring For The Touchscreen..... 58 3.12.2 Cleaning The 7535 G2 ......58...
Page 63: Chapter 3: Getting To Know Your 7535 G2
Chapter 3: Getting To Know Your 7535 G2 Features Of The 7535 G2 3.1 Features Of The 7535 G2 7535 G2 Screen Sound Port Ambient Light Sensor Tether Port Docking Port Figure 3.1 Front Of 7535 G2 Scanner Window Warning Label...
Page 64: The Battery
The Battery 3.2 The Battery The hand-held operates with a Lithium-Ion battery pack. Preparing the unit for operation requires that a battery pack be charged and installed in the 7535 G2. 3.2.1 Battery Safety Important: Before attempting to install, use or charge the battery pack, it is critical that you review and follow the important safety guidelines in the section entitled “Lithium-Ion Battery Safety Precautions”...
Page 65: Battery Chargers
• Portable Docking Module (Model #HU4001 or HU1005 and HU3220): charges the 7535 G2 battery (with the battery installed in the unit). • Combo Charger (Model #HU3002): a desktop charger that charges the internal battery along with a spare battery pack.
Page 66: Switching The Hand-Held On And Off
• When all four LEDs flash yellow, release the [ENTER/ON] button. Note: If the 7535 G2 is in suspend state, pressing [ENTER/ON] key ‘wakes’ the unit from this state. The screen in which you were working before the computer entered suspend state is displayed.
Page 67: The Keyboard
Pressing a modifier key changes the function of the next key pressed. For example, on a 7535 G2 58-key keyboard, a square bracket is printed in orange print above the [4] key. Pressing the [ORANGE] key followed by the [4] key displays a square bracket rather than the number 4.
Page 68: Locking Modifier Keys
Chapter 3: Getting To Know Your 7535 G2 Locking Modifier Keys 3.4.1.2 Locking Modifier Keys When a modifier key is pressed twice, it is ‘locked’ on. A ‘locked’ modifier key is displayed in uppercase letters in the taskbar. For example, pressing the [BLUE] key twice locks it on—it is displayed as BLUE KEY in the taskbar at the bottom of the...
Page 69: Function Keys, Softkeys And Macro Keys
Function Keys 58-Key Keyboard Function Keys The 7535 G2 58-key keyboard is equipped with thirty function keys. Function keys [F1] to [F6] are located across the top of the keyboard and are directly accessible, a key combination is not required. Function keys [F7] to [F30] are colour coded in blue print above the alpha keys and are accessed using a key combination, [BLUE] followed by the appropriate alpha key.
Page 70: Macro Keys
Refer to “Keyboard Macro Keys” on page 96 for details about creating macros. 7535 G2 hand-helds are equipped with a series of macro keys that can be programmed to replace frequently used keystrokes, along with the function of executable keys like the [ENTER] key, the [BKSP] key, any function key and arrow key, and so on.
Page 71: Alphanumeric Keyboard - 58-Key
Chapter 3: Getting To Know Your 7535 G2 Alphanumeric Keyboard – 58-Key • Press the [ORANGE] key followed by the appropriate alpha key from O to Z. For example: To access macro key [M1], press [ORANGE] [O]. To access macro key [M2], press [ORANGE] [P], and so on.
Page 72 Chapter 3: Getting To Know Your 7535 G2 Numeric Keyboard – 36-Key Choosing A Single Alpha Character Note: The following examples assume that the [ORANGE] key is enabled as ‘Lock’ mode in the ‘One Shot’ screen (accessible through the Control Panel Keyboard icon).
Page 73: The Keypad Backlight
Chapter 3: Getting To Know Your 7535 G2 The Keypad Backlight • Press the Accept key [⇒] (zero key) to indicate that the letter ‘a’ should be accepted and that another letter from the same key will be chosen. To type the letter ‘b’: •...
Page 74: The Display
3.5.3 Calibrating The Touchscreen If your 7535 G2 touchscreen has never been calibrated, or if you find that the stylus pointer is not accurate when you tap on an item, use the Stylus Properties dialog box in the Control Panel to recalibrate the screen.
Page 75 Chapter 3: Getting To Know Your 7535 G2 Calibrating The Touchscreen • In the Control Panel, choose the Stylus icon to display the Stylus Proper- ties window. Figure 3.4 Stylus Icon • Select the Calibration tab, and then choose the Recalibrate button.
Page 76: 7535 G2 Indicators
Chapter 3: Getting To Know Your 7535 G2 7535 G2 Indicators 3.6 7535 G2 Indicators 7535 G2s use LEDs (Light Emitting Diodes), onscreen messages and audio tones as indicators. 3.6.1 LEDs Hand-helds are equipped with four tri-coloured LEDs. This section outlines what these LEDs indicate.
Page 77: Charge Led
Chapter 3: Getting To Know Your 7535 G2 Charge LED 3.6.1.1 Charge LED The lower-right LED is reserved for internal charger/power status. This indicator is active even when the hand-held is inserted in a docking station (and in suspend mode) so that the charge status of the battery can be detected easily.
Page 78: Scan Led
3.6.1.4 User Application LED This indicator is available for user-loaded custom Windows CE applications. Refer to the 7535 G2 SDK Manual for details about this LED. Neither Windows CE nor TekTerm use this LED. 3.6.2 Onscreen Indicators The taskbar at the bottom of the screen displays a variety of system status indicators.
Page 79 When the battery power is completely depleted, a final warning window indicates that the 7535 G2 will be powered down. If the 7535 G2 is using external AC power, an AC icon is displayed in the taskbar. Full...
Page 80 Chapter 3: Getting To Know Your 7535 G2 Onscreen Indicators 802.11 Radio Signal Quality Increasing radio signal quality is represented by longer, filled bars within this icon. Good Weak No Radio Reception Reception Link Tethered Devices When a peripheral is attached to the tether port and activated, an associated icon appears in the taskbar.
Page 81: Audio Indicators
Chapter 3: Getting To Know Your 7535 G2 Audio Indicators Wireless WAN These icons provide access to and information about the 7535 G2 GSM/GPRS wide area networking status. Refer to Appendix E: Wireless Wide Area Network (WWAN) for details about each of these taskbar icons.
Page 82: Internal Scanners
For detailed scanner specifications and decode zone tables, refer to “Internal Scanner Specifications” beginning on page 241. The 7535 G2 supports a wide range of scanner options to address a variety of user application requirements. The scanner installed in your unit can be configured using the Scanner Settings dialog box in the Control Panel (see page 142) and the Manage Triggers application (see page 110).
Page 83: Scanning Techniques
Chapter 3: Getting To Know Your 7535 G2 Scanning Techniques It is critical that you review the “Laser Warnings” on page xxiii in the “Approvals and Safety” section at the beginning of this manual before using any of the scanners described in this chapter.
Page 84: Troubleshooting
Chapter 3: Getting To Know Your 7535 G2 Troubleshooting When the scan is successful, the bar code data is displayed on the screen until the scan button (or pistol trigger) is released, but only if “Scan Result” is turned on in the Options tab of the Scanner Settings menu in the Control Panel.
Page 85: Operating Internal Pdf Laser Scanners
Chapter 3: Getting To Know Your 7535 G2 Operating Internal PDF Laser Scanners 3.7.5 Operating Internal PDF Laser Scanners This scanner decodes PDF417 two-dimensional bar codes. • Turn the hand-held on. Wait until the unit has booted up completely. •...
Page 86: Operating Rfid/Scanner Modules
Chapter 3: Getting To Know Your 7535 G2 Operating RFID/Scanner Modules • Turn the hand-held computer on. Wait until the unit has booted up completely. • Aim at the bar code and press the scan key or the trigger. Hold the trigger until a successful or failed scan result is obtained.
Page 87 Chapter 3: Getting To Know Your 7535 G2 Connecting And Disconnecting Tethered Peripherals Figure 3.8 Attaching The Cable To The Tether Port To remove the peripheral: • Grasp the shell of the plug, and pull it back gently to unlock and release the connector.
Page 88: Monitoring The Battery And Maximizing Run Time
Keep in mind however that heavy usage or operating the 7535 G2 at temperature extremes will shorten the battery life. Lithium-Ion batteries do not require conditioning cycles and the 7535 G2 battery system (including chargers) requires no user interaction to maintain peak performance.
Page 89: Storing Batteries
Chapter 3: Getting To Know Your 7535 G2 Storing Batteries the actual capacity of the battery. See “Battery Gas Gauge Calibration” on page 214 for a detailed discussion of battery calibration. 3.9.1 Storing Batteries Long term battery storage is not recommended. If storage is necessary: •...
Page 90: Uploading Data In A Docking Station
Ethernet network. They are typically used to upload transaction data to a server computer when a radio link is not available. When a 7535 G2 is properly inserted in a docking station, a dock icon is displayed in the taskbar at the bottom of the unit screen.
Page 91 • Avoid abrasive cleaners, solvents or strong chemicals for cleaning. The 7535 G2 has a plastic case that is susceptible to harsh chemicals. The plastic is partially soluble in oils, mineral spirits and gasoline. The plastic slowly decomposes in strong alkaline solutions.
Page 93 4.5 Using A Dialog Box ......77 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 94 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 95: Chapter 4: Working With Windows Ce
Double-tap the stylus on the appropriate icon. 4.1.2 Navigating Using The Keyboard If your 7535 G2 has a standard screen (rather than a touchscreen), choosing icons and navigating dialog boxes, displaying the desktop, and so on requires keyed input. If your unit has already been fully configured and your application is launched at startup, you’ll have little need for keyboard navigation, but you can refer to...
Page 96: Working With Files, Folders And Programs
[BLUE][0] Table 4.1 Keyboard Navigation Keep in mind that unlike a desktop computer, the 7535 G2 does not support key chording (pressing two keys at the same time). You must press one key followed by the next in sequence. Refer to “Working With Files, Folders And Programs” for additional details about keyboard navigation.
Page 97: The Startup Desktop
• Press [ENTER]. 4.3 The Startup Desktop When the 7535 G2 boots up, the startup desktop (shell) is displayed. Any applications stored in the Startup folder start up immediately. Note: The startup folder is located in \Windows\StartUp and \Flash Disk\StartUp.
Page 98: The Desktop Icons
PC desktop that is running Windows. My Device Choosing this icon displays the contents of your 7535 G2 computer. If you’re not sure how to work with the files, folders and programs displayed, refer to “Working With Files, Folders And Programs”...
Page 99: The Taskbar
4.3.2 The Taskbar Figure 4.3 The Taskbar The 7535 G2 is equipped with a taskbar at the bottom of the screen. It displays icons through which you can view the battery capacity and radio signal quality of your unit. If the hand-held is attached to a charger, cradle, docking station or PDM, an associated icon is displayed.
Page 100: Customizing The Taskbar
Tap the stylus on the items you want to activate or deactivate. The check mark indicates active items. If you’re using the keyboard: • Highlight the options you want to activate, and press the [SPACE] key to select them. A check mark indicates active items. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 101: The Start Menu
Use the arrow keys to highlight a menu item, and press [ENTER], or If the menu item has an underlined character: • Type the underlined alpha character. For example, to display the Security dialog box, type the letter ‘s’. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 102: The Desktop
Chapter 4: Working With Windows CE The Desktop 4.4.1 The Desktop Choosing the Desktop option from the Start Menu displays the 7535 G2 desktop. Figure 4.6 7535 G2 Desktop 4.4.2 Security Settings Choosing the Security option from the Start Menu displays a dialog box in which you can define the access level for the 7535 G2: Supervisor or User.
Page 103 Figure 4.8 Configuring Security This dialog box allows you to determine which security levels will have an associated icon displayed in the taskbar. By default, a security icon is not displayed for user-level security. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 104: Programs
Command Prompt Command Prompt is used to access the DOS command prompt. At the prompt, you can type DOS commands such as dir to display all the directories in the drive. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 105: Shortcuts
Remote Connect is a 7535 G2 application used to connect to a Windows Terminal Server so that you can run a “session” on the Server machine using the 7535 G2 (Windows CE device). “Remote Connect” on page 83 provides a website with details about this option.
Page 106 The Task Manager allows you to switch to another task or to end an active task. To display the task manager window: • Tap on Shortcuts, Task Manager, or Press [ALT] [ESC]. Figure 4.11 Task Manager Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 107: Settings
Control Panel The Control Panel contains applets used to configure hardware, the operating system and the shell. If your 7535 G2 is running with the Psion Teklogix TekTerm application or another application, additional configuration applets may appear in the Control Panel.
Page 108: Run
Figure 4.14 Shutdown Sub-Menu Note: This menu varies slightly depending on the security level chosen. When the 7535 G2 is set to User level, the Shutdown option is replaced by Sus- pend. A sub-menu is not available. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 109: Using A Dialog Box
Any unsaved data is lost. Cold Reset The Cold Reset option resets the 7535 G2 (see page 28). Any files not stored in permanent memory are lost; however, the registry settings are saved. 4.5 Using A Dialog Box A dialog box (like the samples in Figure 4.15 on page 77) appears when you need to...
Page 110 Saving Your Choices: Once you’ve made all your changes, press the [ENTER] key to save your changes and exit the window. Note: A dialog box item that is displayed in grey text indicates that it is not currently available. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 111 5.6.6 Manage Triggers ......110 5.6.7 Certificate Assignment ......115 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 112 5.11.3.6 Code 128 ......161 5.11.3.7 EAN 13 ......162 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 113 5.11.5.8 Interleaved 2 of 5 ..... 191 5.11.5.9 RSS Code ......191 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 114 5.12.4.1 Adding A Host ..... . 209 5.12.4.2 Changing A Host ..... 210 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 115: Chapter 5: Configuration
5.1 Remote Connect Remote Connect is a 7535 G2 application used to connect to a Windows Terminal Server so that you can run a “session” on the Server machine, using the 7535 G2 (Windows CE device). Refer to the following website for step-by-step information about setting up this connection: http://www.microsoft.com/WindowsXP/pro/using/howto/gomobile/remotedesktop/default.asp,...
Page 116 Chapter 5: Configuration The Control Panel When the 7535 G2 boots up, the startup desktop (shell) is displayed, and any applications stored in the Startup folder start up immediately. To access the Control Panel: • Press [BLUE] [0] to display the Start Menu.
Page 117: Control Panel Icons
Changes the appearance (window colour scheme) on the unit desktop. Input Panel Provides the framework for a Soft Input Panel (SIP) should you need to design your own SIP, or change some soft keyboard options. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 118 Network And Dial-up Connections Displays a network window from which the 7535 G2 802.11g radio can be configured and an existing configuration can be executed. Refer to “Config- uring An IEEE 802.11 Radio In The Unit” on page 18 for details.
Page 119 Adjusts how Windows CE recognizes your double-tap (as slow or rapid successive taps). In the Calibration tab, you can recalibrate your touch- screen by tapping on the Recalibrate button and following the directions on the screen. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 120 Provides access to a backup and restore utility to maintain applications and settings over cold reboots. TweakIT Settings Allows you to change Advanced System Settings (interface, network, and servers), User System Settings (display font size), and provides the Registry Editor. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 121: Basic Setup
GSM/GPRS. For detailed information, see Appendix E: Wireless Wide Area Network (WWAN). 5.6 Basic Setup 5.6.1 Display Properties • In the Control Panel, choose the Display icon. Figure 5.2 Choosing The Display Icon Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 122: Display Contrast
The Contrast tab allows you to adjust the display contrast to suit the environment in which you are using the 7535 G2. The contrast control can also be used to reduce display flickering that can occur with colour displays in certain lighting conditions.
Page 123 Intensity This parameter is used to adjust the light intensity of the 7535 G2 backlight. Sliding the bar to the left lowers the light intensity, and sliding it to the right raises the intensity.
Page 124: Display Appearance
ON, the backlight remains ON at the configured intensity when the 7535 G2 is operating with external power (not battery power). If the 7535 G2 is drawing power from its battery, this option is ignored and the other parameters defined in Display Properties dialog box take affect.
Page 125: Keyboard Properties
Figure 5.6 Choosing The Keyboard Icon 5.6.2.1 Key Repeat Note: These settings apply when a key is held down continuously. • In the Keyboard Properties dialog box, open the Repeat tab. Figure 5.7 Key Repeat Properties Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 126: Keyboard Backlight
Intensity This parameter is used to adjust the light intensity of the 7535 G2 keyboard backlight. Sliding the bar to the left darkens the keyboard backlight intensity, and sliding it to the right lightens the intensity.
Page 127: Keyboard One Shot Modes
• In the Keyboard Properties dialog box, open the One Shots tab. Figure 5.9 Keyboard One Shot Properties The options in this tab allow you to determine how modifier keys on your 7535 G2 behave. For each modifier key —...
Page 128: Keyboard Macro Keys
A macro has 200 programmable characters (or “positions”). The macro keys can be programmed to replace frequently used keystrokes, along with the function of executable keys including [ENTER], [BKSP] and [DEL] ([BLUE]-[BKSP]), function keys and arrow keys. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 129 Chapter 5: Configuration Keyboard Properties Recording And Saving A Macro You can program up to 12 macro keys on a 58-key 7535 G2. On a 36-key 7535 G2, you can program a maximum of 6 macro keys. • In the Macro menu highlight a macro key number, for example macro 1, to assign a macro to macro key [M1].
Page 130: Unicode Mapping
“a (U+0061)” indicating that the character “a” is represented by the Unicode value “0061”, and so on. Keep in mind that Unicode configurations are represented as hexadecimal rather than decimal values. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 131 Pressed’. Press [SPACE] to select the shift state you want to assign. Removing Unicode Values • In the Unicode Mapping tab, highlight the item you want to delete, and choose the Remove button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 132: Scancode Remapping
If the scancode is remapped to a function or a macro, the first and second columns remain blank while the third column contains the function name or macro key number (e.g., Macro 2). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 133 When Macro is selected, the macro keys available on your unit are listed in the dialog box. • Choose Virtual Key, Function or Macro. • Choose a function from the Function list in the dialog box, and tap on OK. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 134: Volume And Sound Properties
Remove button. • Tap on OK. 5.6.3 Volume And Sound Properties • In the Control Panel, choose the Volume & Sounds icon. Figure 5.16 Choosing The Volume Icon Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 135: Volume Adjustments
7535 G2 to emit a beep. 5.6.3.2 Sound Tab The 7535 G2 computer is equipped with a beeper rather than a sound port. The options under this tab are not available for this hand-held. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 136: Power Management Properties
In the Control Panel, choose the Power icon. Figure 5.18 Choosing The Power Icon 5.6.4.1 Battery Capacity • In the Power Properties dialog box, open the Battery tab to view battery details. Figure 5.19 Power Battery Properties Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 137: Power Saving Schemes
‘on’ (see “Display Backlight” on page 90). When the 7535 G2 is idle—not receiving any user input (a key touch, a scan, and so on) or system activity (serial data, an activity initiated by an application, and so on)—the hand-held uses the value assigned in the Switch State To Suspend field to...
Page 138: Suspend Threshold
Psion Teklogix does not recommend the storage of any valuable data in system RAM. The 7535 G2 normal Windows CE environment does not store any critical data in RAM (such as the registry or file system). If the user's application does not save data to RAM, Psion Teklogix recommends keeping the Suspend Threshold setting as low as possible to maximize battery run time.
Page 139: Calibrate
Tapping in the checkbox next to Allow Battery Calibration allows the battery to be recalibrated only when necessary if the unit is inserted in a Combo Docking station. 5.6.4.5 Advanced Figure 5.23 Card Slot Activation Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 140: Devices
TCP/IP connection. Low Power Warnings The sliding scale at the bottom of this tab allows you to specify the remaining battery capacity at which a warning message is displayed on the 7535 G2 screen, from 0% to 20%. 5.6.4.6 Devices This tab controls power to individual CF and SDIO slots, and built-in devices.
Page 141: Stylus Properties
Figure 5.25 Stylus Icon 5.6.5.1 Double-Tap • In the Double-Tap tab, follow the directions to tailor the sensitivity of the stylus when you tap on the touchscreen. Figure 5.26 Setting Stylus Sensitivity Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 142: Calibration
You can configure the trigger ID for each trigger button for both single- and double-click, and the double-click time. • In the Control Panel, choose the Manage Triggers icon (see Figure 5.28 on page 111). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 143: Trigger Mappings
A trigger mapping is an association between a particular key on the keyboard and a driver or application, the “owner(s)” of the trigger source. When the specified key is pressed, the owner (for example, a decoded scanner) is sent a message. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 144 The OK button in the top right of the Manage Triggers screen saves all changes made. If the cancel button X is tapped instead, or the [ESC] key is pressed, all changes made will be discarded. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 145: Add And Edit Trigger Mapping
Imager or RFID Readers. It is also possible to map different sources to the same owner—for exam- ple, [F2] and [F3] can both be mapped to the RFID File System. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 146 Trigger Owner This identifies the driver or application receiving the trigger presses. Show All By default, inactive owners are not shown. By checking this checkbox, all owners, both active and inactive, are displayed. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 147: Certificate Assignment
For a detailed description about Certificate setup for both the server and client-side devices (7535 G2s), refer to the following website: http://www.microsoft.com/windowsserver2003/techinfo/overview/security.mspx Note: When importing certificates, the 7535 G2 only recognizes .cer files. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 148: Bluetooth Setup
In the Control Panel, choose the Bluetooth Device Properties icon to display the Bluetooth Control screen. Figure 5.34 Bluetooth Icon The Bluetooth Control dialog box is used to display the other Bluetooth devices with which you can communicate. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 149: The Devices Tab
5 m (16.4 ft.) of the hand-held before proceeding with the discovery process described below. Scan • Click on the Scan button to list available devices. Figure 5.36 Available Bluetooth Devices Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 150 Chapter 5: Configuration The Devices Tab Wait for the 7535 G2 to complete its scan (approximately 20 seconds). When scanning starts, the Scan button will change to Stop—if necessary, you can tap on this button to stop the process. Once scanning is complete, all discovered devices will be displayed in the list box, with Name, Address, Active status, and PIN information.
Page 151 Devices list box, indicating that this device has a PIN set. Once a PIN is entered, it is saved in the registry. To remove the PIN: • Choose Set PIN, and press [ENTER]. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 152: The Servers Tab
The Bluetooth connection is initiated from your 7535 G2 to the remote device. Therefore the 7535 G2 is called the ‘client’ and the remote is called the ‘server’. The Servers tab displays the server profiles that can be activated in your 7535 G2. There is currently one server profile available: Serial.
Page 153: Outgoing Tab
Note: To add a service to the Outgoing port, an active service must first be deactivated. Then you can choose the ‘Outgoing’ option from the Activa- tion menu (highlight a service, right-click or press the [SPACE] bar to display the Activation menu). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 154: Active Conn. Tab
Although the name will have changed in the Properties menu in Bluetooth Controls, the radio only reads it on boot-up. For the changes to take effect, you must cold reset the 7535 G2 (for cold reset instructions, see “Resetting The Hand-Held” on page 28).
Page 155: The Properties Tab
The Properties tab displays information about your 7535 G2, and provides some port options. The Device Name field shows the device name of your 7535 G2. This name can be changed (see the Note on the previous page for details).
Page 156 1. To set up the internet parameters, choose the Network And Dial-up Connections icon from the Control Panel. Figure 5.41 Network And Dial-up Connection Icon 2. Choose the Make New Connection icon. Figure 5.42 Creating A GPRS Connection Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 157 5. In the dropdown menu labelled Select a modem, choose the name of the modem with which you want to connect, and then choose the Configure button to display the Device Properties dialog box. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 158 Chapter 5: Configuration The Bluetooth GPRS WAN Connection The 7535 G2 communicates via Bluetooth to your Bluetooth-equipped cel- lular telephone and retrieves the parameters for the Device Properties dialog box. The 7535 G2 then disconnects. Figure 5.45 Port Settings 6. Under the Call Options tab, turn off Cancel the call if not connected within, and press [ENTER] to save your changes.
Page 159 The phone number you enter is network carrier dependent. Once you’ve specified all the necessary information, choose the Finish button. 8. In the Control Panel, choose the Dialing icon. Figure 5.48 Dialing Icon Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 160 10. At this point, you’ll need to return to the Control Panel, and choose the Network and Dial-up Connections icon. 11. In the network connection window, the new network configuration, in this case GPRS Network is displayed. Choose the new icon. Figure 5.50 GPRS Network Connection Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 161 Figure 5.51 Successful Connection • Select the Hide button to move this message to the background. You can now access the internet. Figure 5.52 Accessing The Internet Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 162: Total Recall
Total Recall 5.8 Total Recall Total Recall is a Psion Teklogix utility developed to maintain applications and device settings. It allows the setup of one hand-held unit to be quickly duplicated on another, as when first configuring a multi-unit site.
Page 163: Creating A Backup Profile
View Selected Profile, Restore Selected Profile and Delete Selected Profile. Keep in mind however that until a profile is created, the only available option is Create Backup Profile. • Choose the Next button to begin the process. Figure 5.55 Profile Details Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 164 This dialog box lists the possible storage destinations for the profile file. • To begin, type a name for the profile in the field labelled Profile Name. The image type, OS Version and Registry Type, for the 7535 G2 is also listed here. • Tap on this icon to expand your settings for Profile Type and Profile Location.
Page 165 Remove the check mark next to All Files. You’ll notice the checkbox next to Select Files changes , indicating that additional options are available. • Choose this icon next to Select Files to view your options. Figure 5.58 By File Type Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 166 Highlight the item you want to remove from the list, and tap on the Remove button. Choosing By File Type allows you to select the file types that you want backed up. Figure 5.60 Adding Files By File Type Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 167 Figure 5.61 Viewing Selections • Choose the Next button to perform the operation. Perform The Operation Figure 5.62 Performing The Backup • Choose the Backup button to start the process, and create a profile. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 168: Restoring A Profile
5.9 The Storage Manager The Storage Manager allows the user to view information about the storage devices that are present in the 7535 G2, such as SD-MMC flash cards and Compact Flash cards. 5.9.1 Formatting A Memory Card Formatting a memory card bulk-erases it.
Page 169: Creating Partitions
Diskspace checkbox, then specify the desired number of sectors to be used by the partition: Note: The sector size of the card is given on the left-hand side of the Storage Properties dialog. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 170: Partition Management
5.9.3 Partition Management Partitions can be individually dismounted, mounted, deleted, or formatted as well. These and additional tasks are available from the Partition Properties dialog: Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 171 2. Press the Properties button. The Partition Properties dialog appears. 3. Press the Dismount button. The partition is dismounted. The asterisk disappears next to its name in the partitions list. 4. Press the Format button. The Format dialog appears: Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 172 3. Press the Mount button. The partition is mounted. The asterisk appears next to its name in the partitions list. The Partition Properties dialog has buttons for additional functions. Partitions can be defragmented, and their file structure can be scanned. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 173: Ipv6 Support
• Choose the IPv6 Support icon to display the associated dialog box. Figure 5.64 IPv6 Support Tab • Choose the checkbox next to Enable IPv6 Network Support to enable this internet protocol. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 174: Scanner Settings
Holding on an individual setting will pop up a menu to default that setting, or all settings. This option cannot be accessed without a touchscreen. Figure 5.65 Teklogix Scanners Icon Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 175: Bar Codes
Always defer to your bar code scanner’s programming manual when in doubt about the availability or settings for any parameter. Note: Your 7535 G2 comes preconfigured from the factory for internal scanner types. The type of scanner installed can be determined from the System icon in the Control Panel, under the System Properties tab.
Page 176: Non-Decoded Scanners
If you need to change a yes or no value, double-tapping on the parameter toggles between yes and no. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 177: Options
(Code 93, Code 128, UPC/EAN). Lower values have a lower tolerance for misreads, but they also increase the time it takes to decode the bar code. The default value of 30 is generally a good compromise setting. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 178: Code 39
This identifier defines the general category or specific use of the data contained in the rest of the bar code. Note: If your unit is operating with the Psion Teklogix TESS application, this parameter should not be used in conjunction with the TESS AIAG feature.
Page 179: Code 128
Note: The appended character is treated as any other keyboard character. For example, if [BKSP] is pressed, the usual action for that key is performed. If your unit is operating with the Psion Teklogix ANSI emulation application, the hand-held transmits the escape sequence associated with the function immediately after the bar code data.
Page 180: Ean 13
Setting this parameter to ON allows your scanner to recognize Bookland EAN bar codes. Include Country If this parameter is enabled, the country code is included with the decoded bar code data. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 181 The ASCII/Unicode key value of the keypress is displayed. Pressing the [ESC] key in this dialog box resets the data to zero. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 182: Ean 8
Note: The appended character is treated as any other keyboard character. For example, if [BKSP] is pressed, the usual action for that key is performed. If your hand-held is operating with the Psion Teklogix ANSI emulation application, the hand-held transmits the escape sequence associated with the function immediately after the bar code data.
Page 183: Upc E
When enabled, the check digit is included with the decoded bar code data. Addendum Important: Before “Addendum” can take effect, the “Short Code” parameter (see page 145) must be enabled. Refer to “Addendum” on page 149. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 184: Codabar
Refer to the description beginning on page 147 for details. 5.11.2.10 Code 11 Enabled Set this parameter to ON to enable “Code 11”. Include Check If “Include Check” is enabled, the check digit is included with the decoded bar code data. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 185: Interleaved 2 Of 5
If this parameter is enabled, the check digit is included with the decoded bar code data. Field Size/Chars Refer to the description beginning on page 147 for details. 5.11.2.12 MSI Plessey Enabled Set this parameter to ON to enable “MSI Plessey”. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 186: Discrete 2 Of 5
5.11.2.14 IATA 2 of 5 Enabled Set this parameter to ON to enable “IATA 2 of 5”. MOD 10 Check If this parameter is enabled, the MOD 10 check digit is calculated. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 187: Decoded (Internal) Scanners
0 msec, 200 msec or 400 msec. A value of 0 (zero) disables the target dot. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 188: Advanced Options
When you double-tap on this parameter, a dialog box is displayed in which you can choose a value of 30 sec., 1 min., 2 min. or 3 min. Parameter Scanning Setting this parameter to ON enables decoding of parameter bar codes. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 189 Note: This parameter is only valid if a” Linear Security Level” is enabled. When this parameter is enabled, a bar code must be successfully scanned in both directions (forward and reverse) before being decoded. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 190: Scanning Options
A prefix and/or one or two suffixes may be appended to scan data for use in data editing. When you double-tap on these parameters, dialog boxes are displayed in which you can enter a value from 0 to 255. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 191: Code 39
Setting this parameter to ON allows the scanner to convert the bar code from “Code 39” to “Code 32”. Code 32 Prefix Note: “Convert to Code 32” must be enabled in order for this parameter to function. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 192 Note: Only those “Code 39” symbols that include a MOD 43 check digit are decoded when this parameter is enabled. Transmit Check Digit If the check digit is to be transmitted with the data, this parameter must be enabled. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 193: Code 39
To successfully scan this type of bar code, this option must be set to ON. Decode Performance If this parameter is set to ON, one of three decode levels assigned to the “Decode Performance Level” parameter can be selected. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 194: Ean 13
When this parameter is enabled, five leading zeros are added to decoded EAN-8 symbols, making them compatible in format to EAN-13 symbols. Disabling this parameter returns EAN-8 symbols to their normal format. Prefix/Suffix See “Prefix/Suffix” beginning on page 149. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 195: Upc A
Set this parameter to ON to allow “UPC-E1” (zero suppressed) bar code scans. UPC-E And UPC-E1 Check Digit If you enable one or both of these parameters, a check digit is included with the decoded bar code data. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 196: Upc/Ean Shared Settings
'Supplementals” are additionally appended characters (2 or 5). Double-tapping this parameter displays a list of options. If Ignore is chosen, UPC/EAN is decoded and the supplemental characters are ignored. If Decode is Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 197: Codabar
Lengths for “Codabar” can be set for Any length, Length within a range, One discrete length or Two discrete lengths. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 198: Code 93
Length within a range allows you to decode a code type within a specified range from 4 to 55. Field Size/Chars Refer to page 147 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 199: Interleaved 2 Of 5
If this parameter is enabled, an I 2 of 5 bar code is converted to EAN 13. Field Size/Chars Refer to page 147 for details. 5.11.3.15 MSI Plessey Enabled Set this parameter to ON to enable “MSI Plessey”. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 200: Discrete 2 Of 5
MOD 10/MOD 11 or MOD 10/MOD 10. Field Size/Chars Refer to page 147 for details. 5.11.3.16 Discrete 2 of 5 Enabled Set this parameter to ON to enable “Discrete 2 of 5”. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 201: Pdf-417
903-907, 912, 914, 915 if the first codeword is 908 or 909 if the first codeword is 910 or 911 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 202: Rss Code (Reduced Space Symbology)
For imagers, “Center Bar Code Only” must also be disabled. A composite symbol includes multi-row 2D components making it compatible with linear and area CCD scanners along with linear and rastering laser scanners. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 203: Decoded (Intermec Iscp)
The value assigned to this parameter determines how long the laser will remain on when the scan button or trigger is pressed. Double-tapping on this parameter displays a dialog box in which you can enter a value between 1 and 10 seconds. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 204: Advanced Options
If this parameter is enabled, the characters +, %, and / are used as escape characters. The combination of an escape character and the next character is converted to an equivalent ASCII character. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 205 Minimum lengths for the bar code can be set from 0 to 255. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s). Field Size/Chars Refer to page 147 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 206: Code 128
If only one code of a pair is read, that code will be transmitted as a single code. If both codes in a pair are detected, they will be concatenated provided that ISBT Concat Any Pair (see below) is enabled. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 207: Ean 13
(‘978’) are ignored and the checksum (0.9, ‘X’) is calculated on the remaining characters. Transmit Check Digit If the check digit is to be transmitted with the data, this parameter must be enabled. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 208: Ean 8
If this parameter is enabled, the number system digit is transmitted with the decoded bar code data. Convert To EAN 13 If this parameter is enabled, a UPC A bar code is converted to EAN 13. Prefix/Suffix Refer to page 149 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 209: Upc E
When the parameter is set to Required and Transmitted, the scanner does not accept the main bar code without an addendum. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 210: Codabar
Thus, when a set is chosen, the first and last digits of a Codabar message must be one of those characters and the body of the message should not contain these characters. Setting this parameter to Not Transmitted strips the start and stop characters from this bar code. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 211: Code 93
Minimum lengths for the bar code can be set from 0 to 255. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s). Field Size/Char Refer to page 147 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 212: Interleaved 2 Of 5
If the data does not contain that algorithm, the data is not transmitted. The available options are: Disabled, MOD 10 Check, or French CIP. Note: French CIP (French pharmaceutical) is only used with bar codes contain- ing 7 characters. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 213: Matrix 2 Of 5
Refer to page 147 for details. 5.11.4.15 MSI Plessey Enabled Set this parameter to ON to enable “MSI Plessey”. Enable Plessy Set this parameter to ON to enable the “Plessy” bar code. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 214: Discrete 2 Of 5
Set this parameter to ON to enable “Discrete 2 of 5”. Standard 2 of 5 Format You can choose as the standard format either Identicon (6 start/stop bars) or Computer Identics (4 start/stop bars). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 215: Pdf-417
Set this parameter to ON to enable “2D Micro PDF-417”. Code 128 Emulation When this parameter is enabled, the scanner transmits data from certain Micro PDF-417 symbols as if it was encoded in Code 128 symbols. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 216: Codablock
‘RSS-Limited” is restricted, in that it can only encode 14 digit GTINs (global trade item numbers) that begin with either 0 or 1. It is not stackable and is not designed to be read omni-directionally. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 217: Telepen
Minimum lengths for the bar code can be set from 0 to 255. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s). Field Size/Chars Refer to page 147 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 218: Imager
Max Number Barcodes Specifies the maximum number of bar codes the imager attempts to decode in an image. A maximum of 6 bar codes can be decoded at one time. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 219: Advanced Options
Specifies if the driver will restore the factory defaults to the imager device on the next reboot—that is, a cold boot or warm boot. Note: The driver will default the imager device on a clean-cold-boot, regardless of the value of this parameter. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 220 Setting this parameter to ON speeds the “Auto Exposure” process. It allows the imager to rapidly snap a number of bar code capture attempts while finding ideal values for gain, integration and illumination. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 221 It also assumes that a trained operator will usually only have near miss scenarios. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 222: Code 39
UPC-8, EAN-13, Bookland EAN-13 and Bookland EAN. Enabled Set this parameter to ON to enable “UPC/EAN” bar codes. Addendum Refer to “Addendum” on page 149. Prefix/Suffix Refer to page 149 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 223: Codabar
Set this parameter to ON to enable “RSS Code”. Field Size/Chars Refer to page 147 for details. 5.11.5.10 Postal: Australian Enabled Set this parameter to ON to enable “Postal: Australian”. Field Size/Chars Refer to page 147 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 224: Postal: Japanese
Set this parameter to ON to enable “Postal: PostNET”. Field Size/Chars Refer to page 147 for details. 5.11.5.15 Postal: Royal Enabled Set this parameter to ON to enable “Postal: Royal”. Field Size/Chars Refer to page 147 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 225: Data Matrix
Set this parameter to ON to enable “2D Micro PDF-417”. Field Size/Chars Refer to page 147 for details. 5.11.5.20 2D QR Code Enabled Set this parameter to ON to enable “2D QR Code”. Field Size/Chars Refer to page 147 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 226: Aztec
In addition, Center Barcode Only must be disabled (see page 186). 5.11.6 Options This tab allows you to tailor the double-click parameters and the display options associated with your scanner. Figure 5.72 Options Tab Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 227: Double Click
Click Data For both integrated and external scanners, this parameter determines which character is sent to the application installed in your 7535 G2 following a double-click. A dialog box appears, asking that you press the key you want to insert.
Page 228 Options Good Scan Beep And Bad Scan Beep These parameters determine whether or not the 7535 G2 emits an audible scanner ‘beep’ when a good (successful) scan or a bad (unsuccessful) scan is performed. Set these parameters to either ON to enable the beeper or OFF to disable it.
Page 229: Translations
“Output” string. This string entry parameter can be null, or it may contain any combination of standard and special characters (e.g., function keys, [ENTER], etc.). Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 230: Ports
Note that some devices can auto-detect serial port settings (such as baud rate), and in this case the 7535 G2 will dictate the settings. Baud rates often have a direct impact on performance—they should be set as high as possible while still ensuring reliable communication.
Page 231: Tether Port (Com1)
5.11.8.1 Tether Port (COM1) Notes: RS-232 serial communication is one of the modes available on the tether port, located on the side of the 7535 G2. These parameters refer only to external decoded scanner communica- tions. They have no effect if the generic serial device tether cable is plugged in.
Page 232: Console Port (Com3)
The console port is accessed via the docking connector on the bottom of the 7535 G2. Only the Portable Docking Module (PDM) provides access to the console port through a DE-9 interface. Figure 5.79 Console Port Settings Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 233: Port Replicator Tether (Com6)
Chapter 5: Configuration Ports Enabled This parameter must be set to ON in order for the 7535 G2 to recognize the attached device as a decoded bar code scanner. Baud Refer to page 199 for details. Data Bits Refer to page 200 for details about this parameter.
Page 234: Port Replicator 9-Pin (Com5)
G2 port replicator module, available on certain cradle types. Figure 5.81 Port Replicator 9-Pin Settings Enabled This parameter must be set to ON in order for the 7535 G2 to recognize the device connected to the Port Replicator 9-pin (COM5). Baud Refer to page 199 for details.
Page 235: Snmp (Simple Network Management Protocol) Setup
SNMP Network Management Station can access. Each product has a defined set of MIBs that determine how SNMP operates, the type of access allowed and so on. All Psion Teklogix products support the TEKLOGIX-GENERIC-MIB—a MIB that defines some common features across Psion Teklogix products.
Page 236: Contact Tab
MIB-II’s sysContact object. Location This parameter is used to identify the physical location of this node (e.g., Warehouse A: Pillar 32B). The content of this parameter is accessible through MIB-II’s sysLocation object. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 237: Communities Tab
To disable this feature, remove the check mark from the check box. 5.12.2.1 Adding A Community • Choose the Add button to add a new ‘community’. Figure 5.85 Adding A Community Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 238: Modifying A Community Setting
Remove button. A Delete Confirmation screen is displayed. • To remove a community, choose the Yes button, or If you decide not to remove the community, choose the No button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 239: Trap Destination Tab
5.12.3.2 Adding A Destination To add a new destination: • Choose the Add button. Figure 5.88 Adding A Trap Destination • Type a destination in the text box provided, and press [ENTER]. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 240: Changing A Destination
Choose the Remove button. A Delete Confirmation screen is displayed. • To remove a destination, choose the Yes button, or If you decide not to remove the destination, choose the No button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 241: Permitted Hosts Tab
To add a new host: • Highlight the Add button, and press [ENTER]. Figure 5.91 Adding A Host • Type a new host IP address in the text box provided, and press [ENTER]. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 242: Changing A Host
Highlight the IP address you want to alter in the Permitted Hosts tab, and then choose the Change button. A dialog box like the one displayed when you add a host is displayed. • Make the necessary changes, and press [ENTER]. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 243 6.6.2 Operator Controls......219 6.6.3 Using the Combo Charger With The 7535 G2 ... .219 6.6.4 Charging The Spare Battery .
Page 244 6.10 Bluetooth Peripherals ......227 6.11 The 7535 G2 Picker Cradle ..... . . 227 6.11.1 Picker Cradle Mounting Recommendations .
Page 245: Chapter 6: Peripheral Devices & Accessories
To connect this scanner to the 7535 G2, attach the device to the tether port at the upper-right side of the 7535 G2. Before using the bar code reader, you may need to change some parameters (see “Non-Decoded Scanners”...
Page 246: Batteries
100% after 5 charge cycles through the charger. It can take from 1.5 to 4 hours to charge a battery. The 7535 G2’s intelligent charging system protects the battery from over-charging by terminating the charge process when the battery is at maximum capacity.
Page 247: Gang Charger
6.5 Gang Charger The HU3006 is designed to charge up to six 7535 G2 Lithium-Ion batteries at one time. Your charger is shipped with the appropriate IEC mains power cord. If the supplied power cord is incorrect for your country, contact Psion Teklogix for assistance (see Appendix A: Support Services And Worldwide Offices).
Page 248: Operator Controls
Each battery charge slot is equipped with a tri-coloured LED to indicate the charge status of the battery. When 7535 G2 batteries are inserted in the charger, the colour and behaviour of the LEDs associated with the charge wells in use indicate the status of the charge.
Page 249: Charging Batteries
Storing batteries in the gang charger for extended periods (more than a week or two) is not recommended. Lithium-Ion batteries lose capacity if they are maintained at full charge for long periods of time. See the battery storage recommendations in “Storing Batteries” on page 57. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 250: Indicator Flashing Red
6.6 Combo Charger The 7535 G2 combo charger is a desktop charger designed to charge the 7535 G2 internal battery along with a spare battery pack. The combo charger provides sufficient power to operate and fast charge the 7535 G2 internal battery, while recharging the spare battery pack.
Page 251: Installation
The battery charge LED on the 7535 G2 lights up indicating that the unit has external power and battery charging may begin. It is safe to leave the 7535 G2 in the combo charger cradle while it is not in use—the battery will not be overcharged.
Page 252: Charge Indicators
HU3002, HU4002, or on the hand-held) function in exactly the same way. Normally, it takes from 1.5 to 4.0 hours to fully charge the 7535 G2 internal battery. Note: Battery charging continues whether the 7535 G2 is switched on or off.
Page 253: Combo Dock
The 7535 G2 detects combo dock and displays the appropri- ate icon The battery charge LED (lower-right LED) on the 7535 G2 lights up to show it has external power and may start charging the battery. Interaction with the 7535 G2 while in the combo dock is a function of the user application software used to communicate with the host network.
Page 254: Troubleshooting
A green LED is illuminated next to the RJ45 connector when a valid network link is established. A user application must be loaded onto each 7535 G2 that utilizes the quad dock for communication. When the network is connected and this application is loaded, the quad dock is ready for use.
Page 255: Indicators And Controls
Gently slide the 7535 G2 into the cradle portion of the quad dock until lightly latched. The 7535 G2 detects that it is in a quad dock and displays the appropriate icon in the taskbar . The battery charge LED on the 7535 G2 lights up to show it has external power and may start charging the battery.
Page 256: Troubleshooting
7535 G2—no indicators or applications are present on the docking station itself. 6.8.6.1 Network Link Unsuccessful If a network link fails, the 7535 G2 application alerts the operator that the link was unsuccessful. 6.8.6.2 7535 G2 LED Does Not Light When Docked •...
Page 257 Figure 6.2 on page 226 illustrates the connectors on the PDM. • Align the pins on the PDM with the connectors on the base of the 7535 G2. • Gently snap the PDM into place on the base of the unit. Figure 6.1 on page 225 provides a visual representation of how to secure the PDM.
Page 258 AC/DC adaptor provided with your PDM. The power supplied by the PDM is sufficient to operate the 7535 G2 and fast charge its internal battery at the same time. The 7535 G2 can run from a PDM without a battery installed.
Page 259: Bluetooth Peripherals
GSM/GPRS handsets, scanners, printers, and so on. The range of the Bluetooth radio in the 7535 G2 is limited to approximately 10 meters (32 ft.). The Bluetooth antenna is located behind the scanner ‘bulge’ on the back of the hand-held.
Page 260: Picker Cradle Mounting Recommendations
Psion Teklogix strongly recommends that you seek professional mounting advice from the vehicle manufacturer.
Page 261: Wiring Guidelines
• Slide the 7535 G2 into the cradle, and press firmly downward until it locks into place. On a vehicle, it’s a good idea to pull up on the 7535 G2 to be certain that it is secure. •...
Page 262: Powered Cradle Installation In High Voltage Vehicles
6.11.5.1 Extreme Wet Environments For extreme wet environments, or environments where it is difficult to restrict vehicle operator access to the power connector, Psion Teklogix offers a waterproof heat shrink kit (PN 1030022). The kit contains 3 pieces of waterproof, high shrink ratio heat shrink tubing which can be used to encapsulate the entire connector assembly.
Page 263: Powered Cradle Installation
Powered Cradle Installation 6.11.6 Powered Cradle Installation The powered cradle option is designed to allow the 7535 G2 to be powered by a vehicle battery. The battery installed in the 7535 G2 is also recharged by the vehicle battery. This option accepts DC power sources over the range 12V to 80V.
Page 264: Wiring Vehicle Power To The Cradle
Keep in mind that the 7535 G2 will continue to operate with or without vehicle power as long as its battery has sufficient charge.
Page 265: Tether Adaptor Cables
CA1020 JB5 to Type B USB: Connects to USB devices with Type B receptacles. For the pinout diagrams for 7535 G2 cables P/N CA1020 and P/N CA1010, please see Appendix C: “Port Pinouts”, page C-5. Special intermediate cabling assemblies are available to allow older devices or unique peripherals to be connected to the JB5 tether port.
Page 267 PECIFICATIONS 7.1 7535 G2 Hand-Held Computer Specifications ....237 7.2 Radio Specifications ......239 7.3 Internal Scanner Port .
Page 268 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 269: Chapter 7: Specifications
• Self-guiding & latching battery pack design. • System backup (more than 10 minutes) during battery swap. • Adjustable battery allocation between system backup and runtime. • 1 week real-time clock backup. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 270 ASD, 200 - 500 Hz. Approvals Safety: UL 1950-1, CSA C22.2 No950, LVD EN60950 EMC: FCC Part 15 Class B, EMC Directive Class B Laser: IEC 60825-1:1993+A1:1997+A2:2001 Class 2 CDRH 21 CFR 1040 Class II Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 271: Radio Specifications
2dBi peak Transmit Power -3dBm (0.5mW) minimum, +4dBm (2.5mW) max Frequency Range 2.400 - 2.4835 GHz RX Sensitivity -80dBm max (BER<=0.1%) Data Rate 732.2 kbps and 57.6 kbps asymmetric, 433.9 kbps symmetric Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 272: Internal Scanner Port
SX5303ST SX5303ULR SX5303HD 7.4 RFID Applications RD7950 Integrated UHF RFID Reader Psion Teklogix RFID File System Multi-protocol support 7.5 External Scanners Supported Types Decoded and Non-Decoded 5V only. Interface Via tether port. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 273: Internal Scanner Specifications
Code 93/93i, Code 11, MSI, Plessey, Telepen, PDF417, Micro PDF417 Interfaces Decoded mode: RS232 TTL with Intermec Scanner Control Protocol (ISCP) Ambient Light Works in any lighting conditions, from 0 to 100,000 lux Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 274: Decode Zones
Chapter 7: Specifications Decode Zones 7.6.1.1 Decode Zones Typical reading distances on high quality bar codes Figure 7.1 EV15 Decode Zones Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 275: Se1200 High Performance & Long Range Specs
Ambient Light: Artificial: 450 ft. candles Artificial: 450 ft. candles (4844 Lux). (4844 Lux). Sunlight: 10000 ft. candles Sunlight: 8000 ft. candles (107,640 Lux). (86,112 Lux). Laser Output Power (peak) 0.83mW 1.33mW Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 276: Se1200 Advanced Long Range & Se2223Pdf Specs
Ambient Light: Artificial: 450 ft. candles Artificial: 450 ft. candles (4844 Lux). (4844 Lux). Sunlight: 4000 ft. candles Sunlight: 8000 ft. candles (43,056 Lux). (86112 Lux). Laser Output Power (peak) 1.35mW 0.86mW Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 277: Decode Zones
Table 7.1 Decode Zones – HP, LR And ALR Raster Laser Scanner Read Distance Bar Code (mil) PDF Bar Codes SE2223 Min (inches) Max (inches) 10.0 15.0 15.5 Table 7.2 Decode Zones – PDF Scanner Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 278: Se1224Hp Specs
Laser On Time, Aim Duration, Power Mode, Trigger Mode, Bi-directional Redundancy, Symbology types/lengths, Data formatting. Ambient Light: Artificial: 450 ft. candles (4844 Lux). Sunlight: 8000 ft. candles (86112 Lux). Laser Output Power (peak) 1.35mW Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 279: Decode Zones
Chapter 7: Specifications Decode Zones 7.6.4.1 Decode Zones Figure 7.2 SE 1224HP Decode Zones Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 280: Se1524Er - Extended Range Scanner
Ambient Light: Artificial: 450 ft. candles (4,844 Lux). Sunlight: 4,000 ft. candles (86,112 Lux). Laser Output Power (peak) 1.26mW 7.6.5.1 Decode Zones Figure 7.3 SE1524ER Decode Zone A (Short Range, Small Codes) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 281 Chapter 7: Specifications Decode Zones Figure 7.4 SE1524ER Decode Zone B (Long Range, Large Codes) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 282: Sx5303 Imager Specs
PDF417: + PDF417, microPDF417; Composite; image capture and signature capture. Data Matrix: Data Matrix; QR Code; Maxicode; Aztec Code; Planet; Postnet; Royal Mail 4SCC; 4 State postal codes from Australia, Canada, Japan; Korean Post 3of5. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 283: Sx5303 Typical Performance @ 300 Lux
Code 39 15.0 20.3 10.0 2.25 Code 39 10.0 20.8 25.6 15.8 2.25 Code 39 15.0 11.6 Code 39 20.8 13.7 Code 128 15.8 3.75 17.25 10.0 2.25 Code 128 20.8 2.75 21.5 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 284: External Scanner Specifications
40 mil 22 to 100 in (56 to 254 cm) 55 mil 30 to 104 in (76 to 366 cm) 70 mil 40 to 180 in (102 to 457 cm) 100 mil45 to 264 in (114 to 671 cm) Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 285 Standard 2 of 5, Code 93, Codabar, Safety/Regulatory Electrical Complies to: Gost R; TUV; UL; cUL Emissions Complies to: FCC-A;EN55022-B BCIQCNS13438; AS/NZS3548; VCCI-B Laser Classification IEC 60825-1: 1993+A1: 1997+A2:2001 CDRH 21 CFR 1040 Class II Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 286: Powerscan® Standard Range Scanner Specs
10 mil 0.2 to 5.5 in (0.5 to 14 cm) Print Contrast Ratio 25% minimum Pitch ± 65° Skew ± 55° Ambient Light Immunity Artificial light: 1200 ft. candles. Sunlight: 8000 ft. candles. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 287: Rd7950 Integrated Uhf Rfid Reader
Laser Classification IEC 60825-1: 1993+A1: 1997+A2:2001 CDRH 21 CFR 1040 Class II 7.8 RD7950 Integrated UHF RFID Reader For detailed RD7950 specifications, please see Appendix B: “RD7950 Integrated UHF RFID Reader,”, page B-11. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 288: Hu3000 - 1900 Mah Lithium-Ion Battery Pack
7.4 V nominal (6V min. to 8.4V max.) Cell Configuration 2 series connected cells Capacity 1.9 Ah nominal at 300mA discharge 20°C to 6.0V (minimum) Supported Chargers 6-Gang Charger Combo Charger Combo Docking Station Quad Docking Station Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 289: Appendix A: Support Services And Worldwide Offices
Technical Support for Mobile Computing Products is provided via email through the Psion Teklogix customer and partner extranets. To reach the website, go to www.psionteklogix.com, and click on the appropriate Teknet link on the home page. Then click on the “Login” button or the “Register” button, depending on whether you have previously registered for Teknet.
Page 290: Worldwide Offices
Psion Teklogix S.A. La Duranne 135 Rue Rene Descartes BP 421000 13591 Aix-En-Provence Cedex 3; France Tel: +33 4 42 90 88 09 Fax: +33 4 42 90 88 88 E-mail: tekeuro@psion.com Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 291: B.1 Introduction
B.6.2 Approvals....... 13 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 292 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 293: Appendix B: Rd7950 Integrated Uhf Rfid Reader
6 B, Intermec Intellitag, EM 4022 and EM 4222. B.4 Installation Note: Normally the RD7950 comes pre-assembled to the 7535 G2 from the factory. Review these instructions only if your RD7950 was shipped separately. To install the RD7950 UHF RFID Reader to the 7535 G2 Hand-Held Computer, first attach the pistol grip (see Figure B.1 on page B-4).
Page 294: Attaching The Pistol Grip
These chemicals may damage the plastic casing. The pistol grip is attached to the back of the 7535 G2 Hand-Held Computer using the four threaded inserts in the upper part of the 7535 G2 casing. Four black #4-40 Phillips head screws are provided with this accessory.
Page 295: Attaching The Rd7950
• Using a Phillips screwdriver, securely fasten the pistol grip to the back of the 7535 G2. Tighten the rear screws to a torque of 3kgf-cm (3 lbs-in), or until finger-tight, to secure the pistol grip in place. B.4.2 Attaching The RD7950 •...
Page 296 Insert the pistol grip plug in the pistol grip handle. Pistol Grip Plug • Position the RD7950 on the back of the 7535 G2, fitting the rubber bumper on the RD7950 onto the hand-held pistol grip. • Insert the long screw through the rubber bumper, and secure it with a nut.
Page 297 Appendix B: RD7950 Integrated UHF RFID Reader Attaching The RD7950 • Attach the RD7950 to the 7535 G2 by screwing it on using two front screws. • Plug the RD7950 cable into the tether port on the 7535 G2. •...
Page 298: Installing The Rfid File System Software From Flash
• Secure the cable protector with two screws and nuts. Figure B.2 RD7950 Installed On 7535 G2 Hand-Held Computer B.4.3 Installing The RFID File System Software From Flash If the RFID File System Software is not present on your unit, you will need to take a few steps to install it from the flash disk.
Page 299 In the opening paragraph at the top of the Download page, click on “developer resources”. The current version of the RFID File System can be downloaded from this location. To upgrade the other software images, please contact Psion Teklogix support (1- 800-387-8898). •...
Page 300: Enabling The Rd7950
B.4.4 Enabling The RD7950 Note: RFID File System software must be installed on your 7535 G2 in order for the integrated UHF RFID reader to operate. The trigger is selected using the Trigger Control icon on the Windows Con- trol Panel (for details see page 110).
Page 301: Product Specifications
• When RFID usage is selected as the trigger source in the RFID File System software on the 7535 G2, pulling the trigger causes a Scanning icon to appear. While this icon is displayed, the RD7950 is powered on and actively probing for RFID tags.
Page 302 Write distance for Class 0+ and Class 1 tags is approximately 50% of the read distance referenced above. Weight Less than 1400g 7535 G2 is approximately 775g (27oz.) with pistol grip. Integrated Reader is approximately 600g (21oz.). Environmental Operating temp: 0°C to +50°C (32°F to 122°F)
Page 303: Regulatory Information
Regulatory Information B.6 Regulatory Information B.6.1 RF Exposure Statement Changes or modifications not expressly approved by Psion Teklogix Inc. could void the user's authority to operate the equipment. This portable RF transmitting device has been tested and found to Warning: comply with FCC and IC RF exposure requirements with a maximum SAR of 0.11 Watts/Kg associated with body tissue.
Page 305: C.1 Tether Port Pinout
C.4 JB5 To USB Type B Cable - P/N CA1020 ....5 C.5 JB5 To RS-232 Serial Cable - P/N CA1010 ....5 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 306 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 307: Appendix C: Port Pinouts
Psion Teklogix representative and request document # “Instruction Tether Port Termination”. Attempting to interface to the tether connector without following this document may cause damage to the 7535 G2 or the tethered device. C.2 Docking Station Connector 2 4 6 8 10 12 1 3 5 7 9 11 1.
Page 308: Battery Contacts
These contacts represent right to left numbering with the docking port pointing toward you, and the battery contacts facing upward. Pin 1 Indicator Battery Contacts Pin # Signal Description Positive Battery SMBUS Clock BAT_D Presence/Cell Count DATA SMBUS Data Negative Battery Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 309: Jb5 To Usb Type B Cable - P/N Ca1020
JB5 To USB Type B Cable - P/N CA1020 C.4 JB5 To USB Type B Cable - P/N CA1020 (Mates with USB devices that incorporate Type B receptacles) C.5 JB5 To RS-232 Serial Cable - P/N CA1010 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 311: Appendix D: Usb Setup Application
D.1.1 Launching The Application ..... . 3 D.1.2 Installation Complete Dialog Box ....5 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 312 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 313 The USB Setup application is used to update a Windows PC so that it can connect to a Psion Teklogix 7535 G2 using the USB port on the Portable Docking Module (PDM) connector. To download the USB Setup application, go to: www.psionteklogix.com/downloads...
Page 314 If the version installed on your PC is not supported, you’ll need to exit the USB Setup application, and install a later version of ActiveSync. ActiveSync can be downloaded from Microsoft at: http://www.microsoft.com/downloads Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 315: Installation Complete Dialog Box
D.1.2 Installation Complete Dialog Box This dialog box indicates the success or failure of the installation. 4. Tap on Exit to exit the application. If you need to view the log file, tap on View Log. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 316 Appendix D: USB Setup Application Installation Complete Dialog Box Once the USB Setup program is exited, you can connect the 7535 G2 to your PC using a Portable Docking Module (PDM) (see Section 6.9 on page 224 for more information) and a USB cable, and turn the unit on. If the USB Setup process was successful, the “Found new hardware”...
Page 317 E.2 Power Mode ....... . 17 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 318 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 319: Appendix E: Wireless Wide Area Network (Wwan)
A computer equipped with a GSM/GPRS radio provides wide area networking capabilities, and detailed information is provided here for that functionality. However, those radios are not available in the 7535 G2 at this time. E.1.1 Taskbar Icons Wireless WAN icons in the taskbar indicate the status of your wide area network connection.
Page 320: Establishing A Connection
The main Wireless WAN dialog box is displayed. Figure E.2 Establishing A Connection Note: If you are prompted to enter a PIN, refer to “Entering A PIN Number” on page 6 for details. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 321: Disconnecting From A Network
Note: Once you’ve shut down the user interface, you can only enable the radio by opening the Control Panel and tapping on the Wireless WAN icon to display the Wireless WAN dialog box. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 322: Advanced Information
Ready to connect If the modem loses the connection to the GSM network, the following states are repeated: Searching for network, Registered on network, Searching for packet data, and Ready to connect. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 323: Error States
• NDIS error. An internal software error has occurred. If a warm boot does not clear this condition, Psion Teklogix technical support may need to investigate further. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 324: Tools Menu
Wireless WAN user interface will attempt to establish a GPRS connection whenever GPRS is available (e.g. after resume from suspend without further user interaction). To activate the automatic connection mode: • Tap on the OK button. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 325 A very large site has their own APN. Such connections always have to be configured manually. • A customer has subscribed for a static IP address. By definition this must be configured manually. Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 326 The parameters of the selected profile can be edited when you choose the Edit button. Keep in mind that you cannot edit the Default profile. Delete The selected profile is deleted. You cannot delete the Default profile. E-10 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 327 Wireless WAN dialog box is selected). Reset The Reset button in the New Profile and Edit Profile dialog boxes resets all entry fields to the values they had when the dialog box was opened. Psion Teklogix 7535 G2 Hand-Held Computer User Manual E-11...
Page 328: Security Configuration
If unauthorized access to the device is a concern, the Require PIN on resume checkbox should be checked. In this case, the PIN is not stored; whenever a PIN is required, you will be prompted to enter an appropriate value. E-12 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 329: Network Configuration
WWAN dialog box changes to ‘Emergency calls only’, ‘No net- work found’, ‘GPRS not available’ or ‘GPRS not allowed’. Psion Teklogix 7535 G2 Hand-Held Computer User Manual E-13...
Page 330: Driver Mode Configuration
GSM modem connected to a serial port of the computer through USB or through Bluetooth. An external modem connected to a serial port must support 115.2kbit/s, 8bit, no parity and hardware flow control. E-14 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 331: Sms Menu
By checking the Store message in Outbox field a new message can be stored in the Outbox before being sent. If no storage space is available, or the modem does not support the storage of outgoing messages, then this checkbox is disabled. Psion Teklogix 7535 G2 Hand-Held Computer User Manual E-15...
Page 332 SMS storage becomes full, the oldest received message is deleted. If any string is entered as the Message Suppression Prefix, then messages beginning with that string will not be shown in either the E-16 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 333: Power Mode
Power is removed from the modem when the computer enters suspend mode. Psion Teklogix 7535 G2 Hand-Held Computer User Manual E-17...
Page 335: Index
MSI Plessey 153, 167, 181 description of beep conditions 49 UPC A 150, 163, 176 volume adjustment using the BLUE UPC E 151, 163, 177 key 49 bar code reader Authentication, Bluetooth Controls 119 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 336 Bright For (backlight) 91 Composite 170, 194 BSP, Bluetooth Controls 123 configuring IEEE 802.11g radio 18 connection list table, Bluetooth Controls cable diagrams C-1 Console Port (COM3) settings 200 cables, tether adaptor 233 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 337 Default Dev. On Reboot 187 Enable Bookland (UPC-EAN) 164 DEL (BKSP) Key 36 Enable Bookland EAN 148 Delete Char Set ECIs 159 Enable CC-AB 171 Demo Enable CC-C 171 Imager 72 Enable Plessy 181 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 338 SX5303 2D imager specs 250 Short Code 145 imager (2D) scanner scanning 2D 53 keyboard imager parameters 186 key repeat 93, 94 Include Check 149, 151, 154, 155 one shot mode 95 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 339 (Shared Mode) 22 L1, Set Length 160 Network Key, assigning 22 L2, Set Length 160 NOTIS Editing 166 NQuerty Retry, Bluetooth Controls 123 number system digit 151 Macro keys accessing 38 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 340 Connect button 20 PlaNET 192 IP address, assigning 24 PostNET 192 name servers 25 Royal 192 preferred networks, arranging 26 Power Management Properties 104 specifications 239 wireless connection, setting up 18 battery capacity 104 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 341 195 Addendum Add-on 2 178 EAN 128 174 Addendum Add-on 5 178 EAN 128 Identifier 174 Addendum Security 178 EAN-8 Zero Extend 162 Aim Duration 156 ECI Decoder 159 Enable Bookland 164 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 342 Telepen 185 Plessy Transmit Check Digit 182 Transmit Check Digit 160, 167, 173, ports parameters 198 175, 176, 177, 179, 180, 181, 182, Console Port (COM3) 200 Port Replicator Tether (COM6) 201 VIII Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 343 71 scanner, internal 241 level 70 specifications, 75235 G2 237 Supervisor 70 Standard (Code 128) 148 Teklogix 70 Start/Stop Transmit 173, 178 User 70 Start Menu 69 Servers, Bluetooth Controls 120 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 344 Teklogix security level 70 UPC-E Check Digit 163 TekTerm application 83 UPC-E Preamble 164 Telepen 185 UPC-E1 Check Digit 163 tether adaptor cables 233 UPC-E1 Preamble 164 tethered device UPC Half Block Stitching, 2D 165 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
Page 345 2D PDF-417 169, 183, 193 2D QR Code 193 2D UPC Half Block Stitching 165 36-key keyboard alpha keys, accessing 40 uppercase letters, creating 40 58-key keyboard 39 7535 G2 approvals 238 specifications 237 Psion Teklogix 7535 G2 Hand-Held Computer User Manual...
