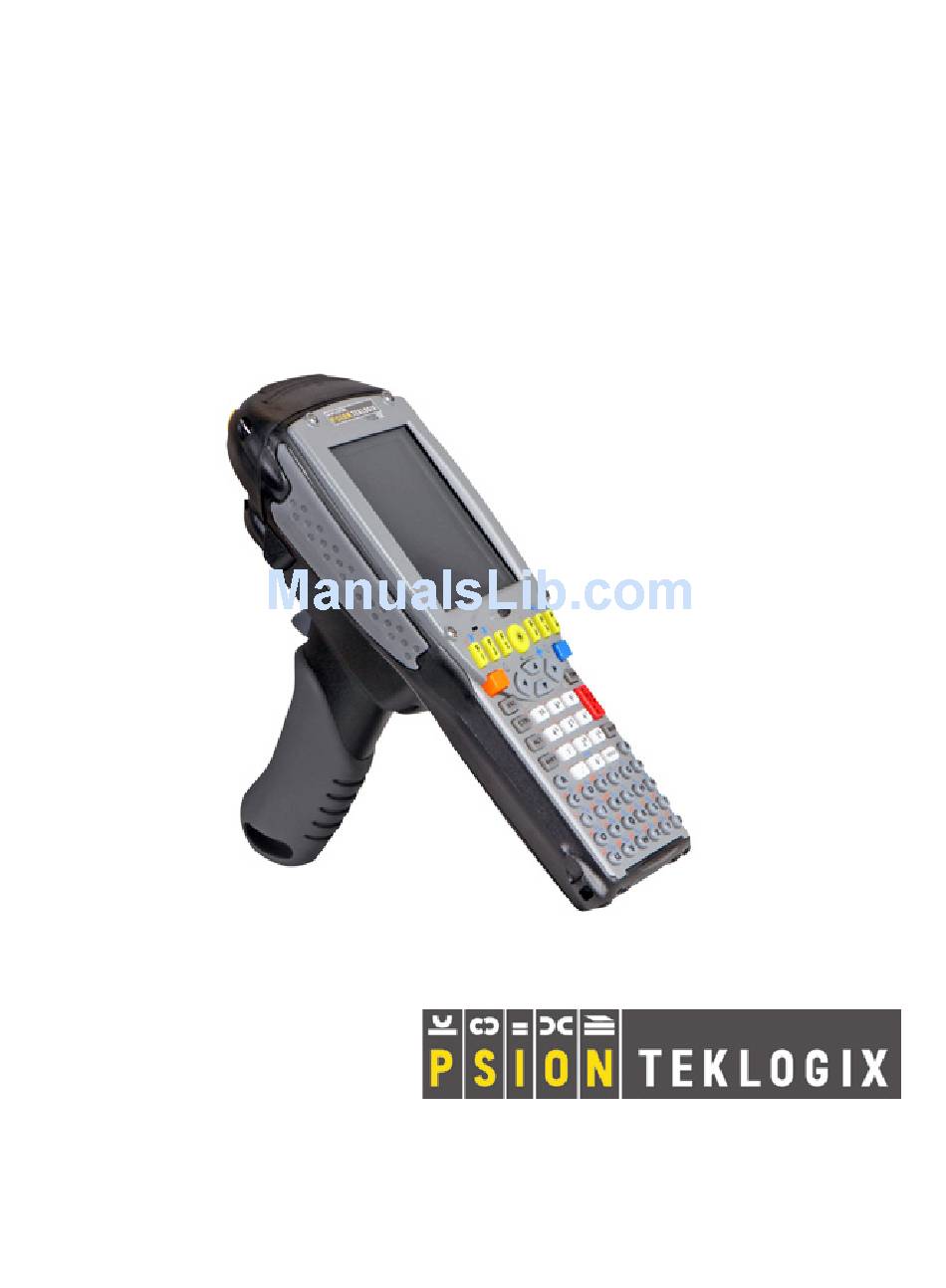

Hand-Held Computer
ISO 9001 Certified
Quality Management System
7535 G2
Quick Reference Guide
May 29, 2006
PN 8000076.A

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 7535 G2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Psion Teklogix 7535 G2

Summary of Contents for Psion Teklogix 7535 G2

  • Page 1 7535 G2 Hand-Held Computer Quick Reference Guide May 29, 2006 PN 8000076.A ISO 9001 Certified Quality Management System...
  • Page 2 © Copyright 2006 by Psion Teklogix Inc., Mississauga, Ontario, Canada This document and the information it contains is the property of Psion Teklogix Inc., is issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except for the sole purpose of promoting the sale of Psion Teklogix manufactured goods and services.
  • Page 3 Psion Teklogix products at no charge to you.) In some regions, this warranty may exceed this period. Please contact your local Psion Teklogix office for details. For a list of offices, refer to “Support Services & Worldwide Offices” on page 56. The war-...
  • Page 4 This Product, and its accessories, comply with the requirements of the Waste Electrical and Electronic Equipment (WEEE) Directive 2002/96/EC. If your end-of-life Psion Teklogix product or accessory carries a label as shown here, please contact your local country representative for details on how to arrange recycling.
  • Page 5 RoHS-compliant as per the EU directive. Other than as noted below, a Psion Teklogix product that does not have an accompany- ing RoHS logo signifies that it was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.

  • Page 7: Table Of Contents

    2. Getting To Know Your 7535 G2 ..... . 25 2.1 7535 G2 Features ......25 2.2 The Keyboard .
  • Page 8 5.1 Caring For The Touchscreen ....55 5.2 Cleaning The 7535 G2 ......56 6.

  • Page 9: Approval

    Year of Manufacture: 2006 Standard(s) to which Conformity is Declared: The 7535 G2 Hand Held Micro-computer with Portable Docking Module, supplied by Psion Teklogix, has been tested and found to comply with FCC PART 15, SUBPART B - UNINTENTIONAL RADIATORS, CLASS B COMPUTING DEVICES FOR HOME &...

  • Page 10: Safety Summary

    Ο εξοπλισμός αυτός πληροί τις βασικές απαιτήσεις της κοινοτικής οδηγίας EU R&TTE 1999/5/EΚ. (Η δήλωση συμμόρφωσης διατίθεται στη διεύθυνση: www.psionteklogix.com) Deze apparatuur voldoet aan de noodzakelijke vereisten van EU- richtlijn betreffende radioapparatuur en telecommunicatie-eindappa- ratuur 199/5/EG. (verklaring beschikbaar: www.psionteklogix.com). Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 11 Toto zariadenie je možné prevádzkovať v Slovenskej republike na základe Všeobecného povolenia č. VPR-01/2001. Use of the 802.11 7535 G2 in France: Owing to French Govern- ment restrictions, the 802.11 7535 G2 is limited to indoor use. They may be used outdoors, on private property, only with prior authoriza- tion from the French Ministry of Defense.
  • Page 12 IMPORTANT NOTE: FCC Radiation Exposure Statement: This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment under 47 CFR 2.1093 para- Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 13 Note: To maintain compliance with the FCC RF exposure guide- lines, if you wear the 7535 G2 on your body, use the Psion Teklogix approved carrying case. Use of non-approved accessories may violate FCC RF exposure guidelines.

  • Page 14: Laser Warnings

    The use of optical instruments with this product will increase eye hazard. Do Not Operate In An Explosive Atmosphere Operating Psion Teklogix equipment where explosive gas is present may result in an explosion. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 15 Do not operate the equipment without the covers and enclosures properly installed. Caution! Danger of explosion if a 7535 G2 battery is incorrectly handled, charged, disposed of or replaced. Replace only with the same or equivalent type recommended by the manufacturer. Dispose of used batteries according to the instructions described in “The Bat-...
  • Page 16 • Do not continue charging the battery if it does not recharge within the specified charge time. • The battery may burst or ignite if the battery leaks. Always ensure that it is away from any exposed flames. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 17: Program License Agreements

    Microsoft's End User License Agreement You have acquired a device (“DEVICE”) that includes software licensed by Psion Teklogix Inc. from Microsoft Licensing Inc. or its affiliates (“MS”). Those installed software products of MS origin, as well as associated media, printed materials, and “online” or electronic documentation (“SOFTWARE”) are protected by international intellectual property laws and treaties.
  • Page 18 • SOFTWARE TRANSFER ALLOWED BUT WITH RESTRIC- TIONS. You may permanently transfer rights under this EULA only as part of a permanent sale or transfer of the Device, and only if the Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 19 Software, and you may not install or use the Soft- ware or any accompanying documentation. The Software is the property of Psion Teklogix Inc. or its licensors and is pro- tected by copyright laws and international copyright treaties, as well as other intellectual property laws and treaties.
  • Page 20 Software, or any part or copies thereof, or any products utilizing the Software in violation of applicable laws or regulations of the United States or the country in which you obtained them. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 21: Limitation Of Liability

    Software. This limitation Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 22 6. COPYRIGHTS, OWNERSHIP AND PROPRIETARY RIGHTS All title and copyrights in and to the Software, and any copies thereof, are owned by Psion Teklogix Inc. or its suppliers. The Software also contains copyrighted material licensed from our suppliers or obtained from open source and all rights to such copyrighted material rests with such suppliers.
  • Page 23 You acknowledge that you have read this Agreement, understand it, and that it is the complete agreement between you and Psion Teklogix with respect to the subject matter hereof and supersedes all prior agreements, oral or written.

  • Page 25: Basic Preparation

    Typically, 7535 G2 hand-helds are configured at the factory and arrive ready for use. Although the 7535 G2 is equipped with an internal Compact Flash and SD I/O slot, these slots are not intended for user modification.
  • Page 26 • Use a Phillips screwdriver to attach the strap to the two threaded inserts at the back of the 7535 G2 at the top of the unit. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 27: Attaching A Pistol Grip

    1.3 Attaching A Pistol Grip The pistol grip is attached to the back of the 7535 G2 using the four threaded inserts in the upper part of the 7535 G2 casing. Four black #4-40 Phillips head screws are provided with this accessory.

  • Page 28: The Battery

    • Position the pistol grip so that it fits snugly over the back of the unit and the inserts on the back of the 7535 G2 align with the holes in the pistol grip. • Use a Phillips screwdriver to securely fasten the pistol grip to the back of the 7535 G2.

  • Page 29: Switching The 7535 G2 On

    While the battery is being replaced, the 7535 G2 will save its current data for at least 20 minutes. The 7535 G2 battery will operate for 8 hours under typical operating conditions after a full charge. Typical battery life is 300 charge cycles or 2 years average use.

  • Page 30: Switching The 7535 G2 Off

    1.6 Switching The 7535 G2 Off Important: Keep in mind that turning off the 7535 G2 does not result in a complete reboot; rather, the unit enters a power-saving, “suspend” state. When the hand-held is turned on from suspend state, operation resumes within a few seconds.

  • Page 31: Connecting To An 802.11 Network

    1.7 Connecting To An 802.11 Network In most cases, the 7535 G2 must be configured before it can connect to an 802.11 wireless network. Chapter 2, Section 2.2.2, “Configur- ing An IEEE 802.11 Radio Installed In The 7535 G2” in the 7535 G2 Hand-Held Computer User Manual (PN 8000075) describes this configuration process.

  • Page 32: The Keyboard

    Note: Refer to “Navigating Using The Keyboard” on page 42 for details about using keys to move around Windows CE. The 7535 G2 offers two types of keyboard layouts—a 58-key key- board and a 36-key, large button keyboard. The [BLUE] and [ORANGE] modifier keys provide access to addi- tional keys and system functions.
  • Page 33 When a modifier key is pressed once, it is displayed in lowercase let- ters in the taskbar at the bottom of the 7535 G2 screen. For example, if the [CTRL] key is pressed, ctrl key is displayed at the bottom of the unit screen.
  • Page 34 To access an alpha character, first press the [ORANGE] key and then press the numeric key above which the alpha character you want to type is printed. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 35 If you need to choose more than one alpha character from a single key, you’ll need to press the ‘Accept’ key between alpha selections. The ‘Accept’ key is presented as an arrow ⇒ symbol above the ‘0’ (zero) key. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 36 ‘a’, ‘b’ and ‘c’ from the [2] key. Suppose you want to type the letters ‘a’, ‘d’ and ‘g’. These alpha characters are accessed from the numeric keys [2], [3] and [4]. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 37: The Display

    The backlight switches on when a key is pressed and the ambient light is below the set threshold. The contrast can also be adjusted to further improve character visibility. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 38: Adjusting The Contrast

    • Press the [BLUE] key twice to lock it on, and then press [F1] to darken or [F2] to lighten the display. • When you’re satisfied with the contrast adjustment, press [BLUE] again. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 39: 7535 G2 Indicators

    2.3.3 Calibrating The Touchscreen Note: This function may be restricted to supervisory use. If your 7535 G2 touchscreen has never been calibrated or if you find that the stylus pointer is not accurate when you tap on an item: • In the Control Panel, choose the Stylus icon, and select the Calibration tab, and then choose the [Recalibrate] button.
  • Page 40 LED displays solid yellow colour. Cell temperature out of range for charge. LED flashes yellow. Unable to charge battery. LED displays solid red colour. Charge circuit failure. LED flashes fast red. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 41 Radio Traffic LED The upper-left LED on your 7535 G2 flashes either orange (trans- mit) or green (receive). Note: Keep in mind that while the standard 802.11.g radio supports the transmit/receive LED, not all radios support this function. Scan LED Successful scans are indicated in two ways—with a scan LED and...
  • Page 42 The taskbar changes dynamically, and only those icons that are applicable are displayed. For example, if a radio is not installed in your 7535 G2, the radio signal icon is not displayed in the taskbar. Windows Start Button The Windows Start button in the taskbar displays the Start Menu.
  • Page 43 When the battery power is completely depleted, a final warning window indicates that the 7535 G2 will be powered down. If the 7535 G2 is using external AC power, an AC icon is displayed. Full Empty...
  • Page 44 USB Device RFID Serial Device Docking Device When a 7535 G2 is inserted in a docking station, charger or cradle, an associated icon like some of the samples below appears in the taskbar. Portable Docking Combo Charger & Quad Docking Station...

  • Page 45: Monitoring The Network Connection

    61 to 80% 81 to 100% 2.4.3 Audio Indicators The 7535 G2 beeper provides a variety of sounds and can be config- ured to emit a sound under a variety of conditions. Refer to ‘Volume Adjustment’ in Chapter 5 of the ‘7535 G2 Hand-Held Computer User Manual’...

  • Page 46: Checking The Scanner

    2.6 Checking The Scanner If your 7535 G2 is equipped with an internal scanner, you can test it to ensure that it is operating properly. Point the scanner window at a bar code that your scanner was designed to decode – for example, a 1D UPC bar code or 2D bar code.
  • Page 47 • Hold the scanner closer for bar codes with bars that are close together. 2.6.2 Scan LED Indicators The 7535 G2 scanner LED (the lower-left LED) indicates whether or not your scan is successful. The LED behaves as follows: • Scan In Progress: scan LED displays solid red colour.

  • Page 48: Navigating In Windows Ce

    Refer to “Calibrating The Touchscreen” on page 33. The touchscreen is an optional feature. A 7535 G2 equipped with a touchscreen has a stylus—a pointing tool that looks like a pen — stored in a slot at the top of the unit. It is used to select objects on the touchscreen.
  • Page 49 Keep in mind that unlike a desktop computer, the 7535 G2 does not support key chording (pressing two keys at the same time). You must press one key followed by the next in sequence. Operation Key or Key Combination Switch between applications...

  • Page 50: The Startup Desktop

    3.3 The Startup Desktop When the 7535 G2 boots up, the startup desktop is displayed. Any applications stored in the Startup folder will start up immediately. The Startup folder is located in \Windows\Startup and \Flash Disk\Startup. 3.3.1 Accessing Desktop Icons •...
  • Page 51 3.3.2 The Taskbar The 7535 G2 is equipped with a taskbar at the bottom of the screen. It displays icons through which you can view the security level, battery capacity and radio signal quality of your unit. A 7535 G2 attached to a charger, cradle, docking station or PDM displays the associated icon.

  • Page 52: The Start Menu

    Security, type the letter s. If you’re using a touchscreen: • Tap on the Start button in the taskbar. Tap on the item in the menu with which you want to work. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 53 The Desktop Choosing Desktop from the Start Menu displays the 7535 G2 desktop. Security Settings To assign a security level: • Choose Security from the Start Menu. • Choose a security level from the dialog box. To allow access to all the Start Menu and taskbar options, choose the Supervi- sor security level.
  • Page 54 Programs The Programs menu contains a sub-menu of programs available on your hand-held. Shortcuts Choosing Shortcuts provides access to the System Tray, Cycle Tasks and the Task Manager. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 55 The Task Manager option allows you to switch to another task or to end an active task. To display the task manager window: • Press [BLUE] [0] (zero) [T] [T], or Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 56 Press [ALT][ESC]. Settings The Settings menu provides access to the Control Panel applets, lets you configure your radio (Network and Dial-up Connections) and customize the Taskbar and Start Menu. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 57 At ‘Supervisor’ security level, a sub-menu like the one in the sample screen is displayed. At ‘User’ security level, choosing ‘Suspend’ causes the computer to shut down immediately. A sub-menu is not available. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 58: Using A Dialog Box

    [TAB] key until a tab in the dialog box is highlighted. To display adjoining tabs, press the [RIGHT] or [LEFT] arrow key. To display the information in the next tab from anywhere in the win- dow, press [CTRL] [TAB]. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
  • Page 59 Saving Your Choices: Once you’ve made all your changes, press the [ENTER] key to save your changes and exit the window. Note: A dialog box item that is displayed in grey text indicates that it is not currently available. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 60: Scanner Specifications

    Scan Angle/ 42º typical, 34º horizontal, 13.5º ± 0.7º Field of View 30º narrow 12.5º vertical Most linear codes Symbologies Most linear codes & PDF417, Micro Most linear codes Supported PDF, composites Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 61: Ev15 & Sx5303

    (PN HU6110). They reduce the clarity of the dis- play slightly but will dramatically extend the life of the touchscreen. When they become damaged, they are easily removed and replaced. Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...

  • Page 62: Cleaning The 7535 G2

    • Avoid abrasive cleaners, solvents or strong chemicals for cleaning. The 7535 G2 has a plastic case that is susceptible to harsh chemicals. The plastic is partially soluble in oils, mineral spirits and gasoline. The plastic slowly decomposes in strong alkaline solutions.

  • Page 63: Product Repairs

    For technical support outside of Canada or the U.S.A., please contact your local Psion Teklogix office listed on our worldwide website: www.psionteklogix.com Click on the heading labelled “Contacts” to choose a Psion Teklogix technical support representative closest to you. Canada/U.S.A Canadian and U.S.
  • Page 64 Psion Teklogix S.A. La Duranne 135 Rue Rene Descartes BP 421000 13591 Aix-En-Provence Cedex 3; France Tel: +33 4 42 90 88 09 Fax: +33 4 42 90 88 88 E-mail: tekeuro@psion.com Psion Teklogix 7535 G2 Hand-Held Computer Quick Reference Guide...
