Page 1

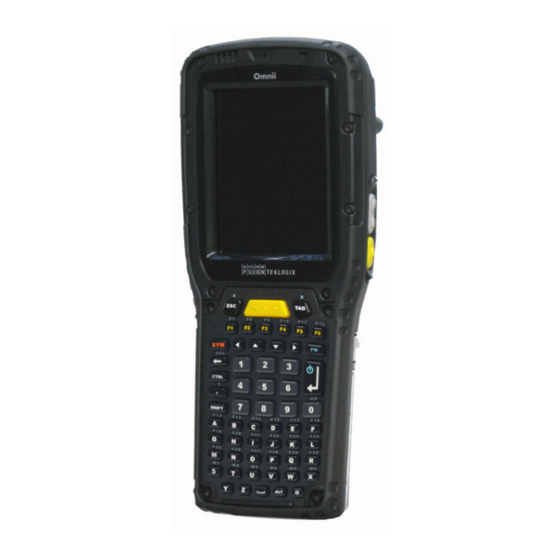

Preliminary Draft 3 7545 Hand-Held Computer User Manual , 20 P/N 8000190.A ISO 9001 Certified Quality Management System...
Page 2
2100 Meadowvale Boulevard, Mississauga, Ontario, Canada L5N 7J9 http://www.psionteklogix.com This document and the information it contains is the property of Psion Teklogix Inc., is issued in strict confidence, and is not to be reproduced or copied, in whole or in part, except for the sole purpose of promoting the sale of Psion Teklogix manufactured goods and ser- vices.
Page 3
Preliminary Draft 3 Return-To-Factory Warranty Psion Teklogix Inc. provides a return to factory warranty on this product for a period of twelve (12) months in accordance with the Statement of Limited Warranty and Limitation of Liability provided at: www.psionteklogix.com/warranty The warranty on Psion Teklogix manufactured equipment does not extend to any product that has been tampered with, altered, or repaired by any person other than an employee of an authorized Psion Teklogix service organization.
Page 4
RoHS-compliant as per the EU directive. Other than as noted below, a Psion Teklogix product that does not have an accompanying RoHS logo signifies that it was placed on the EU market prior to July 1, 2006, and is thereby exempt from the directive.
Preliminary Draft 3 Chapter 1: Introduction About This Manual About This Manual This manual describes how to configure, operate, and maintain the Psion Teklogix 7545 Hand-held Computer. Chapter 1: Introduction provides a basic overview of the 7545 computer. Chapter 2: Basic Checkout describes preparing the 7545 ready for operation, including setting up your radio.
• Java™, Embedded Visual C++, Microsoft Visual Studio® 2005 • Standard CE APIs - MFC, ATL Wireless communications: • IEEE 802.11 b/g Compact Flash Radio, operating in 2.4 GHz band (CCX Certified v.4) Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 21
4-wire or high durability 5-wire technology options Keyboards: • Automatic bright EL backlight • Ergonomically designed for left- or right-hand use • Dedicated function keys • 58-key alpha with a total of 30 function keys (6 direct-access) Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 22
• Typical 8-hour usage lithium-ion standard battery • Quick swap packs • Advanced smart battery with gas gauge • Runs with battery, wall adaptor or cigarette lighter • Built-in fast charger (2 hours) Psion Teklogix 7545 Hand-Held Computer User Manual...
Note: 7545 is a body worn device and to maintain compliance with the FCC RF exposure guidelines, use the Psion Teklogix approved carrying case. Use of non-approved accessories may violate FCC RF exposure guidelines.
This product contains an imager that uses an LED light source MODEL No: LED RADIATION 7545 CLASS 1 LED PRODUCT (IEC) CLASS I LED PRODUCT (CDRH) IEC 60825-1:1993+A1:1997+A2:2001 This label is affixed below the scanner window. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 25
HECKOUT 2.1 Features Of The 7545........13 2.2 Preparing The 7545 For Operation .
Page 26
Preliminary Draft 3 2.11 Resetting The 7545........35...
Preparing The 7545 For Operation Preparing The 7545 For Operation Typically, 7545 Hand-Held Computers are configured at the factory and arrive ready for use. Although these computers are equipped with an internal Compact Flash and SD I/O slot, these slots are not intended for user modification. If a device needs to be changed or added in these slots, contact qualified Psion Teklogix personnel.
Direct Sequence Spread Spectrum radios. If your 7545 is equipped with an RA2041 CF radio, follow the steps under “Summit Client Utility (SCU) For 802.11b/g Radio” on page 28 to set up this type of radio for communica- tion with a wireless LAN.
Page 29
Figure 2.7 Network And Dial-Up Connections 2. Choose the radio icon to open the 802.11 Wireless LAN Settings window. In the sample screen, this icon is labelled PTXCF8385P N1. Figure 2.8 802.11 Wireless LAN Icon Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 30
Configure button to display the Wireless Properties dialog box. Connect button • To force connection to a specific, existing network, highlight the network to which you want your 7545 to connect, and choose the Connect button. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 31
This tab lists available networks—any access points that are broadcasting an SSID, and it lists preferred networks—networks that you have configured. Since access points are generally secure, they will most likely not be listed here. By default, 7545 attempts to connect to preferred networks. This behaviour can be changed by enabling Automatically connect to non-preferred networks in the Advanced Wireless Settings dialog box (page 27).
Page 32
Preliminary Draft 3 Chapter 2: Basic Checkout Configuring An IEEE 802.11 Radio In The Unit Important: Keep in mind that the 7545 will only communicate with access points that are configured with the same SSID. Ad Hoc And Infrastructure If you are using an Infrastructure network—one in which 7545s must pass data through an access point—leave the checkbox next to This is an ad hoc network blank.
Page 33
Certificate. By selecting the Properties button, you will be able to select a Certificate. “Certificates” on page 96 outlines how to create certificates for your network. Psion Teklogix 7545 Hand-Held Computer User Manual...
• In the PTXCF8385P N1 Settings window, tap on the IP Information tab. Note: Choosing the Renew button forces the 7545 to renew or find a new IP address. This is useful if, for example, you are out of communication range for a longer period of time and your 7545 is dropped from the network.
Note: If DHCP is enabled, name server addresses are assigned automatically. • In the PTXCF8385P N1 Settings window, display the IP Information tab. • In the IP Information tab, tap on the Configure button. • Display the Name Servers tab. Psion Teklogix 7545 Hand-Held Computer User Manual...
This window lists the available preferred networks. 2.7.3.1 Rearranging Preferred Networks The 7545 attempts to connect with the networks listed in this dialog box in sequence, begin- ning at the top of the list. If you need to rearrange this list of networks, move networks up and down in the list: •...
Highlight Network, and press [ENTER]. 2. Choose the Summit WLAN Adapter icon to open the 802.11 Wireless LAN Set- tings window. In Figure 2.11, this icon is labelled SDCCF10G1. Figure 2.11 Summit WLAN Adapter Icon Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 38
3. Tap on the IP Information tab. Note: Choosing the Renew button forces the 7545 to renew or find a new IP address. This is useful if, for example, you are out of communication range for a longer period of time and your 7545 is dropped from the network.
Note: If DHCP is enabled, name server addresses are assigned automatically. • In the SDCCF10G1 window, display the IP Information tab. • In the Summit WLAN Adapter Settings>IP Information tab, tap on the Configure button. • Display the Name Servers tab. Psion Teklogix 7545 Hand-Held Computer User Manual...
This section provides a quick set of steps to create a profile. Detailed information about each of the SCU tabs—Main, Profile, Status, Diags and Global—is provided in Appendix B: “SCU For 802.11b/g Radio”. To launch the SCU so that your 7545 can connect to a wireless LAN: To launch the SCU so that your 7545 can connect to a wireless LAN: 1.
For PSK, type an ASCII passphrase or hex PSK. • Configure any other settings that are supplied by the network administrator for the SSID to which you will associate. • Make certain that you tap on Commit following each change. Psion Teklogix 7545 Hand-Held Computer User Manual...
“Internal Scanners” on page 58. If your 7545 is equipped with an internal scanner, you can test it to ensure that it is operating properly. Point the scanner window at a bar code that your scanner was designed to de- code—for example, a 1D UPC bar code or 2D bar code.
Drag and drop files between the 7545 and the PC in the same way that you would between PC drives. • Back up 7545 files to the PC, then restore them from the PC to the hand-held again, if needed, and so on. 2.10.1 Using Microsoft ActiveSync To install ActiveSync, follow the step-by-step instructions provided with the program’s...
A warm reset closes open applications; any unsaved data are lost. Installed programs and saved data are preserved. Note: You do not need to reset your 7545 after configuring the radio. Cold Reset Important: A cold reset returns the 7545 to factory settings.
Note: If your hand-held is equipped with a battery contact protective gasket (P/N 1020250), to remove the battery, you will need to hold the 7545 face down with both hands, making certain that your fingers are not touching the keypad. Press down firmly on the battery release with both thumbs and slide the battery out.
2 years of use (less than 60% of original capacity remaining). Keep in mind however that heavy usage or operating the 7545 at temperature extremes will shorten the battery life.
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 Monitoring The Battery And Maximizing Run Time • The hand-held battery is a ‘smart battery’ with built-in intelligence. The taskbar battery icon is a linear gauge used to estimate the remaining run time of the battery. It is impor- tant to note that the battery capacity icon displays quarter percentages of nominal capacity (the capacity of a new battery).
• When all four LEDs flash yellow, release the [ENTER/ON] button. Note: If the 7545 is in suspend state, pressing [ENTER/ON] key ‘wakes’ the unit from this state. The screen in which you were working before the computer entered suspend state is displayed.
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 The Keys 3.3.1.2 Locking Modifier Keys When a modifier key is pressed twice, it is ‘locked’ on. A ‘locked’ modifier key is displayed in uppercase letters in the taskbar. For example, pressing the [BLUE] key twice locks it on—it is displayed as BLUE KEY in the taskbar at the bottom of the computer screen.
3.3.3 Function Keys, Softkeys And Macro Keys In addition to the standard keyboard functions (see “The Keyboard” on page 43), The 7545 supports function keys, softkeys and macro keys. 3.3.3.1 Function Keys 58-Key Keyboard Function Keys The 7545 58-key keyboard is equipped with thirty function keys.
Important: Refer to “Keyboard Macro Keys” on page 106 for details about creating macros. 7545 hand-helds are equipped with a series of macro keys that can be programmed to replace frequently used keystrokes, along with the function of executable keys like the [ENTER] key, the [BKSP] key, any function key and arrow key, and so on.
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 Alphanumeric Keyboard: 58-Key • To access [M4], press [ORANGE] [M2]. Macro keys [M5] to [M6] are colour coded in blue print above macro keys [M1] and [M2]. • To access [M5], press the [BLUE] key followed by [M1].
Page 56
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 Numeric Keyboard: 36-Key To choose the letter ‘b’: • Press the [ORANGE] key, and press [2] twice. • Press the [ORANGE] key again to unlock or turn it off. To choose the letter ‘c’: •...
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 The Keypad Backlight • If you do not want to choose any additional alpha characters, press [ORANGE] again to unlock or turn ‘off’ the key and end alpha selection. Choosing Multiple Characters From A Range Of Keys If you plan on choosing alpha characters from a number of different keys, you are not re- quired to press the Accept [Þ] key after each alpha selection.
3.4.3 Calibrating The Touchscreen If your 7545 touchscreen has never been calibrated, or if you find that the stylus pointer is not accurate when you tap on an item, use the Stylus Properties dialog box in the Control Panel to recalibrate the screen.
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 7545 Indicators • Select the Calibration tab, and then choose the Recalibrate button. • Follow the directions on the calibration screen to calibrate the screen. 7545 Indicators 7545s use LEDs (Light Emitting Diodes), onscreen messages and audio tones as indicators.
Unsuccessful scan LED flashes red. 3.5.1.4 User Application LED This indicator is available for user-loaded custom Windows CE applications. Refer to the 7545 SDK Manual for details about this LED. Neither Windows CE nor TekTerm use this LED. 3.5.2 Onscreen Indicators The taskbar at the bottom of the screen displays a variety of system status indicators.
Page 61
Onscreen Indicators Figure 3.3 Taskbar The taskbar changes dynamically, and only those icons that are applicable are displayed. For example, if a radio is not installed in your 7545, the radio signal icon is not displayed in the taskbar. ®...
Page 62
When the battery level is low—approximately 15 minutes from empty—a warning window pops up. When the battery power is completely depleted, a final warning window indicates that the 7545 will be powered down. If the 7545 is using external AC power, an AC icon is displayed in the taskbar. Full Empty...
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 Audio Indicators Docking Device When a hand-held is inserted in a docking station, charger or cradle, an associated icon appears in the taskbar. Gang Charger, Combo Charger & Quad Docking Station...
Important: For detailed scanner specifications and decode zone tables, refer to “Inter- nal Scanners and Imagers” on page 202. The 7545 supports a wide range of scanner options to address a variety of user application requirements. The scanner installed in your unit can be configured using the Scanner Set- tings dialog box in the Control Panel (see page 135) and the Manage Triggers application (see page 113).
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 Scanning Techniques chapter. “Scanning Techniques” on page 59 outlines the mechanics of a successful scan. In addition, review “Scan LED Indicators” on page 59 to better understand how to interpret whether or not a bar code has been successfully scanned.
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 Troubleshooting 3.6.3 Troubleshooting If the scanner is not working, investigate the following: • Is the unit on? • Check that the bar code symbology being scanned is enabled for the hand-held you are using.
Preliminary Draft 3 Chapter 3: Getting To Know Your 7545 Operating Internal Two Dimensional (2D) Imager Scanners 3.6.6 Operating Internal Two Dimensional (2D) Imager Scanners An imager scanner takes a snap shot of a single bar code or multiple bar codes (at one time).
Ethernet network. They are typically used to upload transaction data to a server computer when a radio link is not available. When a 7545 is properly inserted in a docking station, a dock icon is displayed in the taskbar at the bottom of the unit screen. The hand-held also detects the presence of the Ethernet network.
Page 69
Cleaning The 7545 • Avoid abrasive cleaners, solvents or strong chemicals for cleaning. The 7545 has a plastic case that is susceptible to harsh chemicals. The plastic is partially soluble in oils, mineral spirits and gasoline. The plastic slowly decomposes in strong alkaline solutions.
4.1.2 Navigating Using The Keyboard If your 7545 has a standard screen (rather than a touchscreen), choosing icons and navigat- ing dialog boxes, displaying the desktop, and so on requires keyed input. If your unit has already been fully configured and your application is launched at startup, you’ll have little need for keyboard navigation, but you can refer to Table 4.1: “Keyboard Navigation”...
Page 74
Go to Start Menu [BLUE][0] Keep in mind that unlike a desktop computer, the 7545 does not support key chording (pressing two keys at the same time). You must press one key followed by the next in se- quence. Refer to “Working With Files, Folders And Programs” on page 71 for additional details about keyboard navigation.
• Press [ENTER]. The Startup Desktop When the 7545 boots up, the startup desktop (shell) is displayed. Any applications stored in the Startup folder start up immediately. Note: The startup folder is located in \Windows\StartUp and \Flash Disk\StartUp. Psion Teklogix 7545 Hand-Held Computer User Manual...
PC desktop that is running Windows. My Device Choosing this icon displays the contents of your 7545 computer. If you’re not sure how to work with the files, folders and programs displayed, refer to “Working With Files, Folders And Programs”...
4.3.2 The Taskbar The 7545 is equipped with a taskbar at the bottom of the screen. It displays icons through which you can view the battery capacity and radio signal quality of your unit. If the hand- held is attached to a charger, cradle, docking station or PDM, an associated icon is dis- played.
If you’re using the keyboard: • Press [BLUE] [0] (zero) to display the Start Menu. • Highlight the Settings option, highlight Taskbar in the sub-menu, and press [ENTER]. The Taskbar and Start Menu dialog box is displayed. Psion Teklogix 7545 Hand-Held Computer User Manual...
The Start Menu Note: Some of the Start Menu items may be disabled based on the current 7545 security settings. The Start Menu lists the operations you can access and work with. It is available from the startup desktop or from within any application.
Type the underlined alpha character. For example, to display the Security dialog box, type the letter ‘s’. 4.4.1 The Desktop Choosing the Desktop option from the Start Menu displays the 7545 desktop. 4.4.2 Security Settings Choosing the Security option from the Start Menu displays a dialog box in which you can define the access level for the 7545: Supervisor or User.
Choosing the Configure button displays the Configure Security dialog box. This dialog box allows you to determine which security levels will have an associated icon displayed in the taskbar. By default, a security icon is not displayed for user-level security. Psion Teklogix 7545 Hand-Held Computer User Manual...
Command Prompt Command Prompt is used to access the DOS command prompt. At the prompt, you can type DOS commands such as dir to display all the directories in the drive. Psion Teklogix 7545 Hand-Held Computer User Manual...
My Device and then, double-tapping on the Control Panel icon. Remote Connect Remote Connect is a 7545 application used to connect to a Windows Terminal Server so that you can run a “session” on the Server machine using the 7545 (Windows CE device).
Page 84
The Task Manager allows you to switch to another task or to end an active task. To display the task manager window: • Tap on Shortcuts, Task Manager, or • Press [ALT] [ESC]. Psion Teklogix 7545 Hand-Held Computer User Manual...
Control Panel The Control Panel contains applets used to configure hardware, the operating system and the shell. If your 7545 is running with the Psion Teklogix TekTerm application or another application, additional configuration applets may appear in the Control Panel.
The Shutdown menu includes these options: Suspend, Warm Reset and Cold Reset. Note: This menu varies slightly depending on the security level chosen. When the 7545 is set to User level, the Shutdown option is replaced by Suspend. A sub-menu is not available.
The Warm Reset option resets the 7545, leaving all saved files and (registry) settings intact. Any unsaved data is lost. Cold Reset The Cold Reset option resets the 7545 (see page 35). Any files not stored in permanent memory are lost; however, the registry settings are saved. Using A Dialog Box A dialog box (like the samples in Figure 4.6) appears when you need to make selections and...
Page 88
Saving Your Choices: Once you’ve made all your changes, press the [ENTER] key to save your changes and exit the window. Note: A dialog box item that is displayed in grey text indicates that it is not currently available. Psion Teklogix 7545 Hand-Held Computer User Manual...
Remote Connect Remote Connect Remote Connect is a 7545 application used to connect to a Windows Terminal Server so that you can run a “session” on the Server machine, using the 7545 (Windows CE device). Refer to the following website for step-by-step information about setting up this connection: or contact http://www.microsoft.com/WindowsXP/pro/using/howto/gomobile/remotedesktop/default.asp,...
Control Panel Icons The Control Panel provides a group of applications that allow you to customize and adjust settings on your 7545. This section shows the related icons in the Control Panel and gives a Psion Teklogix 7545 Hand-Held Computer User Manual...
Allows you to enable or disable Microsoft error reporting prompts. Input Panel Provides the framework for a Soft Input Panel (SIP) should you need to design your own SIP, or change some soft keyboard options. Psion Teklogix 7545 Hand-Held Computer User Manual...
You can configure the trigger ID for each trigger button for both single- and double-click, and the double-click time. Network And Dial-up Connections Displays a network window from which the 7545 802.11g radio can be configured and an existing configuration can be executed. Refer to “Configuring Your Radio” on page 19 for details.
Page 97
Calibration tab, you can recalibrate your touchscreen by tapping on the Recalibrate button and following the directions on the screen. System Displays system and memory properties. In the Memory tab, you can allocate memory between storage memory and program memory. Psion Teklogix 7545 Hand-Held Computer User Manual...
Control Panel Applications: Basic Setup Teklogix Error Handling Service Is an error diagnostic tool that enables you to log error messages to report to Psion Teklogix. Teklogix Scanners Provides scanner parameters and the bar code symbologies that the 7545 scanner will suc- cessfully read.
Page 99
The cursor moves to the App field and a new screen is displayed where you can choose the application to which you want to assign the application key. If you need to, you can Browse through the information in your 7545 until you locate the application you want to launch. •...
The 7545 checks that the certificate has been digitally signed by a certification authority that the 7545 explicitly trusts. This option is used in conjunction with 802.1x au- thentication to enhance 7545 security.
Trusted Authorities certificates establish the identity of the servers with which you can connect. You can import or remove certificates, and view certificate information for any listing, in- cluding names, dates, serial numbers, etc. Note: When importing certificates, the 7545 only recognizes .cer files. 5.6.3 Display Properties •...
This dialog box allows you to customize your background image. 5.6.3.2 Appearance • In the Display Properties dialog box, open the Appearance tab. This dialog box allows you to customize the display colour scheme. Psion Teklogix 7545 Hand-Held Computer User Manual...
Intensity This parameter is used to adjust the light intensity of the 7545 backlight. Sliding the bar to the left lowers the light intensity, and sliding it to the right raises the intensity.
ON, the backlight remains ON at the configured intensity when the 7545 is operating with external power (not battery power). If the 7545 is drawing power from its battery, this option is ignored and the other parameters defined in Display Properties dialog box take affect.
The soft keyboard operates just like a standard keyboard except that rather than pressing a key, you tap on letters, numbers, modifier keys, etc. on the 7545 screen. To customize the appearance and behaviour of the soft keyboard: •...
[BLUE] and [ORANGE] modifier keys. This dialog box also allows you to define macro keys and Unicode characters. • In the Control Panel, choose the Keyboard icon. Psion Teklogix 7545 Hand-Held Computer User Manual...
Note: Use the field at the bottom of this dialog box to test the repeat delay and rate set- tings you’ve chosen. Psion Teklogix 7545 Hand-Held Computer User Manual...
Intensity This parameter is used to adjust the light intensity of the 7545 keyboard backlight. Sliding the bar to the left darkens the keyboard backlight intensity, and sliding it to the right lightens the intensity.
• In the Keyboard Properties dialog box, open the One Shots tab. The options in this tab allow you to determine how modifier keys on your 7545 behave. For each modifier key—[ALT], [SHIFT], [CTRL], [ORANGE] and [BLUE]—you have the fol- lowing options in the drop-down menu: Lock, OneShot, and OneShot/Lock.
[ENTER], [BKSP] and [DEL] ([BLUE]-[BKSP]), function keys and arrow keys. Recording And Saving A Macro You can program up to 12 macro keys on a 58-key 7545. On a 36-key 7545, you can program a maximum of 6 macro keys.
Page 111
1, press [M1] to execute the macro. Deleting A Macro To delete a macro: • In the Macros tab, highlight the macro number you want to delete. • Choose the Delete button. Psion Teklogix 7545 Hand-Held Computer User Manual...
If a Unicode mapping is not listed, the Unicode mapping is mapped to the default Unicode value. Adding And Changing Unicode Values Important: Changes to Unicode mappings are not saved until you exit the Keyboard Properties dialog box. Psion Teklogix 7545 Hand-Held Computer User Manual...
There are three different tables of scancode mappings: the Normal table, the Blue table and the Orange table. The Normal table defines unmodified key presses; the Blue table defines Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 114
(e.g., Macro 2). Adding A Remap To add a new remapping: • Choose the Add button at the bottom of the dialog box. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 115
In the Scancode Remapping tab, tap the stylus on the remap you want to edit. • Tap on the Edit button, and make the appropriate changes. • Tap on OK to save your changes. Psion Teklogix 7545 Hand-Held Computer User Manual...
• Tap on OK. 5.6.5.7 Lock Sequence The Lock Sequence menu allows you to lock the 7545 keyboard to prevent keys from being pressed accidentally when, for example, the unit is inserted in a holster. • To lock the keyboard, tap in the checkbox next to Enable key lock sequence.
Allows users to configure how bar code scanners and other devices such as RFID readers are triggered. You can configure the trigger ID for each trigger button for both single- and double-click, and the double-click time. • In the Control Panel, choose the Manage Triggers icon. Psion Teklogix 7545 Hand-Held Computer User Manual...
Double-Click When a key is pressed and released, then pressed again within the configured time (between 0 to 1000 milliseconds), a double-click occurs. See also “Trigger-Press Type” on page 116. Psion Teklogix 7545 Hand-Held Computer User Manual...
X is tapped instead, or the [ESC] key is pressed, all changes made will be discarded. 5.6.6.2 Add And Edit Trigger Mapping These dialogs allow you to add and edit trigger mappings. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 120
“double-click” event will have occurred. If a mapping with the type Up/Down has also been configured for the same source, it will only receive the first set of trigger events. Psion Teklogix 7545 Hand-Held Computer User Manual...
• In the Control Panel, choose the Power icon. 5.6.7.1 Battery Capacity • In the Power Properties dialog box, open the Battery tab to view battery details. Psion Teklogix 7545 Hand-Held Computer User Manual...
‘on’ (see “Backlight” on page 99). When the 7545 is idle—not receiving any user input (a key touch, a scan, and so on) or system activity (serial data, an activity initiated by an application, and so on)—the hand- held uses the value assigned in the Suspend Timeout field to determine when the unit will go to sleep (appear to be off).
The Estimated Battery Backup is the amount of battery power that has been reserved or set aside to protect data until a charged battery can be installed in the 7545. When the battery capacity is depleted up to the Estimated Battery Backup reserve specified in the Suspend...
Preliminary Draft 3 Chapter 5: Configuration Power Management Properties data stored on the computer. Once the 7545 shuts down, it cannot be switched on until a fresh battery is installed, or the unit is inserted in a docking station or cradle. •...
The sliding scale at the bottom of this tab allows you to specify the remaining battery capac- ity at which a warning message is displayed on the 7545 screen, from 0% to 20%. Psion Teklogix 7545 Hand-Held Computer User Manual...
OK to save your changes. 5.6.8 Stylus Properties Note: Touchscreen calibration may not be enabled on your unit. If your screen appears to require recalibration, contact your supervisor. Psion Teklogix 7545 Hand-Held Computer User Manual...
• Choose the Calibration tab, and then tap on the Recalibrate button. • Follow the directions in the Calibration tab to recalibrate the screen. Psion Teklogix 7545 Hand-Held Computer User Manual...
Under the heading Enable sounds for, enable the conditions under which you want the 7545 to emit a beep. 5.6.9.2 Sound Adjustments The 7545 computer is equipped with a beeper rather than a sound port. The options under this tab are not available for this hand-held. Bluetooth Setup Bluetooth is a global standard for wireless connectivity for digital devices and is intended for Personal Area Networks (PAN).
Devices If you intend to pair devices (a scanner or printer for example), power on and bring the devices within 5 m (16.4 ft.) of the 7545 before proceeding with the discovery process de- scribed below. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 130
Click on the Scan button to list available devices. Wait for the 7545 to complete its scan (approximately 20 seconds). When scanning starts, the Scan button will change to Stop—if necessary, you can tap on this button to stop the pro- cess.
Page 131
BSP9 are available for use. The port is available as soon as it is activated. Note: The CH column shows the RFCOMM channel of the service if the service is RFCOMM-based. This information is not generally needed except for debugging purposes. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 132
To remove the PIN: • Choose Set PIN, and press [ENTER]. If the 7545 attempts to connect to a remote device that has Authentication enabled and does not have a required PIN set, an Authentication Request dialog box appears. •...
An asterisk will appear under the Active list in the Services screen. Connect Tap on Connect to establish a data connection between the 7545 and the Bluetooth headset. Open Audio Tap on Open Audio to establish the audio connection between the 7545 and the Bluetooth headset.
5.7.3 Servers When the Bluetooth connection is initiated from your 7545 to the remote device, the 7545 is called the ‘client’ and the remote is called the ‘server’. The Servers menu displays the server profiles that can be activated in your 7545. There are currently two server profiles available: Serial and Scanner.
Note: To add a service to the Outgoing port, an active service must first be deactivated. Then you can choose the ‘Outgoing’ option from the Activation menu (highlight a service, right-click or press the [SPACE] bar to display the Activation menu). Psion Teklogix 7545 Hand-Held Computer User Manual...
Although the name will have changed in the Properties menu in Bluetooth Controls, the radio only reads it on boot-up. For the changes to take effect, you must cold reset the 7545 (for cold reset instructions, see “Cold Reset” on page 35). Psion Teklogix 7545 Hand-Held Computer User Manual...
The Properties menu displays information about your 7545, and provides some port options. The Device Name field shows the device name of your 7545. This name can be changed (see the Note on the previous page for details). Device Class shows the Class of Device (e.g. desktop, hand-held), which is always set to Handheld.
The IPv6 Support icon in the Control Panel allows you to activate IPv6 network support on your unit if your network setup requires this. This internet protocol specification (version 6) supports 128-bit IP addresses, replacing version 4. Psion Teklogix 7545 Hand-Held Computer User Manual...
The parame- ters are preset with the default settings of the decoded scanner installed in the unit. For a listing of available scanners and their specifications, please refer to Chapter 7: “Specifications”. Psion Teklogix 7545 Hand-Held Computer User Manual...
Always defer to your bar code scanner’s programming manual when in doubt about the availability or settings for any parameter. Note: Your 7545 comes preconfigured from the factory for internal scanner types. The type of scanner installed can be determined from the System icon in the Control Panel, under the System Properties tab.
Choose Default subtree to reset only the parameters in the symbology you selected, or choose Default all settings to reset all scanner parameters to default settings. To reset a single parameter to its default setting: Psion Teklogix 7545 Hand-Held Computer User Manual...
Click Time (msec) This parameter controls the maximum gap time (in milliseconds) for a double-click. If the time between the first and second clicks of the scanner trigger is within this time, it is con- Psion Teklogix 7545 Hand-Held Computer User Manual...
For both integrated and external scanners, this parameter determines which character is sent to the application installed in your 7545 following a double-click. A dialog box appears, asking that you press the key you want to insert. The ASCII/Unicode key value of the key- press is displayed.
Translations Good Scan Beep And Bad Scan Beep These parameters determine whether or not the 7545 emits an audible scanner ‘beep’ when a good (successful) scan or a bad (unsuccessful) scan is performed. Set these parameters to either on to enable the beeper or off to disable it.
Page 145
Preliminary Draft 3 Chapter 5: Configuration Translations • In the Translation menu, tap on the Case # to create rules. • Tap on the No rule drop-down menu to display the rules. Psion Teklogix 7545 Hand-Held Computer User Manual...
Translation information about the status of each case/rule is displayed in the scan log file (see “Scan Log File” on page 140) when enabled. This is useful if a case fails, and you are trying to determine why a rule is failing. Psion Teklogix 7545 Hand-Held Computer User Manual...
Note that some devices can auto-detect serial port settings (such as baud rate), and in this case the 7545 will dictate the settings. Baud rates often have a direct impact on performance—they should be set as high as possible while still ensuring re- liable communication.
5.10.4.1 Tether Port (COM1) Note: RS-232 serial communication is one of the modes available on the tether port, located on the side of the 7545. These parameters refer only to external decoded scanner communications. They have no effect if the generic serial device tether cable is plugged in.
Portable Docking Module (PDM) provides access to the console port through a DE-9 interface. Figure 5.6 Console Port Settings Enabled This parameter must be set to on in order for the 7545 to recognize the attached device as a decoded bar code scanner. Baud Refer to page 144 for details.
Refer to page 144 for details. Data Bits Refer to page 144 for details about this parameter. Parity For details, refer to page 145. Stop Bits Refer to page 145 for details about Stop Bits. Psion Teklogix 7545 Hand-Held Computer User Manual...
Port Replicator Port A(COM5) is the standard RS-232 DE-9 DTE port on the 7545 port rep- licator module, available on certain cradle types. Enabled This parameter must be set to ON in order for the 7545 to recognize the device connected to the Port Replicator 9-pin (COM5). Baud Refer to page 144 for details.
All Psion Teklogix products support the TEKLOGIX-GENERIC-MIB—a MIB that defines some common features across Psion Teklogix products. All devices also support MIB-II, a management information base that defines the common features of TCP/IP networks. The SNMP Agent software embedded in the 7545 product supports SNMPv1 (RFC 1157). •...
Tapping the checkbox Enable SNMP allows the device to respond to SNMP queries and to send Traps. After enabling this option and rebooting the device, the SNMP Agent will auto- matically start up. To disable this feature, remove the checkmark from the checkbox. Psion Teklogix 7545 Hand-Held Computer User Manual...
A Modify Community dialog box is displayed, listing the community you highlighted. • Edit the Name and/or Rights, and press [ENTER] to save your changes. 5.11.2.3 Removing An Existing Community To remove an item: Psion Teklogix 7545 Hand-Held Computer User Manual...
Enabling Enable Authentication TRAPS allows authorization traps to be sent when a failure is detected (e.g., an SNMP message received with a bad community name). 5.11.3.2 Adding A Destination To add a new destination: Psion Teklogix 7545 Hand-Held Computer User Manual...
• Choose the Remove button. A Delete Confirmation screen is displayed. • To remove a destination, choose the Yes button, or If you decide not to remove the destination, choose the No button. Psion Teklogix 7545 Hand-Held Computer User Manual...
Type a new host IP address in the text box provided, and press [ENTER]. 5.11.4.2 Changing A Host To change an existing host IP address: • Highlight the IP address you want to alter in the Permitted Hosts tab, and then choose the Change button. Psion Teklogix 7545 Hand-Held Computer User Manual...
The Storage Manager The Storage Manager allows you to view information about the storage devices that are present in the 7545, such as SD-MMC flash cards and Compact Flash cards. 5.12.1 Formatting A Memory Card Formatting a memory card bulk-erases it. Once a card is erased, partitions may be created in it, similarly to those on a hard drive.
2. Type a name for the partition. 3. If more than one partition is desired, uncheck the Use All Available Diskspace checkbox, then specify the desired number of sectors to be used by the partition. Psion Teklogix 7545 Hand-Held Computer User Manual...
5.12.3 Partition Management Partitions can be individually dismounted, mounted, deleted, or formatted as well. These and additional tasks are available from the Partition Properties dialog: To dismount a partition: 1. Choose the desired partition. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 161
32 GB). • Number of FATs (File-Allocation Tables). • Number of entries allowed in the root directory. • Cluster size (.5 KB to 64 KB). There are also two checkboxes, which govern: Psion Teklogix 7545 Hand-Held Computer User Manual...
Teklogix Error Handling Service is an error diagnostic tool that allows Psion Teklogix to deliver more reliable software. When an error occurs, information about that error is saved in a file which can be sent to Psion Teklogix support personnel to help diagnose the problem.
Enable NetLog Debug Capturing, debug data is collected so that, if necessary, it can be forwarded to a Psion Teklogix technician for evaluation. You can also define where you want the data stored and the maximum size of the file.
Refer to Appendix D: “Teklogix Imagers Applet” for configuration details. To launch this applet: • In the Control Panel, choose the Teklogix Imagers icon. Note: This icon is only displayed when the appropriate imager is installed in your 7545. Psion Teklogix 7545 Hand-Held Computer User Manual...
5.15 Total Recall Total Recall is a Psion Teklogix utility developed to maintain applications and settings during a cold boot. This utility is based on a backup and restore concept. This utility is based on a backup and restore concept •...
Page 166
Wireless radio settings. 3. Finally, choose the Profile Location: \Flash Disk. 4. Tap on the Next button to display the next dialog box Add Files. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 167
• Choose this icon next to Select Files to view your options. Choosing By Individual File displays a pop-up menu where you can tailor the list of files you want to back up. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 168
• Highlight the item you want to remove from the list, and tap on the Remove button. Choosing By File Type allows you to select the file types that you want backed up. Psion Teklogix 7545 Hand-Held Computer User Manual...
Choose Restore Selected Profile from the drop-down menu, and choose the Profile Name displayed in the drop down box. Note: You can also manually restore an auto restore profile located in flash or a storage device. Psion Teklogix 7545 Hand-Held Computer User Manual...
128-bit IP address (replacing version 4). Modem Logging When this option is enabled, the 7545 logs AT commands (e.g., dial-out information, pass- word string, etc.) that the administrator can monitor for debugging purposes. Modem commands are stored in: \MdmLog.txt.
If this option is disabled, a warm reset must be performed to accept the change. SNTP (Simple Network Time Protocol) Server The SNTP Server Name typed in this dialog box is used to synchronize 7545 time with the time server time. A warm reset must be performed once the server name as been entered.
5.16.1.3 Advanced Intermediate Driver Intermediate Driver Support The 7545 employs a custom intermediate driver that is used to indicate radio transmission and reception on its LEDs. As well, the intermediate driver is employed to support the Psion Teklogix 802.IQ v1 protocol. This TweakIt option is included to allow the driver to be dis- abled in cases where it interferes with third party drivers or security supplicants.
5.16.1.4 Radio Features AP Density This option allows you to determine the signal strength at which the 7545 radio will begin searching for a new Access Point (AP): High, Medium or Low. If, for example, this option is set to High, the radio will begin searching for a new Access Point while still at a fairly strong signal strength.
Preliminary Draft 3 Chapter 5: Configuration User 5.16.2 User 5.16.2.1 Internet Explorer Settings This option allows you to customize how your Internet Explorer is displayed and how the tabbing functions. 5.16.2.2 User Display Settings Psion Teklogix 7545 Hand-Held Computer User Manual...
Preliminary Draft 3 Chapter 5: Configuration User User Font Size This option allows you to adjust the size of the font used the 7545 display: Large, Normal or Small. 5.16.2.3 User System Settings Docking Port Message Checking this box blocks the message that normally pops up on the display when the 7545 is docked.
Chapter 5: Configuration Registry Editor 5.16.3 Registry Editor This option is reserved for senior administrators who have a strong understanding of registry keys and values. Careless registry editing can cause irreversible damage to the 7545. Psion Teklogix 7545 Hand-Held Computer User Manual...
256K displayable colours. Passive stylus or finger operation. Integral stylus holder. Keyboards: Numeric. Alphanumeric. Numeric with Phone (option only in countries with GPRS availability). Ergonomically enhanced for ambidextrous, one-hand operation. Backlit, high durability hard-capped keys. Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 180
One docking station port with: - Power in, 15 VDC nominal, 10 VDC to 19 VDC, 3.5 A maximum - Power out, 5 VDC +/- 5% @ 1.0 A nominal, 1.5 A peak Psion Teklogix 7545 Hand-Held Computer User Manual...
802.11g: 6, 9, 12, 18, 24, 36, 48, 54Mbps 802.11b: 1, 2, 5.5, 11 Mbps 802.11b: -28 dB typ (16%) 802.11g: -29 dB typ (13%) Bluetooth Co-existent 2-line hardware handshake with Bluetooth radio Psion Teklogix 7545 Hand-Held Computer User Manual...
Active Profile drop-down menu, the settings for that profile become active. If ThirdPartyConfig is selected, after the 7545 goes through a power cycle, WZC is used for configuration of the radio. See “ThirdPartyConfig” on page B-8 for details.
Attributes • Edit Profile: Used to choose the profile to be viewed or edited. If ThirdPartyConfig is chosen, after the 7545 goes through a power cycle, WZC is used for configuration of the radio. • New: Allows you to create a new profile with default settings and assign it a name.
Page 191
Service set identifier (SSID) for Maximum of 32 characters. None WLAN to which the radio connects. Client Name assigned to radio & 7545 into Maximum of 16 characters. None Name which it is installed. Power Save Power save mode for radio.
‘SCU Security Capabilities’ below, for details about these settings. B.1.2.1 SCU Security Capabilities The SCU provides integrated security to protect transmitted data as well as the 7545 and wireless WAN infrastructure that transmit and receive data. A foundational element of the IEEE 802.11i WLAN security standard is IEEE 802.1X and a critical application on a mobile device is an 802.1X supplicant.
Keep the following in mind when defining security settings: • If the credentials specified in the profile are incorrect and that profile is used, the authentication fails without an error message; you will not be prompted to enter correct credentials. Psion Teklogix 7545 Hand-Held Computer User Manual...
(while the profile is the active profile): - Cause the 7545 to go through a power cycle or suspend/resume. - Disable and enable the radio, or tap the Reconnect button on the Diags windows.
Use the Diags tab as a troubleshooting tool. The functions are as follows: • (Re)Connect: Enables/Disables the radio, applies/reapplies current profile and tries to associate and authenticate to the wireless LAN, logging all activity in the output area at bottom of the dialog box. Psion Teklogix 7545 Hand-Held Computer User Manual...
The Global settings tab allows you to define radio and security settings that apply to all pro- files, along with settings that apply specifically to the SCU. The Global settings in Table B.2 can be edited in SCU. B-10 Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 197
APs on the same channel. CCX features Activates three CCX features: AP- Optimized, Full, Off Optimized assisted roaming, AP-specified maximum transmit power and radio management. Psion Teklogix 7545 Hand-Held Computer User Manual B-11...
Page 198
WEP keys and other sensitive information. Admin Password Password that must be specified when A string of up to 64 SUMMIT Admin Login button is pressed. characters. B-12 Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 199
Integer from 0 to 5000 passes without a response before ping 30000. request is considered a failure. Ping Delay ms Amount of time in milliseconds Integer from 0 to 1000 between successive ping requests. 7200000. Psion Teklogix 7545 Hand-Held Computer User Manual B-13...
Always defer to your bar code scanner’s programming manual when in doubt about the availability or settings for any parameter. Note: Your 7545 comes preconfigured from the factory for internal scanner types. The type of scanner installed can be determined from the System icon in the Control Panel, under the System Properties tab.
Choose Default subtree to reset only the parameters in the symbology you selected, or choose Default all settings to reset all scanner parameters to default settings. To reset a single parameter to its default setting: Psion Teklogix 7545 Hand-Held Computer User Manual...
Tap on the Scanner drop-down menu, and choose Decoded (internal). C.2.1 Options Note: Some options are available only for specific scanners. Refer to the option names in this section for scanner model identification. Psion Teklogix 7545 Hand-Held Computer User Manual...
In Low Power mode, the scanner is in a standby state, drawing minimal power until a trigger pull or serial communication wakes it. Keep in mind that while this option is more suitable Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 209
30 sec., 1 min., 2 min. or 3 min. Note: This parameter is only used if the Trigger Mode has been set to Continuous On and the 7545 is mounted in a fixed position; otherwise, ‘Low Power Timeout’ is not used. Parameter Scanning Setting this parameter to on enables decoding of parameter bar codes.
Always Raster is assigned to the “2D Scanning Mode” parameter. “2D Raster Height” and “2D Raster Expand Rate” are intended for very specific applications and are usually not required for normal scanning purposes. C-10 Psion Teklogix 7545 Hand-Held Computer User Manual...
ECIs. If this parameter is set to off and a symbol that was encoded using an ECI escape is scanned, the scanner transmits the ECI escape followed by the uninterpreted data. Psion Teklogix 7545 Hand-Held Computer User Manual C-11...
Two discrete lengths. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s). Double-tapping on these parameters displays dialog boxes labelled Set Code Lengths where you can define the code length that will be decoded by your scanner. C-12 Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 213
ASCII character. Decode Performance If this parameter is enabled, one of three decode levels can be chosen in the Decode Perfor- mance Level parameter. Psion Teklogix 7545 Hand-Held Computer User Manual C-13...
Page 214
This character, if non-zero, is added after a successfully decoded bar code. Press the key you want to insert in the dialog box attached to this parameter. The ASCII/Unicode key value of the keypress is displayed. C-14 Psion Teklogix 7545 Hand-Held Computer User Manual...
When you double-tap on this parameter, a dialog box is displayed in which you can enter a decode performance level of between 1 and 3. Length Restriction Refer to “Length Restriction” on page C-14 for details. Psion Teklogix 7545 Hand-Held Computer User Manual C-15...
UPC-A symbols transmitted to the host device: System Char—system character transmitted with the data, Country Code and System Char—both the country code (“0” for USA) and system character are transmitted with the data, or C-16 Psion Teklogix 7545 Hand-Held Computer User Manual...
Conv. UPC-E1 To UPC-A This parameter converts UPC-E1 (zero suppressed) decoded data to UPC-A format before transmission. After conversion, data follows UPC-A format and is affected by UPC-A pro- gramming selections (e.g., Preamble, Check Digit). Psion Teklogix 7545 Hand-Held Computer User Manual C-17...
Choosing Two discrete lengths allows you to decode only those codes containing two selected lengths. Length within a range allows you to decode a code type within a specified range from 5 to 55. Psion Teklogix 7545 Hand-Held Computer User Manual C-19...
If this parameter is set to One, it is assumed that the last digit is a check digit. If “Check Digits” is set to Two, it is assumed that the last two digits are check digits. C-20 Psion Teklogix 7545 Hand-Held Computer User Manual...
When enabled, this parameter checks the integrity of an I 2 of 5 symbol to ensure it complies with a specified algorithm: either USS (Uniform Symbology Specification) or OPCC (Opti- cal Product Code Council). Psion Teklogix 7545 Hand-Held Computer User Manual C-21...
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C.2.17 RSS Code (Reduced Space Symbology) Enable Setting any of these parameters to on enables “2D RSS Code” scanning capability. C-22 Psion Teklogix 7545 Hand-Held Computer User Manual...
Enable CC-C And Enable CC-AB To activate these components, set the parameters to on. Enable TLC-39 This composite component integrates MicroPDF417 with the linear code. Setting this pa- rameter to on enables this parameter. Psion Teklogix 7545 Hand-Held Computer User Manual C-23...
]L4 if the first codeword is 908 or 909 ]L5 if the first codeword is 910 or 911 Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-24 Psion Teklogix 7545 Hand-Held Computer User Manual...
This gives the scanner a minimum amount of time to complete its current decode before the scan is cancelled when you quickly trigger on/off. Psion Teklogix 7545 Hand-Held Computer User Manual C-25...
Page 226
When this parameter is enabled, the AIM ID is inserted at the beginning of the decoded bar code. C.3.3 Code 39 Enable Setting this parameter to on enables “Code 39”. C-26 Psion Teklogix 7545 Hand-Held Computer User Manual...
Page 227
Minimum lengths for the bar code can be set from 0 to 255. The length of a code refers to the number of characters (i.e., human readable characters), including check digit(s). Length Restriction Refer to “Length Restriction” on page C-14 for details. Psion Teklogix 7545 Hand-Held Computer User Manual C-27...
Page 228
Choosing Only Concatenated Codes transmits only concatenated codes—single codes will not be transmitted. Choosing Concatenated or Single transmits single codes or concatenated codes. If only one code of a pair is read, that C-28 Psion Teklogix 7545 Hand-Held Computer User Manual...
Set this parameter to on to enable “EAN 13”. ISBN Conversion When this parameter (International Standard Book Number) is enabled, the first 3 characters (‘978’) are ignored and the checksum (0.9, ‘X’) is calculated on the remaining characters. Psion Teklogix 7545 Hand-Held Computer User Manual C-29...
Convert To EAN 13 If this parameter is enabled, a UPC A bar code is converted to EAN 13. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-30 Psion Teklogix 7545 Hand-Held Computer User Manual...
When the parameter is set to Required and Transmitted, the scanner does not accept the main bar code without an addendum. Psion Teklogix 7545 Hand-Held Computer User Manual C-31...
(i.e., human readable characters), including check digit(s). Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-32 Psion Teklogix 7545 Hand-Held Computer User Manual...
Double-tapping on these parameters displays dialog boxes where you can define the code length that will be recognized by your scanner. Length Mode You can choose to set L1 as Minimum Length or L1,L2,L3 as Fixed Length. Psion Teklogix 7545 Hand-Held Computer User Manual C-33...
(i.e., human readable characters), including check digit(s). Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-34 Psion Teklogix 7545 Hand-Held Computer User Manual...
“Check Digit Verification” uses the specified algorithm of the option you've chosen to ensure the integrity of the symbol data before transmitting. If the data does not contain that algorithm, the data is not transmitted. Psion Teklogix 7545 Hand-Held Computer User Manual C-35...
(i.e., human readable characters), including check digit(s). Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-36 Psion Teklogix 7545 Hand-Held Computer User Manual...
Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C.3.17 Telepen Enabled Set this parameter to on to enable “Telepen”. Psion Teklogix 7545 Hand-Held Computer User Manual C-37...
“RSS Expanded” code can be omni-direc- tionally scanned. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-38 Psion Teklogix 7545 Hand-Held Computer User Manual...
Security Level displays a dialog box in which you can assign a value from 0 to 100. The higher the value assigned, the lower the decode rate. Length Restriction Refer to “Length Restriction” on page C-14 for details. Psion Teklogix 7545 Hand-Held Computer User Manual C-39...
]L3 if the first codeword is 903-907, 912, 914, 915 ]L4 if the first codeword is 908 or 909 ]L5 if the first codeword is 910 or 911 Length Restriction Refer to “Length Restriction” on page C-14 for details. C-40 Psion Teklogix 7545 Hand-Held Computer User Manual...
Refer to “Add/Remove Data” on page C-14 for details. Imager • Tap on the Scanner drop-down menu, and choose Imager. C.4.1 Imager Options TekImager Enabled Setting this option to on enables the imager installed in your hand-held. Psion Teklogix 7545 Hand-Held Computer User Manual C-41...
Page 242
Note: The driver will validate and reassign the value assigned to this parameter, if neces- sary; the driver will also use Window Height value to vertically center the image in the field of view. C-42 Psion Teklogix 7545 Hand-Held Computer User Manual...
A value of 0 disables the target dot. C.4.2 Imager Advanced Options Important: Do not adjust the advanced options without first consulting Psion Teklogix technical support. Factory Defaults On Reboot The value assigned to this parameter determines whether or not the driver will restore the factory defaults to the imager device on the next reboot.
Page 244
Imager Advanced Options Auto Exposure Important: This parameter value should only be changed by qualified Psion Teklogix personnel. It should be left at the default value: on. Setting this parameter to on allows the imager to make automatic gain, integration and illu- mination adjustments based on ambient light before capturing the bar code.
When this parameter is enabled, the integrity of a “Code 39” symbol is checked to ensure that it complies with specified algorithms. Note: Only those “Code 39” symbols that include a MOD 43 check digit are decoded when this parameter is enabled. Psion Teklogix 7545 Hand-Held Computer User Manual C-45...
Note: Setting “Addendum” to ‘Optional’ reduces performance. It should only be chosen if at least some of the bar codes being read have addendums. C-46 Psion Teklogix 7545 Hand-Held Computer User Manual...
Refer to “Add/Remove Data” on page C-14 for details. C.4.8 UPC E Enabled Set this parameter to on to enable “UPC E”. Addendum Refer to “Addendum” on page 46. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. Psion Teklogix 7545 Hand-Held Computer User Manual C-47...
Product Code Council). Include Check If this parameter is enabled, the check digit is transmitted along with the I 2 of 5 symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. C-48 Psion Teklogix 7545 Hand-Held Computer User Manual...
Setting this parameter to on enables PDF-417 two dimensional (2D) coding. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. Psion Teklogix 7545 Hand-Held Computer User Manual C-49...
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C.4.17 2D QR Code Enabled Set this parameter to on to enable “2D QR Code”. C-50 Psion Teklogix 7545 Hand-Held Computer User Manual...
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C.4.20 Postal: PlaNET Enabled Set this parameter to on to enable “Postal: PlaNET”. Psion Teklogix 7545 Hand-Held Computer User Manual C-51...
Enabled Set this parameter to on to enable “Postal: Japanese”. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-52 Psion Teklogix 7545 Hand-Held Computer User Manual...
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C.4.27 Postal: Canadian Enabled Set this parameter to on to enable “Postal: Canadian”. Psion Teklogix 7545 Hand-Held Computer User Manual C-53...
• To change a parameter value, press [SPACE] or the [RIGHT] arrow key. If a field requires text entry, a text box is displayed in which you can enter the appropriate value. C-54 Psion Teklogix 7545 Hand-Held Computer User Manual...
If this parameter is enabled, the characters +, %, and / are used as escape characters. The combination of an escape character and the next character is converted to an equivalent ASCII character. Psion Teklogix 7545 Hand-Held Computer User Manual C-55...
Page 256
This identifier defines the general category or specific use of the data contained in the rest of the bar code. Note: If your unit is operating with the Psion Teklogix TESS application, this parameter should not be used in conjunction with the TESS AIAG feature. This is because the hand-held performs the strip function before it processes the data through the AIAG feature;...
A code ID character identifies the scanned bar code type. In addition to any single character prefix already selected, the code ID character is inserted between the prefix and the decoded symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. Psion Teklogix 7545 Hand-Held Computer User Manual C-57...
When the parameter is set to Required the scanner does not accept the main bar code without an addendum. Note: Setting Addendum to Optional will reduce performance. This value should only be used if some bar codes actually have addendums. C-58 Psion Teklogix 7545 Hand-Held Computer User Manual...
UPC A Enabled Set this parameter to on to enable “UPC A”. Include Number Sys If this parameter is enabled, the number system digit is included with the decoded bar code data. Psion Teklogix 7545 Hand-Held Computer User Manual C-59...
Include Check When enabled, the check digit is included with the decoded bar code data. Addendum Important: Before “Addendum” can take effect, the “Short Code” parameter (see page C-55) must be enabled. C-60 Psion Teklogix 7545 Hand-Held Computer User Manual...
Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C.5.9 Code 93 Enabled Set this parameter to on to enable “Code 93”. Psion Teklogix 7545 Hand-Held Computer User Manual C-61...
ID character is inserted between the prefix and the decoded symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-62 Psion Teklogix 7545 Hand-Held Computer User Manual...
If this parameter is enabled, it is assumed that the last digit is a check digit. Include Check If this parameter is enabled, the check digit is included with the decoded bar code data. Psion Teklogix 7545 Hand-Held Computer User Manual C-63...
ID character is inserted between the prefix and the decoded symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. C-64 Psion Teklogix 7545 Hand-Held Computer User Manual...
ID character is inserted between the prefix and the decoded symbol. Length Restriction Refer to “Length Restriction” on page C-14 for details. Add/Remove Data Refer to “Add/Remove Data” on page C-14 for details. Psion Teklogix 7545 Hand-Held Computer User Manual C-65...
Need help?
Do you have a question about the 7545 and is the answer not in the manual?
Questions and answers
