Rear Panel Views

T-4200 as a Transceiver (Single-Link, 2 DVI Displays)
VTM-24 Tx
T-4200 as a Transciever (Single-Link, 1 DVI Display)
VTM-4 Tx
T-4200 as 2 Receivers (Dual-Link DVI & Single-Link RGB Displays)
VTM-8 Rx
T-4200 as 2 Transmitters (Dual-Link DVI & Single-Link RGB Displays)
VTM-8 Tx

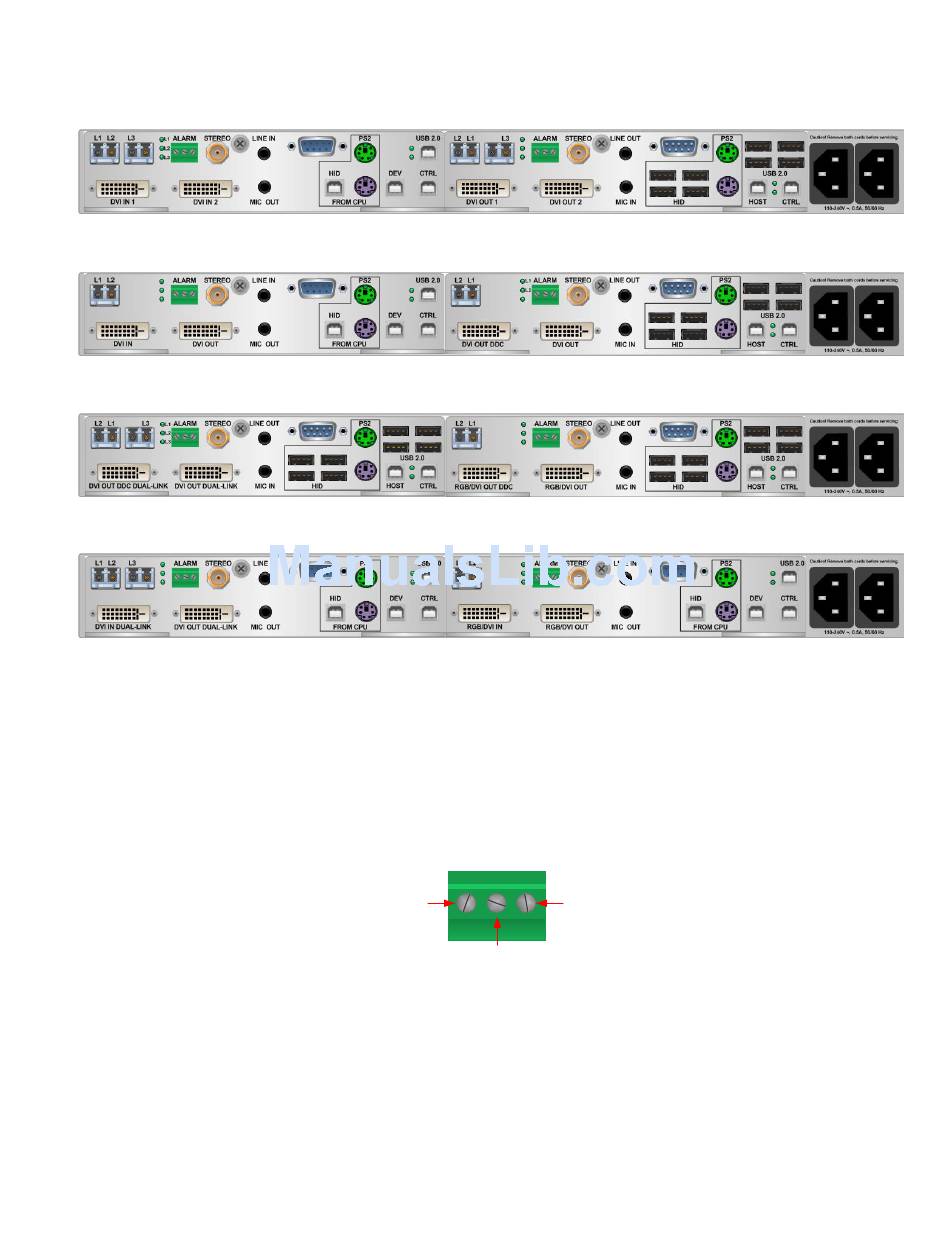

A selection of Velocity T-4200 Rear Panels in Transceiver, Receiver & Transmitter Configurations

2.6 Set-Up

Dry Contact Alarm

Dry contact alarms are located on the transmitter and receiver units. When there is an alarm condition
the relay is energized. An example of possible alarm causes might be over-temperature or a power
supply issue.
The dry contact alarm is a Form C contact with the following ratings:
Nominal Switching Capacity: 1 A 30 VDC
Max. Switching Power: 30 W DC

Firmware Upgrades

Firmware upgrades are available through Thinklogical. Please call 1-203-647-8700 for assistance.
T-Series DVI Modules, Rev. G
NORMALLY CLOSED
VTM-24 Rx
VTM-4 Rx
VTM-5 Rx
VTM-5 Tx
ALARM
NORMALLY OPEN
COMMON
.
9
