Thinklogical Velocity kvm-5 Quick Start Manual

Velocitykvm-5
Multi-Mode Fiber Extension – RGB/DVI Display
QUICK START GUIDE
Local
2
Display
STEP 10: Turn on the video
VelocityKVM-5 Transmitter
card application last. Verify
that all system features are
functioning properly.
10
5
3
6
STEP 6: One HD15 to DVI cable (CBL-000022-002MR) is included.
Connect the HD-15 end to the CPU Video Card and the DVI end to
the VelocityKVM Transmitter's DVI/RGB IN receptacle.
Note: Be sure to leave
adequate ventilation space
on both sides of the units
(2" minimum), especially if
the units are being stacked
CONTENTS
DVI/RGB DDC
Upon receiving your Thinklogical
Velocitykvm-5 Extender, you should
find the following items:
VelocityKVM Extender Transmitter
VelocityKVM Extender Receiver
2 AC power cords, PWR-000006-R
(International connections may differ.)
VelocityKVM Extender Cables:
1
DVI-I Male Cable, 2 meters, CBL-000013-002MR
1 HD15 to DVI Cable, 2 meters, CBL-000022-002MR
1 Cable Kit (8 six ft. peripheral cables.) KIT-000005-R
VelocityKVM Extender Product Manual
All physical connections to the product use industry-standard connectors.
PHONE:
WEBSITE:
EMAIL:
Copyright c 2009. All rights reserved. Printed in the U.S.A. All trademarks and service marks are the property of their respective owners.
Velocitykvm-5
Each Thinklogical Multi-Mode Fiber Optic System consists of a transmitter unit and a receiver unit connected by two multi-mode fiber
optic cables (or by one optional single-mode fiber). The transmitter unit connects to the computer with standard cables and the receiver unit provides
connections to the user interface devices. The
USB 1.1. Available options include USB 2.0 (high speed up to 480Mbps).
7
STEP 7: (Optional) Connect your local
monitor DVI/RGB cable (not included) to the
DVI/RGB OUT connector on the
VelocityKVM Transmitter.
4

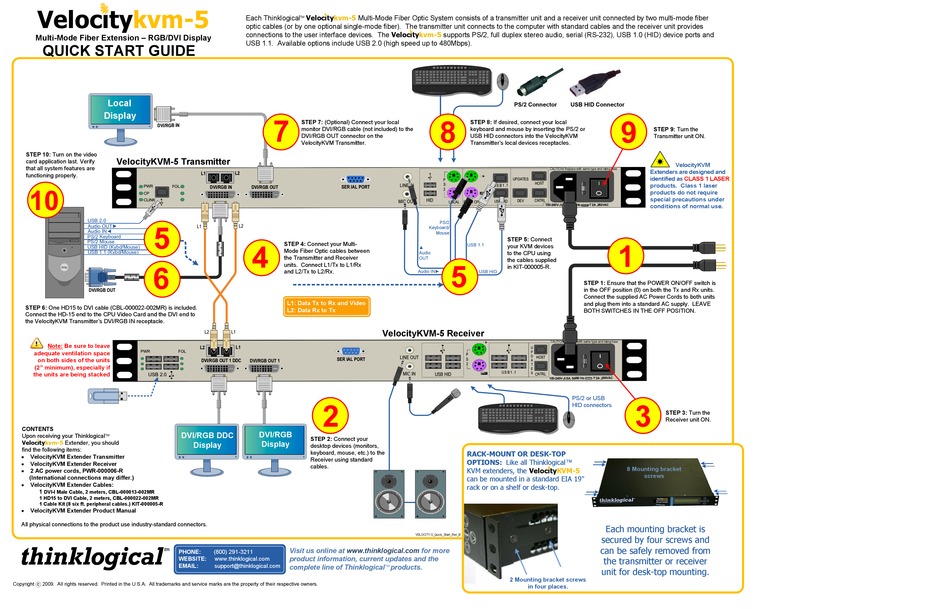

STEP 4: Connect your Multi-
