Dual-Link Dvi: Vtm-8 Transmitters To Vtm-8 Receivers (Through 2 Vx160 Routers); T-Series Transceiver Configuration (Through A Vx160 Router) - Thinklogical VTM-004200 Product Manual

High reliability, rack-space saving, video and audio extension solutions, velocitykvm, t-series modular kvm extension solutions

Hide thumbs Also See for VTM-004200:

Table of Contents

thinklogical

2.7.3

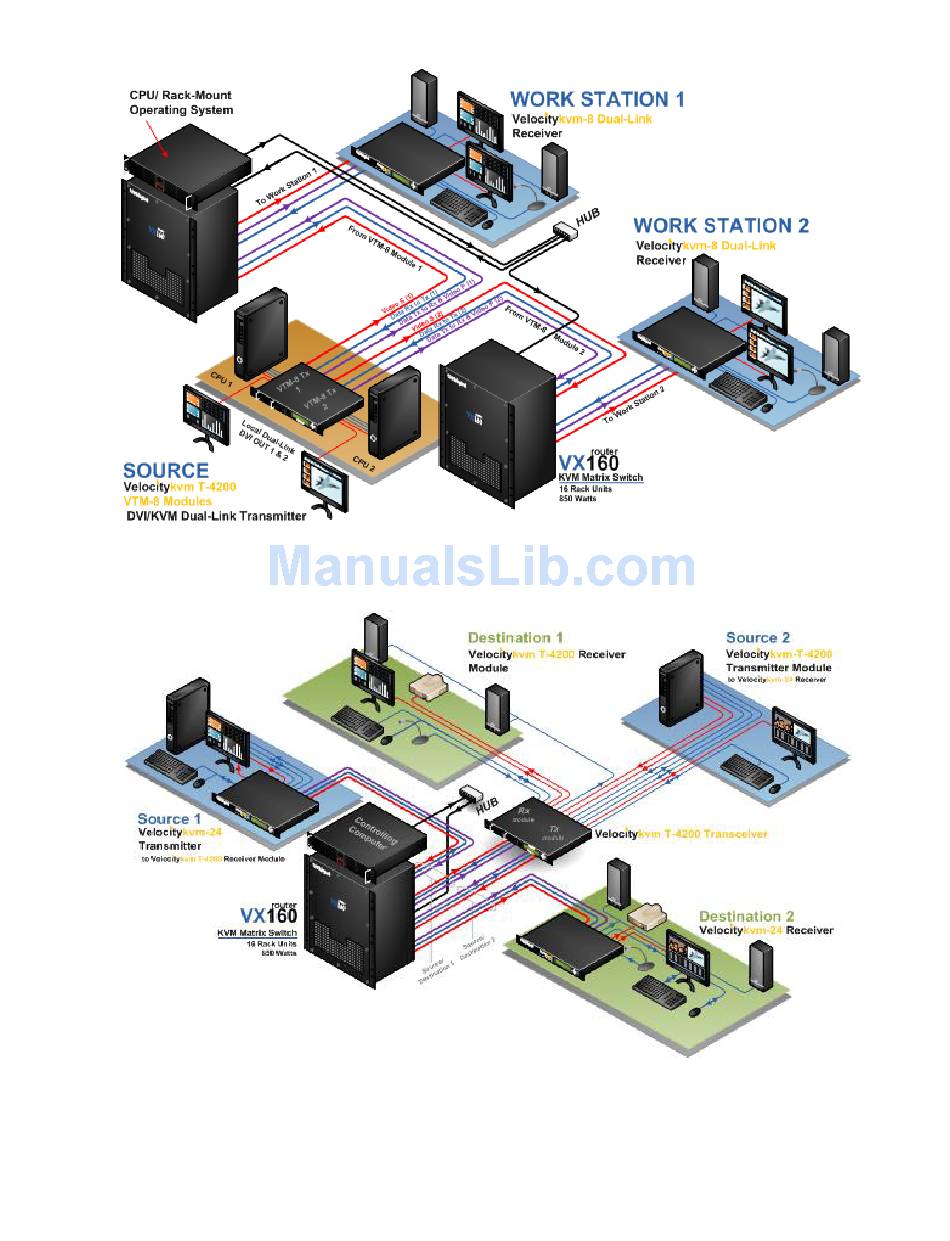

Two Source Computers, each connected to a VTM-8 Dual-Link DVI Transmitter extending dual-link video

and peripheral signals to two VelocityKVM-8 Dual-Link DVI Receiver workstations. Signals are routed through

two Thinklogical VX160 Routers.

2.7.4

Two Source Computers, located at separate workstations, connected to one VelocityKVM T-4200

Transceiver Chassis equipped with dual VTM-24 Modules (one TX and one RX), which extends video and

peripheral signals to two separate VelocityKVM-24 (stand alone) destinations (one TX and one RX) at separate

workstations. Signals are routed through a Thinklogical VX160

Router.

T-Series DVI Modules, Rev. G

October, 2016
