3.3 Velocity T-Series Separate Data Path Modules:
and received on another fiber, separate from video data, which is transmitted on a separate, third fiber.
See figure 3.3, below.
VTM-U0D004-LCRX
VTM-U0D004-LCTX
VTM-U0D005-LCRX
VTM-U0D005-LCTX
VTM-H0D004-LCRX
VTM-H0D004-LCTX
VTM-H0D005-LCRX
VTM-H0D005-LCTX
VelocityKVM-4: DVI, USB HID & Separate Data Paths
VTM-H0D004-LCTX
VelocityKVM-4: DVI, USB 2.0, HID & Separate Data Paths
VTM-U0D004-LCTX

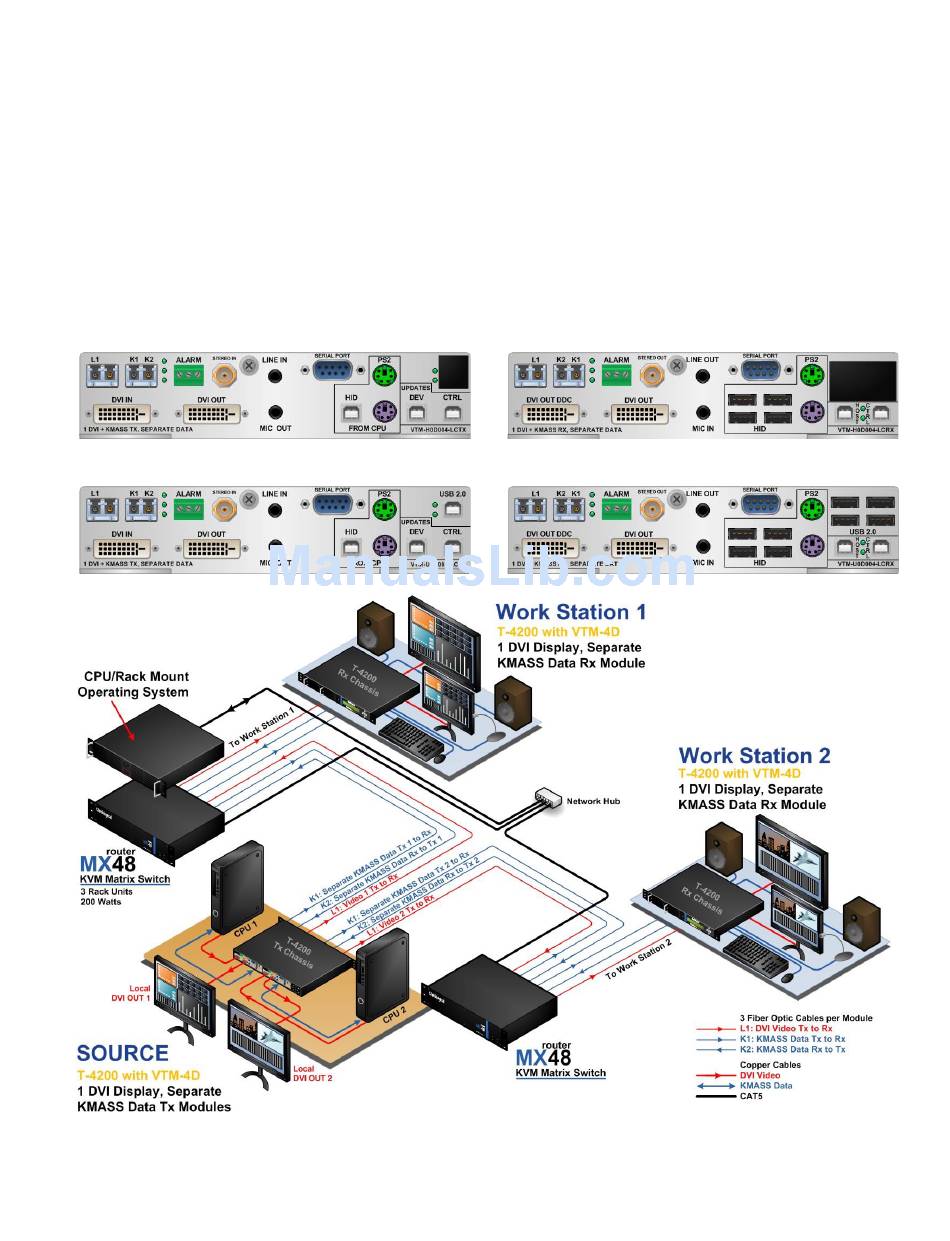

Appendix D, Fig. 3.3: Separate Data Tx to Separate Data Rx Modules Application
T-Series DVI Modules, Rev. G
Velocity T-Series 4 Receiver, DVI 1 Display, HID, USB 2.0, Separate Data Path, RX, LC
Velocity T-Series 4 Transmitter DVI 1 Display, HID, USB 2.0, Separate Data Path, TX, LC
Velocity T-Series 5 Receiver, DVI/RGB 1 Display, HID, USB 2.0, Separate Audio, RX, LC
Velocity T-Series 5 Transmitter DVI/RGB 1 Display, HID, USB 2.0, Separate Audio, TX, LC
Velocity T-Series 4 Receiver, DVI 1 Display, HID, Separate Data Path, RX, LC
Velocity T-Series 4 Transmitter DVI 1 Display, HID, Separate Data Path, TX, LC
Velocity T-Series 5 Receiver, DVI/RGB 1 Display, Separate Data Path, HID, RX, LC
Velocity T-series 5 Transmitter DVI/RGB 1 Display, Separate Data Path, HID, TX, LC
Allows KMASS data to be transmitted on one fiber
VTM-H0D004-LCRX
VTM-U0D004-LCRX
