Velocitykvm
T-Series
High Reliability, Rack-Space Saving,
Video and Audio Extension Solutions
T-4200
Modular Chassis
KVM Extension Solution
PRODUCT MANUAL
Thinklogical LLC
100 Washington Street
Milford, Connecticut 06460 U.S.A.
Telephone: 1-203-647-8700
Fax: 1-203-783-9949
www.thinklogical.com
®
Extend
Distribute
Innovate
Advertisement
Table of Contents
Related Manuals for Thinklogical VelocityKVM T Series
Summary of Contents for Thinklogical VelocityKVM T Series
- Page 1 Velocitykvm T-Series High Reliability, Rack-Space Saving, Video and Audio Extension Solutions T-4200 Modular Chassis KVM Extension Solution PRODUCT MANUAL Thinklogical LLC 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 Fax: 1-203-783-9949 www.thinklogical.com ® Extend Distribute Innovate...
- Page 2 ® Extend Distribute Innovate Copyright Notice Copyright © 2011. All rights reserved. Printed in the U.S.A. Thinklogical ® 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: VelocityKVM T-4200 Chassis Product Manual Revision: A, September, 2011 T-4200 Chassis, Rev.
-
Page 3: Table Of Contents
Telephone ............................20 Fax ..............................20 5.2 Product Support ..........................20 5.2.1 Warranty ..........................20 5.2.2 Return Authorization ......................21 Our Address ..........................21 APPENDIX A: VelocityKVM T-Series Ordering Information ..............22 APPENDIX B: Thinklogical KVM Extenders- Theory of Operation ............23 T-4200 Chassis, Rev. A September 2011... -
Page 4: Preface
® PREFACE Conventions Used in this Manual As you read this manual you will notice certain conventions that bring your attention to important information. These are Notes and Warnings. Examples are shown below. Note: Important Notes appear in blue text preceded by a yellow exclamation point symbol, like this. -

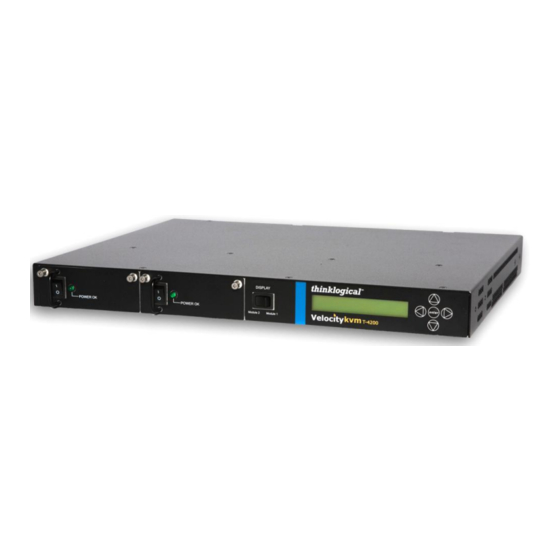

Page 5: The T-4200 Modular Chassis
® 1. THE T-4200 MODULAR CHASSIS The Logical Solution: Modular KVM Extension / DVI and SDI Support in One Unit The VelocityKVM line of extenders continues to evolve and add value with exciting new capabilities. The VelocityKVM T-4200 Chassis is a high reliability, rack-space-saving solution housing the same capabilities in a 1U chassis that used to require 2U. -
Page 6: Technical Specifications
® 1.2 Technical Specifications Each Thinklogical VelocityKVM system is designed to the following specifications: Operating Temp 0° to 50°C (32° to 122 °F), 5% to 95% RH, non-condensing and Humidity EIA 19” Rack size: 1.79” (4.5cm) ± .039”; .100cm Height: Dimensions 14.02”... -
Page 7: Cooling
If a power module fails, the replacement can be swapped with no interruption in unit functionality. To hot swap a power supply, simply unscrew the module and replace it with a new power supply module. (Power Modules can be ordered from Thinklogical: part number VTM-000001). Power Supply... -
Page 8: Display Rocker Switch
LCD Navigation The T-4200 Front Panel 2. Firmware Upgrades Firmware upgrades are available through Thinklogical. Please call us for technical assistance at: 1-203-647-8700. To update the Chassis firmware, use the KM download described below. To update a module‟s FPGA, go to Allow FPGA Update under the *System menu. Select Yes and load the update through the back panel USB port using the FPGA Update, also described below. -
Page 9: Front Panel Usage
® The KM_Download.exe application and instructions are stored in: http://ftp.thinklogical.com/ftp/visualization/updates/KmDownloadVxxx.zip (where „Vxxx‟ is the version number). Firmware Update Preparation: 1. Retrieve the Firmware files/revision numbers and the KM_Download application/instructions and place them in an accessible directory in your CPU. 2. Install the KmDownload application (in KMDownloadVxxx.zip file) by running setup.exe. - Page 10 ® By pressing the down arrow the VelocityKVM Extender allows you to enter into the main menu. The main root menu items are displayed with an *. They are as follows: *System *DDC Once a * root menu item is displayed, you can then use the left arrow or right arrow to review settings or make changes, if allowed.
- Page 11 ® Display Modifiable Description *DDC DDC PROM Emula. Mode YES Options are Dynamic, Static and Passthru. In Dynamic mode, the DDC of the monitor connected to the RX is read and stored on the TX. The CPU is informed of a change in DDC and the monitor is read.
- Page 12 ® Display Modifiable Description *PS2 Devices PS2 KB Scan Value of 1, 2 or 3 for the scan code. 0= not properly connected to the CPU. PS2 Mouse Mode NO Value of 0, 3 or 4 for the mode. 255= mouse not properly connected to the CPU.
-
Page 13: Saving Changes
YES Factory default setting for debug 3.2 Saving Changes Save video configurations so that after powering up, the device can recall customer video settings. Thinklogical Velocity Tx VXX.XX Using the down arrow, scroll down to *System as shown below. *System Using the right arrow, scroll right until Store Values is displayed as shown below, then press enter. -
Page 14: Restoring Factory Defaults
Store Values Yes/No.= Using the right arrow or left arrow scroll until you return to the *System menu option. Using up arrow or down arrow, scroll until you get to the Thinklogical screen as shown below. Thinklogical Velocity Tx VXX.XX 3.3 Restoring Factory Defaults... -
Page 15: Naming The Transmitter Unit
Using the up or down arrow, scroll until Yes appears. Then press enter. Using the right or left arrow, scroll to return to the *System menu option. Using up or down arrow, scroll until you get to the Thinklogical screen. 3.4 Naming the Transmitter Unit Modify the name of the unit through the Transmitter. -
Page 16: Regulatory & Safety Compliance
3. Using the up or down arrow, scroll until Yes appears. Then press enter. 4. Using the right or left arrow, scroll to return to the *System menu option. 5. Using up or down arrow, scroll until you get to the Thinklogical screen. 4. Regulatory & Safety Compliance 4.1 Safety Requirements... -
Page 17: North America
European Union Declaration of Conformity Manufacturer‟s Name & Address: Thinklogical LLC 100 Washington Street Milford, Connecticut 06460 USA Telephone 1-203-647-8700 These products comply with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC. -
Page 18: Supplementary Information
® Electromagnetic Immunity EN55024: 1998 Information Technology Equipment-Immunity Characteristics EN61000-4-2: 1995 Electro-Static Discharge Test EN61000-4-3: 1996 Radiated Immunity Field Test EN61000-4-4: 1995 Electrical Fast Transient Test EN61000-4-5: 1995 Power Supply Surge Test EN61000-4-6: 1996 Conducted Immunity Test EN61000-4-8: 1993 Magnetic Field Test EN61000-4-11: 1994 Voltage Dips &... -
Page 19: Product Serial Number
To contact us, please use the following telephone numbers and internet-based methods: Thinklogical is an engineering company and you will receive the information you require directly from our most knowledgeable engineers. We believe that the first lines of support are the design engineers that developed the product. -
Page 20: Email
Thinklogical products. 5.2.1 Warranty Thinklogical warrants this product against defects in materials and workmanship for a period of one year from the date of delivery. Thinklogical and its suppliers disclaim any and all other warranties. Note: Thinklogical LLC products carry a one year warranty with longer term available at time of purchase on most products. -
Page 21: Return Authorization
If you wish to return your device, contact the Thinklogical authorized dealer where you purchased the device, or if you purchased directly, call Thinklogical at 1-800-291-3211 (USA). -
Page 22: Appendix A: Velocitykvm T-Series Ordering Information
® Appendix A- VelocityKVM T-Series Ordering Information Part Numbers and Descriptions Velocity T-4200 CHASSIS VTS-004200 Velocity T-4200 CHASSIS DVI MODULES Velocity T-Series DVI Modules VTM-U00004-LCRX VelocityKVM T-Series Receiver, Single Head, Single Link DVI, USB 2.0, KMAS, LC VTM-U00004-LCTX VelocityKVM T-Series Transmitter, Single Head, Single Link DVI, USB 2.0, KMAS, LC VTM-U00005-LCRX VelocityKVM T-Series Receiver, Single Head, Single Link RGB/DVI, USB 2.0, KMAS, LC VTM-U00005-LCTX... -
Page 23: Appendix B: Thinklogical Kvm Extenders- Theory Of Operation
Technology 6.25 Gbps. Allows for Full Frame Rate Transmission of Uncompressed DVI Powered by Thinklogical‟s cutting edge, patent-pending MRTS (Multi Rate Transmission System) technology, this KVM extension system transports every frame of a DVI video stream seamlessly, with no compression or dropped frames. In addition, all high speed peripherals function with no latency.
