Summary of Contents for Thinklogical VelocityKVM T-Series

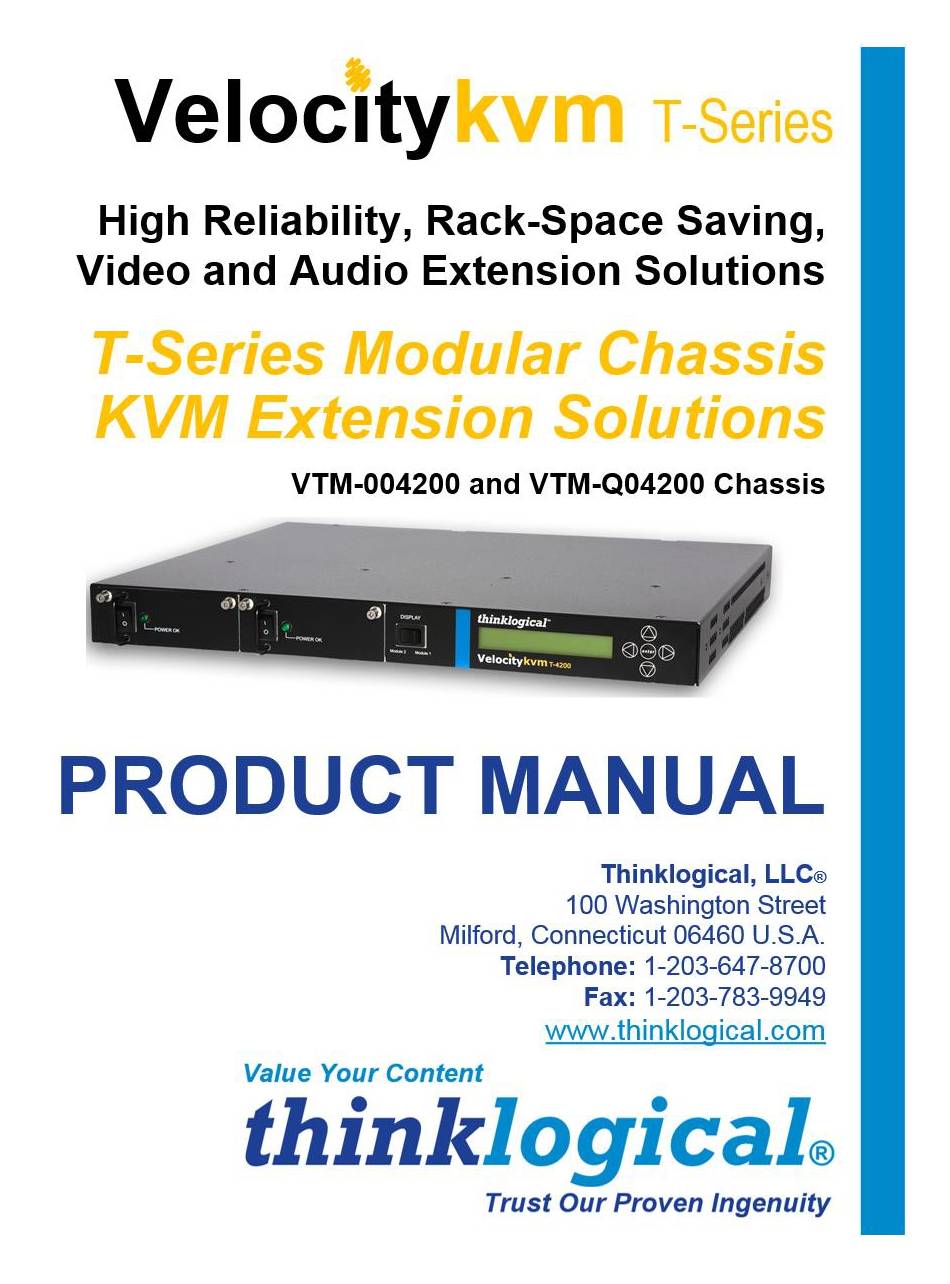

- Page 2 ® 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: VelocityKVM T-Series Chassis Product Manual Revision: D, November, 2014 T-Series Chassis ® & Modules VelocityKVM T-Series Chassis, Rev. D...
-
Page 3: Table Of Contents
5.2 Product Support ......................... 25 5.2.1 Warranty ..........................26 5.2.2 Return Authorization ......................26 Our Address ..........................26 APPENDIX A: VelocityKVM T-Series Ordering Information ..............27 APPENDIX B: Thinklogical KVM Extenders ................... 29 VelocityKVM T-Series Chassis, Rev. D November, 2014... -
Page 4: Preface
We, the Thinklogical team, are committed to understanding and exceeding our customers’ requirements, the first time and every time. Thinklogical is the leading manufacturer and provider of fiber optic KVM, video, audio, and peripheral extension and switching solutions used in video-rich, big-data computing environments. -
Page 5: Note And Warning Symbols
Class 1 Laser Information All Q-Series modules are designed and identified as Class 1 LASER products CLASS 1 LASERS do not require any special precautions under conditions of normal use. Fiber-Optic Cables Modules Class 1 Lasers VelocityKVM T-Series Chassis, Rev. D November, 2014... -
Page 6: The T-4200 Modular Chassis
PS2, full duplex stereo audio, stereo emitter, serial (RS-232), USB 2.0 (up to 480 Mbps) and/or USB 1.0 HID. Q-Series modules support a variety of display and peripheral features. Contact Thinklogical for the full list of supported formats and features. Using multi-mode or single-mode fiber, the system allows users to securely locate a display device and peripherals up to 40 kilometers away from the controlling computer without loss of resolution. -
Page 7: Chassis Features
Four S i n gl e -Link DVI D is pla y s two 3G/SDI dual-link signals Display rocker selects which module controls the front panel LCD. Fully compatible with all of Thinklogical’s VXRouter line of products. Simple plug and play ... -
Page 8: Additional System Features
Display rocker switch to select which module controls the LCD All models available with standard LC-type connectors 1.1.2. Technical Specifications Each Thinklogical T-Series Chassis is designed to the following specifications: Operating Temp 0° to 50°C (32° to 122 °F), 5% to 95% RH, non-condensing and Humidity EIA 19”... -
Page 9: Applications
VEL-24 interface modules, extending video and peripherals to two separate VelocityKVM-24 (stand-alone) Receiver destinations at separate workstations. Signals are routed through two Thinklogical VX160 Routers. The T-4200 unit connects to the CPU with supplied peripheral device cables. -
Page 10: Application 2
VelocityKVM T-4200 Transmitter Chassis equipped with VEL-24 interface components, extending video and peripheral signals to a VelocityKVM T-4200 Receiver Chassis with destinations at separate workstations. Signals are routed through a Thinklogical VX160 Router. VelocityKVM T-Series Chassis, Rev. D November, 2014... -
Page 11: Application 3
One VelocityKVM T-4200 Transceiver Chassis equipped with VEL-24 TX and RX modules. One Source and one Destination are connected to the Transceiver. Signals are then routed through a Thinklogical VX160 Router to another Source and another Destination. VelocityKVM T-Series Chassis, Rev. D... -
Page 12: Application 4
The front panel should be visible and unobstructed so that the front panel buttons and LCD display are accessible. All connections are made to the rear of the chassis. The T-4200 chassis does not need to be opened or accessed. VelocityKVM T-Series Chassis, Rev. D November, 2014... -
Page 13: Cooling
If a power module fails, the replacement can be swapped with no interruption in unit functionality. To hot swap a power supply, simply unscrew the module and replace it with a new power supply module. (Power Modules can be ordered from Thinklogical: part number VTM-000001). Power Supply POWER OK... -
Page 14: Dry Contact Alarm
The front-panel LCD display should be visible and accessible for system setup. The front panel buttons are used to configure special video settings and to review existing VelocityKVM VelocityKVM T-Series Chassis, Rev. D November, 2014... -
Page 15: Firmware Upgrades
Right Power Supply Display Rocker Switch LCD Navigation The T-4200 Chassis Front Panel 2. FIRMWARE UPGRADES Firmware upgrades are available through Thinklogical. Please call us for technical assistance at 1-203-647-8700. 3. FRONT PANEL USAGE 3.1. Initial Power-Up Once the system is powered up, the initial LCD display is shown as follows:... - Page 16 Static mode is used to maintain the current DDC regardless of monitor changes at the RX. Passthru mode makes the DDC pins look like direct connections between the TX and RX, allowing the computer to talk directly to the monitor. VelocityKVM T-Series Chassis, Rev. D November, 2014...
- Page 17 Value of 0, 3 or 4 for the mode. 255= mouse not properly connected to the CPU. Display Modifiable Description *USB Country Code USB Country The country code of the USB KB that the unit reports VelocityKVM T-Series Chassis, Rev. D November, 2014...
- Page 18 Video IN 2 pixel sample clock (RX) TX 1 Stream Info Video Channel 1 ID TX 2 Stream Info Video Channel 2 ID PropConst Factory default setting for debug IntegConst Factory default setting for debug VelocityKVM T-Series Chassis, Rev. D November, 2014...
-
Page 19: Saving Changes
Store Values Yes/No.= Using the right arrow or left arrow scroll until you return to the *System menu option. Using up arrow or down arrow, scroll until you get to the Thinklogical screen as shown below. Thinklogical Velocity Tx VXX.XX VelocityKVM T-Series Chassis, Rev. -
Page 20: Restoring Factory Defaults
3. Using the up or down arrow, scroll until Yes appears. Then press enter. 4. Using the right or left arrow, scroll to return to the *System menu option. 5. Using up or down arrow, scroll until you get to the Thinklogical screen. VelocityKVM T-Series Chassis, Rev. D... -
Page 21: Naming The Transmitter Unit
Tx Ctrl Name= TxUnit01 Using the up or down arrow, scroll (holding down the up or down arrow will scroll faster) until you find the appropriate letter/number. Then press enter. Tx Ctrl Name= TxUnit11 VelocityKVM T-Series Chassis, Rev. D November, 2014... -
Page 22: Regulatory & Safety Compliance
3. Using the up or down arrow, scroll until Yes appears. Then press enter. 4. Using the right or left arrow, scroll to return to the *System menu option. 5. Using up or down arrow, scroll until you get to the Thinklogical screen. 4. REGULATORY & SAFETY COMPLIANCE 4.1. -
Page 23: European Union
European Union Declaration of Conformity Manufacturer’s Name & Address: Thinklogical, LLC ® 100 Washington Street Milford, Connecticut 06460 USA These products comply with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC. 4.1.3. Standards with Which Our Products Comply... -
Page 24: Product Serial Number
4.2.1. Product Serial Number Thinklogical products have a unique serial number, which includes a date-code, printed on an adhesive label that is affixed to the unit. The format for the date-code is 2 digits for the month, dash, 2 digits for the year, plus at least four digits for a unique unit number. -
Page 25: Email
5.2. Product Support Thinklogical’s support personnel are available Monday through Friday from 8:30am ® to 5:00pm, Eastern Time Zone. If your application requires assistance at some time VelocityKVM T-Series Chassis, Rev. D November, 2014... -
Page 26: Warranty
5.2.1. Warranty Thinklogical, LLC warrants this product against defects in materials and workmanship ® for a period of one year from the date of delivery. Thinklogical, LLC and its suppliers ® disclaim any and all other warranties. Note: Thinklogical, LLC products carry a one year warranty, with longer ®... -
Page 27: Appendix A: Velocitykvm T-Series Ordering Information
Velocity T-Series/Q-series Chassis DVI MODULES Velocity T-Series DVI Modules VTM-U00004-LCRX VelocityKVM T-Series Rx, Single Head, Single Link DVI, USB 2.0, KMAS, LC VTM-U00004-LCTX VelocityKVM T-Series Tx, Single Head, Single Link DVI, USB 2.0, KMAS, LC VTM-U00005-LCRX VelocityKVM T-Series Rx, Single Head, Single Link RGB/DVI, USB 2.0, KMAS, LC VTM-U00005-LCTX VelocityKVM T-Series Tx, Single Head, Single Link RGB/DVI, USB 2.0, KMAS, LC... - Page 28 Q-Series Modules For specific information on each of the Q-Series modules, please refer to the most current revision of the following manuals, available on our website: www.thinklogical.com Manual_Q-Series_KMASS_Modules Manual_Q-Series_SDI_Modules Manual_Q-Series_Video_Modules VelocityKVM T-Series Chassis, Rev. D November, 2014...
-
Page 29: Appendix B: Thinklogical Kvm Extenders
Rate Transmission of Uncompressed DVI Powered by Thinklogical’s cutting edge, patent-pending MRTS (Multi Rate Transmission System) technology, this KVM extension system transports every frame of a DVI video stream seamlessly, with no compression or dropped frames. In addition, all high speed peripherals function with no latency.
