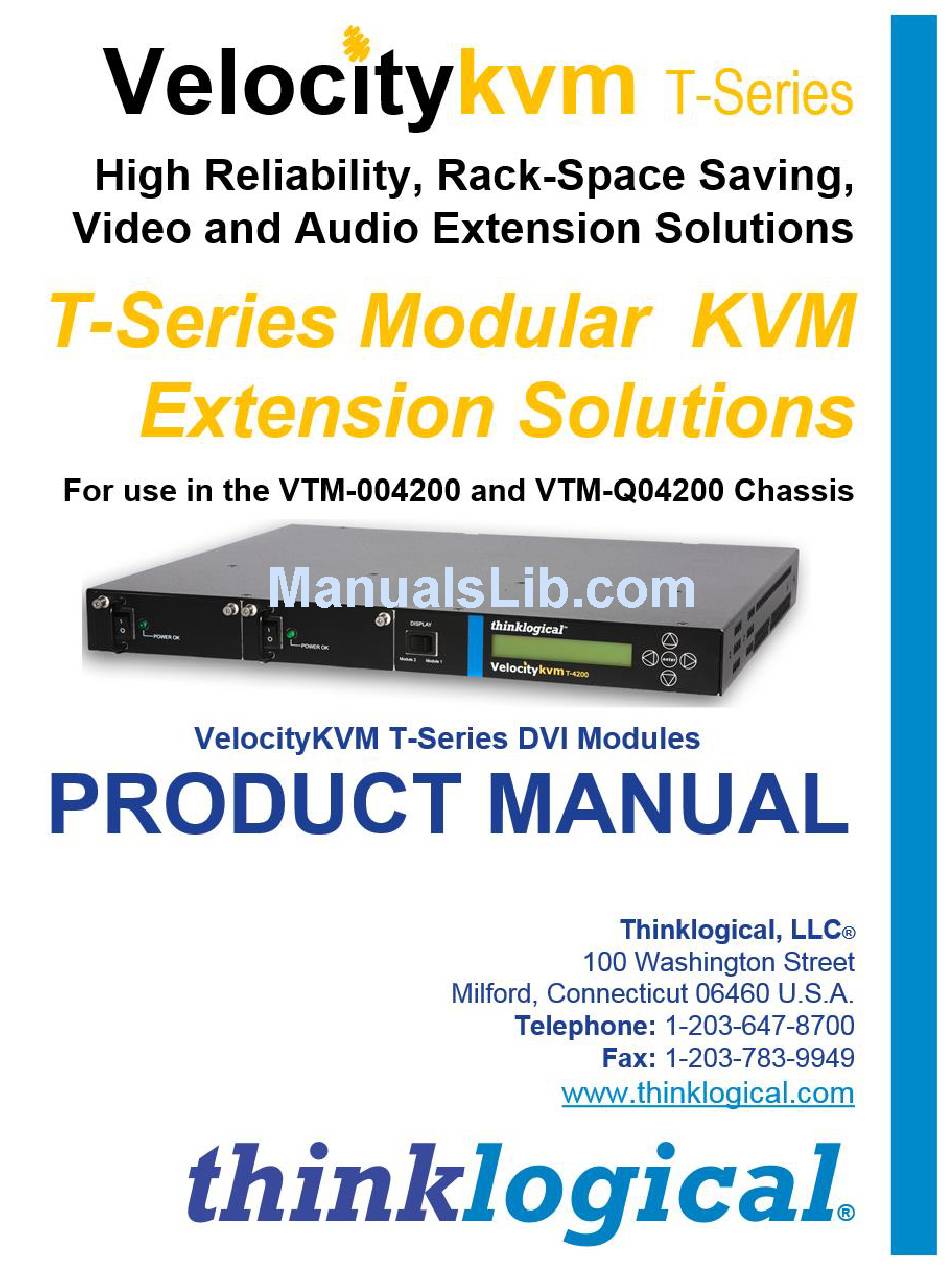

  • Page 2 ® thinklogical ® Copyright Notice Copyright © 2016. All rights reserved. Printed in the U.S.A. Thinklogical, LLC ® 100 Washington Street Milford, Connecticut 06460 U.S.A. Telephone: 1-203-647-8700 All trademarks and service marks are property of their respective owners. Subject: VelocityKVM T-Series DVI Modules Product Manual...

  • Page 3: Table Of Contents

    A.2 VTM-4/VTM-24 Tx to VTM-4/VTM-24 Rx (through VX80 Router) ............... 19 A.3 VTM-4/VTM-8 Tx to Vel-4/Vel-8 Rx (through VX40 Router) ............... 20 APPENDIX B: Thinklogical KVM Extenders- Theory of Operation ................ 21 APPENDIX C: VelocityKVM T-Series Standard Model Ordering Information ............22 APPENDIX D: VelocityKVM T-Series Multi-Path and Separate-Path Model Ordering Information .....

  • Page 4: Preface

    ® PREFACE Conventions Used in this Manual Throughout this manual you will notice certain symbols that bring your attention to important information. These are Notes and Warnings. Examples are shown below. Note: Important Notes appear in blue text preceded by a yellow exclamation point symbol, as shown here.

  • Page 5: System Features

    ® 1. T-Series DVI Modules The Logical Solution: Modular KVM Extension/DVI and SDI Support in One Unit The VelocityKVM line of extenders continues to evolve and add value with exciting new capabilities. The VelocityKVM T-4200 is housed in a high reliability, rack-space-saving chassis that includes all of the same capabilities in a 1U device that used to require 2U.

  • Page 6: Contents

    ® 1.2 Contents When you receive your Thinklogical VelocityKVM T-Series or Desktop Series Extender System, you ® should find the following items:  VelocityKVM T-4200 Modular Chassis w/ dual Power Supply Modules -OR-  VelocityKVM Desktop Modular Chassis w/ single Power Supply Module...

  • Page 7: Connecting Velocitykvm T-Series Extenders

    ® 2. Connecting VelocityKVM T-Series Extenders All physical connections to the product use industry-standard connectors. Non-supplied cables are commercially available. All connections are found on the rear of the unit. 2.1 Transmitter Modules The Transmitter Module connects to the CPU (or other sources) using the supplied cables listed above.

  • Page 8: Module Leds

    ® 2.3 Module LEDs Both the Transmitter and Receiver Modules feature five LEDs. Their functions are as follows: 2.4 Fiber Optic Cable Fiber optic cables connect the Transmitters to the Receivers. Standard multi-mode fiber optic cables must be 50 or 62.5 microns, terminated with LC type fiber optic connectors. Be careful not to kink or pinch the fiber optic cable as it is being installed and keep all bend diameters to no less than 3 inches (76.2mm).

  • Page 9: Rear Panel Views

    The dry contact alarm is a Form C contact with the following ratings: Nominal Switching Capacity: 1 A 30 VDC Max. Switching Power: 30 W DC Firmware Upgrades Firmware upgrades are available through Thinklogical. Please call 1-203-647-8700 for assistance. T-Series DVI Modules, Rev. G October, 2016...

  • Page 10: T-Series Application Diagrams

    Two Source Computers, each connected to a VelocityKVM-24 (stand alone) Transmitter extending video and peripheral signals to one VelocityKVM T-4200 Chassis equipped with two VTM-24 RX Modules. The VTM- 24s extend to two separate workstations. Signals are routed through a Thinklogical VX160 Router. T-Series DVI Modules, Rev. G...

  • Page 11: Dual-Link Dvi: Vtm-8 Transmitters To Vtm-8 Receivers (Through 2 Vx160 Routers)

    Transceiver Chassis equipped with dual VTM-24 Modules (one TX and one RX), which extends video and peripheral signals to two separate VelocityKVM-24 (stand alone) destinations (one TX and one RX) at separate workstations. Signals are routed through a Thinklogical VX160 Router.

  • Page 12: Technical Specifications

    ® 2.8 Technical Specifications Each Thinklogical VelocityKVM T-Series Module is designed to the following specifications: Transmitter: Video (2) DVI-D Audio MIC/Line 3.5mm Jack Serial Port DB9 Female USB 2.0 USB B PS2 Keyboard MiniDIN 6 Female PS2 Mouse MiniDIN 6 Female...

  • Page 13: Velocity Unbalanced Audio Specifications

    This is a Class A product. In a domestic environment this product may cause radio interference, in which case the user may be required to take adequate measures. European Union Declaration of Conformity Manufacturer’s Name & Address: Thinklogical, LLC ® 100 Washington Street Milford, Connecticut 06460 USA T-Series DVI Modules, Rev. G...

  • Page 14: Australia & New Zealand

    ® These products comply with the requirements of the Low Voltage Directive 72/23/EEC and the EMC Directive 89/336/EEC. Standards with Which Our Products Comply Safety CENELEC IEC 600950-1 2 Ed. 2005 Electromagnetic Emissions EN55022: 1994 (IEC/CSPIR22: 1993) EN61000-3-2/A14: 2000...

  • Page 15: Product Serial Number

    ® Product Serial Number Thinklogical products have a unique serial number, which includes a date-code, printed on an adhesive label that is affixed to the unit. The format for the date-code is 2 digits for the month, dash, 2 digits for the year, plus at least four digits for a unique unit number. For example:...

  • Page 16: Website

    ® Warranty Thinklogical, LLC warrants this product against defects in materials and workmanship for a ® period of one year from the date of delivery. Thinklogical, LLC and its suppliers disclaim any ® and all other warranties. Note: Thinklogical, LLC products carry a one year warranty, with longer term ®...

  • Page 17: Warranty

    ® Authorization. Our Addresses If you have any product issues or questions or need technical assistance with your Thinklogical ® system, please call us at 1-800-291-3211 (USA only) or 1-203-647-8700 and let us help. If you need to write us or return a product, please use the following address: Return address for...

  • Page 18: Appendix A: Quick Start Guides

    ® Appendix A- Quick Start Guides A.1 VTM-24 Transmitters to VTM-24 Receivers (direct) T-Series DVI Modules, Rev. G October, 2016...

  • Page 19: Vtm-4/Vtm-24 Tx To Vtm-4/Vtm-24 Rx (Through Vx80 Router)

    ® A.2 VTM-4/VTM-24 Tx to VTM-4/VTM-24 Rx (through VX80 Router) T-Series DVI Modules, Rev. G October, 2016...

  • Page 20: Vtm-4/Vtm-8 Tx To Vel-4/Vel-8 Rx (Through Vx40 Router)

    ® A.3 VTM-4/VTM-8 Tx to VTM-4/VTM-8 Rx (through VX40 Router) T-Series DVI Modules, Rev. G October, 2016...

  • Page 21: Appendix B: Thinklogical Kvm Extenders- Theory Of Operation

    ® Appendix B- Thinklogical KVM Extenders The Logical Solution VelocityKVM Extension Systems are designed for high performance visual applications that require video as well as peripheral support. (VelocityKVM Extension System-5 supports DVI or RGB.) The system allows users, via optical fiber, to station and operate a digital monitor(s) and peripherals from just a few meters away to up to 40 kilometers away from the controlling computer securely and without loss of resolution.

  • Page 22: Appendix C: Velocitykvm T-Series Standard Model Ordering Information

    VOP-M19 Velocity 4/5 T-Series Optics Option for Transmitter or Receiver, Multi-Mode, 3 Fibers, 1000M, LC VOP-M30 Velocity 8/24 T-Series Optics Option for Transmitter or Receiver, Multi-Mode, 3 Fibers, 1000M, LC Thinklogical, LLC ® 100 Washington Street Milford, CT 06460 USA –...

  • Page 23: Appendix D: Velocitykvm T-Series Multi-Path And Separate-Path Model Ordering Information

    ® and Desktop Series Chassis and are designed to accommodate systems that require data transmission security and for systems with a lower video transmission rate, or for systems not transmitting video through a Thinklogical KVM Matrix Switch. ®  The Velocity T-Series Multi Video Path Module allows one 6.22 Gbps DVI signal to be transmitted across two fibers at a bandwidth of 3.11 Gbps per fiber.
  • Page 24 ® 3. T-Series Multi Video Path, Separate Audio Path & Separate Data Path DVI and DVI/RGB Modules 3.1 Velocity T-Series Multi Video Path Modules: Allows one 6.22 Gbps DVI signal to be transmitted across two fibers at a bandwidth of 3.11 Gbps per fiber. See figure 3.1, below.
  • Page 25 ® 3.2 Velocity T-Series Separate Audio Path Modules: Allows audio data to be transmitted on one fiber and received on another fiber, separate from Video, USB, PS2, RS-232 and Stereo data, which are transmitted on two independent fibers. See figure 3.2, below.
  • Page 26 ® 3.3 Velocity T-Series Separate Data Path Modules: Allows KMASS data to be transmitted on one fiber and received on another fiber, separate from video data, which is transmitted on a separate, third fiber. See figure 3.3, below. VTM-U0D004-LCRX Velocity T-Series 4 Receiver, DVI 1 Display, HID, USB 2.0, Separate Data Path, RX, LC...
  • Page 27 Velocity 4/5 T-Series Optics Option for Transmitter or Receiver, Single Mode, 3 Fibers, 40KM, LC 6. Multi-Mode Optics Option VOP-M19 Velocity 4/5 T-Series Optics Option for Transmitter or Receiver, Multi-Mode, 3 Fibers, 1000M, LC Thinklogical, LLC ® 100 Washington Street Milford, CT 06460 USA –...
