3.2 Velocity T-Series Separate Audio Path Modules:

and received on another fiber, separate from Video, USB, PS2, RS-232 and Stereo data, which are

transmitted on two independent fibers. See figure 3.2, below.

VTM-U00004-LCRA

VTM-U00004-LCTA

VTM-U00005-LCRA

VTM-U00005-LCTA

VTM-H00004-LCRA

VTM-H00004-LCTA

VTM-H00005-LCRA

VTM-H00005-LCTA

VelocityKVM-5: DVI/RGB, USB 2.0, HID & Separate Audio Paths

VTM-U00005-LCTA

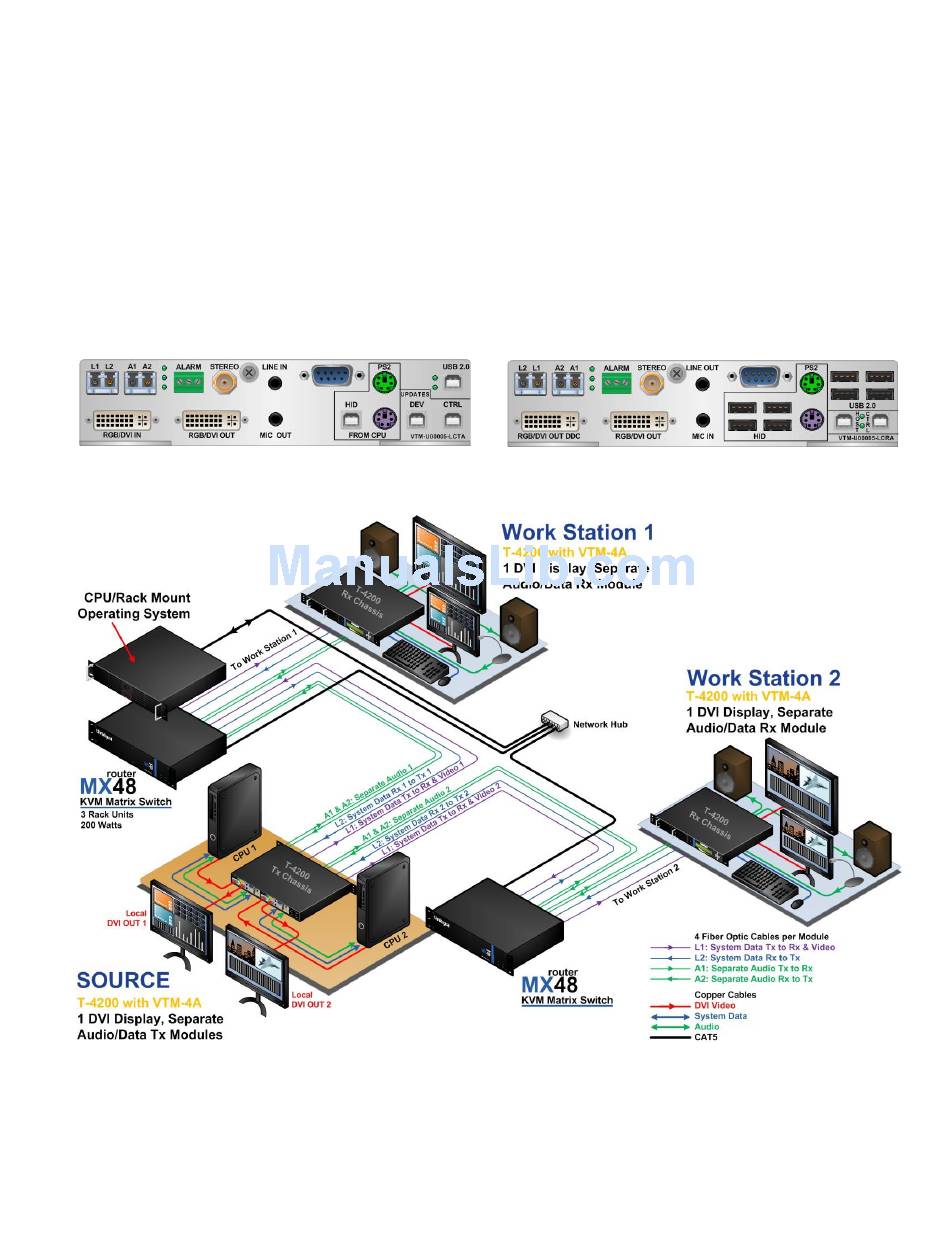

Appendix D, Fig. 3.2: Separate Audio Tx to Separate Audio Rx Modules Application

T-Series DVI Modules, Rev. G

Velocity T-Series 4 Receiver, DVI 1 Display, HID, USB 2.0, Separate Audio RX, LC

Velocity T-Series 4 Transmitter DVI 1 Display, HID, USB 2.0, Separate Audio TX, LC

Velocity T-Series 5 Receiver, DVI/RGB 1 Display, HID, USB 2.0, Separate Audio, RX, LC

Velocity T-Series 5 Transmitter DVI/RGB 1 Display, HID, USB 2.0, Separate Audio, TX, LC

Velocity T-Series 4 Receiver, DVI 1 Display, HID, Separate Audio, RX, LC

Velocity T-Series 4 Transmitter DVI 1 Display, HID, Separate Audio, TX, LC

Velocity T-Series 5 Receiver, DVI/RGB 1 Display, Separate Audio, HID, RX, LC

Velocity T-Series 5 Transmitter DVI/RGB 1 Display, Separate Audio, HID, TX, LC

Allows audio data to be transmitted on one fiber
