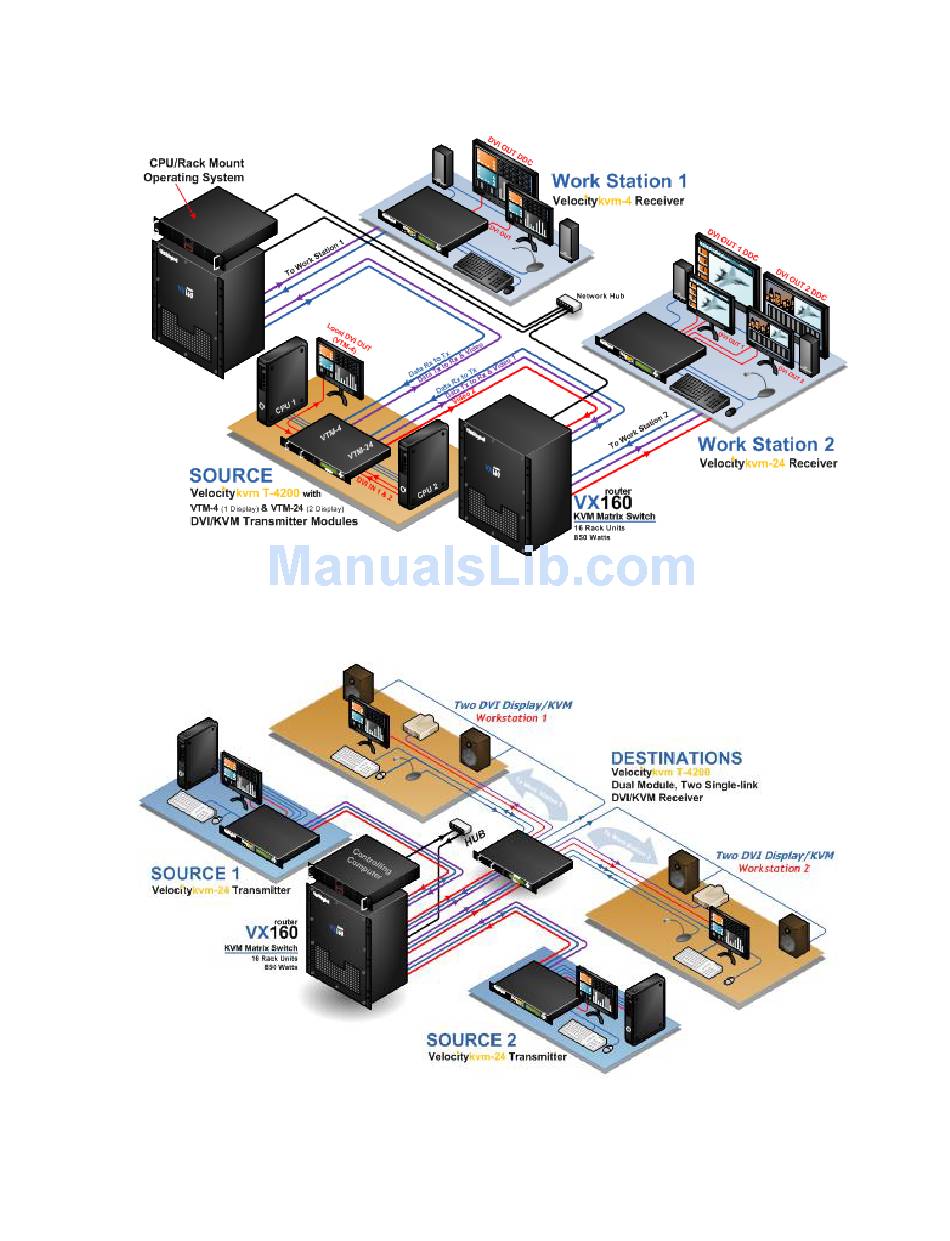

2.7 T-Series Application Diagrams

2.7.1

Two Source Computers connected to one VelocityKVM T-4200 Chassis equipped with one VTM-4 TX and

one VTM-24 TX, which extends video and peripheral signals to two separate VelocityKVM (stand alone)

Receivers (VelocityKVM-4 and VelocityKVM-24) at two separate workstations. Signals are routed through two

Thinklogical VX160 Routers

2.7.2

Two Source Computers, each connected to a VelocityKVM-24 (stand alone) Transmitter extending video

and peripheral signals to one VelocityKVM T-4200 Chassis equipped with two VTM-24 RX Modules. The VTM-

24s extend to two separate workstations. Signals are routed through a Thinklogical VX160 Router.

T-Series DVI Modules, Rev. G

October, 2016
