2.6.1
Transmitter/Transmitter: STM-L1L1X2-LCTX
Receiver/Receiver: STM-C1C1X2-LCRX
Transmitter/Receiver: STM-L1C1X2-LCTR

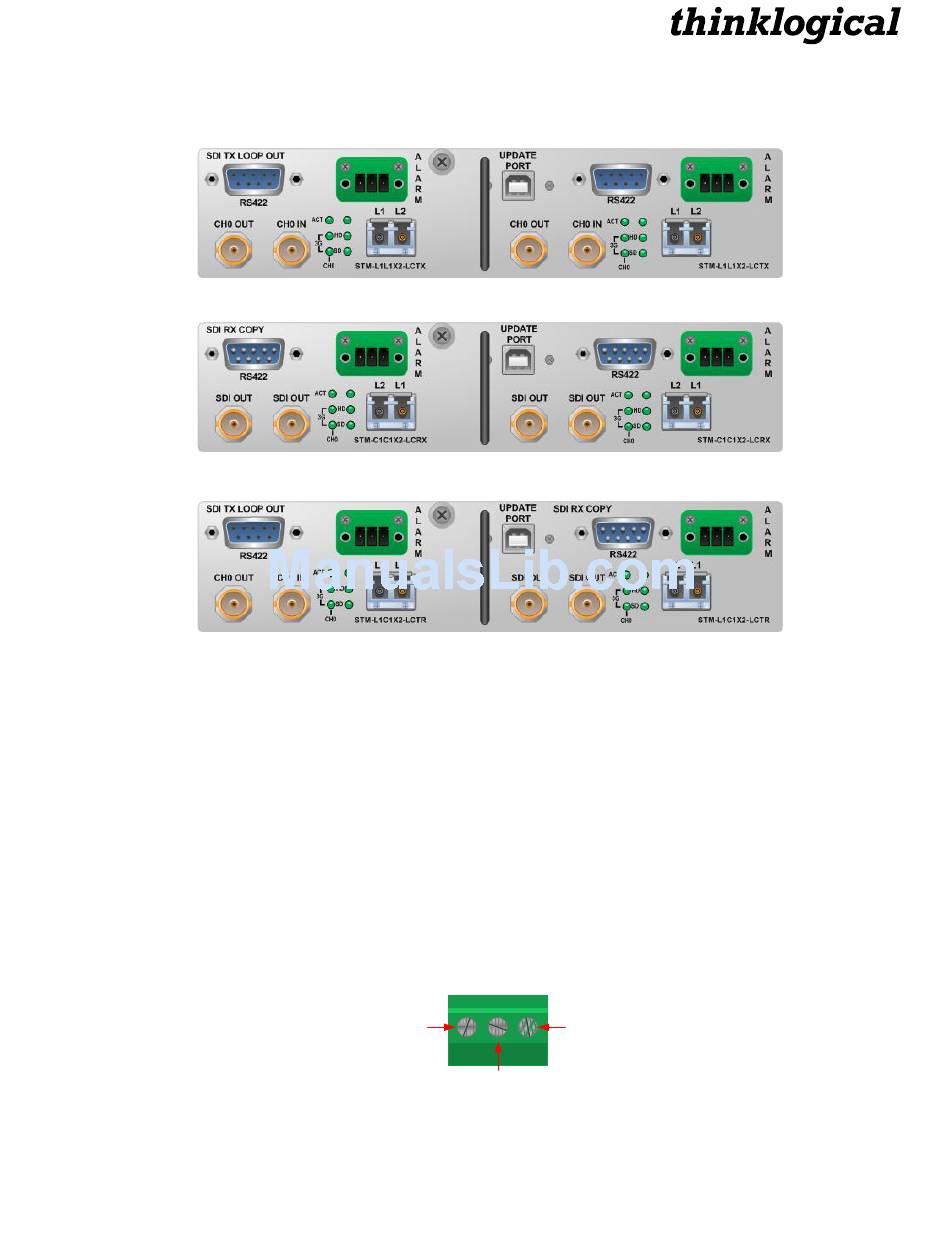

STM Modules in Transmitter, Receiver and Transceiver Configurations
2.6.2 T-4200 Chassis SDI Module Options
STM-L1L1X2-LCTX
STM-C1C1X2-LCRX
STM-L1C1X2-LCTR

2.7 Set-Up

2.7.1 Dry Contact Alarm

Dry contact alarms are located on the transmitter and receiver modules' rear panels. When there is an
alarm condition, the relay is energized. An example of possible alarm causes might be over-temperature
or a power supply issue.
The dry contact alarm is a Form C contact with the following ratings:
Nominal Switching Capacity: 1 A 30 VDC, 0.3 A 125 VAX (resistive load)
Max. Switching Power: 30 W (DC), 37.5 VA (AC) (resistive load)
T-Series SDI Modules, Rev. A

Rear Panel Views

T-4200 SDI Dual Transmitter Module: 2 Inputs (with 2 Loop Outs) & 2 SFPs
T-4200 SDI Dual Receiver Module: 2 SFPs & 2 Pairs of SDI Outputs
T-4200 SDI Transceiver Module, TX: 1 Input with Loop Out & 1 SFP
NORMALLY CLOSED
RX: 1 SFP & 2 SDI Outputs
ALARM
NORMALLY OPEN
COMMON
9
®
