3.2.5 Digital I/O Connector
CN Label:
DIO1
10-pin header, p=2.00 mm
CN Type:
CN Location:
See Figure 3-6
CN Pinouts:
See Table 3-7
The 8-bit digital I/O connector provides programmable input and output for external
devices.

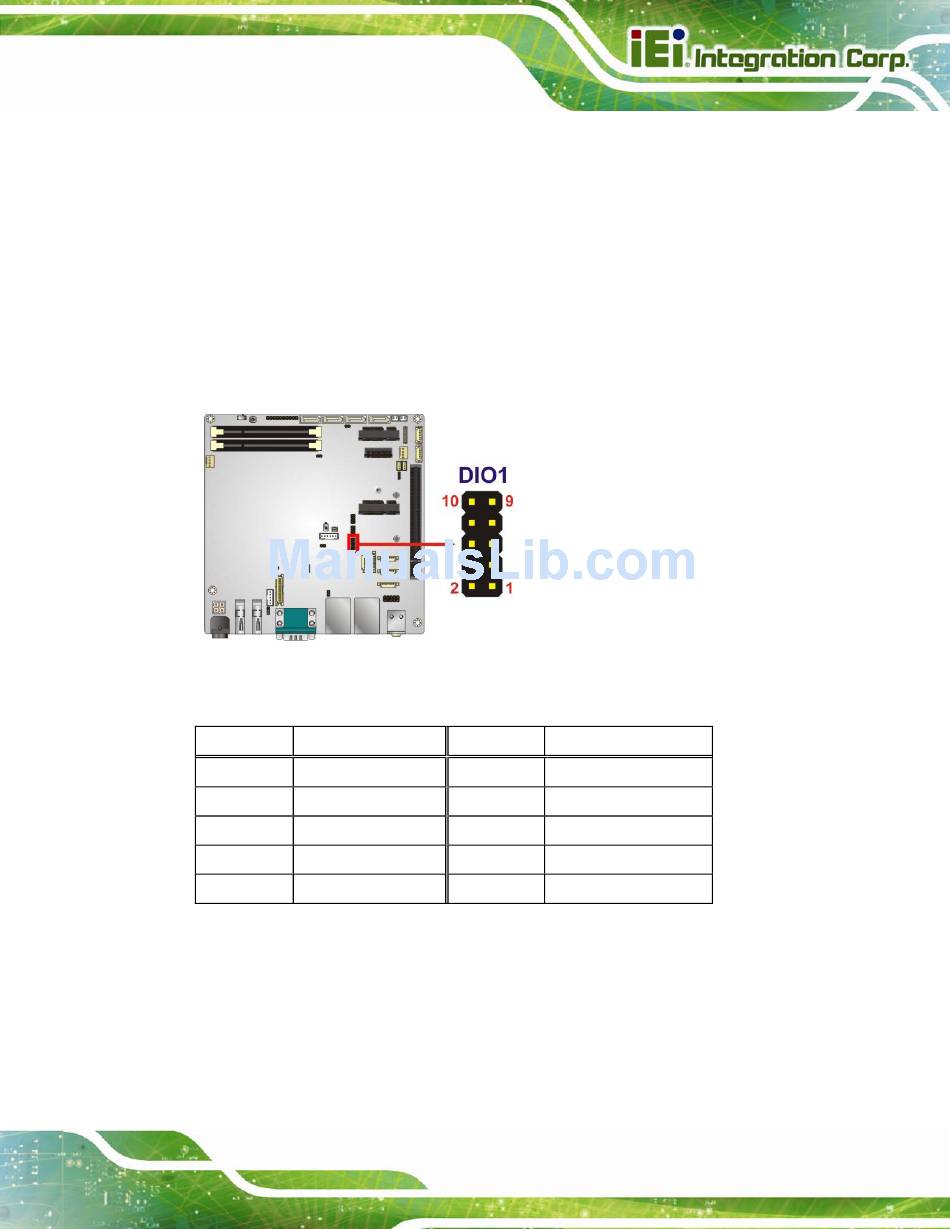

Figure 3-6: Digital I/O Connector Location
PIN NO.
DESCRIPTION
1
GND
3
DOUT3
5
DOUT1
7
DIN3
9
DIN1
Table 3-7: Digital I/O Connector Pinouts
PIN NO.
DESCRIPTION
2
VCC
4
DOUT2
6
DOUT0
8
DIN2
10
DIN0
Page 23
