4.3 SO-DIMM Installation
To install an SO-DIMM, please follow the steps below and refer to Figure 4-1.

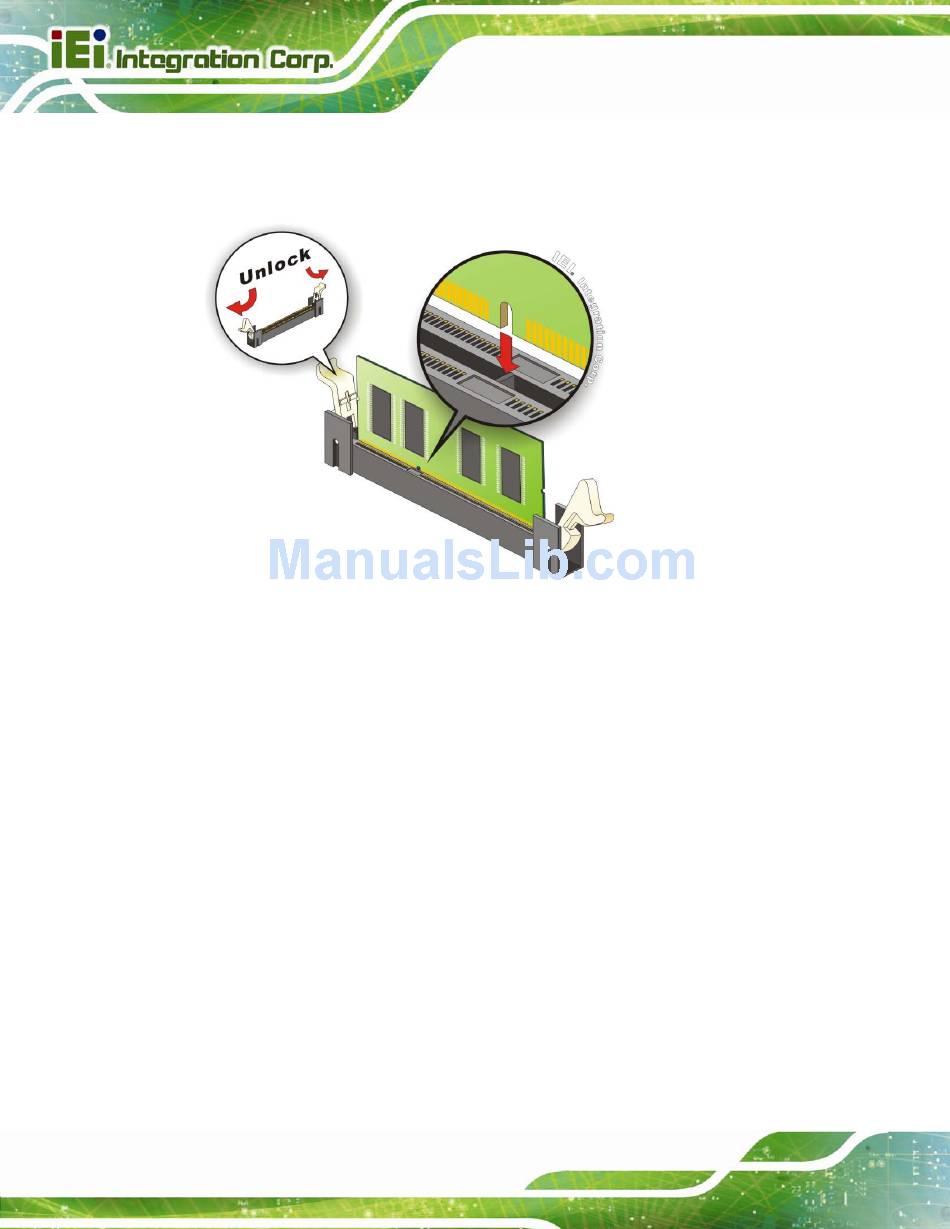

Figure 4-1: SO-DIMM Installation
Step 1:
Open the SO-DIMM socket handles. Open the two handles outwards as far as
they can. See Figure 4-1.
Step 2:
Align the SO-DIMM with the socket. Align the SO-DIMM so the notch on the
memory lines up with the notch on the memory socket. See Figure 4-1.
Step 3:
Insert the SO-DIMM. Once aligned, press down until the SO-DIMM is properly
seated. Clip the two handles into place. See Figure 4-1.
Step 4:
Removing a SO-DIMM. To remove a SO-DIMM, push both handles outward.
The memory module is ejected by a mechanism in the
Page 54
KINO-DCM236 Industrial Motherboard
socket.Step 0:
