NOTE:
The connector locations in the following diagram are just for reference.
For the exact locations, please see Section 3.2.20.

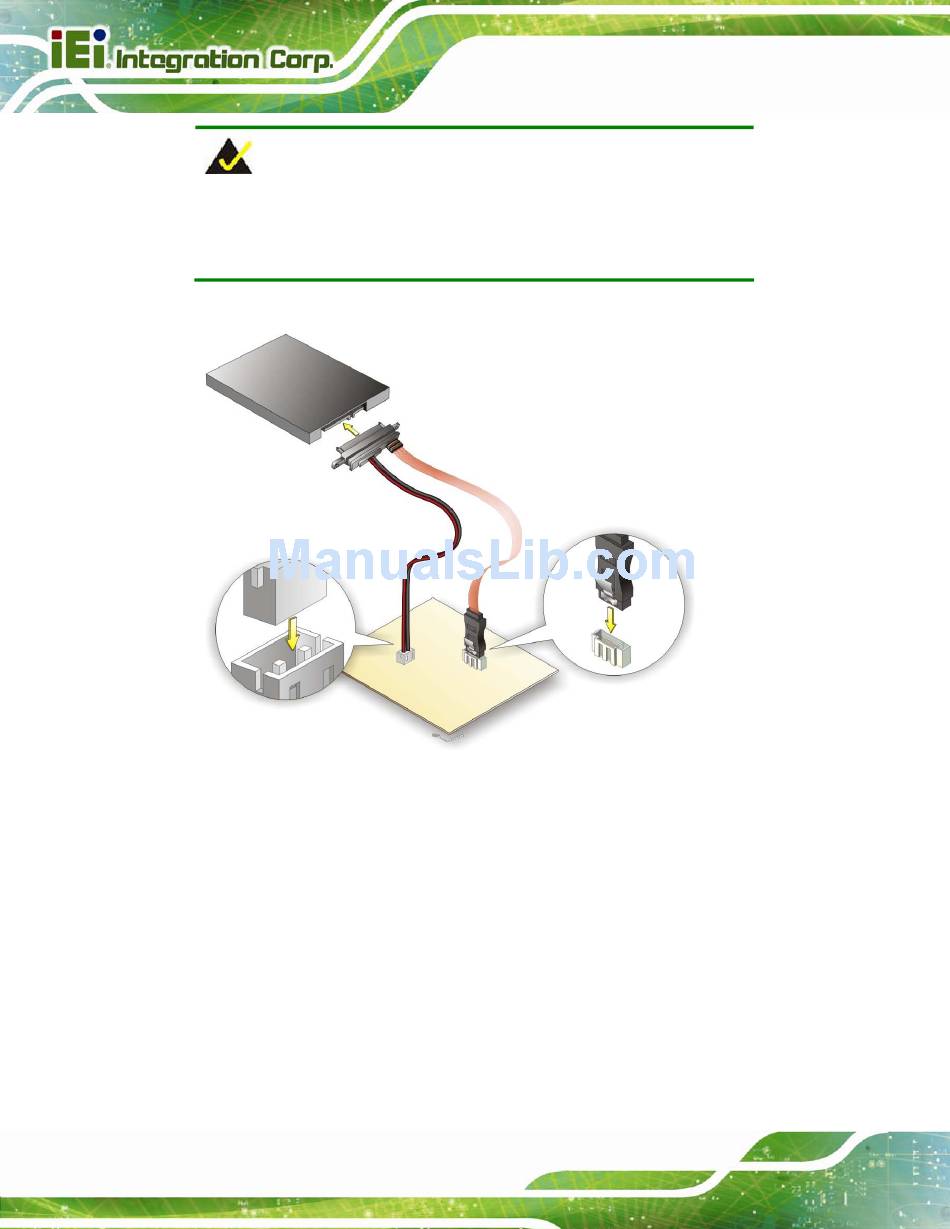

Figure 4-16: SATA Drive Cable Connection

Step 3: Connect the connector on the other end of the cable to the connector at the back
of the SATA drive. See Figure 4-16.
Step 4: To remove the SATA cable from the SATA connector, press the clip on the
connector at the end of the cable.
