KINO-DCM236 Industrial Motherboard
3.2.23 SPI Flash Connector, BIOS
CN Label:
JSPI1
6-pin wafer, p=1.25 mm
CN Type:
CN Location:
See Figure 3-24
CN Pinouts:
See Table 3-23
The 6-pin SPI Flash connector is used to flash the BIOS.

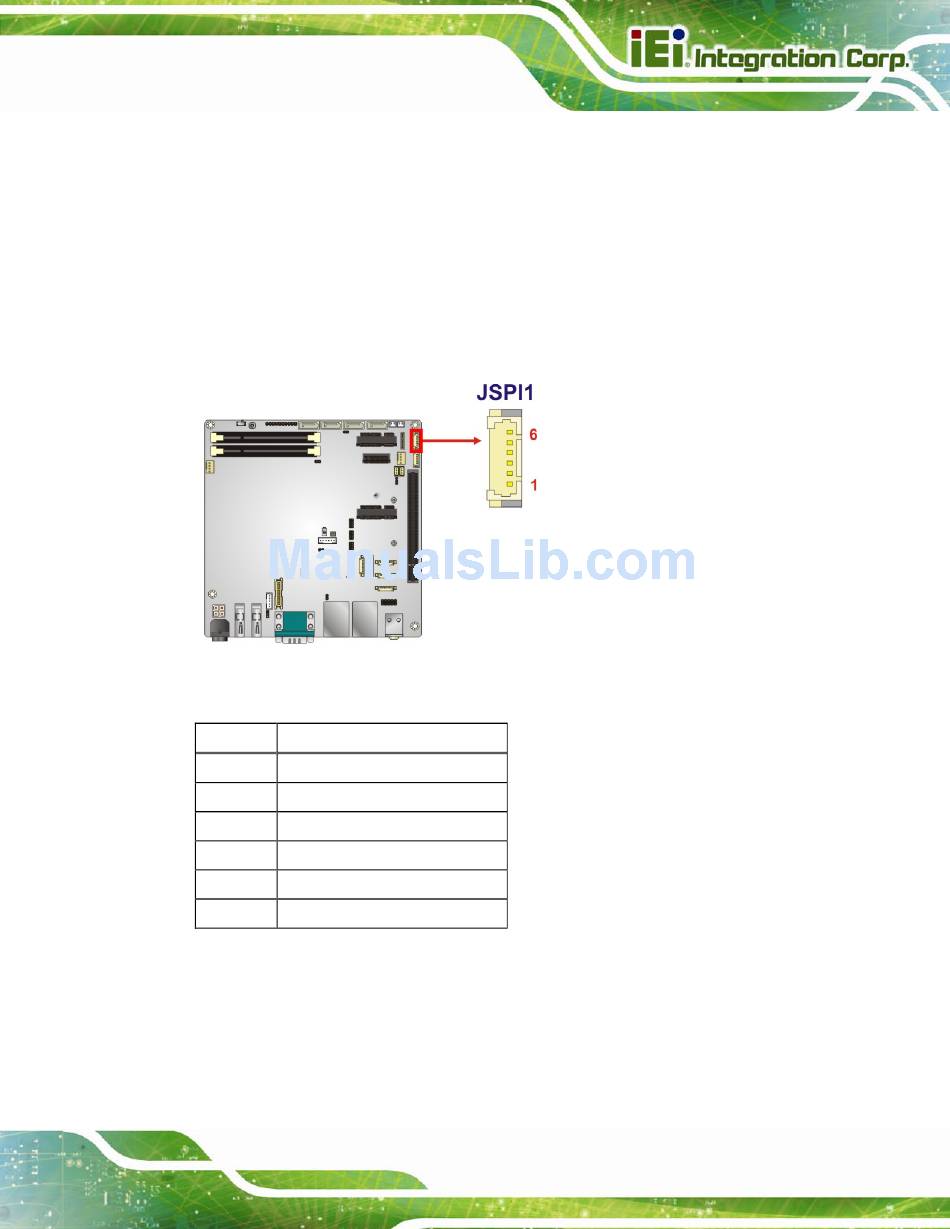

Figure 3-24: SPI Flash Connector Location
Pin
Description
1
+3.3VA
2
SPI_CS
3
SPI_SO_SW
4
SPI_CLK_SW
5
SPI_SI_SW
6
GND
Table 3-23: SPI Flash Connector Pinouts
Page 43
