Program Control Instructions

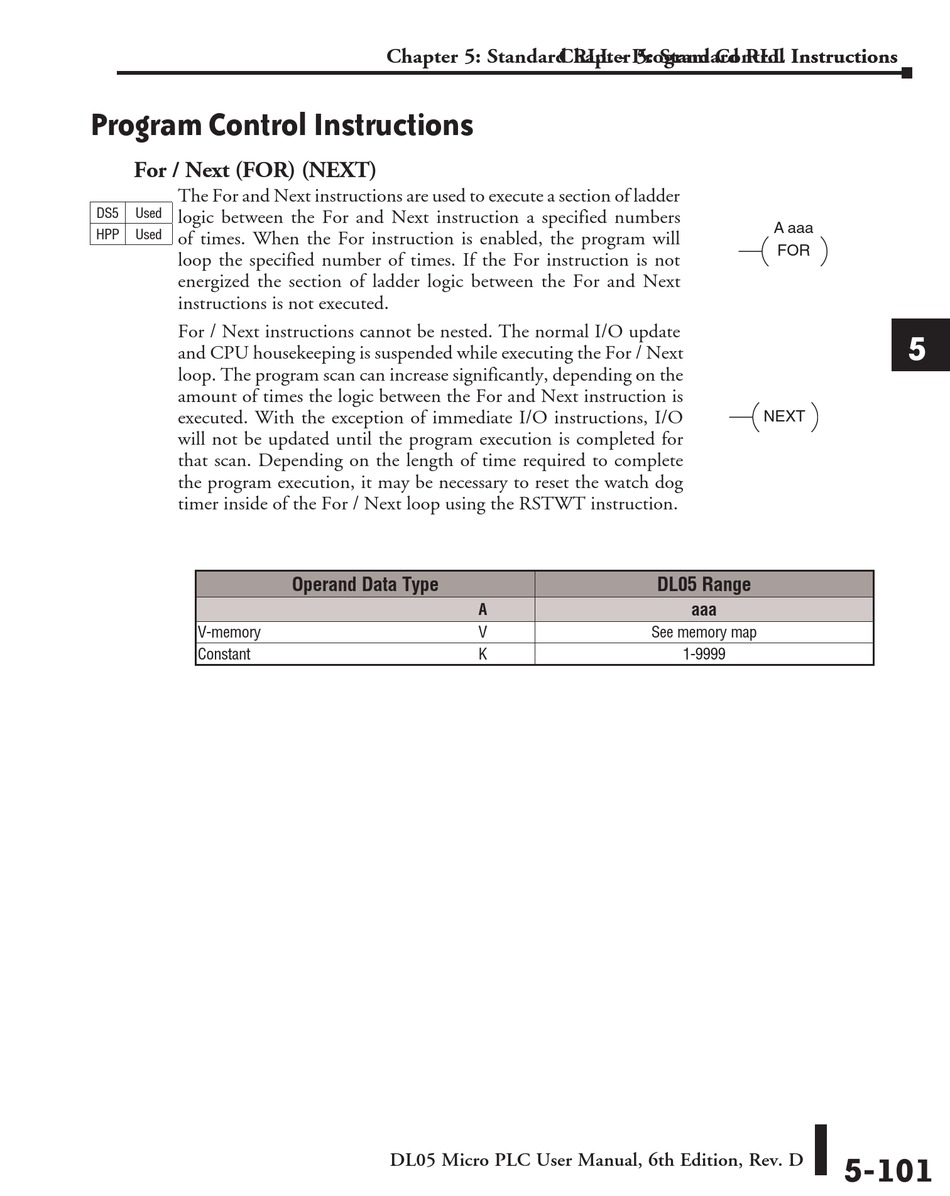

For / Next (FOR) (NEXT)
The For and Next instructions are used to execute a section of ladder
DS5 Used
logic between the For and Next instruction a specified numbers
HPP Used
of times. When the For instruction is enabled, the program will
loop the specified number of times. If the For instruction is not
energized the section of ladder logic between the For and Next
instructions is not executed.
For / Next instructions cannot be nested. The normal I/O update
and CPU housekeeping is suspended while executing the For / Next
loop. The program scan can increase significantly, depending on the
amount of times the logic between the For and Next instruction is
executed. With the exception of immediate I/O instructions, I/O
will not be updated until the program execution is completed for
that scan. Depending on the length of time required to complete
the program execution, it may be necessary to reset the watch dog
timer inside of the For / Next loop using the RSTWT instruction.
⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠A
V-memory ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠V
Constant ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠K
Chapter 5: Standard RLL - Program Control Instructions
Operand Data Type
DL05 Micro PLC User Manual, 6th Edition, Rev. D
Chapter 5: Standard RLL Instructions
DL05 Range
aaa
See memory map
1-9999
1 1
2 2
A aaa
3 3
FOR
4 4
5 5
6 6
NEXT
7 7
8 8
9 9
10 10
11 11
12 12
13 13
14 14
A a
b B
c C
D D
5-101
