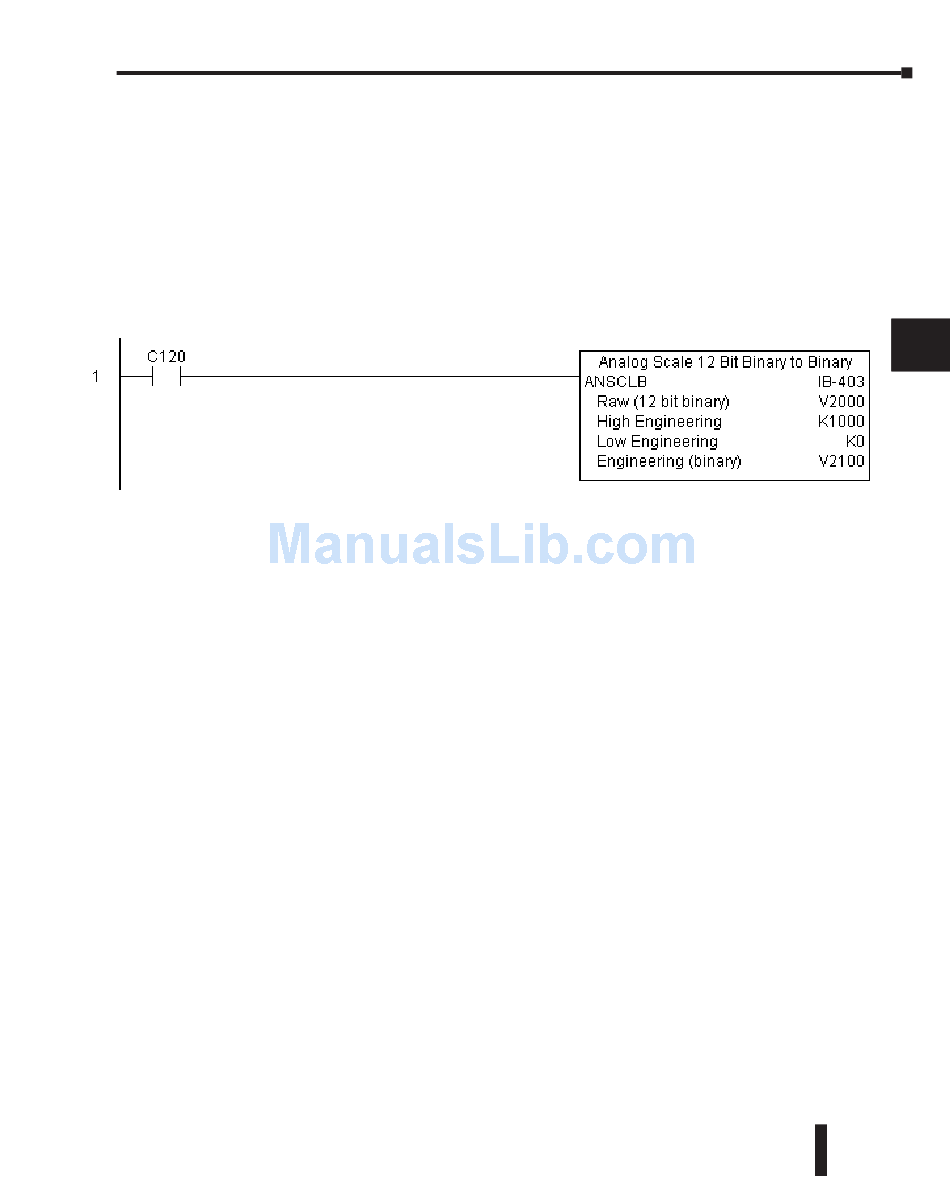

ANSCLB Example
In the following example, the ANSCLB instruction is used to scale a raw value (0-4095 binary)
that is in V2000. The engineering scaling range is set 0-1000 (low engineering value - high
engineering value). The scaled value will be placed in V2100 in binary format.
