Chapter 5: Standard RLL Instructions

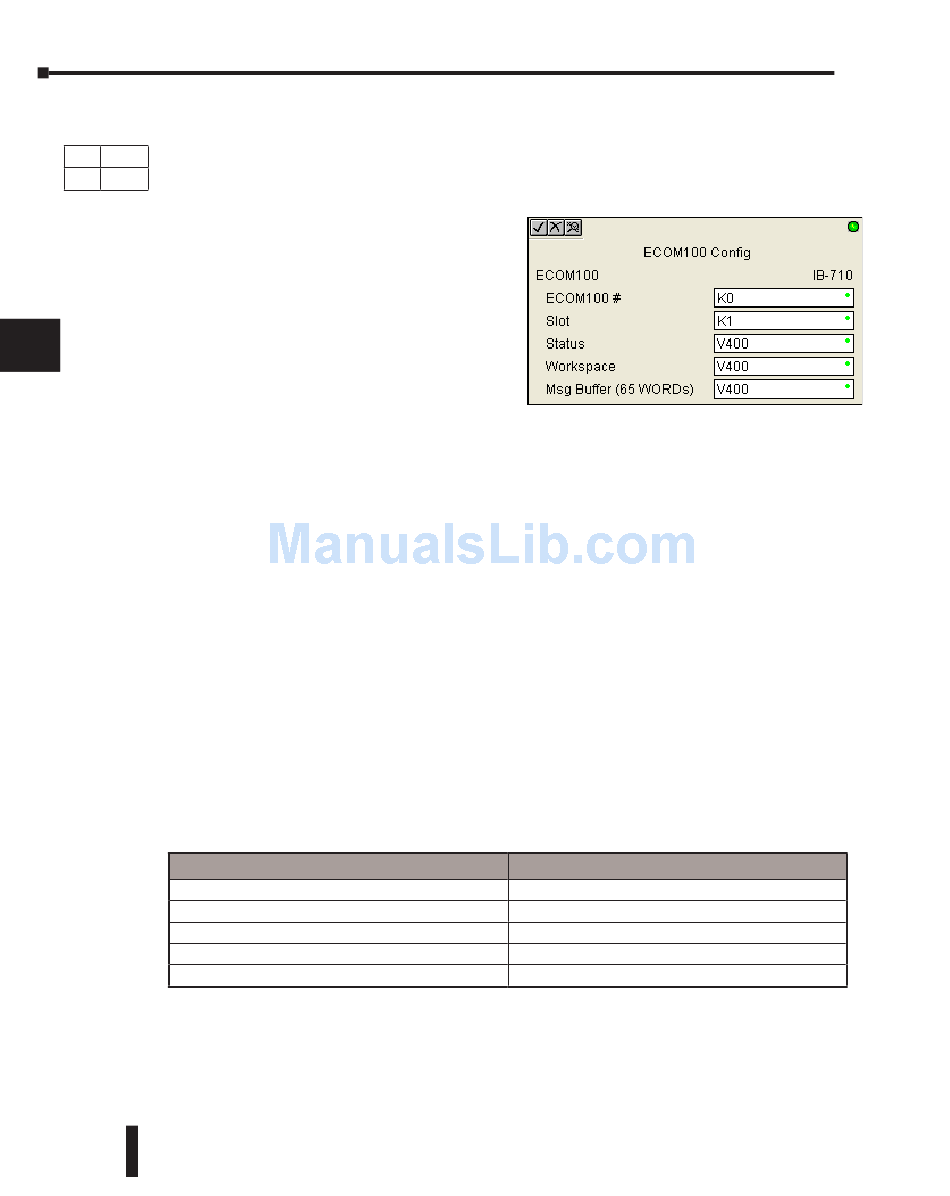

ECOM100 Configuration (ECOM100) (IB-710)
1
1
ECOM100 Configuration defines all the common information for one specific ECOM100
DS5
Used
module which is used by the other ECOM100 IBoxes; for example, ECRX - ECOM100
2
2
N/A
HPP
Network Read , ECEMAIL - ECOM100 Send EMail, ECIPSUP - ECOM100 IP Setup, etc.
You
3
3
Configuration IBox at the top of your ladder/
stage program with any other configuration
IBoxes. The Message Buffer parameter
4
4
specifies the starting address of a 65 WORD
buffer. This is 101 Octal addresses (e.g.
5
5
V1400 thru V1500).
If you have more than one ECOM100 in your
6
6
PLC, you must have a different ECOM100
Configuration IBox for EACH ECOM100
module in your system that utilizes any ECOM IBox instructions.
7
7
The Workspace and Status parameters and the entire Message Buffer are internal, private
registers used by the ECOM100 Configuration IBox and MUST BE UNIQUE in this one
8
8
instruction and MUST NOT be used anywhere else in your program.
In order for MOST ECOM100 IBoxes to function, you must turn ON dip switch 7 on the
9
9
ECOM100 circuit board. You can keep dip switch 7 off if you are ONLY using ECOM100
Network Read and Write IBoxes (ECRX, ECWX).
10
10
ECOM100 Parameters
11
11
• ECOM100#: this is a logical number associated with this specific ECOM100 module in the specified
slot. All other ECxxxx IBoxes that need to reference this ECOM100 module must reference this
logical number
12
12
• Slot: specifies the option slot the module occupies
• Status: specifies a V-memory location that will be used by the instruction
13
13
• Workspace: specifies a V-memory location that will be used by the instruction
• Msg Buffer: specifies the starting address of a 65 word buffer that will be used by the module for
14
14
configuration
A
a
ECOM100# ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ K
Slot ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ K
b
B
Status ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ V
Workspace ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ V
C
c
Msg Buffer (65 words used) ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ V
D
D
5-160
DL05 Micro PLC User Manual, 6th Edition, Rev. D
MUST
have
the
Parameter
ECOM100
See DL05 V-memory map - Data Words
See DL05 V-memory map - Data Words
See DL05 V-memory map - Data Words
DL05 Range
K0-255
K1-4
