Chapter 5: Standard RLL Instructions
Analog Output Module Pointer Setup (ANLGOUT) (IB-461)
1 1
Analog Output Module Pointer Setup generates the logic to configure the pointer method for
one analog output module on the first PLC scan following a Program to Run transition.
DS5 Used
2 2
N/A
HPP
This IBox determines the data format and Pointer addresses based on the CPU type, the Base#,
and the Slot#.
3 3
The Output Data Address is the starting
location in user V-memory where the
4 4
analog output data values will be placed
by ladder code or external device,
one location for each output channel
5 5
enabled.
Since this logic only executes on the
6 6
first scan, this IBox cannot have any
input logic.
7 7
ANLGOUT Parameters
8 8
• Base # (K0-Local): must be 0 for DL05 PLC
• Slot #: specifies the single PLC option slot that is occupied by the module
9 9
• Number of Output Channels: specifies the number of analog output channels that will be used
• Output Data Format (0-BCD 1-BIN): specifies the format of the analog output data (BCD or
10 10
Binary)
• Output Data Address: specifies the starting V-memory location that will be used to source the
11 11 analog output data
12 12

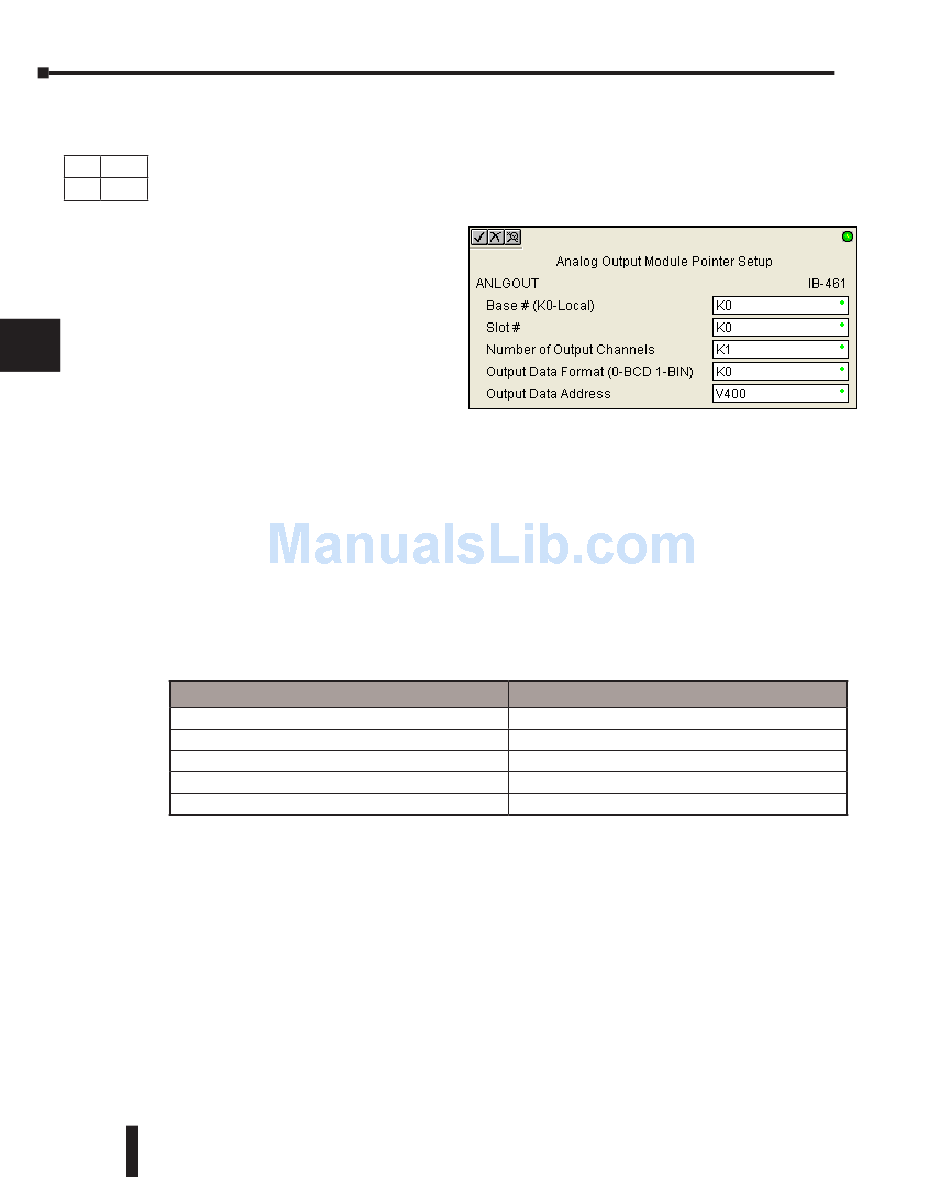

Base # (K0-Local) ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ K
Slot # ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ K
13 13
Number of Output Channels ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ K
Output Data Format (0-BCD 1-BIN) ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ K
Output Data Address ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ V
14 14
A a
B b
c C
D D
5-130 DL05 Micro PLC User Manual, 6th Edition, Rev. D
Parameter DL05 Range
K0 (local base only)
K1
K1-8
BCD: K0; Binary: K1
See DL05 V-memory map - Data Words
