Timer, Counter and Shift Register Instructions

Using Timers

Timers are used to time an event for a desired length of time. The single input timer will time
as long as the input is on. When the input changes from on to off the timer current value is
reset to 0. There is a tenth of a second and a hundredth of a second timer available with a
maximum time of 999.9 and 99.99 seconds respectively. There is a discrete bit associated with
each timer to indicate that the current value is equal to or greater than the preset value. The

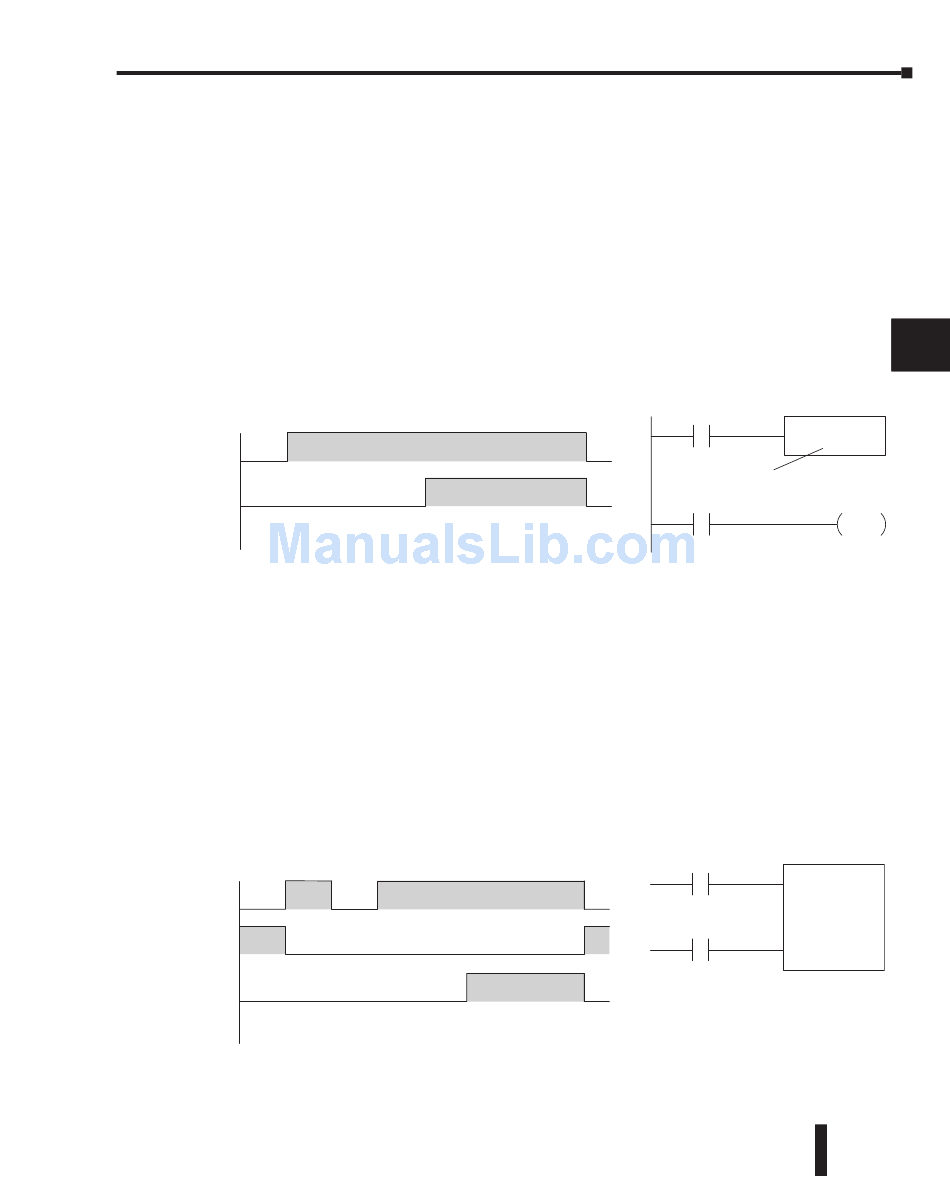

timing diagram below shows the relationship between the timer input, associated discrete bit,
current value, and timer preset.
0
X1
T1
Current
Value
There are those applications that need an accumulating timer, meaning it has the ability to
time, stop, and then resume from where it previously stopped. The accumulating timer works
similarly to the regular timer, but two inputs are required. The start/stop input starts and stops
the timer. When the timer stops, the elapsed time is maintained. When the timer starts again,
the timing continues from the elapsed time. When the reset input is turned on, the elapsed
time is cleared and the timer will start at 0 when it is restarted. There is a tenth of a second and
a hundredth of a second timer available with a maximum time of 9999999.9 and 999999.99
seconds respectively. The timing diagram below shows the relationship between the timer
input, timer reset, associated discrete bit, current value, and timer preset.
0
X1
X2
T0
Current
Value
Seconds
1 2 3 4
0 10 20 30
1/10 Seconds
Seconds
1 2 3 4
0 10 10 20
1/10 Seconds
DL05 Micro PLC User Manual, 6th Edition, Rev. D
