Chapter 2: Installation, Wiring, and Specifications

High Speed I/O Wiring Methods

A a
DL05 versions with DC type input or output points contain a dedicated High-Speed I/O
circuit (HSIO). The circuit configuration is programmable, and it processes select I/O points
2 2
independently from the CPU scan. Chapter 3 discusses the programming options for HSIO.
While the HSIO circuit has six modes, we show wiring diagrams for two of the most popular
modes in this chapter. The high-speed input interfaces to points X0 – X2. Properly configured,
3 3
the DL05 can count quadrature pulses at up to 5 kHz.
D D
5 5
6 6
7 7
8 8
9 9
10 10
DL05 versions with DC type output points can use the High Speed I/O Pulse Output feature.
11 11
It can generate high-speed pulses up to 7 KHz for specialized control such as stepper motor /
intelligent drive systems. Output Y0 and Y1 can generate pulse and direction signals, or it can
12 12
generate CCW and CW pulse signals respectively. See Appendix E on high-speed input and
pulse output options.
13 13
14 14
A a
b B
C c
D D
2-30 DL05 Micro PLC User Manual, 6th Edition, Rev. D
Phase B
Phase A

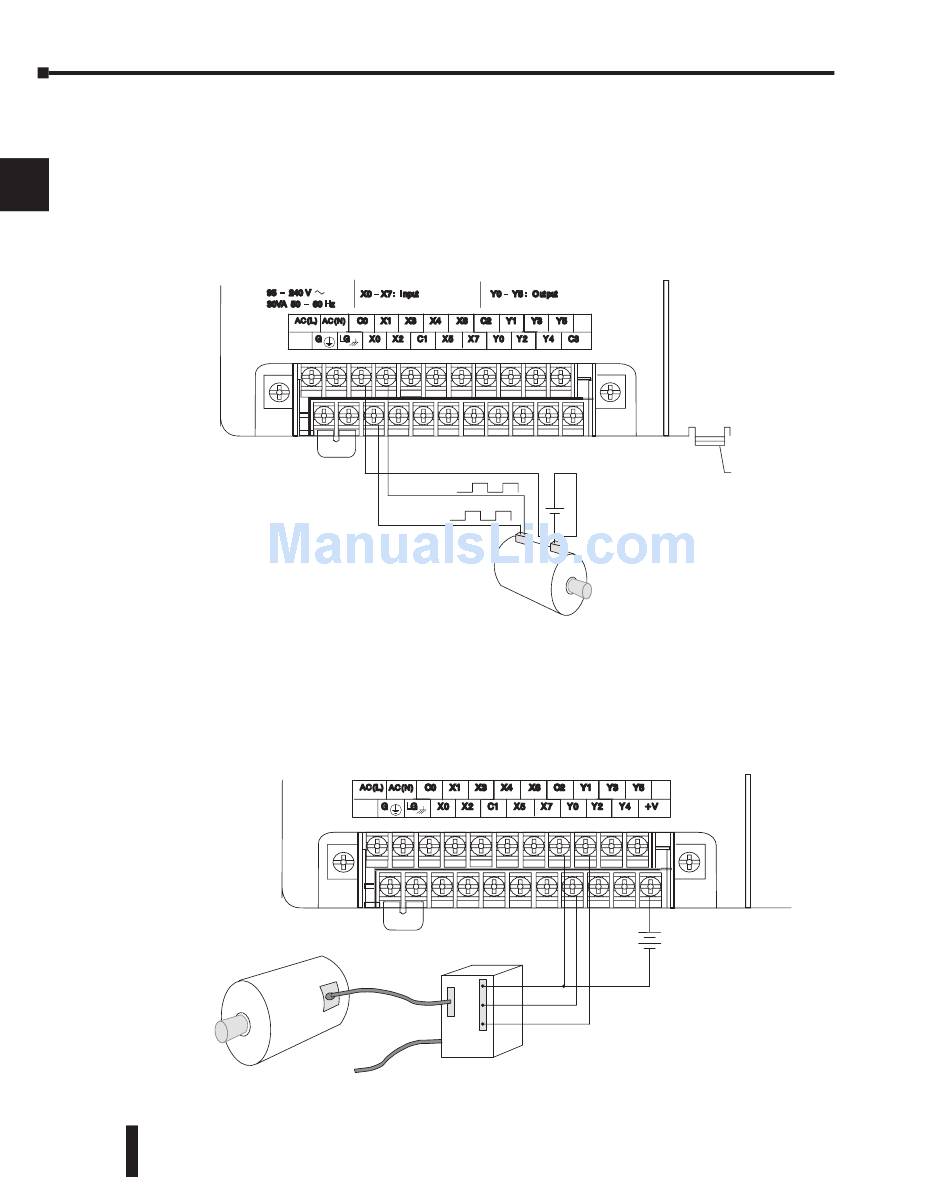

Encoder Input Wiring
Motor Amplifier
Power Input
Signal Common
+
12 – 24 VDC
–
Encoder
Signal Common
Pulse
Direction
Pulse Output Wiring
+
+24 VDC
–
