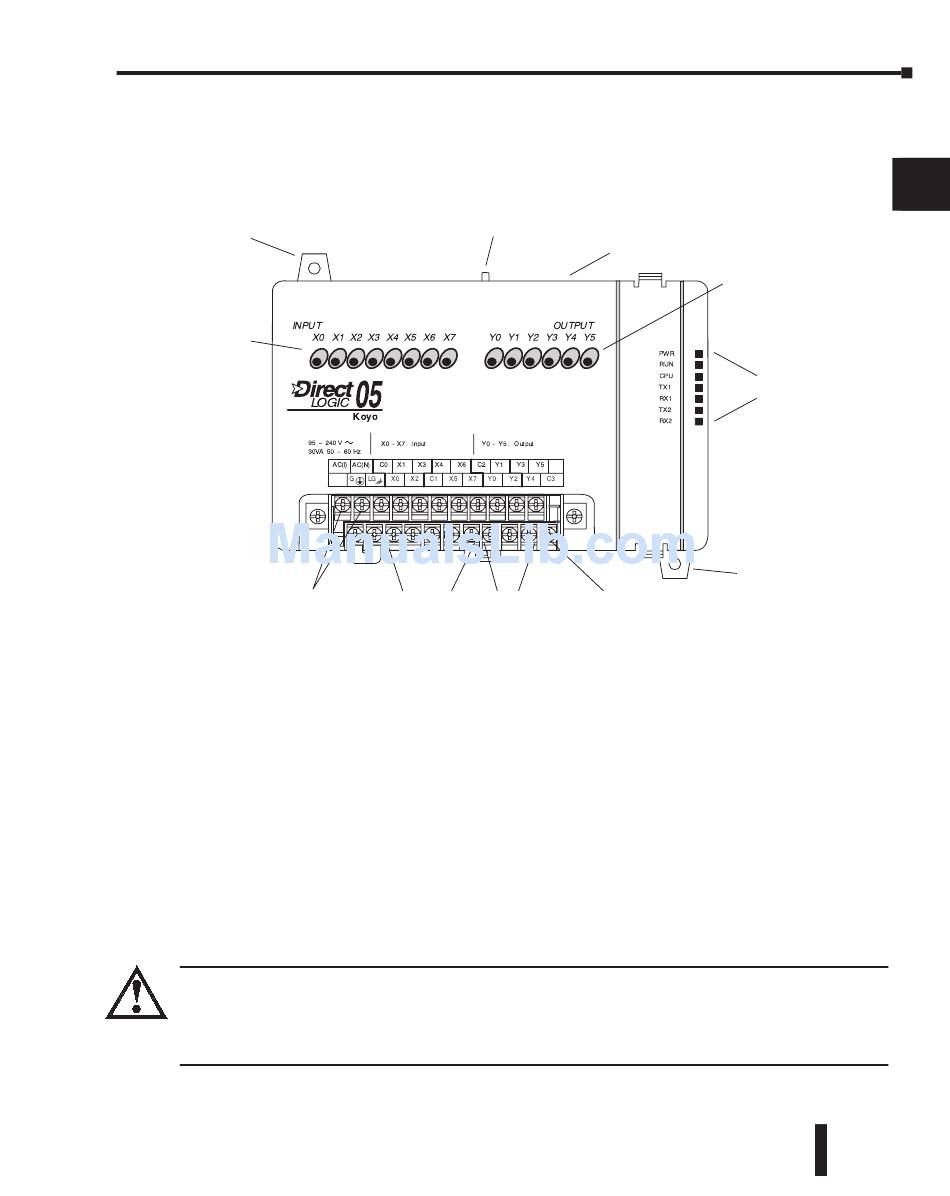

Orientation to DL05 Front Panel

Most connections, indicators, and labels on the DL05 Micro PLCs are located on its front
panel. The communication ports are located on the top side of the PLC. Please refer to the
drawing below.
Mounting tab
Input Status Indicators
External Power
The upper section of the connector accepts external power connections on the two left-most
terminals. From left to right, the next five terminals are one of the input commons (C0) and
input connections X1, X3, X4, and X6. The remaining four connections are an output common
(C2) and output terminals Y1, Y3, and Y5.
The lower section of the connector has the chassis ground (G) and the logic ground (LG)
on the two left-most terminals. The next two terminals are for the inputs X0 and X2. Next
is the other input common (C1) followed by inputs X5 and X7. The last four terminals are
for outputs Y0, Y2, Y4, and the second output common (C3). On DC output units, the end
terminal on the right accepts power for the output stage.
An option slot is located on the right end of the PLC. This is where the simulator module can
be installed for testing. Option module descriptions available for the DL05 can be found either
in the DL05/DL06 Options Modules User Manual, D0-OPTIONS-M, in our catalog or on
our website.
WARNING: For some applications, field device power may still be present on the terminal block
even though the Micro PLC is turned off. To minimize the risk of electrical shock, check all field
device power before you expose or remove either connector wire from under a terminal block, or
two 18 AWG wires (one on each side of the screw).
Chapter 2: Installation, Wiring, and Specifications
Mode Switc
Discrete Input Discrete Output
Terminals
Inputs
DL05 Micro PLC User Manual, 6th Edition, Rev. D
Communication Ports
Output Circuit Power Input
e rminals
or DC output ersions onl
A
2
3
D
Output Status Indicators
5
Status
6
Indicators
7
8
9
Mounting tab
10
10
11
11
12
12
13
13
14
14
A
B
C
D
2-5
a
2
3
D
5
6
7
8
9
a
b
c
D
