ECOM100 Disable DHCP (ECDHCPD) (IB-736)
1 1
ECOM100 Disable DHCP will setup the ECOM100 to use its internal TCP/IP settings
DS5 Used
on a leading edge transition to the IBox. To configure the ECOM100's TCP/IP settings
2 2
N/A
HPP
manually, use the NetEdit3 utility, or you can
do it programmatically from your PLC program
using the ECOM100 IP Setup (ECIPSUP), or the
3 3
individual ECOM100 IBoxes: ECOM Write IP
Address (ECWRIP), ECOM Write Gateway Address
4 4
(ECWRGWA), and ECOM100 Write Subnet Mask
(ECWRSNM).
5 5
The Workspace parameter is an internal, private
register used by this IBox and MUST BE UNIQUE
in this one instruction and MUST NOT be used
6 6
anywhere else in your program.
Either the Success or Error bit parameter will turn on once the command is complete. If there
7 7
is an error, the Error Code parameter will report an ECOM100 error code (less than 100), or
a PLC logic error (greater than 1000).
8 8
The "Disable DHCP" setting is stored in Flash-ROM in the ECOM100 and the execution of
this IBox will disable the ECOM100 module for at least a half second until it writes the Flash-
9 9
ROM. Therefore, it is HIGHLY RECOMMENDED that you only execute this IBox ONCE,
on second scan. Since it requires a LEADING edge to execute, use a NORMALLY CLOSED
SP0 (STR NOT First Scan) to drive the power flow to the IBox.
10 10
In order for this ECOM100 IBox to function, you must turn ON dip switch 7 on the
ECOM100 circuit board.
11 11

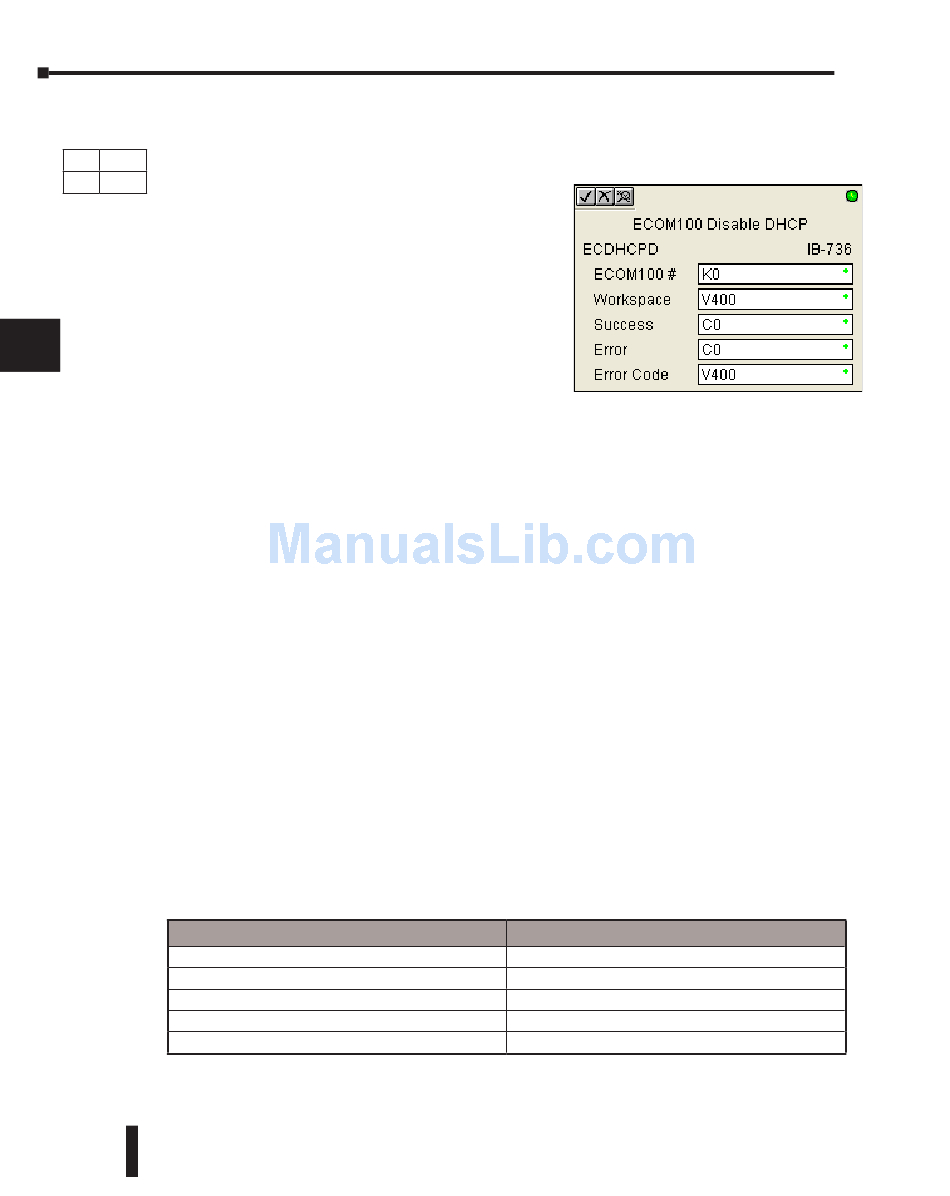

ECDHCPD Parameters
12 12
• ECOM100#: this is a logical number associated with this specific ECOM100 module in the specified
slot. All other ECxxxx IBoxes that need to reference this ECOM100 module must reference this
13 13
logical number
• Workspace: specifies a V-memory location that will be used by the instruction
14 14
• Success: specifies a bit that will turn on once the request is completed successfully
• Error: specifies a bit that will turn on if the instruction is not successfully completed
a A
• Error Code: specifies the location where the Error Code will be written
B b
ECOM100# ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ K
c C
Workspace ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ V
Success ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ X,Y,C,GX,GY,B
Error ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ X,Y,C,GX,GY,B
D D
Error Code ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠ V
5-162 DL05 Micro PLC User Manual, 6th Edition, Rev. D
Parameter DL05 Range
K0-255
See DL05 V-memory map - Data Words
See DL05 V-memory map
See DL05 V-memory map
See DL05 V-memory map - Data Words
