Chapter 5: Standard RLL Instructions

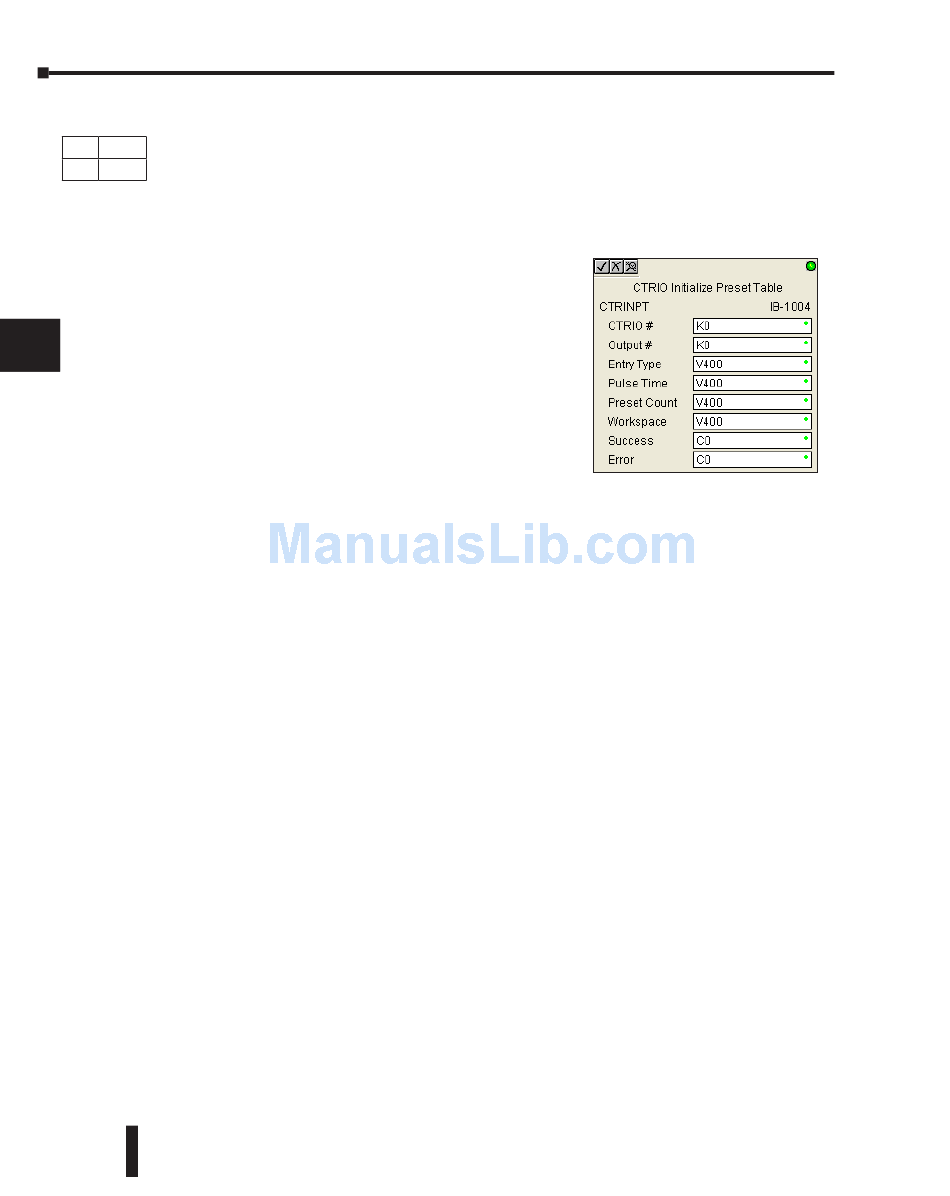

CTRIO Initialize Preset Table (CTRINPT) (IB-1004)
1 1
CTRIO Initialize Preset Table, on a leading edge transition to this IBox, will create a single
DS5 Used
entry Preset Table in memory but not as a file, on a specific CTRIO Output resource. This
N/A
HPP
2 2
IBox will take more than 1 PLC scan to execute. Either the Success or Error bit will turn on
when the command is complete. If the Error Bit is on, you can use the CTRIO Read Error
3 3
Code (CTRRDER) IBox to get extended error information.
Entry Type:
4 4
K0: Set
K1: Reset
5 5
K2: Pulse On (uses Pulse Time)
6 6
K3: Pulse Off (uses Pulse Time)
K4: Toggle
7 7
K5: Reset Count
Note that the Pulse Time parameter is ignored by some
8 8
Entry Types.
The Workspace register is for internal use by this IBox instruction and MUST NOT be used
9 9
anywhere else in your program.
10 10
CTRINPT Parameters
• CTRIO#: specifies a specific CTRIO module based on a user defined number (see CTRIO Config
11 11
Ibox)
• Output#: specifies a CTRIO output to be used by the instruction
12 12
• Entry Type: specifies the Entry Type to add during the edit
• Pulse Time: specifies a pulse time for the Pulse On and Pulse Off Entry Types
13 13
• Preset Count: specifies an initial count value to begin at after Reset
• Workspace: specifies a V-memory location that will be used by the instruction
14 14
• Success: specifies a bit that will turn on once the instruction has successfully completed
• Error: specifies a bit that will turn on if the instruction does not complete successfully
A a
b B
c C
D D
