Chapter 5: Standard RLL Instructions
ECEMSUP Example
1 1

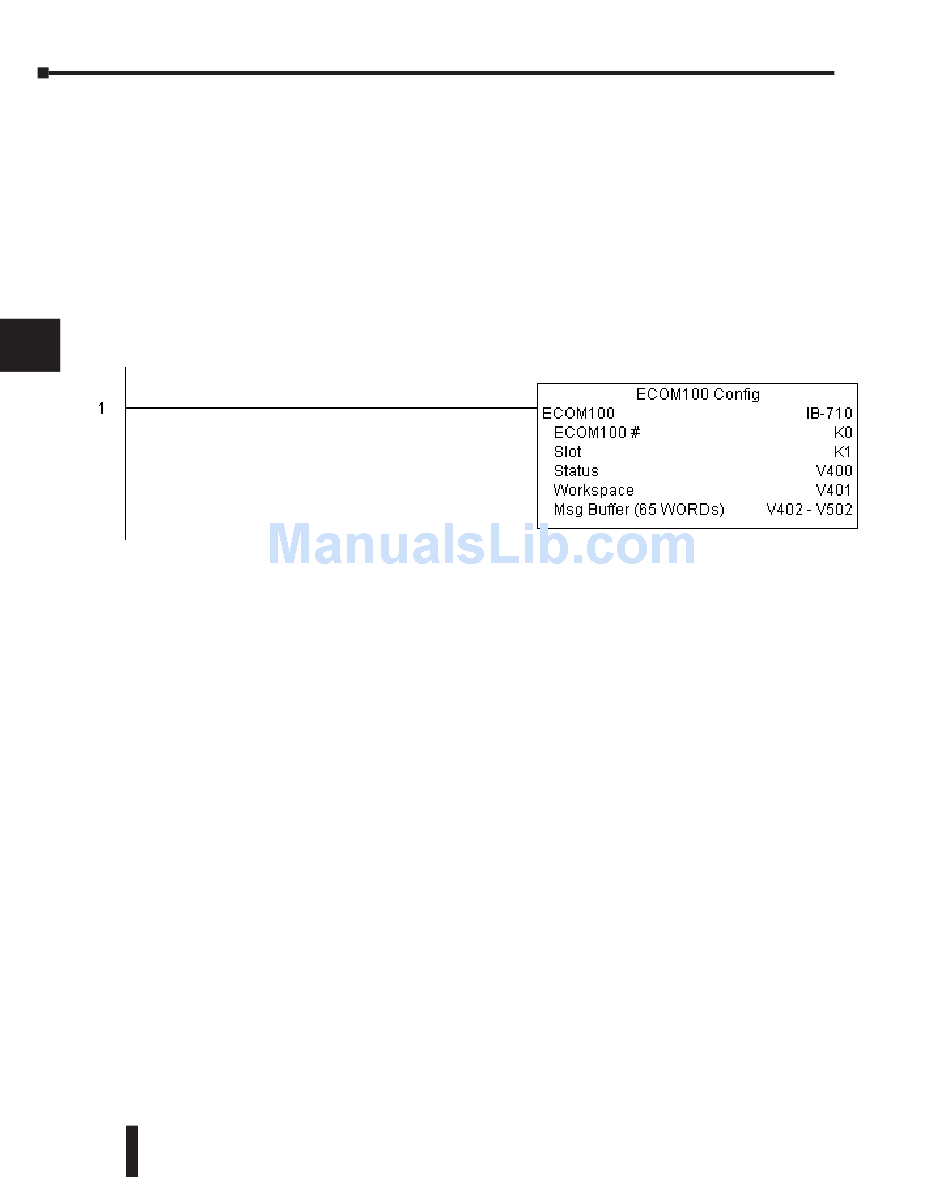

Rung 1: The ECOM100 Config IBox is responsible for coordination/interlocking of all
ECOM100 type IBoxes for one specific ECOM100 module. Tag the ECOM100 in slot 1 as
2 2
ECOM100# K0. All other ECxxxx IBoxes refer to this module # as K0. If you need to move
the module in the base to a different slot, then you only need to change this one IBox. V400 is
used as a global result status register for the other ECxxxx IBoxes using this specific ECOM100
3 3
module. V401 is used to coordinate/interlock the logic in all of the other ECxxxx IBoxes using
this specific ECOM100 module. V402-V502 is a common 130 byte buffer available for use by
4 4
the other ECxxxx IBoxes using this specific ECOM100 module.
5 5
6 6
7 7
8 8
9 9
10 10
11 11
12 12
13 13
14 14
a A
b B
C c
D D
5-178 DL05 Micro PLC User Manual, 6th Edition, Rev. D
