Chapter 5: Standard RLL Instructions

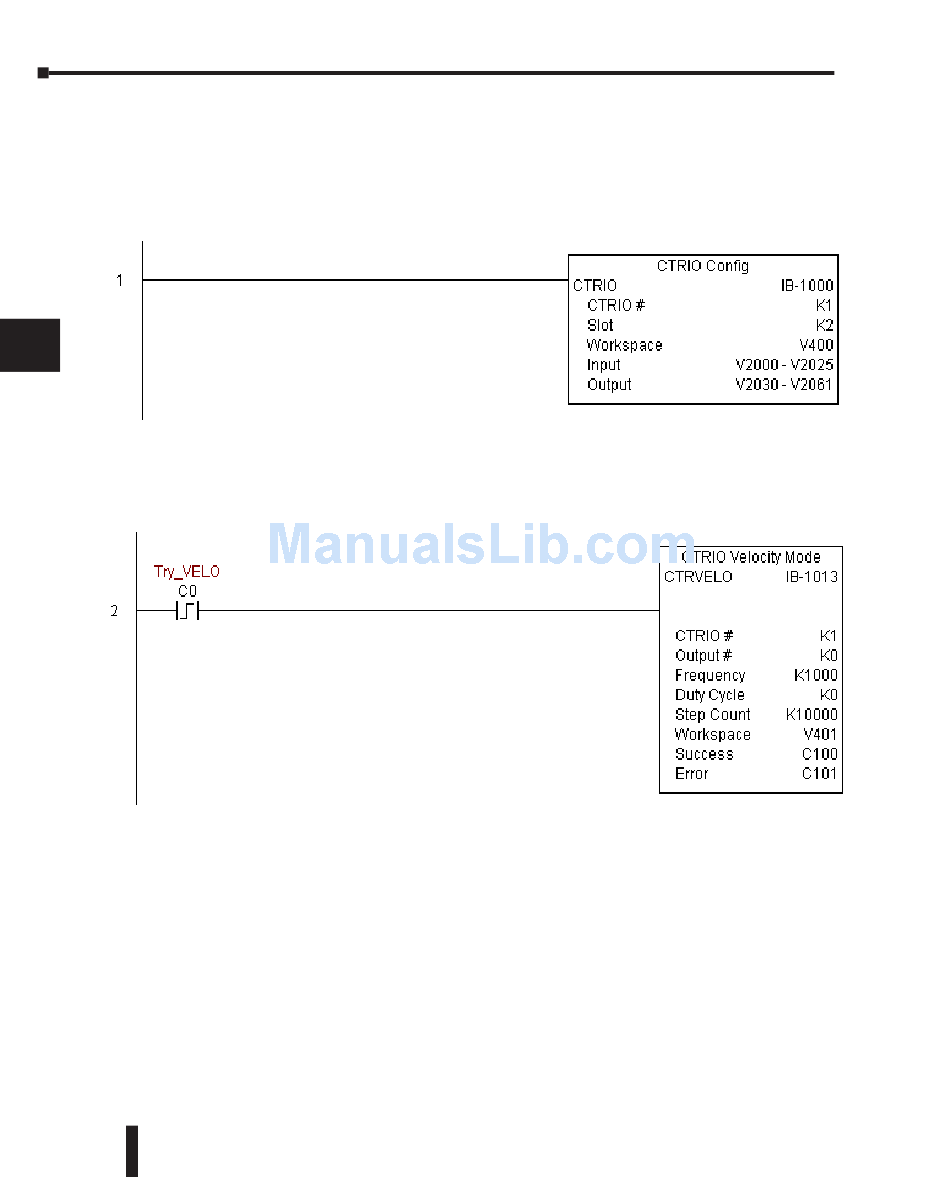

CTRVELO Example
1
1
Rung 1: This sets up the CTRIO card in slot 2 of the local base. Each CTRIO in the system
will need a separate CTRIO I-box before any CTRxxxx I-boxes can be used for them. The
2
2
CTRIO has been configured to use V2000 through V2025 for its input data, and V2030
through V2061 for its output data.
3
3
4
4
5
5
6
6
7
7
Rung 2: This CTRIO Velocity Mode IBox sets up Output #0 in CTRIO #1 to output 10,000
pulses at a Frequency of 1000 Hz. This example program requires that you load CTRVELO_
IBox.cwb into your Hx-CTRIO(2) module.
8
8
9
9
10
10
11
11
12
12
13
13
14
14
A
a
b
B
c
C
D
D
5-254
DL05 Micro PLC User Manual, 6th Edition, Rev. D
