Chapter 5: Standard RLL Instructions

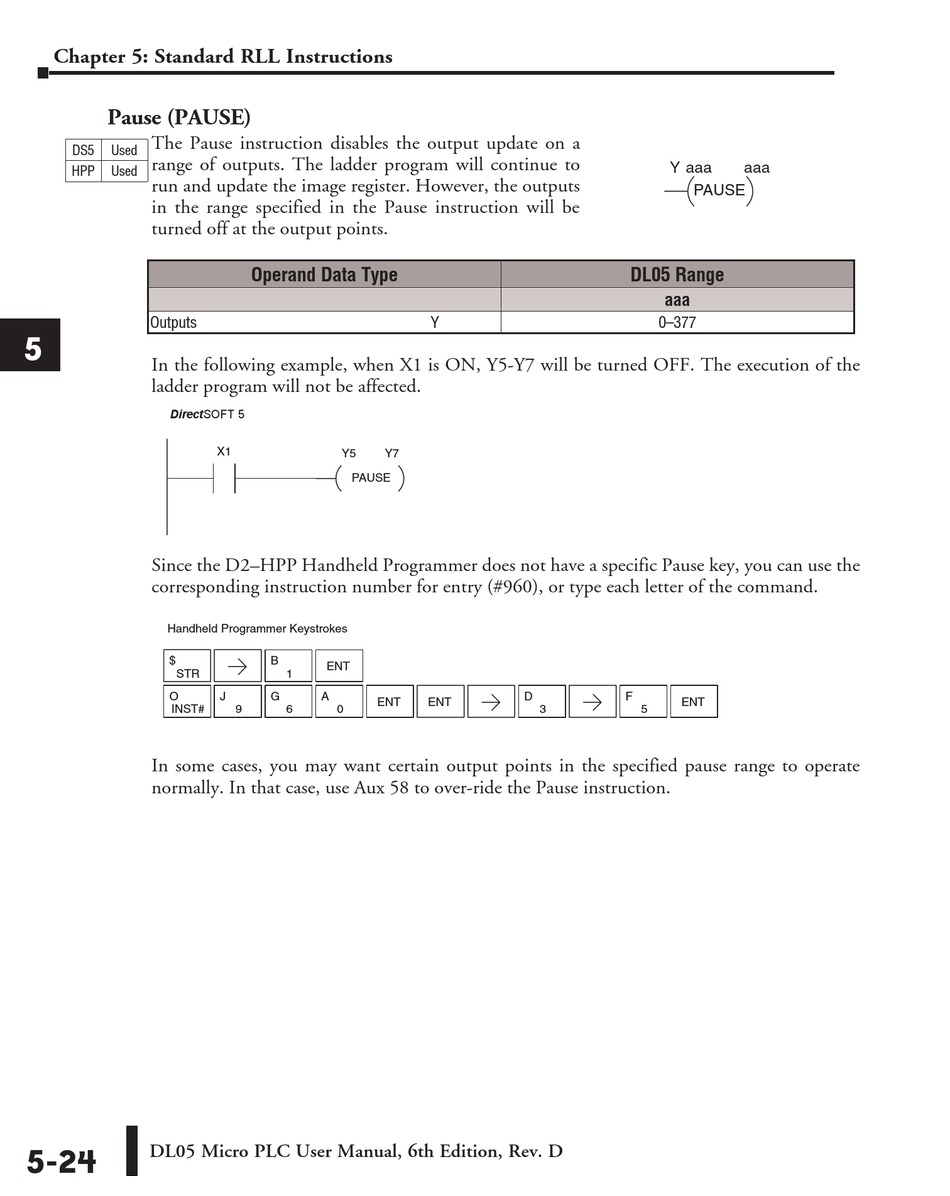

Pause (PAUSE)
1 1
The Pause instruction disables the output update on a
DS5 Used
range of outputs. The ladder program will continue to
HPP Used
2 2
run and update the image register. However, the outputs
in the range specified in the Pause instruction will be
turned off at the output points.
3 3
4 4
Outputs ⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠⸠Y
5 5
In the following example, when X1 is ON, Y5-Y7 will be turned OFF. The execution of the
ladder program will not be affected.
6 6
DirectSOFT 5
DirectSOFT32
7 7
8 8
9 9
Since the D2–HPP Handheld Programmer does not have a specific Pause key, you can use the
corresponding instruction number for entry (#960), or type each letter of the command.
10 10
Handheld Programmer Keystrokes
11 11
$
STR
O
12 12
INST#
13 13
In some cases, you may want certain output points in the specified pause range to operate
normally. In that case, use Aux 58 to over-ride the Pause instruction.
14 14
a A
b B
C c
D D
5-24 DL05 Micro PLC User Manual, 6th Edition, Rev. D
Operand Data Type
X1
Y5 Y7
PAUSE
B
ENT
1
J G A
ENT
9 6 0
D
ENT
3
Y aaa aaa
PAUSE
DL05 Range
aaa
0–377
F
ENT
5
