Chapter 1: Product Introduction

Knowing Your TPPC Series

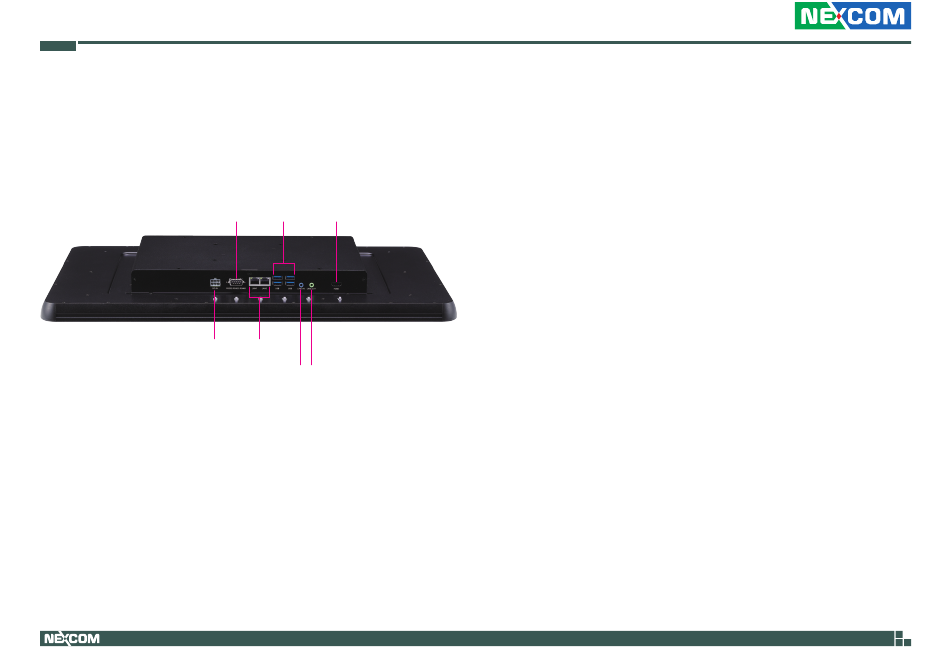

Rear Bottom

9V-36V
DC Input
Copyright © 2019 NEXCOM International Co., Ltd. All Rights Reserved.
COM USB 3.0 HDMI
LAN
Line-in Line-out
9V-36V DC Input
Used to plug a DC power cord.
COM Port
DB9 port used to connect RS232/422/485 compatible devices.
LAN Ports
Used to connect the system to a local area network.
USB 3.0 Ports
USB 3.0 ports to connect the system with USB 3.0/2.0 devices.
Line-in
Used to connect an audio device as sound source.
Line-out
Used to connect a headphone or a speaker.
HDMI
Used to connect an HDMI interface display.
