User Guide CCM-BOOGIE • High Performance Core
Mezzanine Side Board Options
The CCM-BOOGIE is provided with several stacking connectors for attachment of a mezzanine
expansion module (aka side board), suitable for a variety of readily available mezzanine cards (please
refer to www.ekf.com/c/ccpu/mezz_ovw.pdf for a more comprehensive overview). EKF furthermore
offers custom specific development of side boads (please contact sales@ekf.de).
Most mezzanine expansion modules require an assembly height of 8HP in total, together with the
CPU carrier board (resulting from two cards at 4HP pitch each).
In addition, cropped mezzanine modules are available for mass storage, which maintain the 4HP
envelope (see illustrations next page), for extremely compact systems. Furthermore these small size
modules may be combined with the full-size expansion boards (that means an assembly comprised of
3 PCBs).
Due to the SATA/USB mezzanine connector J-HSE, which replaces the P-IDE connector on previous
CPU cards, parallel ATA drives on earlier side cards such as the CCJ-RHYTHM are no more supported
with the CCM-BOOGIE. Please consider a low profile mezzanine module such as the C41-CFAST
(CFast™ Card), C42-SATA (1.8-inch SATA SSD) or C47-MSATA (mSATA SSD module) as storage
solution, mounted between the CCM-BOOGIE and the side card.
© EKF

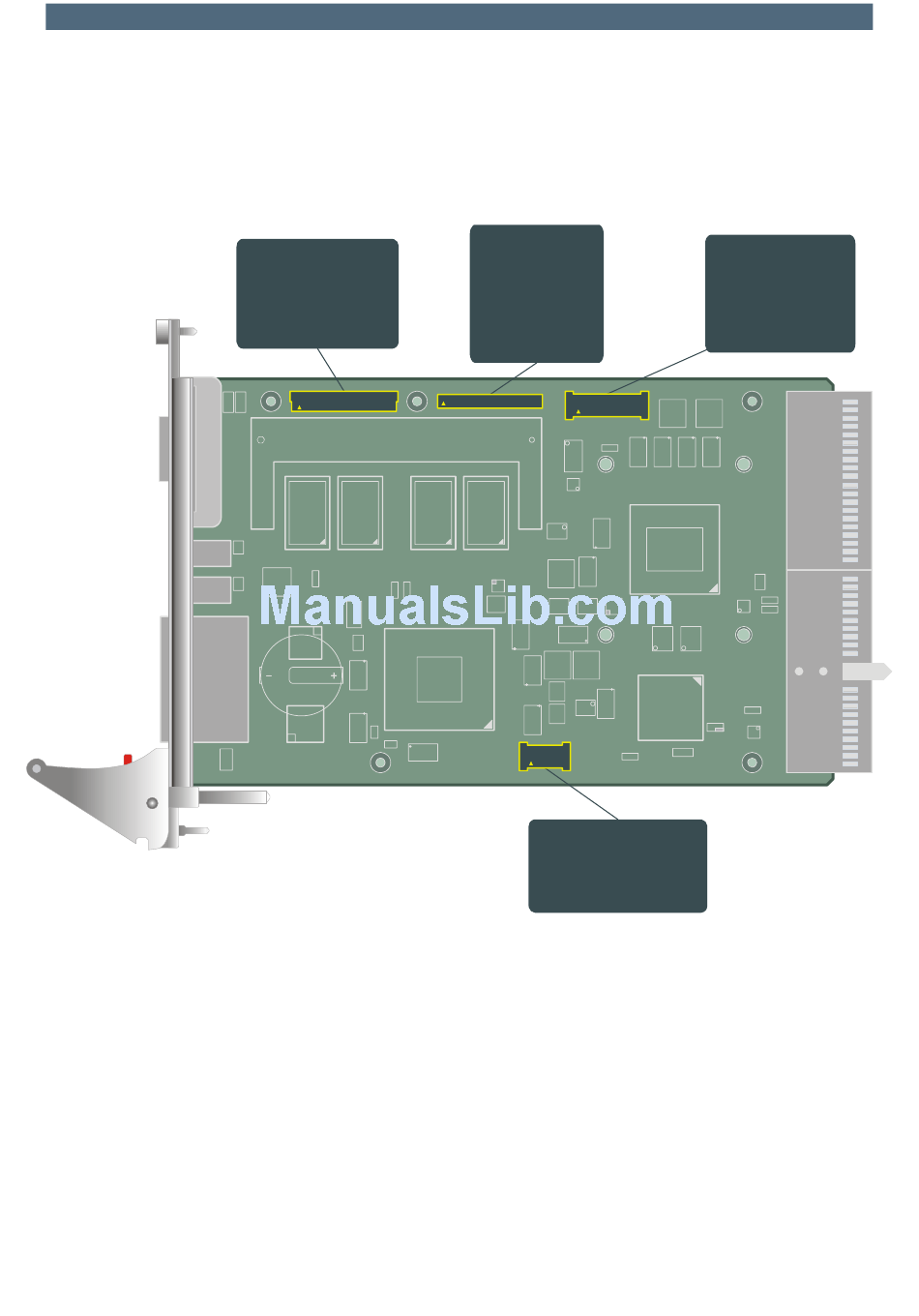

High Speed Expansion
